Astera has a new light. The QuikPunch is a battery-powered LED PAR spot with a Fresnel lens designed for lighting professionals who need a fast, bright, and versatile light. Taking features found in the popular 3” lens QuikSpot but scaling up in size, lux output, and beam control. Astera states the QuikPunch with its 5” Fresnel lens is the first spotlight that takes advantage of the versatile features of an LED PAR combined with the optical quality of a Fresnel in the same wireless fixture.
The QuikPunch is engineered to deliver a sharp, high-intensity beam for spotlight applications or a wide, soft wash to light large surfaces. Asera states the QuikPunch maintains clean, single-shadow optical performance without color shift or light spill.
This is Astera’s most energy-efficient spot; it offers a claimed peak output of 8,000 lux at 3 meters using only 75 Watts, delivering the same punch as a traditional 650-Watt tungsten Fresnel. The built-in battery provides up to 4.5 hours of runtime at full output, and longer operation in reduced-output modes.

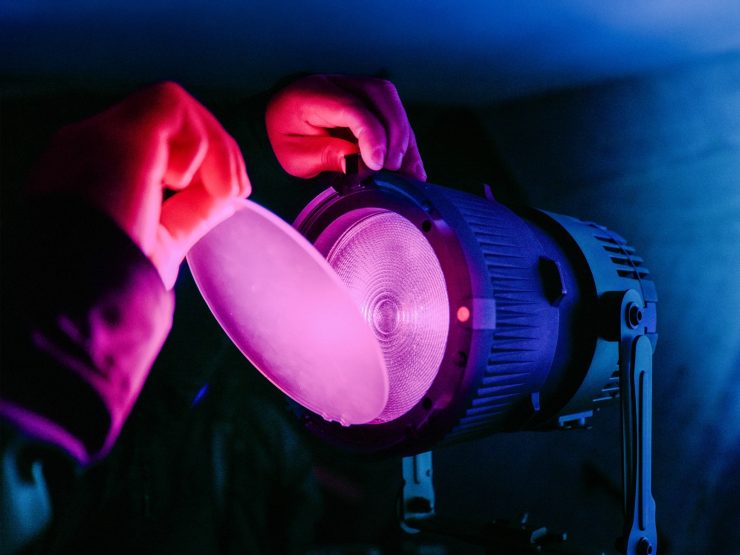

Equipped with the Astera Titan LED Engine, RGBMA color science, and OutputGain, the new QuikPunch provides a 13º-60º zoom range and outputs an ultra-sharp, easy-to-control footprint. Its accurate, zero-spill beam is reminiscent of a theatrical PC projector, but can also emulate the traditional Tungsten Fresnel when the optional EdgeSoftener filter is added. The accessory is useful when a frost effect is required for better in-camera wrap, or to slightly soften a cut-off background.
The combination of bright output and a 60º beam angle makes it an effective choice for evenly illuminating large surfaces with a wash light effect, replacing multi-diode 200W LED washers. QuikPunch’s barndoors add further light-cutting control. Even at 45º QuikPunch produces a sharp and controlled beam.

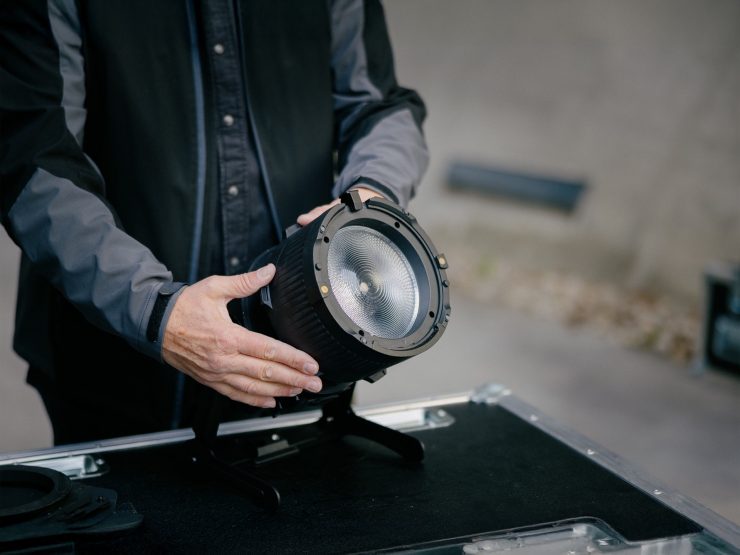

Featuring a 13º-60º zoom, the QuikTurn function makes it easy to achieve wider beam angles quickly. Astera states that the barrel-driven system is a more efficient alternative to conventional filter-based zooms, allowing users to adjust the beam spread instantly with a simple twist. A mechanical stop at 30º provides a tactile midpoint reference for fast, repeatable adjustments even in low-light conditions.

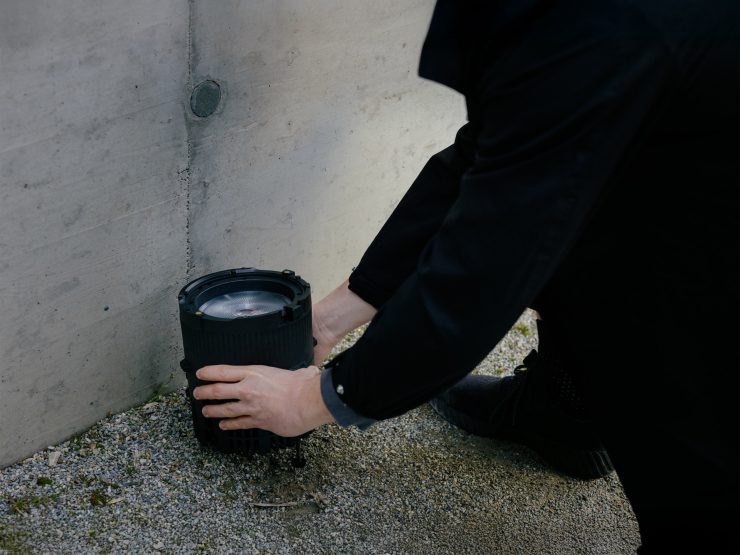

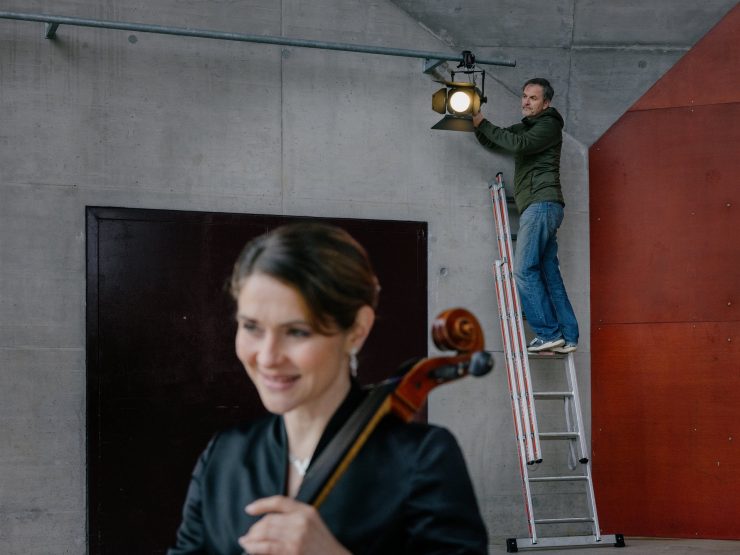

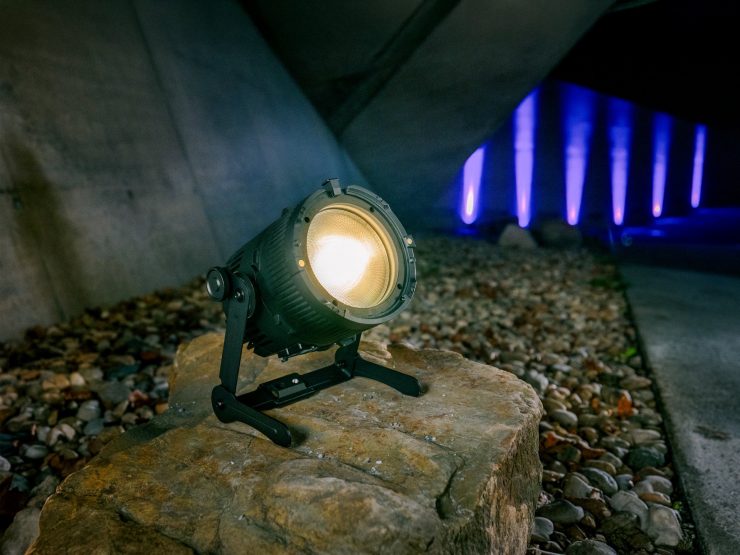

Whether rigged in a truss, mounted on a tripod as a backlight, or deployed as a stand-alone uplight, it adapts to nearly any rigging scenario. Features a removable Yoke that includes foldable feet and an airline track, making it equally at home on floors or lighting grids. It’s built-in KickStand allows for fast uplighting without a yoke, and a 3/8″ rear thread supports mounting via baby pins or low-profile Superclamps.
To make QuikPunch even more useful, Astera has a range of hardware and wireless tools. For quick and easy mounting and remounting from floor or truss to a tripod, there’s the new AirlineTrack-compatible TrackSpigot 28/16. It allows users to attach both a 28mm pin and a 16mm receiver to QuikPunch’s infinitely versatile removable yoke. The TrackPin Compact accessory enables ultra-low rigging height and smooth pan control. As with the AX5 and QuikSpot, FlexCovers are available to help QuikPunch easily blend in with its surroundings.
Designed to assist with accurate fixture positioning and also available for QuikSpot via firmware update, the TiltMeter is a software-based tool displayed on the fixture’s OLED screen. When the Astera button is pressed (not connected to the ChargingPlate), the screen switches to display only the tilt angle, thanks to the built-in accelerometer. Pressing the button again returns the display to standard mode after focusing is complete.
QuikPunch is fully compatible with Astera’s wireless ecosystem, including the AsteraApp, as well as built-in LumenRadio CRMX, UHF, Bluetooth, and infrared remote control. It also supports wired 5-pin XLR in/out for wired DMX/RDM. Prepping is streamlined with the ChargingPlate and PrepBox, allowing users to assign DMX addresses, adjust settings, and pair wirelessly in seconds. Up to eight fixtures can be charged, configured, and prepped simultaneously inside a dedicated ChargingCase, minimizing downtime and maximizing efficiency.
Availability and Pricing
Availability and pricing have not been released.
If you are at Cine Gear LA, you can see the new QuikPunch 5″ at booth S3063
