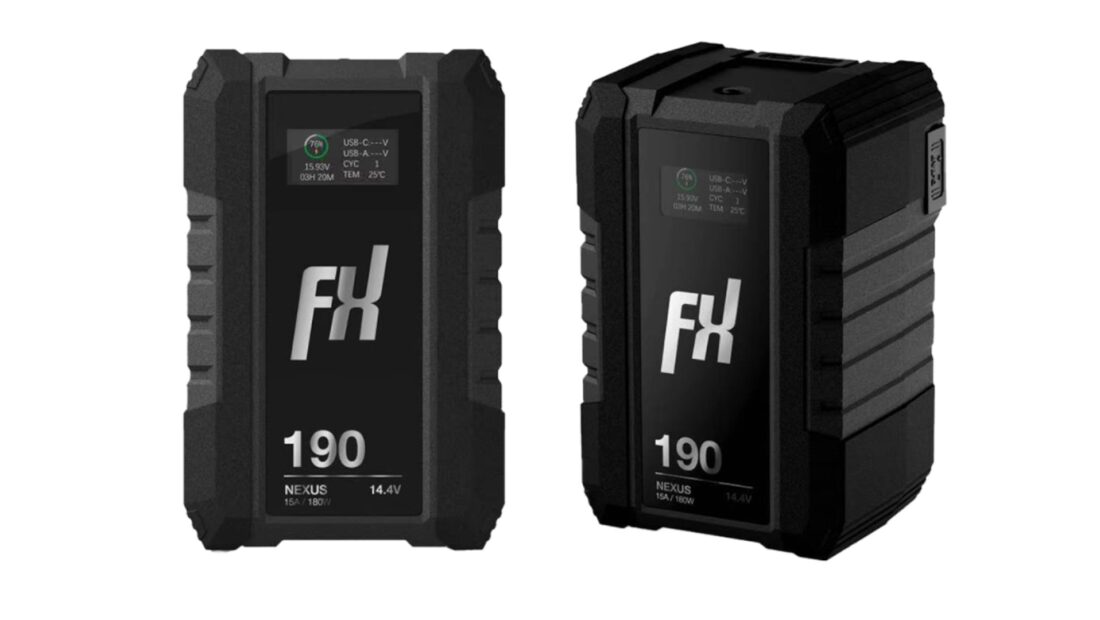

The FXLION NEXUS Smart V-Mount Battery is now available in three capacities, 190Wh, 250Wh, and 300Wh. There are V-Mount and Gold Mount options.
The NEXUS batteries feature an integrated display, USB-C, D-tap, and USB-A outputs and intelligent power management capabilities.
Key features
- Integrated Smart Display – real-time data on power draw, charge status, runtime & cycles
- USB-C, D-Tap, and USB-A outputs – power your accessories directly
- Intelligent Power Management – extended battery health and accurate monitoring
- Multiple Mount Options – V-Mount & Gold Mount
- Compact & Durable
The batteries display shows real-time information, including charge level, power draw, voltage, remaining runtime, and charging cycles.
An intelligent PCB design provides multi-layer protection against overheating, overcharging, over-discharging, and overcurrent, keeping both the battery and your devices safe. The batteries support SONY and RED communication protocols, allowing compatible cameras to display real-time battery data such as capacity, voltage, and remaining percentage.
The internal battery pack uses a non-wire assembly process for enhanced stability and reliability. They include a USB-C port with bidirectional PD 100W fast charging, a USB-A output port, and two D-Tap in/out ports. These allow you to power cameras, high-draw LED lights, and also charge the battery using a D-Tap charger.
Designed to perform in extreme conditions, the battery operates reliably in temperatures ranging from -20°C to +55°C. Its reinforced internal structure improves drop resistance, while protective rubber caps on the D-Tap and USB-A ports enhance durability. A metal V-lock mount provides added strength and wear-resistance for long-term, professional use.
You could use the NEXUS batteries to power lights, cameras, or wireless systems.

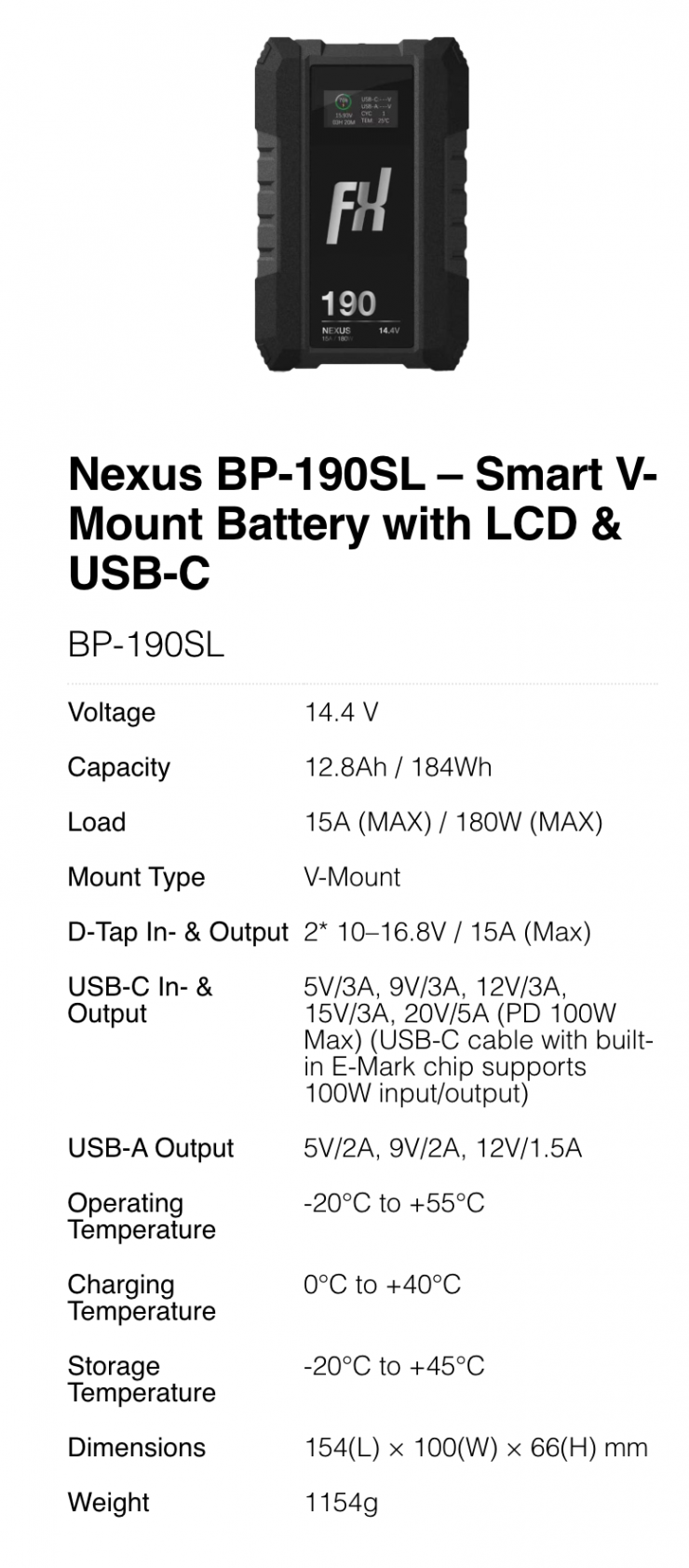

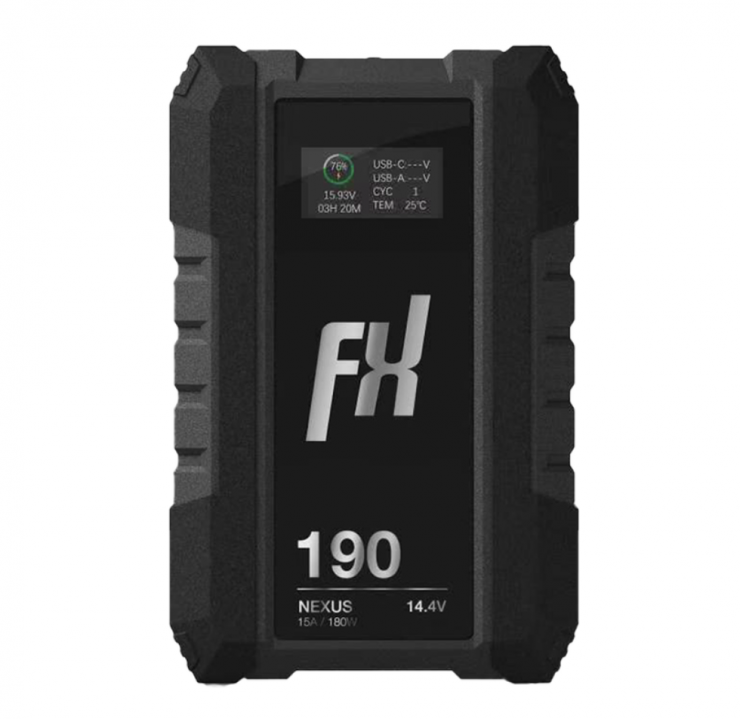

Nexus BP-190SL
The Nexus BP-190SL is a V-Mount battery with a capacity of 14.4V / 12.8Ah / 184Wh and a maximum output of 14.4V / 15A. It features two D-Tap in/out ports, one USB-C port supporting up to 100W input/output, and one USB-A output port. Equipped with an intelligent PCB, the battery communicates with SONY and RED cameras.

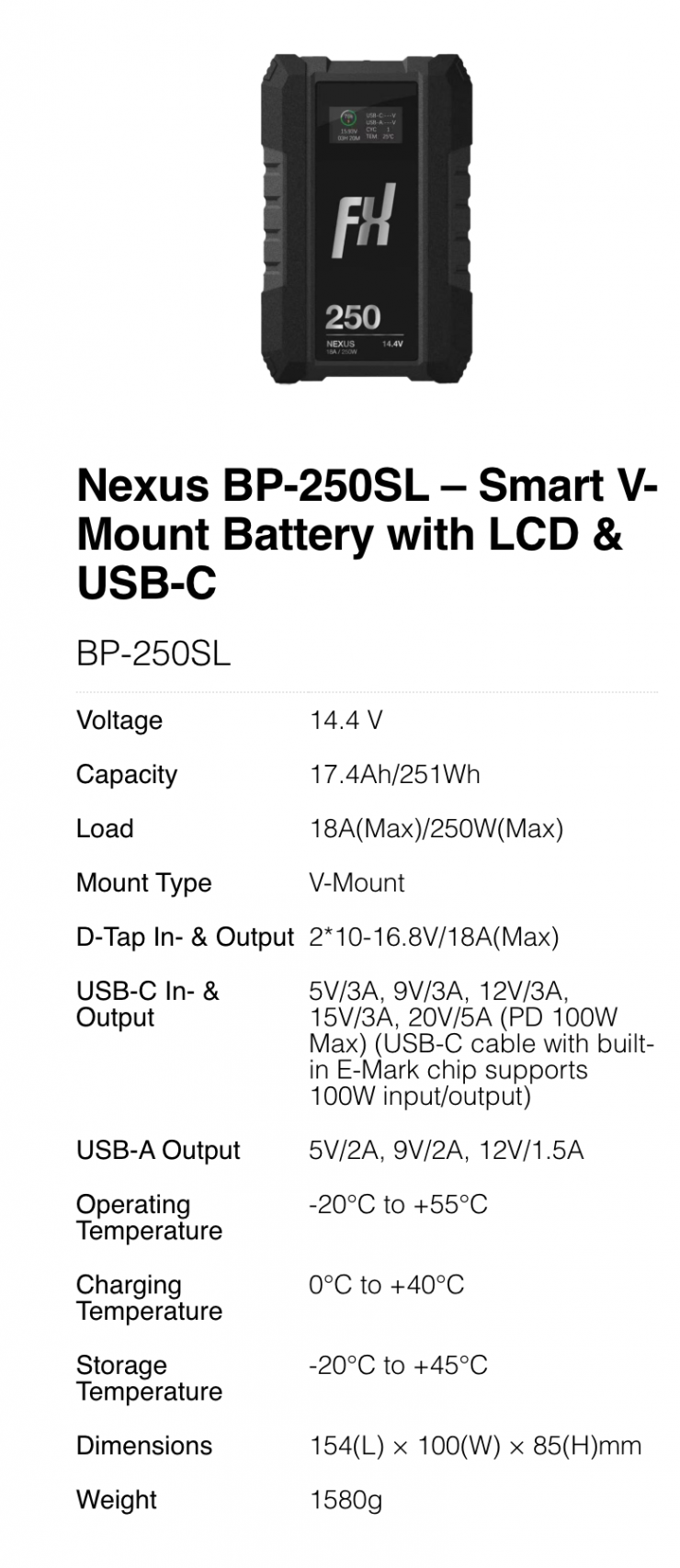

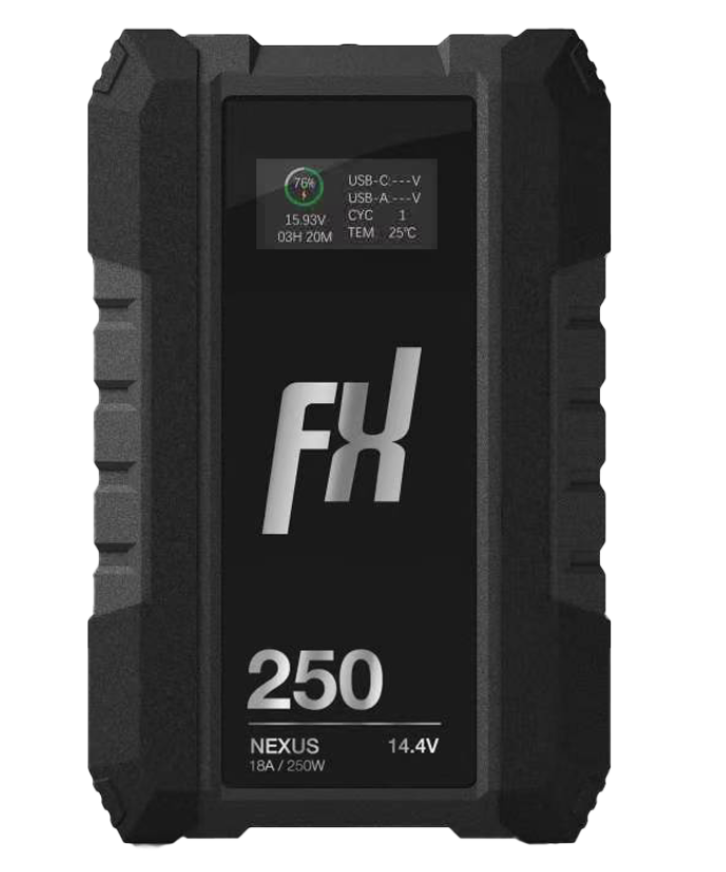

Nexus BP-250SL
The Nexus BP-250SL is a V-Mount battery with a capacity of 14.4V / 17.4Ah / 251Wh and a maximum output of 14.4V / 18A. It features two D-Tap in/out ports, one USB-C port supporting up to 100W input/output, and one USB-A output port. Equipped with an intelligent PCB, the battery communicates with SONY and RED cameras.

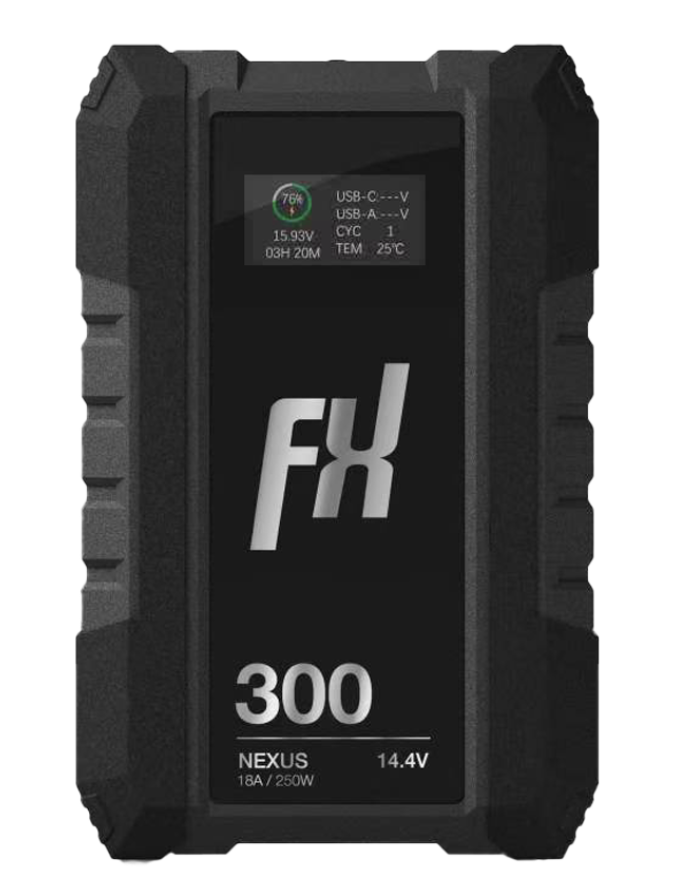

Nexus BP-300SL
The Nexus BP-300SL is a V-Mount battery with a capacity of 14.4V / 20.4Ah / 294Wh and a maximum output of 14.4V / 18A. It features two D-Tap in/out ports, one USB-C port supporting up to 100W input/output, and one USB-A output port. Equipped with an intelligent PCB, the battery communicates with SONY and RED cameras.
Price & Availability
I don’t currently have any information about pricing or availability.
