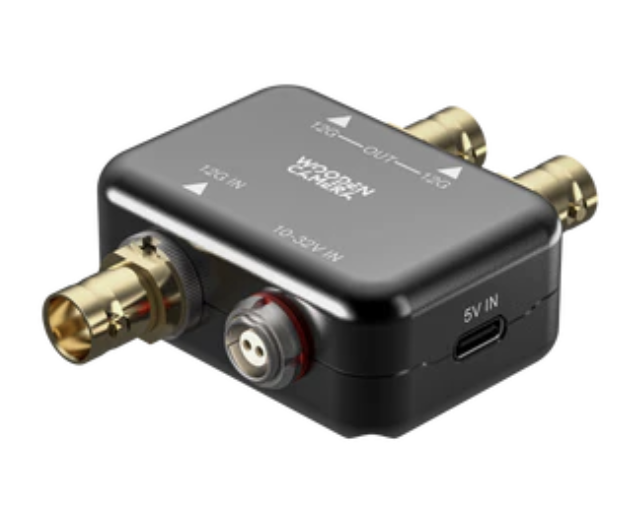

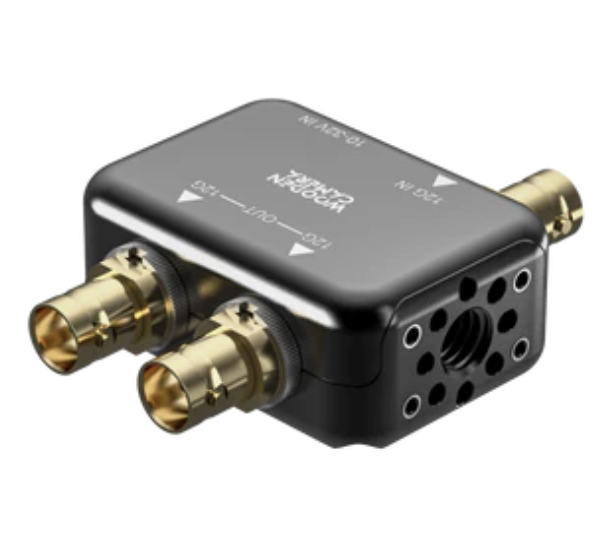

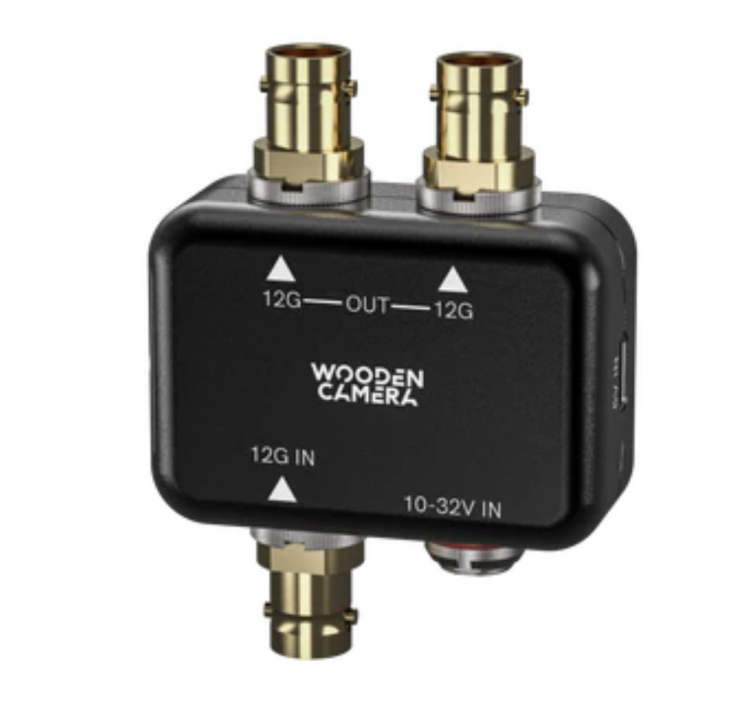

The Wooden Camera 12G-SDI Splitter (1×2) allows you to split your 4K signal. It’s got mounting points, a USB-C, and a 2-pin power connector.
The 12G-SDI Splitter (1×2) is a high-performance signal distribution device for broadcast, live production, and professional video applications. It accepts a single 12G-SDI input, supporting resolutions up to 2160p (4K UHD) with full 10-bit color depth and HDR metadata, ensuring pristine video quality. The signal is distributed to two independent 12G-SDI outputs without any loss or degradation.
This splitter features a 2-pin 10-32V DC power input for seamless integration with camera batteries, AC power devices, and professional power distribution systems. The USB-C 5V power input enables operation with cameras and monitors that lack dedicated power options.
Designed for zero-latency transmission, this splitter ensures smooth, uninterrupted video feeds, making it an essential tool for directors, DITs, and video engineers working in demanding production environments.

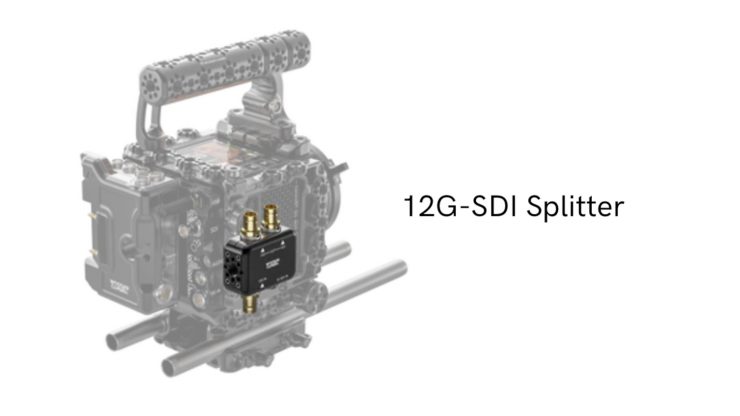

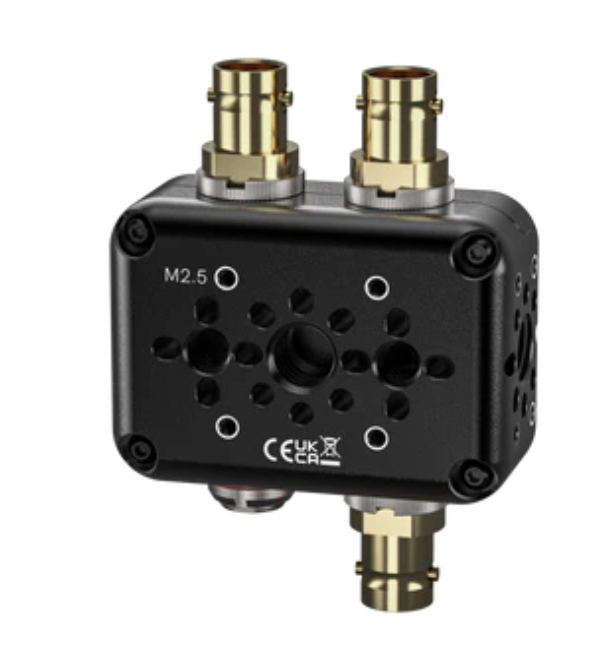

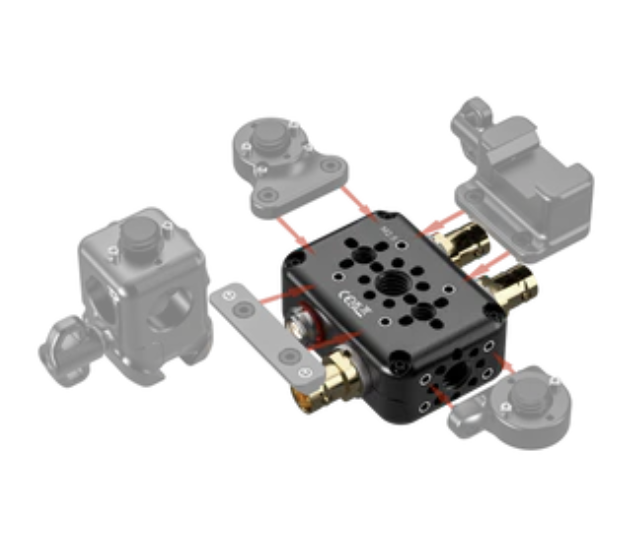

Multiple 1/4″-20, 3/8″-16, and M2.5 threads offer flexible mounting options for ergonomic rig setups. Add accessories like NATO brackets, Bolt-On Adapters, Mini Rails, and Universal Hinges to build your configuration.

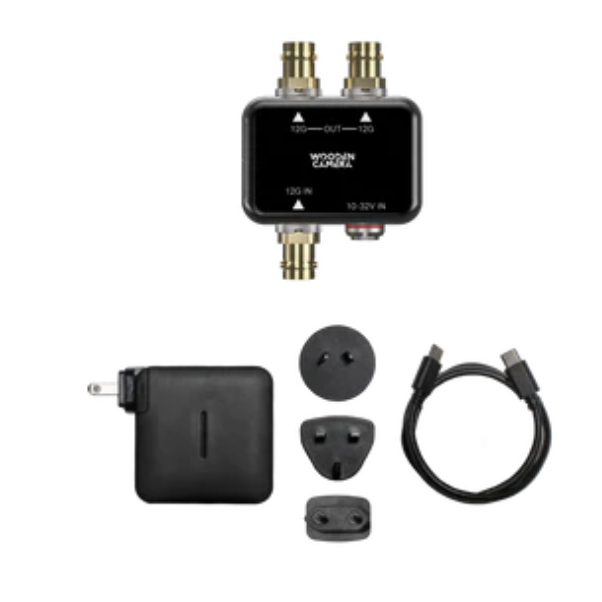

The kit option includes a high-powered USB 3.0 Type C Male 30-Watt AC Adapter.
Specifications:
12G-SDI Splitter (1×2): Weight: 53.07 g (0.12 lbs) | Dimensions: 54 x 71.7 x 23 mm (2.13 x 2.82 x 2.82 in)
12G-SDI Splitter (1×2) Kit: Weight: 278.5 g (0.61 lbs) | Dimensions: 59 x 60.6 x 30.3 mm (2.3 x 2.4 x 1.2 in)
Price & Availability
The Wooden Camera 12G-SDI Splitter (1×2) is now available for $301.75 USD.
