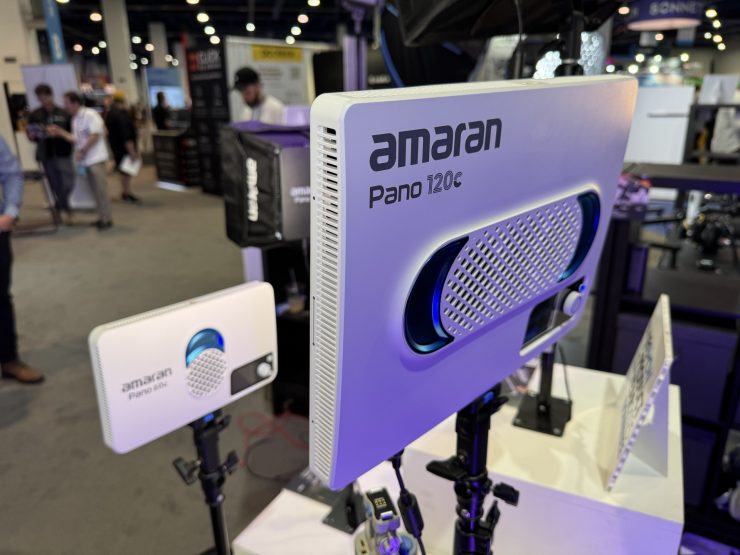

amaran has released two versions of the new Pavo Panel lights. The 60-watt Pano 60c and 120-watt Pano 120c.

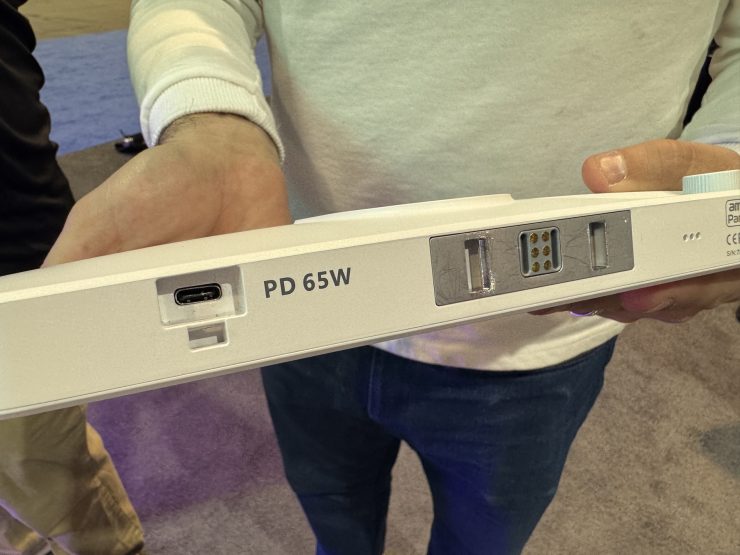

The new panels are very light and compact. They don’t use the Sony NPF batteries found in many panel lights. Instead, it can be powered with a USB-C battery or a DC locking cable. The USB-C input also features a locking connector and is included in the kit.

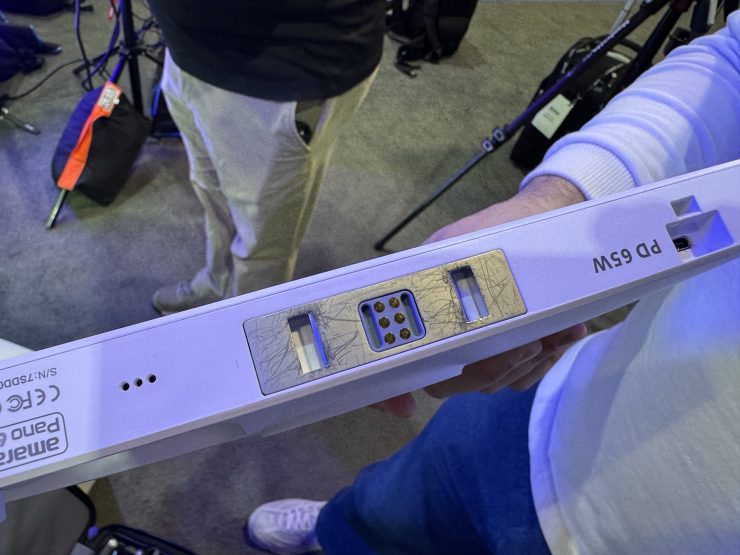

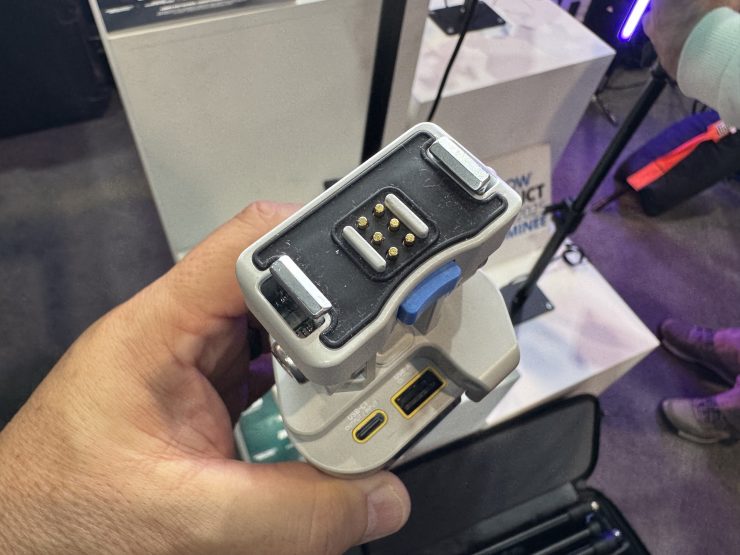

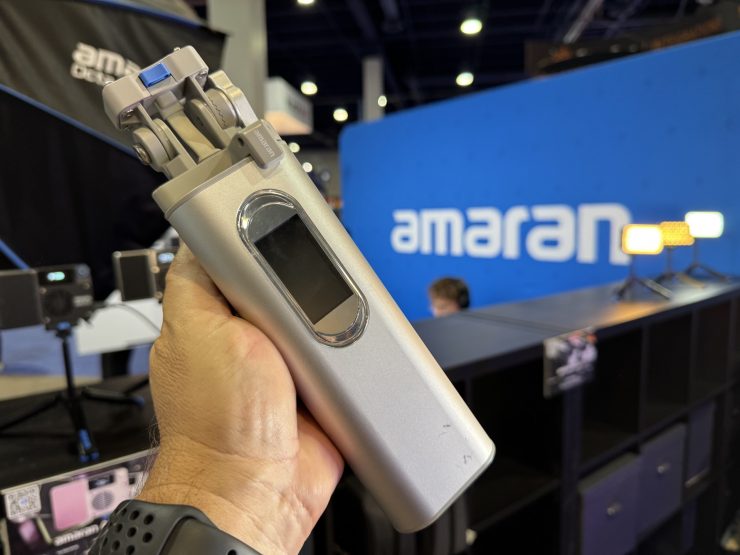

amaran has a new power bank for the Pano. The 86-watt amaran Peak is clipped on the mount, similar to the light stand receiver. There are pin contacts that are used to power up the light, so no cable is needed. On the back of the amaran Peak is a 3/8 16″ with a 1/4 20″ reducers for more mounting options. The battery also has USB-C for charging and to use as a standard portable battery to charge other devices.
Another cool feature is the Ace Lock Mount mounting system. amaran came up with a unique clamping design with a light post receiver. It’s much smaller than the typical

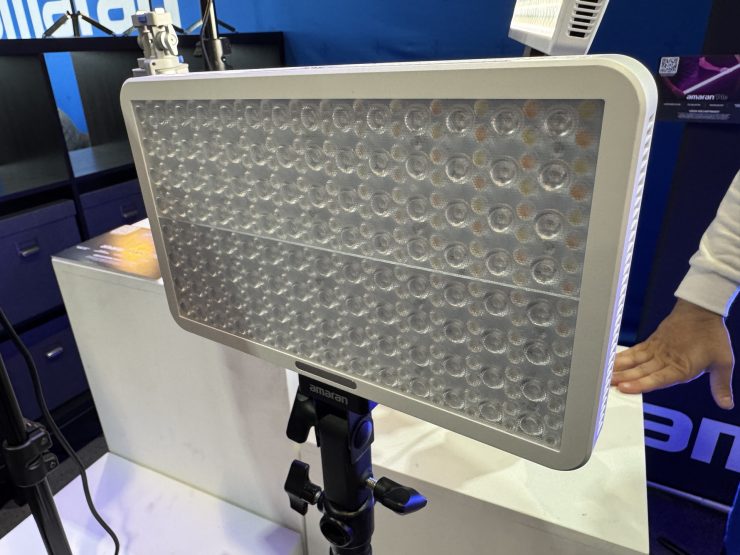

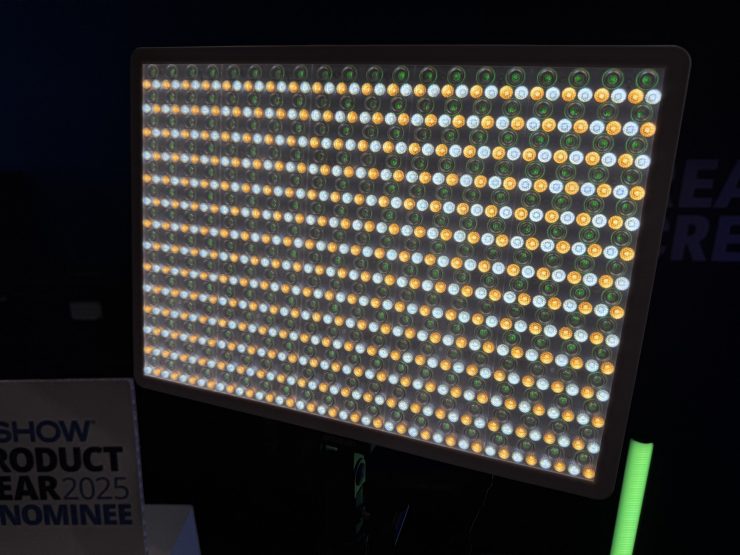

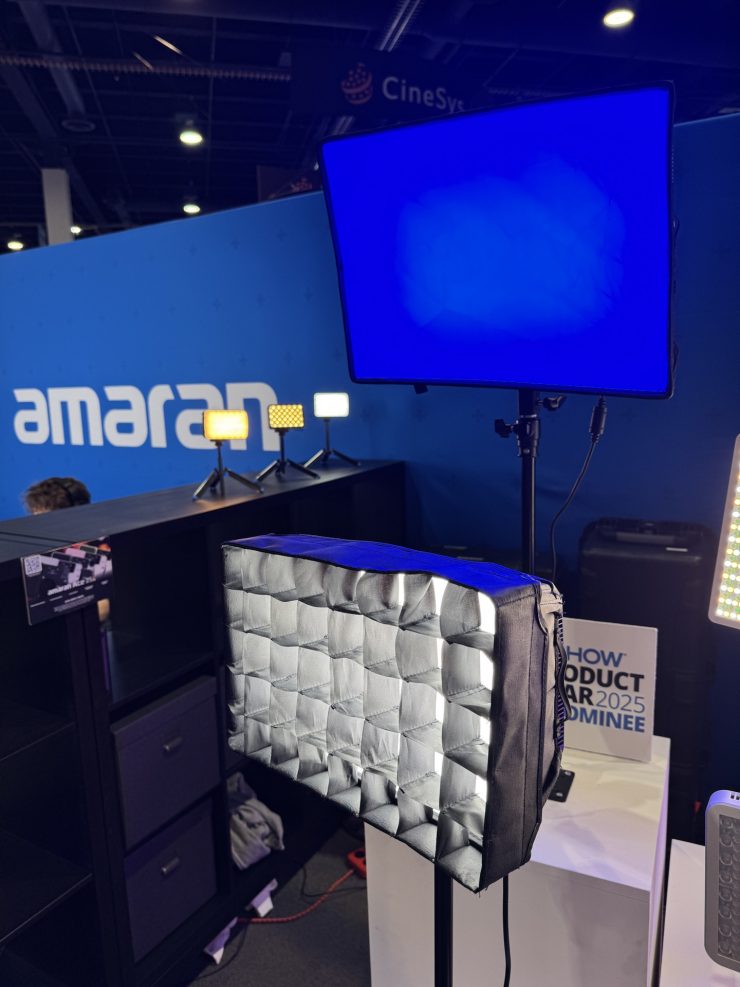

The Pano Panels are optically enhanced with lenses in front of the LEDs, making them a hard light with a 45-degree beam angle. The kits include a soft box and grid as well.
amaran Pano 60c Specifications
CCT – 2,300K – 10,000K
CRI – 96
TLCI – 97
SSI (Tungsten) – 84
SSI (D56) – 74
TM-30 RG (Average) – 101
TM-30 RF (Average) – 93
Max Power Output – 60W
Max Power Consumption – 65W
Color Chipset – RGBWW
Lumens – 6,790 lumens
Power Supply Method – USB-C PD
Beam Angle (No Accessory) – 45°
Beam Angle (Control Grid) – 45°
Operating Voltage (Fixture) – DC 20V
Operating Voltage (AC Power Supply) – AC 110V ~ 220V
Operating Temperature – -10°C – 40°C / 14°F – 104°F
Storage Temperature – -20°C – 80°C / -4°F – 176°F
Control Methods – On-board, amaran App, Sidus Link
Firmware Upgradeable – amaran App, Sidus Link
Wireless Operating Range – ≤80m / ≤262.5ft (Bluetooth)
Cooling Method – Fan Cooling
Fixture Dimensions – 10.0 x 6.1 x 1.2in
Fixture Weight – 610g / 1.3lbs
Pano 60c KitKey features
- Tablet-sized, 60W RGBWW full-color panel light for creating on-the-go
- Most compact & portable panel: Ultra-slim design for easy transport, mounting, and positioning
- Brightest across any spectrum: Up to 22,220 lux @ 0.5m to fill spaces with vibrant color and bright light
- Flexible USB-C PD power: Power on-the-go with a range of USB-C PD3.0 power banks & chargers
- All-in-one creator kit: Complete with essential creator tools in a travel-ready case
amaran Pano 120c Specifications
CCT – 2,300K – 10,000K
CRI – 96
TLCI – 97
SSI (Tungsten) – 84
SSI (D56) – 74
TM-30 RG (Average) – 101
TM-30 RF (Average) – 93
Max Power Output – 120W
Max Power Consumption – 140W
Color Chipset – RGBWW
Lumens – 13,855 lumens
Power Supply Method – DC, USB-C PD
Beam Angle (No Accessory) – 45°
Beam Angle (Control Grid) – 45°
Operating Voltage (Fixture) – DC 24V, PD 28V
Operating Voltage (AC Power Supply) – AC 110V ~ 220V
Operating Temperature – -10°C – 40°C / 14°F – 104°F
Storage Temperature – -20°C – 80°C / -4°F – 176°F
Control Methods – On-board, amaran App, Sidus Link
Firmware Upgradeable – amaran App, Sidus Link
Wireless Operating Range – ≤80m / ≤262.5ft (Bluetooth)
Cooling Method – Fan Cooling
Fixture Dimensions – 14.0 x 10.0 x 1.4in
Fixture Weight -1.6kg / 3.5lbs
Pano 120c Kit Key features
- Laptop-sized, 120W RGBWW full-color panel light for larger scenes and wider coverage
- Most compact & portable panel: Ultra-slim design for easy transport, mounting, and positioning
- Brightest across any spectrum: Up to 13,490 lux @ 1m to fill spaces with vibrant color and powerful light
- Flexible USB-C PD power: Power on-the-go with a range of power banks & chargers USB-C PD3.0 and above
- All-in-one creator kit: Complete with essential creator tools in a travel-ready case
Pricing and Availability
The Pano Panel 60c retails for $165.00 USD, and the Pano Panel 120c is $289.00 USD. Both are available to purchase now.
