The Core SWX Powerbase Edge Snap Xtreme is their new addition to the Snap line. The new version doubles the capacity of the original, the 98Wh Snap Xtreme, delivering longer runtimes while retaining the modular innovation that transformed how filmmakers power their gear. Built for those who demand uncompromised reliability, advanced versatility, and streamlined efficiency.
Hot-Swappable, Stackable Power for Maximum Runtime

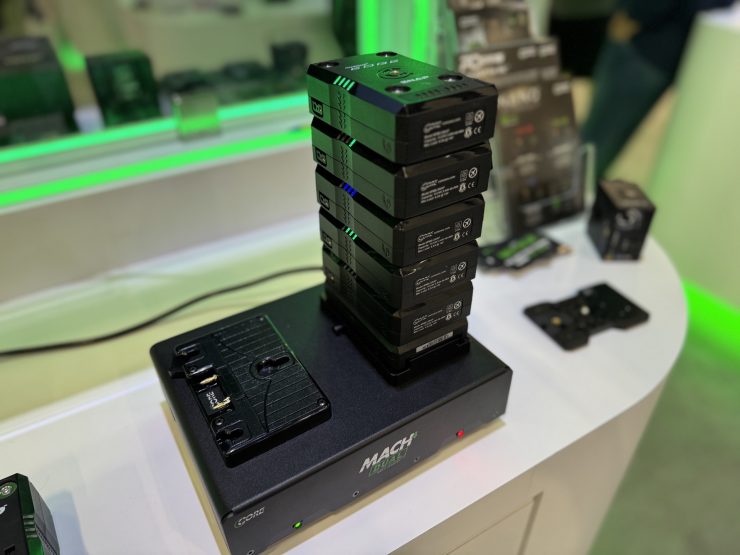

At the core of the Snap Xtreme lies its hot-swappable, stackable architecture, which allows users to snap multiple packs together in parallel for extended runtimes and increased load handling. Charging multiple stacked packs through a single USB-C PD connection enables parallel charging, drastically reducing turnaround time and simplifying power logistics on set. It also makes charging when traveling simpler since you won’t need a base charger.
Enhanced Security with Snap Lock Technology
Building on the magnetic connection that defined the original, the Snap Xtreme introduces Snap Lock™, a reinforced mechanical latching system for added secure attachment in high-movement and high-impact environments. Designed with a durable nylon locking lever, Snap Lock ensures packs stay firmly engaged.
Power More, Worry Less with PD Pro™ Technology

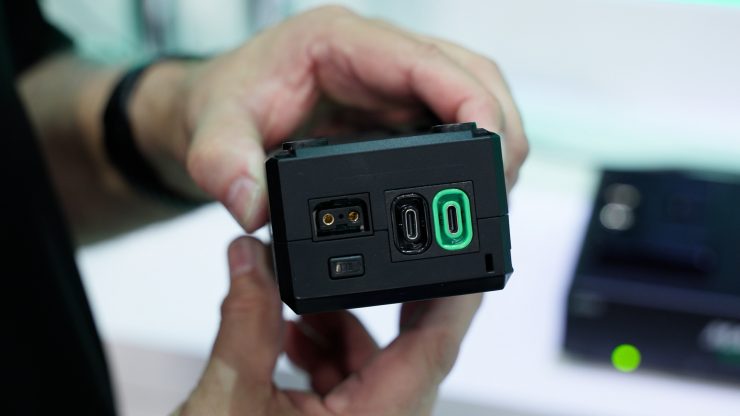

Equipped with Core SWX’s PD Pro™ technology, the Snap Xtreme features two variable-voltage PD Pro AUX outputs (5V to 28V) and two standard 12V P-Taps, enabling simultaneous powering of up to four accessories. From cameras and monitors to lights and transmitters, Snap Xtreme provides versatile, reliable power distribution across your entire rig.
Mounting Flexibility
Mounting flexibility is equally robust, thanks to the Edge Snap QR plate, which supports multiple 1/4-20 and 3/8 anti-rotational connections as well as compatibility with standard V-Lock mounting. The wrap-around RGB LED fuel gauge provides instant battery status and customizable color-coding, letting users identify packs at a glance across complex setups.
Seamless Integration with the SNAP Ecosystem
Fully compatible with the SNAP ecosystem, including the Snap QR plate and new SNAP-IT (V-SNAPIT and G-SNAPIT) interface adapters, the Edge Snap Xtreme offers an expandable and universal battery solution for nearly any production workflow.
Smart Monitoring with Voltbridge iD
Each Snap Xtreme is also integrated with Voltbridge iD technology, offering real-time diagnostics, firmware information, and usage stats—all accessible via your smartphone with a simple NFC tap. Whether monitoring battery health or prepping for your next scene, you’ll always have the data you need at your fingertips.
Specification
Mount Type: SNAP Stacking
Capacity: 98wh (14.54vdc, 6.8Ah)
Max Load: 10A @ 14v
Output Ptap: 2x ptap DC 11-16.8v
USB-C PD Charge Input: Up to 100w
USB-C PD PRO Output: Output: DC 5v/9v/12v/15v/20v/24v/28v, 2x 90w
Size: 4.46” x 2.83” x 2”
Weight: 1.5lbs.
*SNAP Xtreme’s Snaplock feature is fully backward-compatible with all existing SNAP accessories. While SNAP Xtreme will not Snaplock onto 49Wh SNAP battery packs, those 49Wh packs remain fully cross-compatible with SNAP Xtreme systems in all other respects.
Pricing and Availability
The Core SWX Powerbase Edge Snap Xtreme retails for $259.00 USD and is available now
