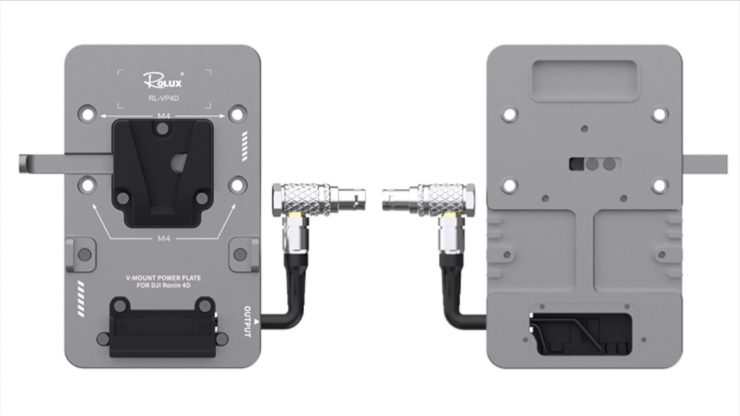

Rolux has introduced the RL-VP4D V-Mount Power Plate. It was designed to offer an efficient and practical solution to power the DJI Ronin 4D with V-mount batteries.
The Ronin 4D utilizes DJI’s TB50 batteries that have limited flexibility for professionals who want to use batteries they may already own, and that’s where the RL-VP4D V-Mount Power Plate comes in.
Key features
- Industry-standard V-Mount Compatibility
- Aerospace-Grade CNC Aluminum (only 249g)
- Quick M4 screw installation

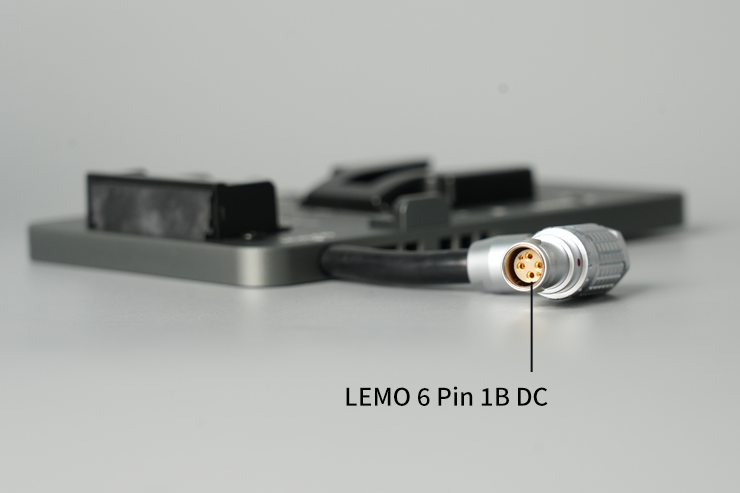

- LEMO 6-Pin 1B Connector
- Neatly Tailored 60mm Cable
- Supports 14.4V & 26V batteries

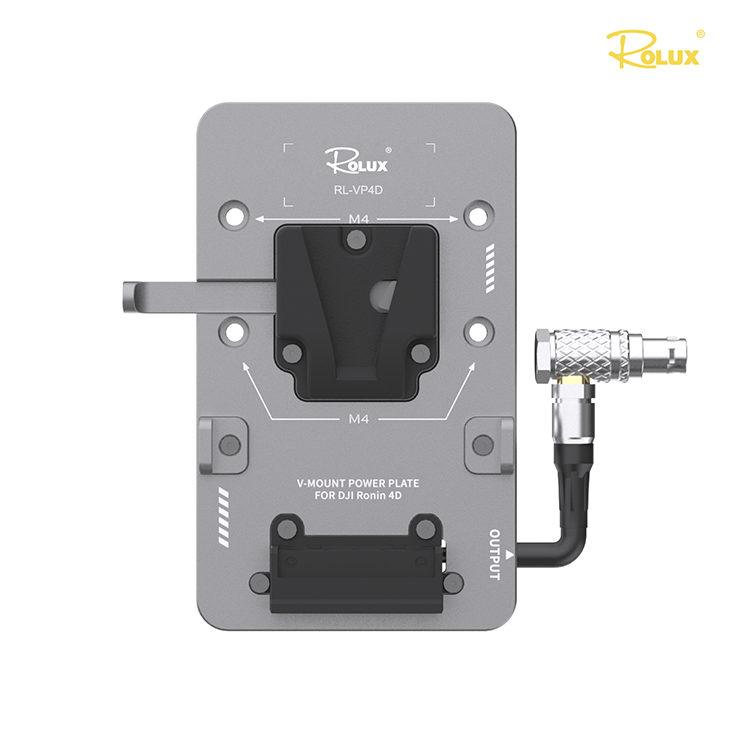

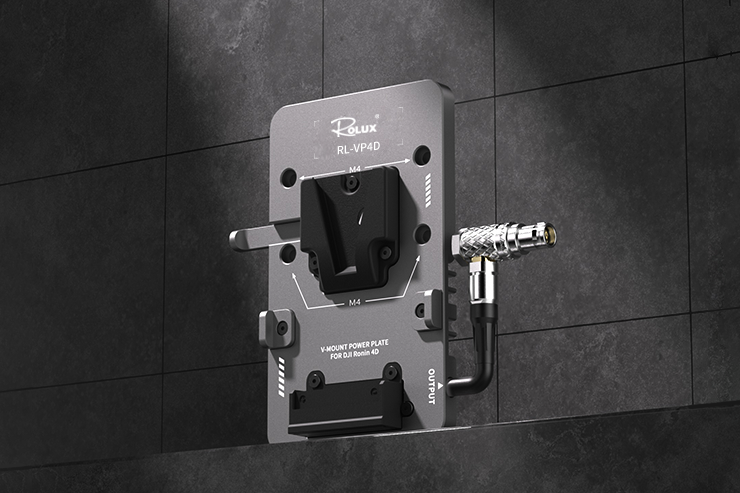

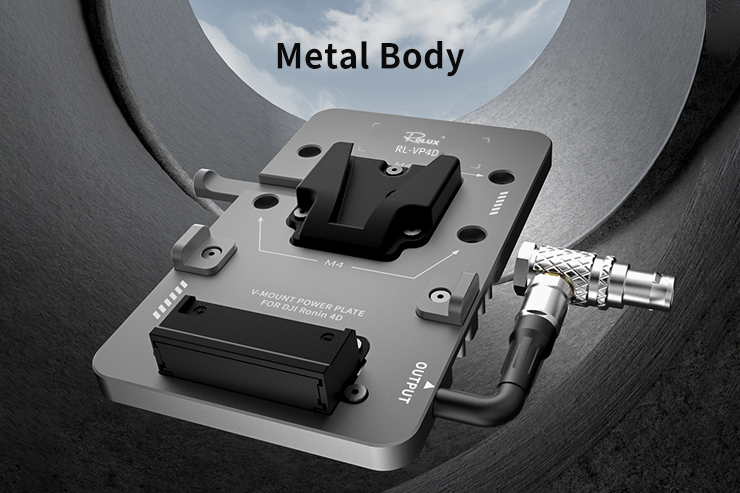

The Rolux RL-VP4D is crafted from high-quality aluminum alloy, and it weighs in at 249.4g /0.55 lbs and measures 132 x 80 x 8 mm / 5.2 x 3.1 x 0.3″.

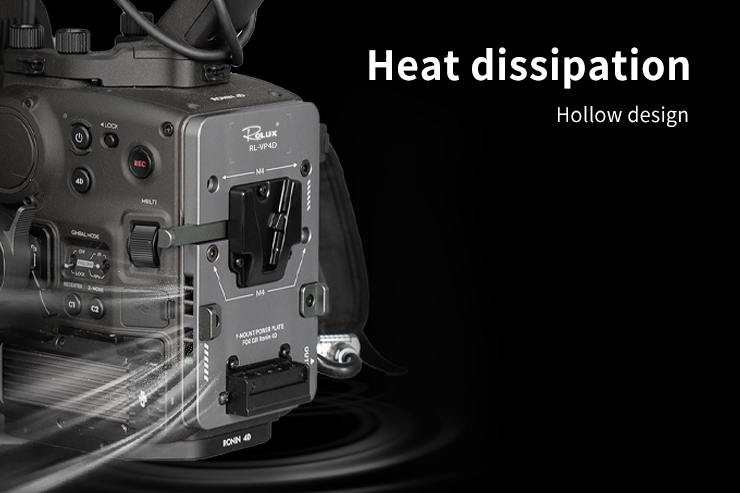

Its hollow structure is a key design advantage, allowing for unobstructed heat dissipation, which is crucial during extended shooting sessions. The screw holes (M4 standard) allow for quick and easy installation with just two or four screws, depending on user preference.

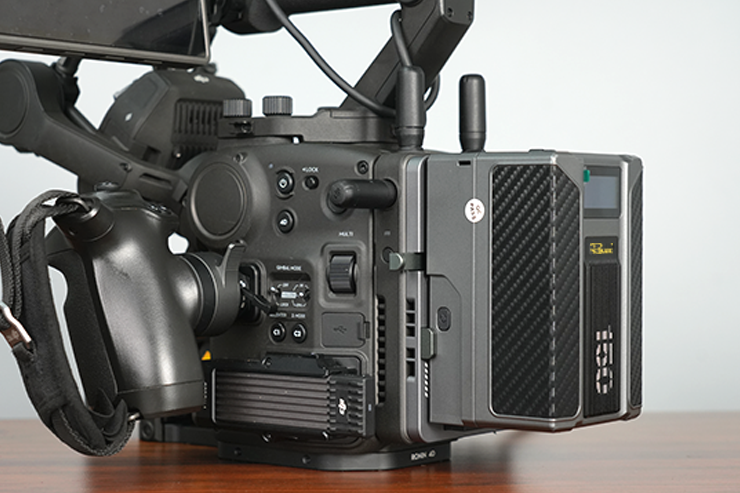

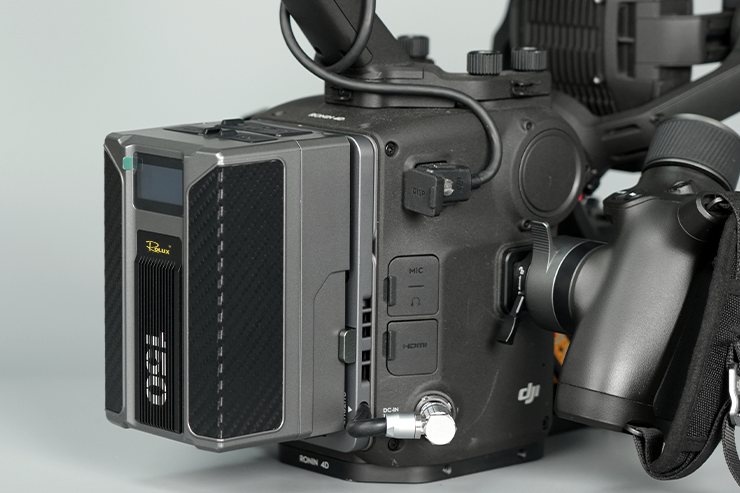

The RL-VP4D supports 14.4V and 26V V-mount batteries, making it a versatile option for users who prefer an alternative to DJI’s TB50 batteries. A standout feature is its 5-pin copper socket, which significantly enhances the current-carrying capacity, ensuring stable power delivery.

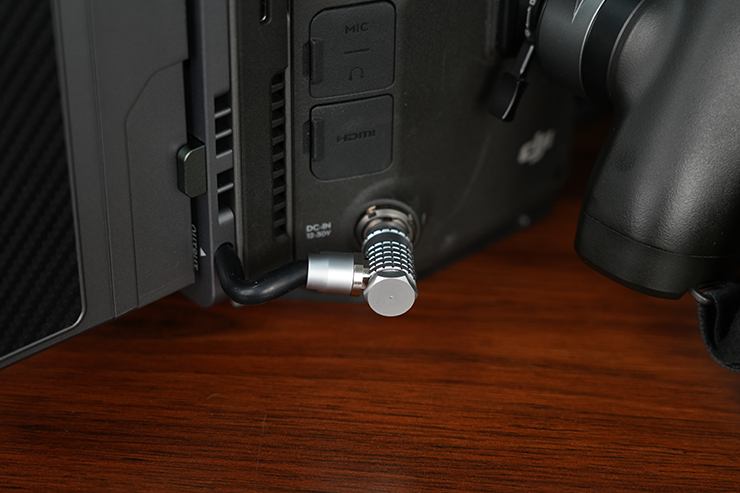

With its 6-pin 1B DC-IN wide voltage input (DC 12- 30V) connector, the plate can efficiently manage power. Rolux recommends using a 14.4/14.8V battery capable of sustaining at least 15A of continuous current. This translates to at least 180W of power at 12V to prevent power failures, particularly when the Ronin 4D’s Z-axis activation demands peak power.

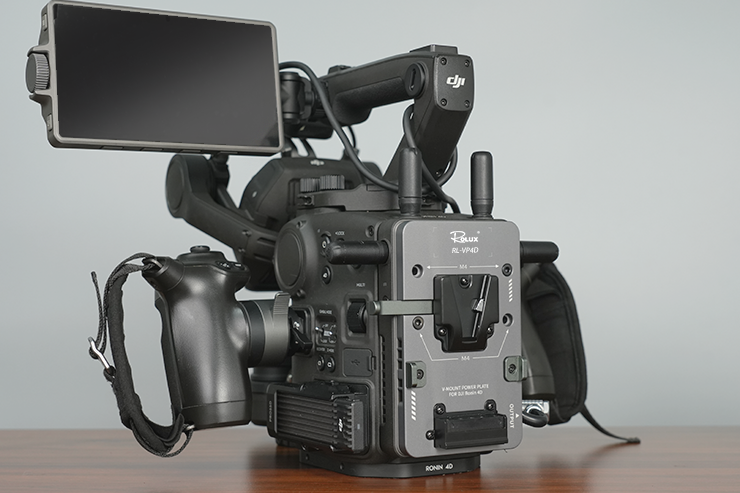

The RL-VP4D looks to be a good solution for handheld and split configurations, where a compact and lightweight power solution is needed. However, it is not recommended for intense motion applications (e.g., high-speed vehicle-mounted shooting) due to potential stability concerns when the fourth-axis stabilization is engaged.
For documentary, indie filmmaking, and controlled environment shoots, the plate allows Ronin 4D users to leverage readily available V-mount batteries, reducing costs and increasing operational flexibility.
Specifications
- Model: RL-VP4D
- Weight: 249.4g (0.55lbs)
- Dimensions: 132x80x8mm (5.2×3.1×0.3 inches)
- DC Cable Length: 60mm (2.4 inches)
Package Contents
- RL-VP4D Power Plate x1
- M4 Screws x6
- Hex Wrench x1
- User Manual x1
Price & Availability
The retail price of the V Mount Power Plate for DJI Ronin 4D is $165 USD. The plate is now available to purchase.
If anyone is interested in purchasing, they can contact the Rolux local distributors.
IndiPro is Rolux’s USA brand partner, offering direct purchases of Rolux products in the USA.
In Europe, contact Benel
In Canada, contact UpMarket Inc
For other regions, contact the Rolux local distributors listed on the website.
