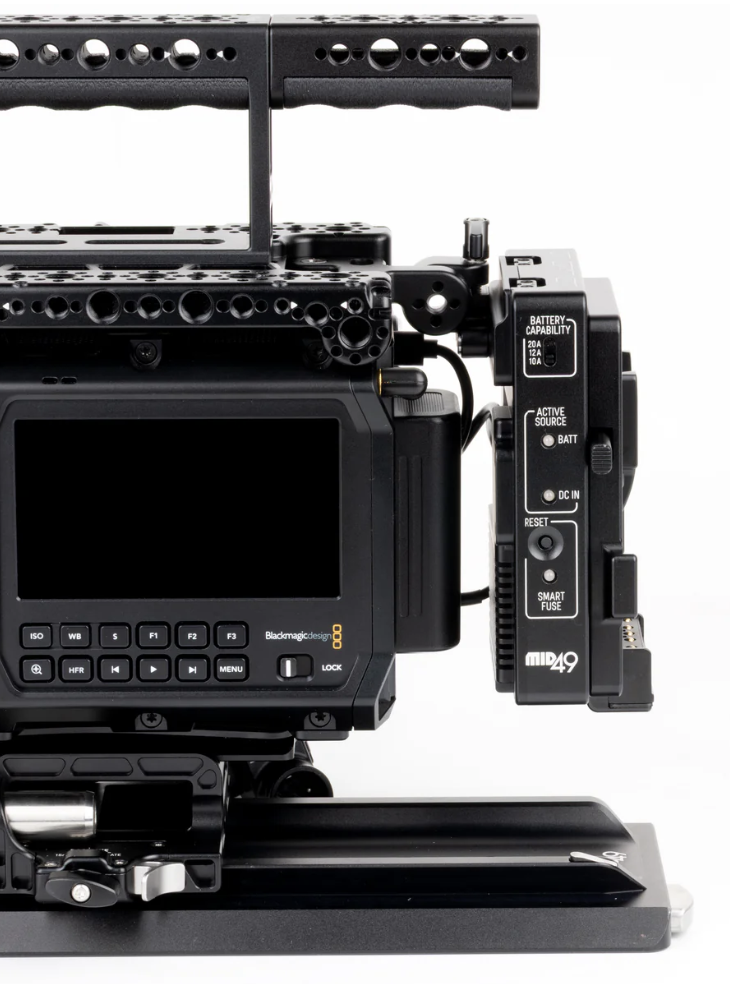

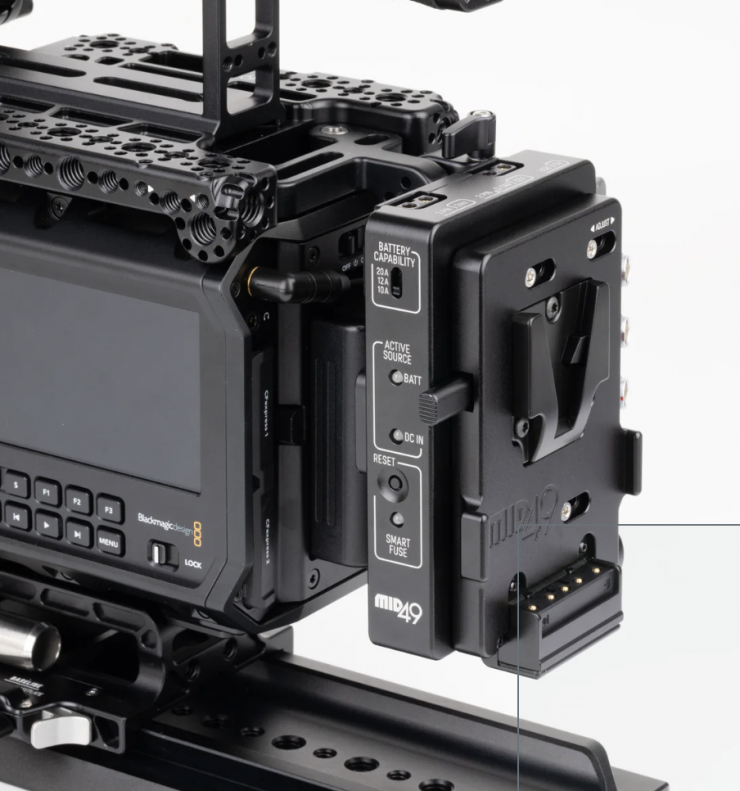

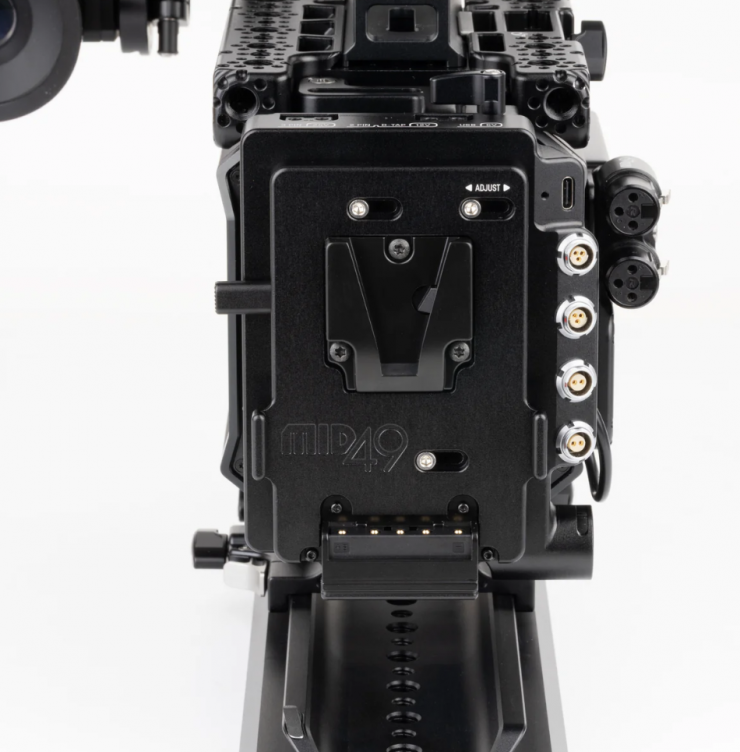

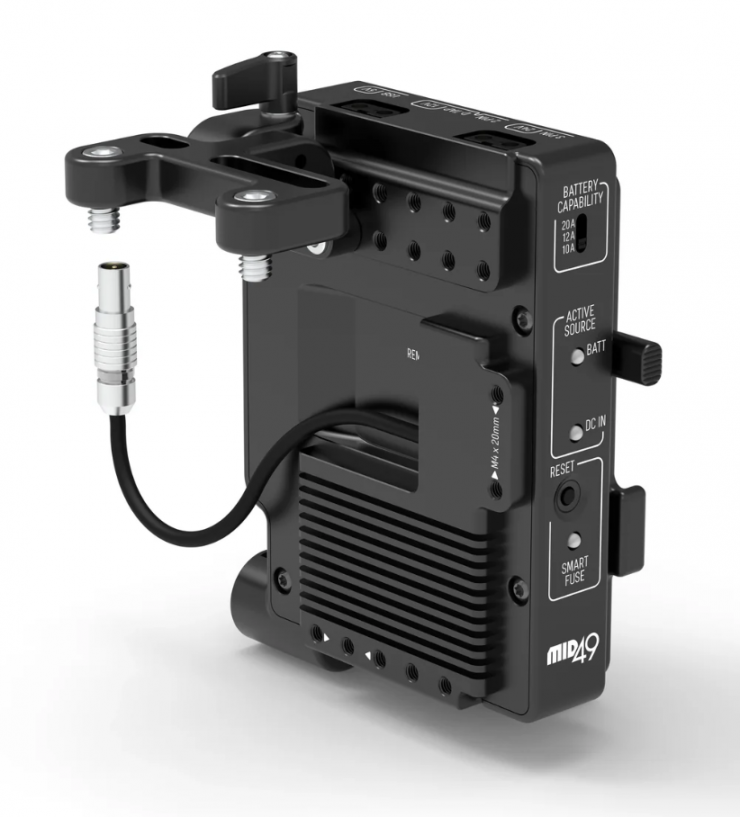

MID49 has announced its new Blackmagic PYXIS Power Distribution DB-9. The Power Distribution Box DB-9 (Blackmagic PYXIS) attaches directly to the camera body using the rear two 1/4-20 threaded holes and provides intelligent power distribution with D-Taps, 5V USB-C PD, 3pin Fischers, and 2pin LEMO compatible connectors.
The Blackmagic PYXIS Power Distribution DB-9 is available in both V-mount and Gold mount versions.

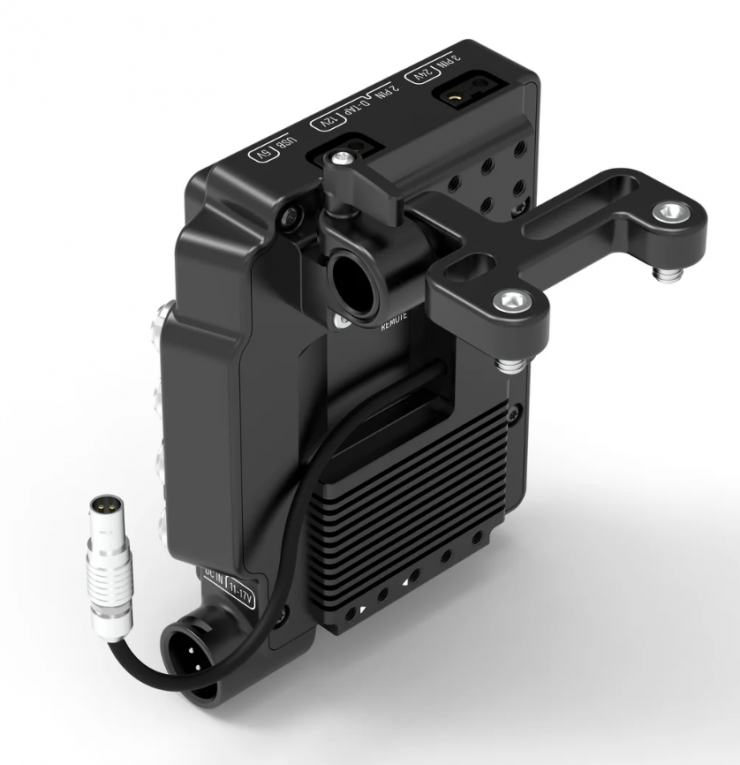

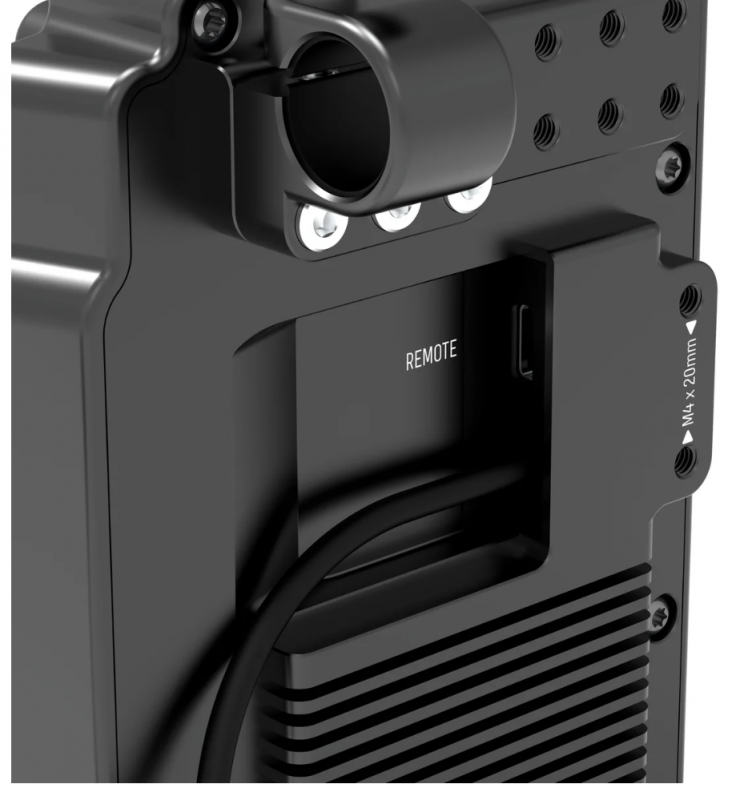

A removable REMOTE USB-C cable enables remote start/stop capability using 3-pin Fischer devices. Also available in a hinged 15mm LW Rod Mount version for attaching further away from the camera.
Users can hot-swap between the onboard battery and 4-pin XLR DC INPUT without losing camera or accessory power. When both sources are connected, the DC INPUT takes priority down to 12.5V at which point, the DB-4 will switch to an onboard battery.

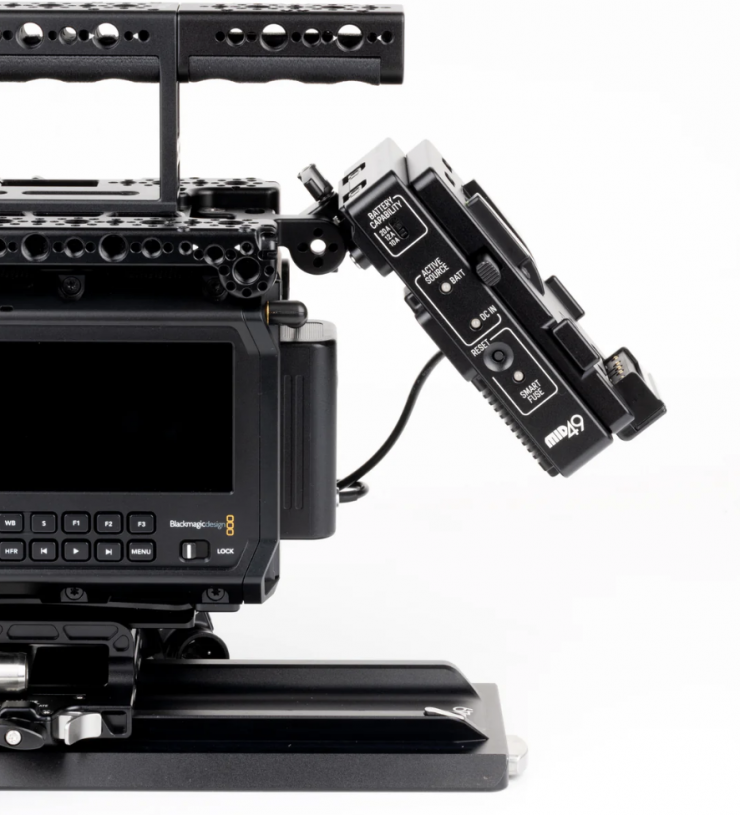

The mount design allows a Sony BP-U35 battery to be installed in the camera to function as an emergency backup. To swap the internal battery, swing the DB-9 up and release the battery.

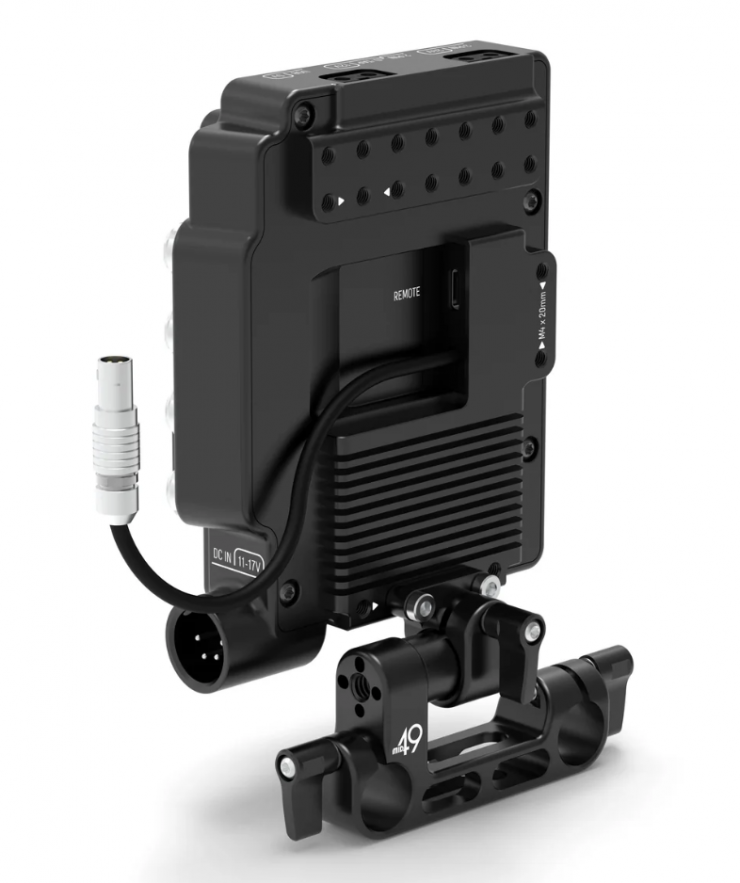

The DB-9 can also be separated from its camera mount, revealing a 15mm rod clamp with an internal friction sleeve. With the SMART FUSE design, camera power is monitored and the remaining power budget is allocated to accessories. For example, the C80 uses approximately 1.8A at 14V so when using a 10A capable battery, the remaining 8.2A is allocated for accessory use. If an accessory configuration exceeds the 8.2A limit, accessory power is cut off, leaving the camera powered. The “SMART FUSE” LED will illuminate, showing the error, and once the configuration has been adjusted to lower than 8.2A, the RESET button can be pressed, and power will be re-enabled to accessory outputs. In the event of a complete short circuit, the system will immediately shut down and can only be turned back on once the short circuit has been removed.

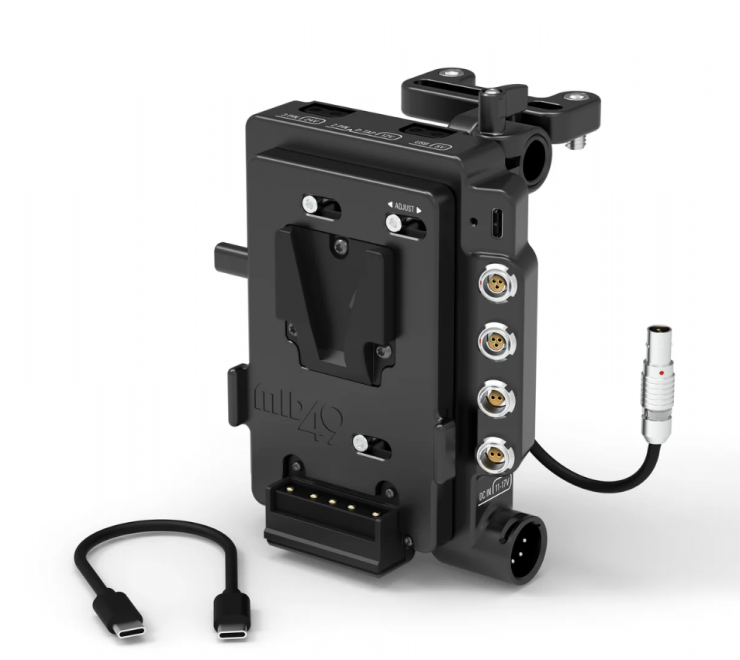

INPUTS
- BATT- V-Mount or Gold Mount Plate
- DC IN- 4pin XLR (11-17V)
OUTPUTS
- 2x D-Tap (battery voltage)
- 2x 3pin (24V at 2.5A with run/stop)
- 2x 2pin (battery voltage)
- 1x USB-C PD (5V at 3A with thread lock)
Price & Availability
The Power Distribution Box DB-9 (Blackmagic PYXIS, Gold Mount) retails for $950 USD.
The Power Distribution Box DB-9 (Blackmagic PYXIS, V-Mount) is also $950 USD.
