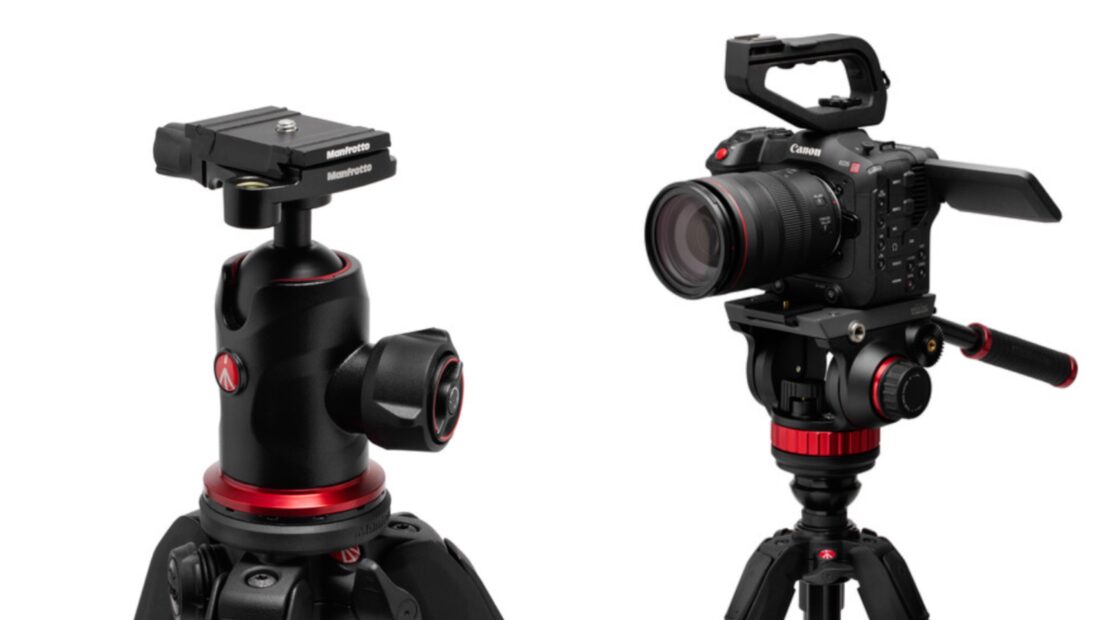

Manfrotto has announced new 055 & 190 tripods. There are five new models that are designed to meet the needs of professional and amateur photographers, as well as videographers.

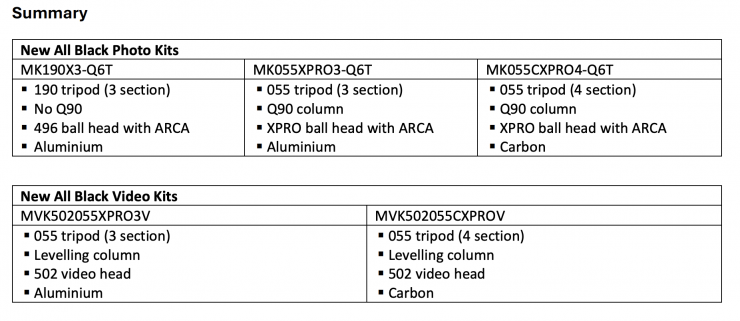

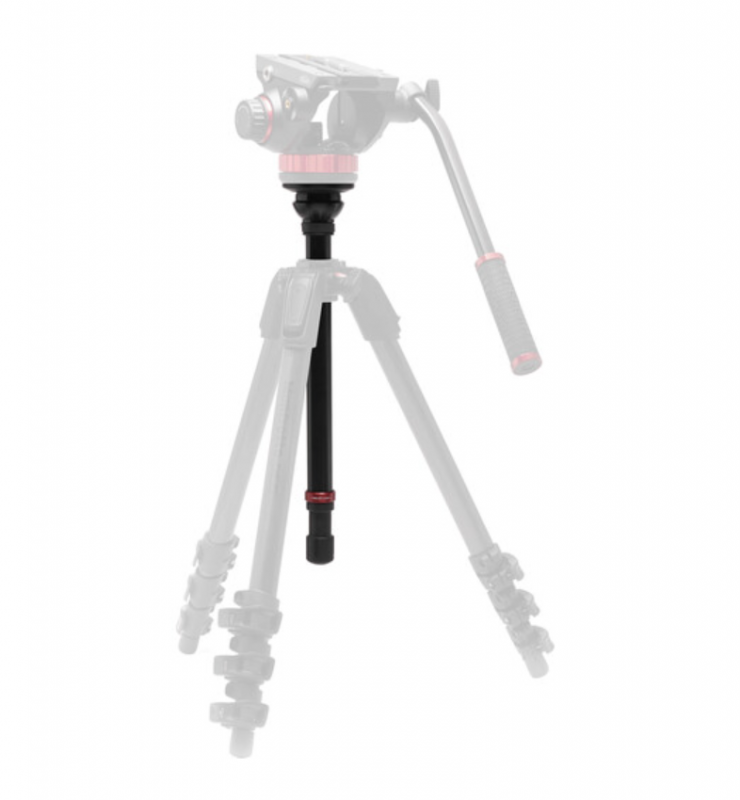

The expanded range includes three new photo kits, featuring Arca-Swiss compatibility for seamless accessory integration, and two new video kits, pairing the 055 tripod with a leveling column and a 502 video head.
Key features
- First-ever Carbon Fibre 055 & ball head kits: Lightweight and durable, these 4-section professional kits
- Arca-Swiss Compatibility: Available for both 055 and 190 photo kits
- Portable Video Systems: The 055 tripod paired with the 502 video head delivers fluid motion and quick adjustments
- Sleek Total Black Design: A refined aesthetic across the range
055
The 055 has been a cornerstone of the Manfrotto tripod range. These new models honor the legacy of the 055. The new 055 models are available as photo or video kits with options in carbon fiber or aluminum. The photo kits feature the XPRO ball head, while the video models include a fluid video head with a leveling column, making them suitable for use with the
latest mirrorless cameras and compact camcorders.

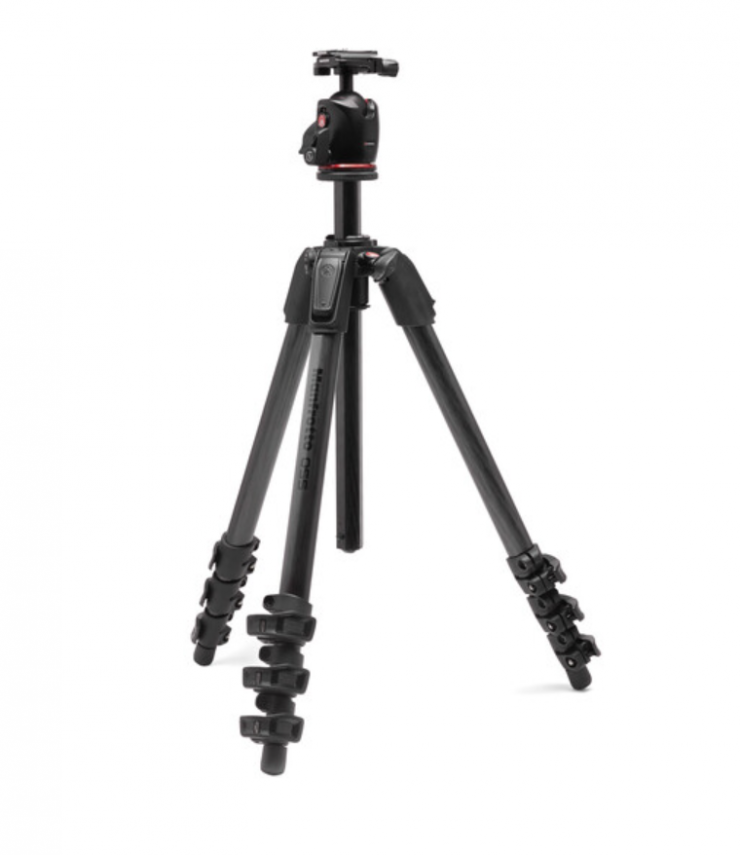

Manfrotto 055XPRO 4-Section Photo AS Carbon Fiber Tripod Kit $699.95 USD
Key features
- 055XPRO 4-Section Carbon Fiber Tripod

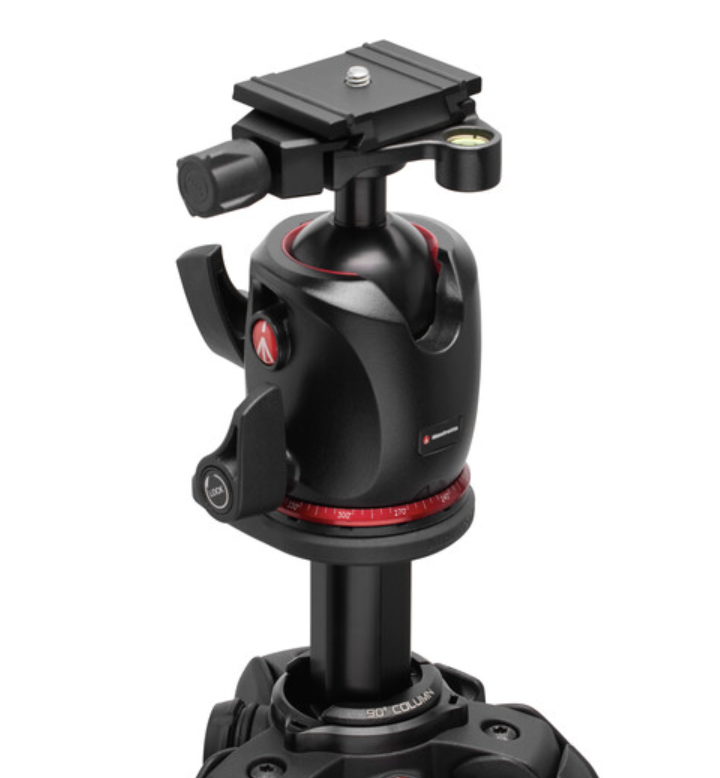

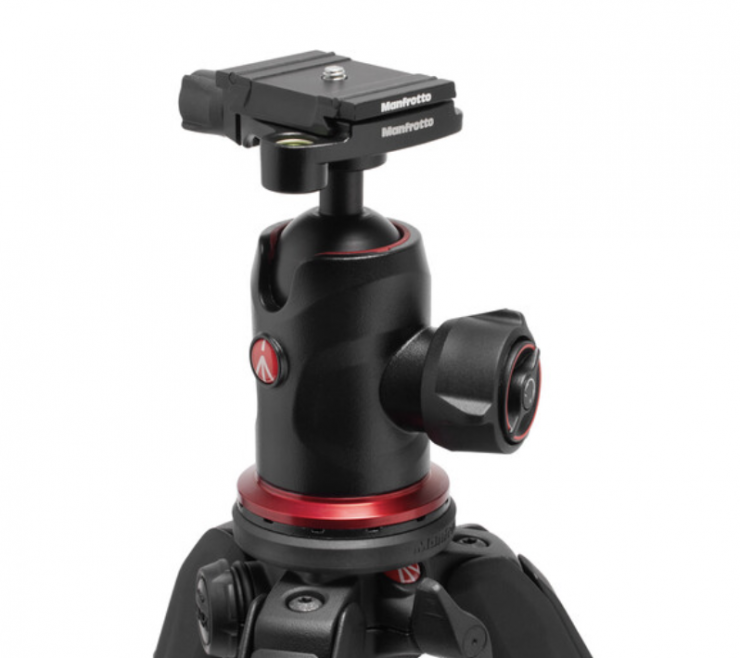

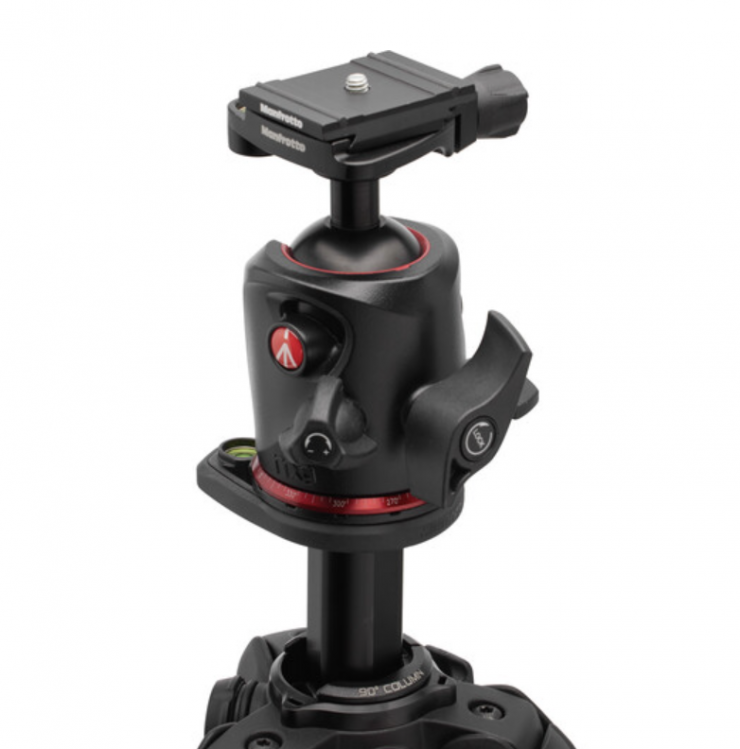

- XPRO Ball Head Included
- 33.1 lb Payload Capacity
- Arca-Compatible Quick Release System
- 71.5″ Maximum Working Height
- 3.9″ Minimum Working Range
- 25.6″ Folded Length
The 055XPRO 4-Section Photo AS Carbon Fiber Tripod Kit includes an XPRO ball head and offers a payload capacity of up to 33.1 lb. The Arca-compatible quick release system facilitates quick switching of Arca-type accessories without the need to swap out the plate or mount. The versatile tripod system has a maximum height of 71.5″, and a minimum height of 3.9″, and it features a new stealth black, 4-section leg design, making it ideal for both advanced and enthusiast photographers. The tripod folds down to 25.6″ for easy transport and storage.

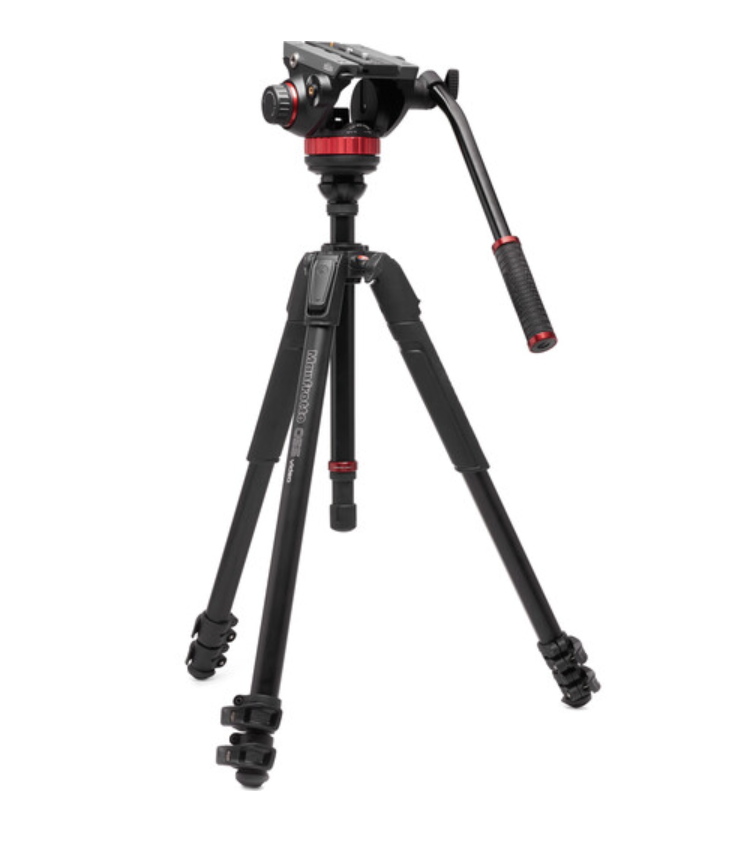

Manfrotto 3-Section Aluminum Video Tripod Kit with Fluid Head $499.95 USD
Key features
- 3-Section Aluminum Tripod Legs
- 502AH Fluid Video Head
- 10 lb Safety Payload Capacity
- 504PLONG Quick Release Plate Included
- 67″ Maximum Working Height
- 24″ Folded Length
- 90° Center Column
This 3-Section Aluminum Video Tripod Kit with Fluid Head bundles a set of MT055XPRO3 3-section aluminum tripod legs with a 502AH professional fluid video head. The versatile combination boasts a safety payload capacity of 10 lb.

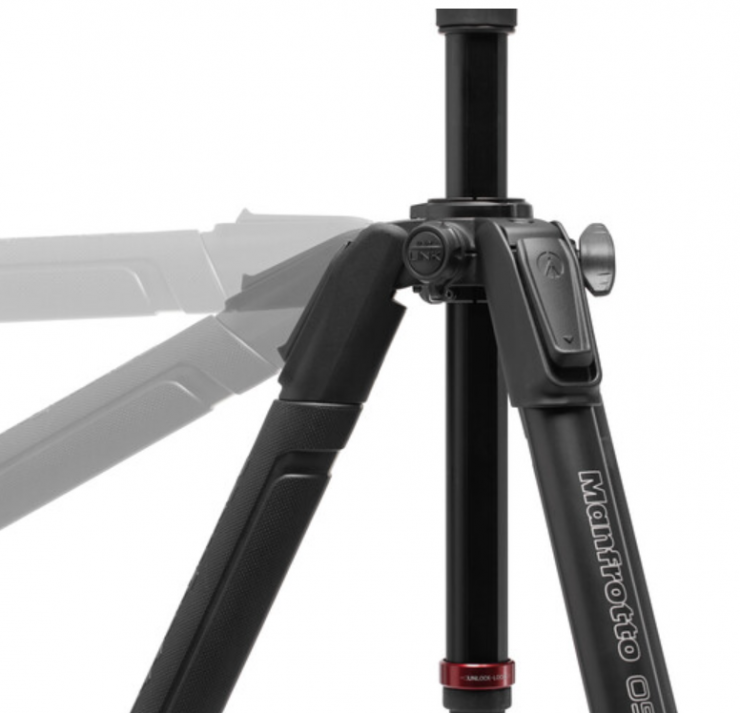

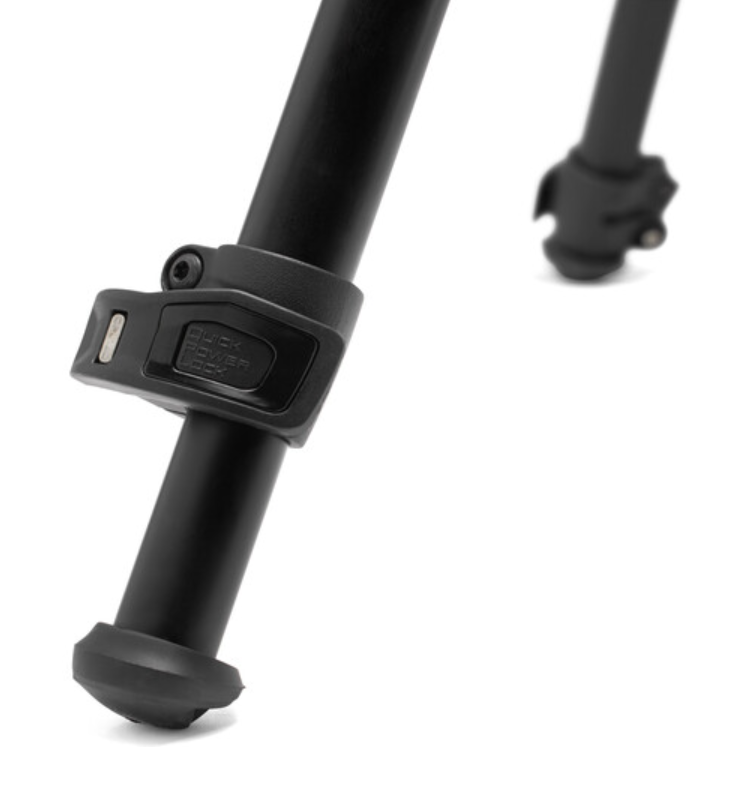

The Manfrotto MT055XPRO3 Aluminum Tripod is a three-section support that replaces the 055XPROB tripod. It has a load capacity of 44 lb and extends from 3.5″ to 67″. Its legs are secured by the Quick Power Locks. These updated flip locks increase the tripod’s rigidity by 50%, and its load capacity by 4.4 lb over its predecessor.

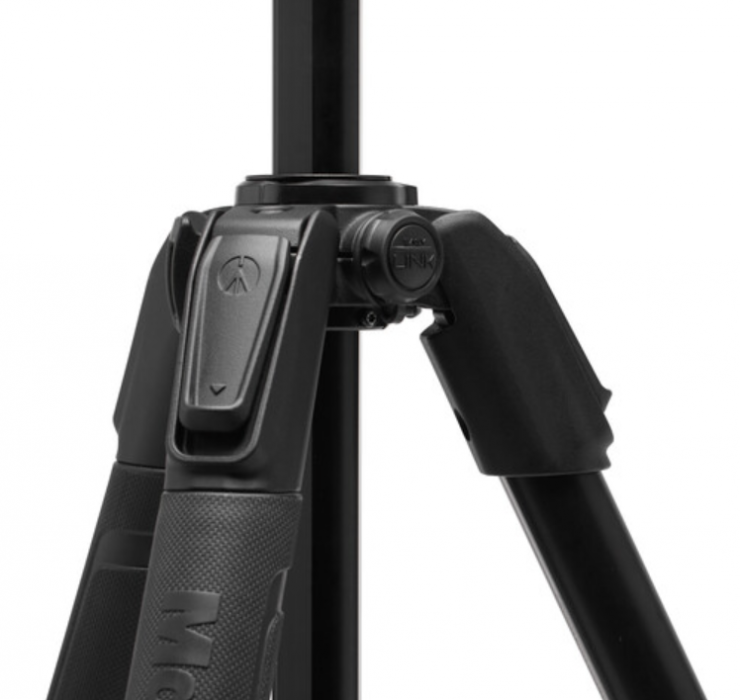

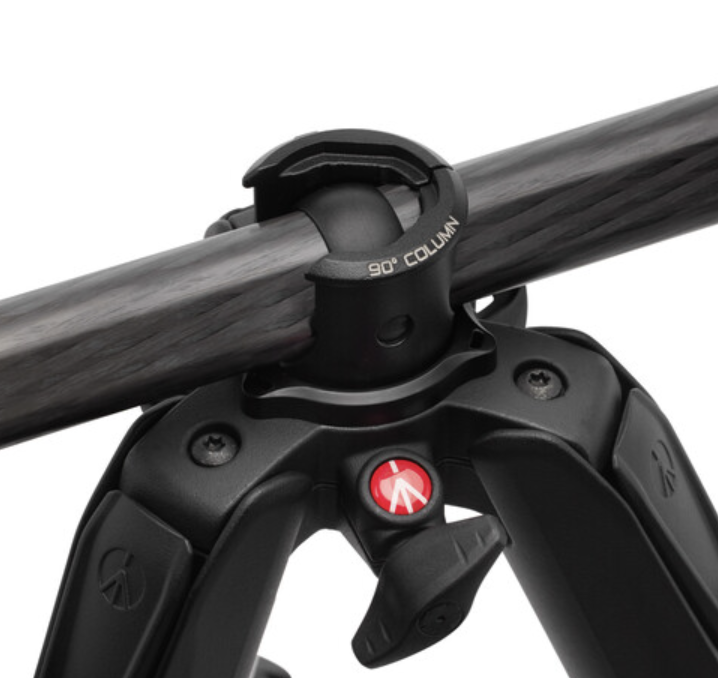

A redesigned center column has a “one finger” operation, and includes an Easy Link attachment for attaching accessories such as an LED light or a reflector. The center column can be positioned horizontally, allowing for low-angle and macro photography. The upper disc where a tripod head is mounted has been redesigned as well, and now has a bull’s eye bubble level that rotates 360° so you can locate it where you can see it. This allows you to level your camera on both the horizontal and vertical planes.

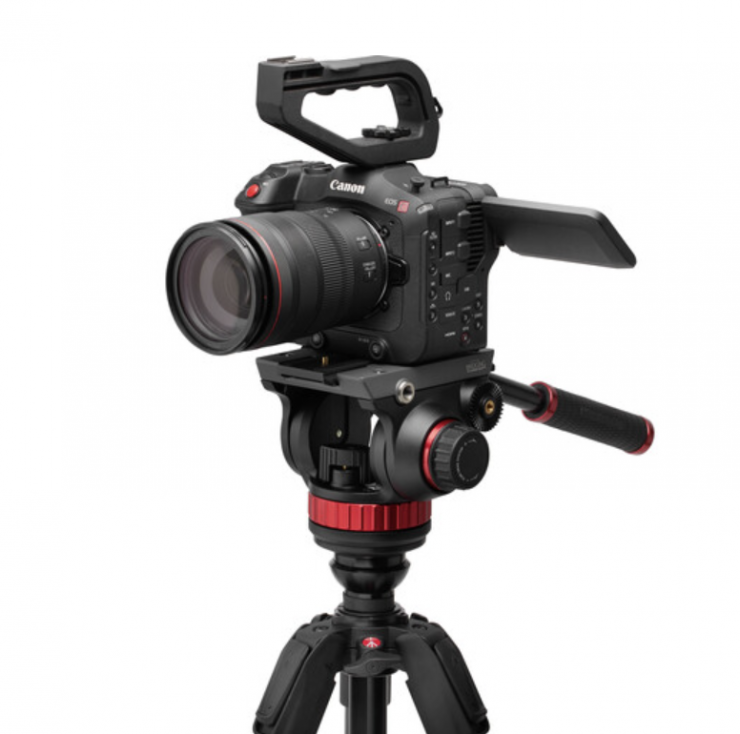

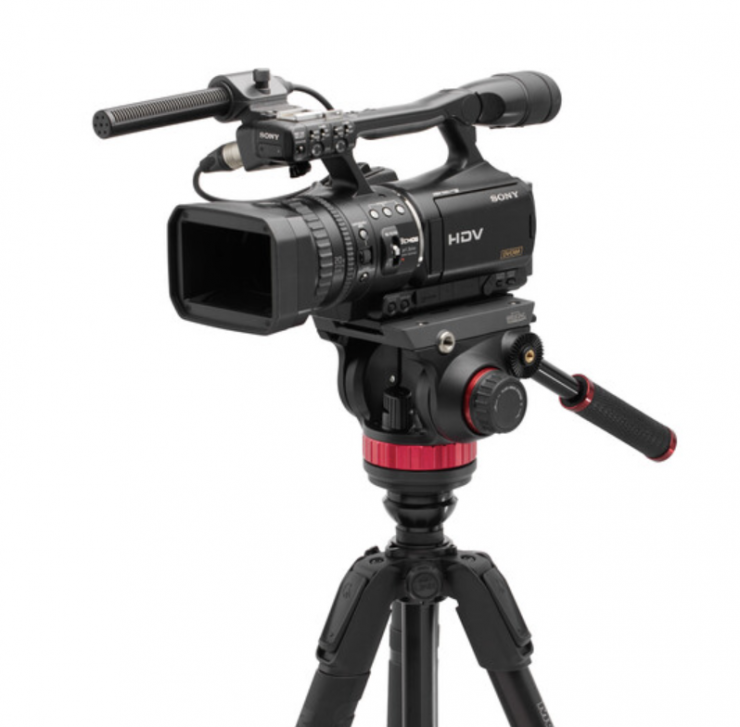

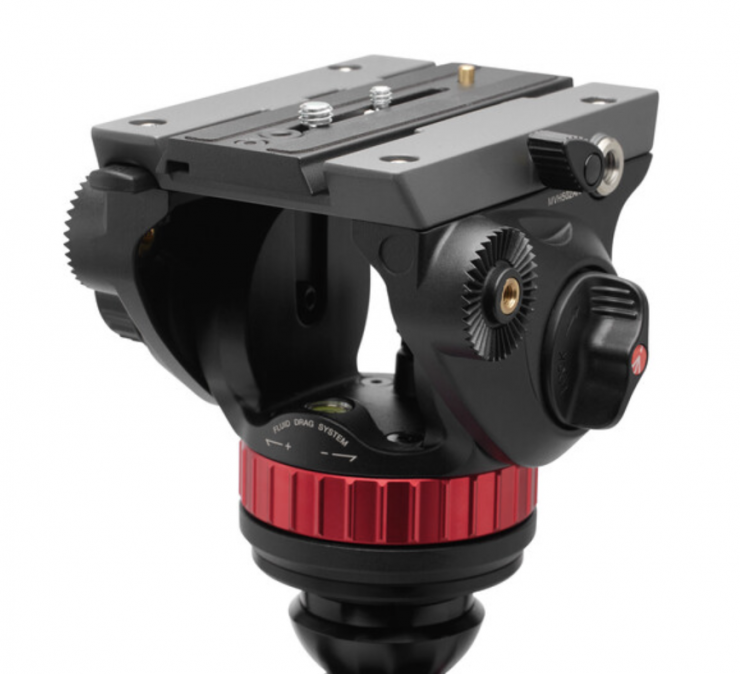

The Manfrotto 502AH Pro Video Head with Flat Base is an affordable yet remarkably fully featured professional head that represents an advance over the popular 501HDV, with sturdier construction and featuring Manfrotto’s patented bridging technology (inherited from the 509 and 504 heads). This head is designed for executing cinematic moves with compact camcorders and DSLR cameras. The 502AH comes in two versions—the “AH” flat base version with a 3/8″-16 mounting hole such as this one, and the “A” ball base version, which is separately available.
The weight capacity is 22 lb and the counterbalance supports 8.8 lb. The balance plate’s 3.27″ range allows you to correct for uneven payloads due to matte boxes or DSLR rig configurations.
The bridging technology ensures that the pan friction control is intuitive and easy to set but is also protected against knocks. There are independent locks for pan and tilt, and drag for both is selectable in a continuous range from zero to the maximum level. This allows you to operate the head in a confident, smooth manner using the included pan bar.
Manfrotto 4-Section Carbon Fiber Video Tripod Kit with Fluid Head $699.99 USD
Key features
- 4-Section Carbon Fiber Tripod Legs
- 502AH Fluid Video Head
- 10 lb Safety Payload Capacity
- 504PLONG Quick Release Plate Included
- 67″ Maximum Working Height
- 24″ Folded Length
- 90° Center Column
This 4-Section Carbon Fiber Video Tripod Kit with Fluid Head bundles a set of MT055XPRO3 4-section carbon fiber tripod legs with a 502AH professional fluid video head. The versatile combination boasts a safety payload capacity of 10 lb.

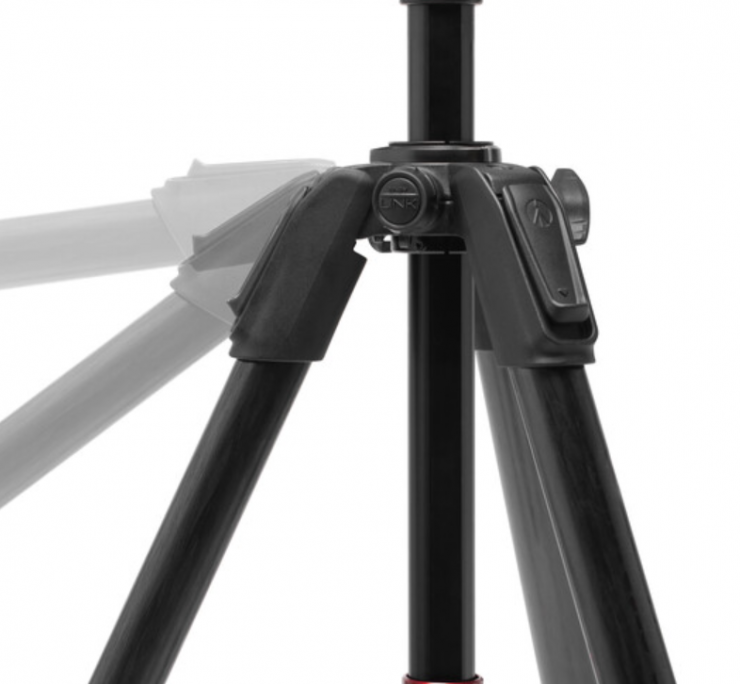

The Manfrotto MT055CXPRO4 Carbon Fiber Tripod is a 4-section support that replaces the 055CXPRO4 tripod. It has a load capacity of 44 lb and extends from 3.5″ to 67″. Its carbon fiber legs are secured by the Quick Power Locks. These updated flip locks increase the tripod’s rigidity by 50% compared to its predecessor.
A redesigned center column has a “one finger” operation, and includes an Easy Link 3/8″-16 attachment for attaching accessories such as an LED light or a reflector via a compatible arm. The center column can be positioned horizontally, allowing for low-angle and macro photography. The upper disc where a tripod head is mounted has been redesigned as well, and now has a bull’s eye bubble level that rotates 360° so you can locate it where you can see it. This allows you to level your camera on both the horizontal and vertical planes.
The Manfrotto 502AH Pro Video Head with Flat Base is an affordable yet remarkably fully featured professional head that represents an advance over the popular 501HDV, with sturdier construction and featuring Manfrotto’s patented bridging technology (inherited from the 509 and 504 heads). This head is designed for executing cinematic moves with compact camcorders and DSLR cameras. The 502AH comes in two versions—the “AH” flat base version with a 3/8″-16 mounting hole such as this one, and the “A” ball base version, which is separately available.
The weight capacity is 22 lb and the counterbalance supports 8.8 lb. The balance plate’s 3.27″ range allows you to correct for uneven payloads due to matte boxes or DSLR rig configurations.
The bridging technology ensures that the pan friction control is intuitive and easy to set but is also protected against knocks. There are independent locks for pan and tilt, and drag for both is selectable in a continuous range from zero to the maximum level. This allows you to operate the head in a confident, smooth manner using the included pan bar.

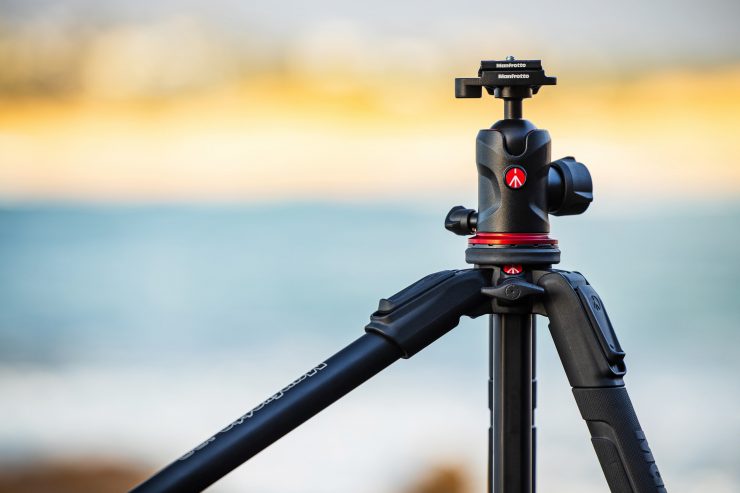

Introducing a New Addition to the 190 Range

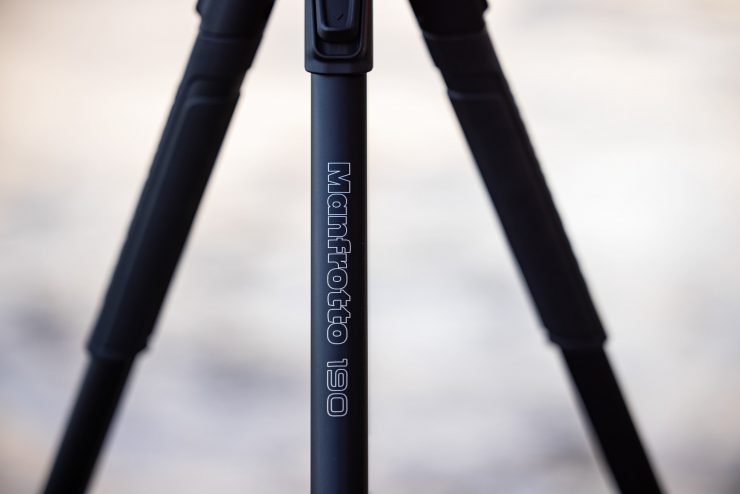

The Manfrotto 190 range also grows with the addition of a new model offering Arca-Swiss compatibility, available in aluminum.

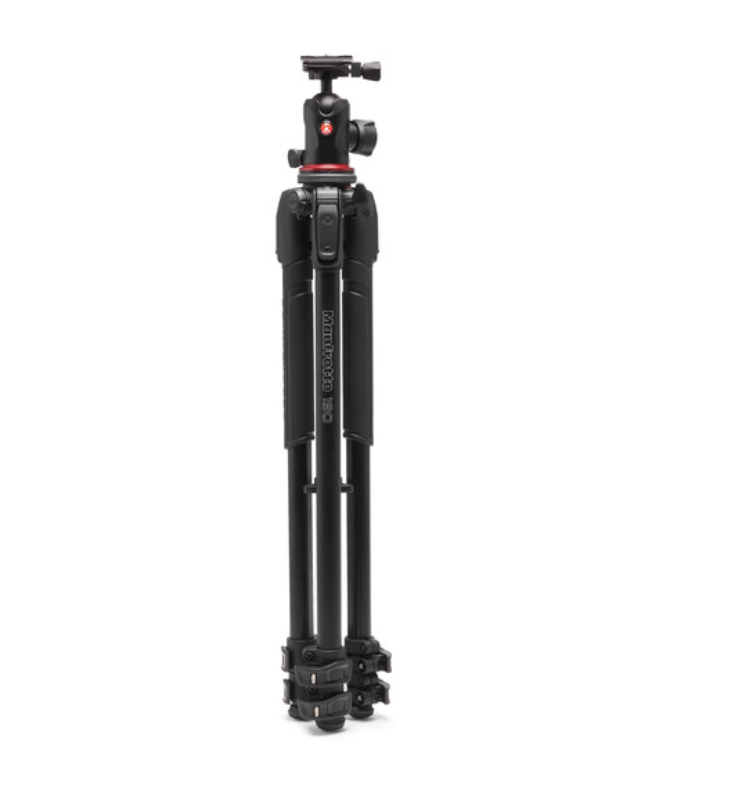

Manfrotto 190X3 3-Section Photo AS Aluminum Tripod Kit $299.95 USD
The 190X3 3-Section Photo AS Aluminum Tripod Kit includes a 496 ball head and offers a payload capacity of up to 22 lb. The Arca-compatible quick release system facilitates quick switching of Arca-type accessories without the need to swap out the plate or mount. The versatile tripod system has a maximum height of 67.6″, and a minimum height of 8.2″, and it features a new stealth black, 3-section leg design, making it ideal for both advanced and enthusiast photographers. The tripod folds down to 27.6″ for easy transport and storage.
Key features
- 190X3 3-Section Aluminum Tripod
- 496 Center Ball Head Included
- 22 lb Payload Capacity
- Arca-Compatible Quick Release System
- 67.6″ Maximum Working Height
- 8.2″ Minimum Working Range
- 27.6″ Folded Length
Availability
The new 055 and 190 models will be available to purchase from 25 February 2025, from authorized Manfrotto retailers.
