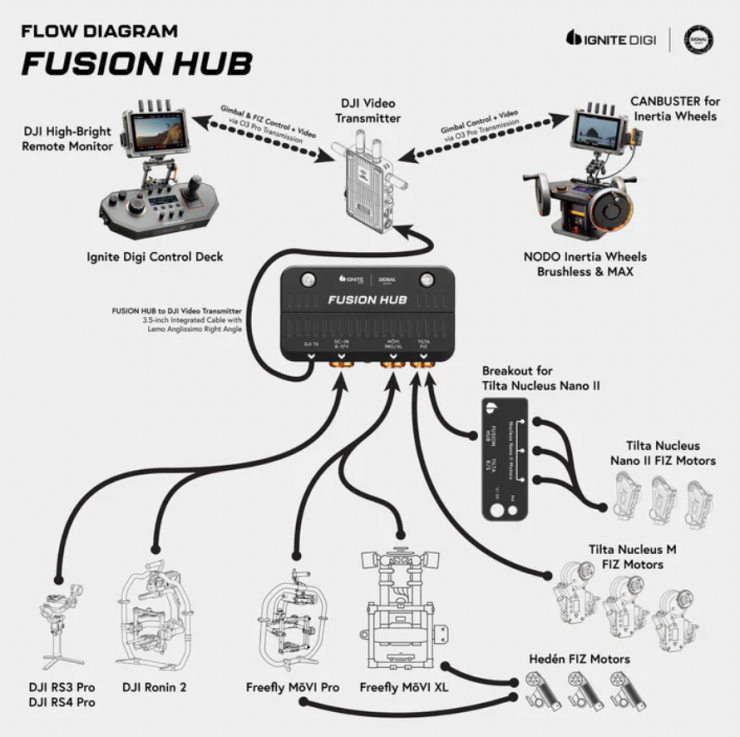

Ignite Digi has announced its new FUSION HUB for DJI Transmission, which is a smart module that further enhances Control Deck and CANBUSTER for Inertia Wheels.
It allows 3-Channel FIZ control using Tilta motors, via the ultra-long-range DJI Transmission signal. It is also compatible with the Tilta Nucleus M and Nano II.
It will give you a video feed, gimbal control, FIZ control, and run/stop capability from up to 3.7 miles / 6km away.
FUSION HUB also allows you to control Freefly MōVI Pro and MōVI XL with Control Deck.
Ignite Digi’s comprehensive packs include everything you need, including modules, cables, screws, and a handy storage pouch.

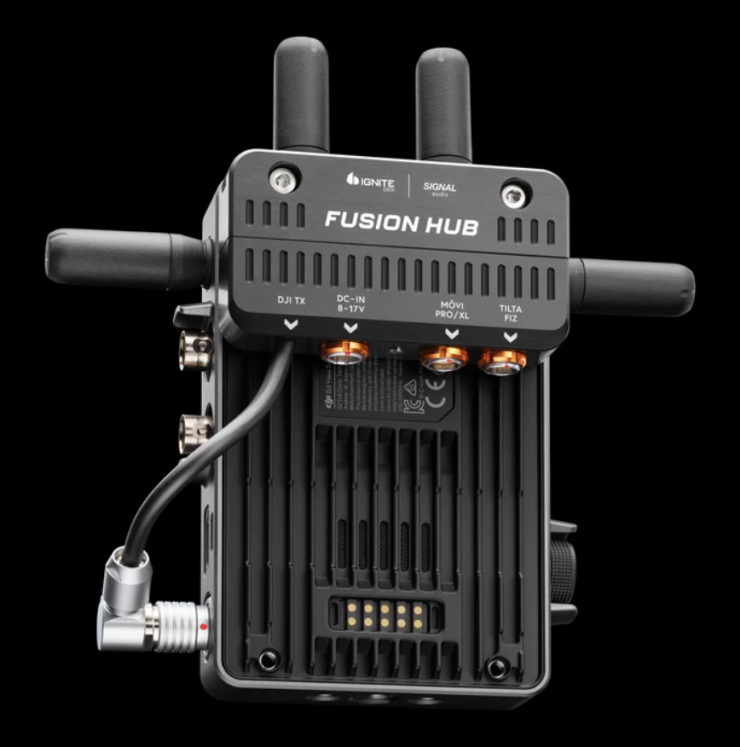

FUSION HUB MODULE
I/O
1x 3.5-inch Integrated Cable with Lemo Anglissimo Right Angle connector for DJI TX
1x 6-Pin Lemo port for DC-IN 8-17V
1x 5-Pin Lemo port for MōVI Pro/XL
1x 7-Pin Lemo port for Tilta FIZ motors/Breakout
MADE FROM
High-grade 6061-T651 aluminum billet & hard anodized
SHIPS WITH
Two M4 x 16mm captive socket head cap screws
WEIGHT
4.16oz / 118g including integrated cable + screws
DIMENSIONS
3.18 x 1.88 x 0.74” / 81 x 48 x 19mm
COMPLETE PACK
- FUSION HUB module
- Breakout for Tilta Nucleus Nano II module
- 1x USB-C to Micro-B Firmware Cable
- 2x Control Cable ‣ FUSION HUB to Ronin 2 – 20-inch / 50cm
- 2x Control Cable ‣ FUSION HUB to RS4 Pro – 12-inch / 30cm
- 2x Control Cable ‣ FUSION HUB to MōVI – 12-inch / 30cm
- 2x Control Cable ‣ FUSION HUB to MōVI – 35-inch / 90cm
- 1x Power Cable ‣ D-Tap to FUSION HUB – 14-inch / 35cm
- 1x Power Cable ‣ 2-Pin Lemo to FUSION HUB – 8-inch / 20cm
- 2x Control Cable ‣ 7-Pin Lemo to 7-Pin Lemo for Tilta Nucleus-M – 30-inch / 76cm
- 2x Control Cable ‣ 7-Pin Lemo to USB-C for Nano Breakout – 10-inch / 25cm
- 2x U-Shape USB-C Cable — 4-inch / 10cm
- 2x U-Shape USB-C Cable — 9-inch / 23cm
- 2x Tenba Tools Cable Pouches

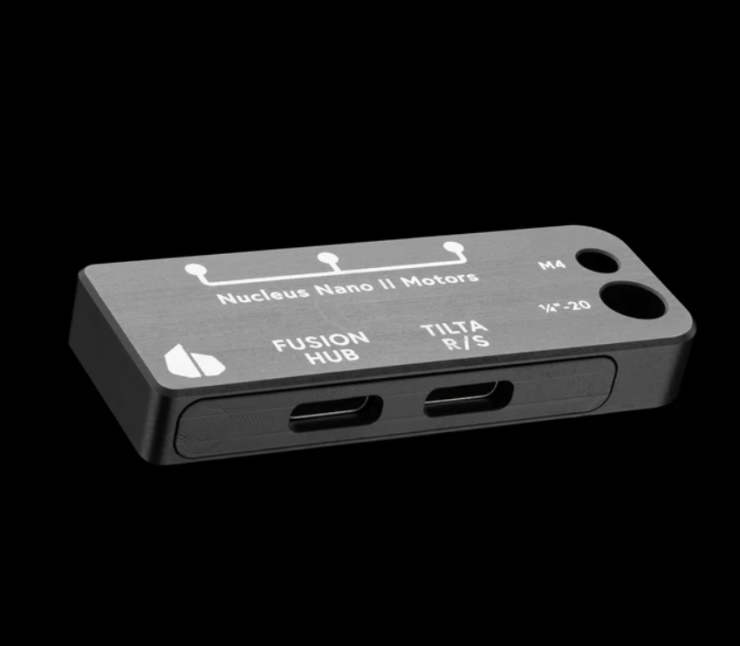

BREAKOUT FOR NANO II PACK
- Breakout for Tilta Nucleus Nano II module
- 2x Control Cable ‣ 7-Pin Lemo to USB-C for Nano Breakout – 10-inch / 25cm
- 2x U-Shape USB-C Cable — 4-inch / 10cm
- 2x U-Shape USB-C Cable — 9-inch / 23cm
RONIN PACK
- FUSION HUB module
- 1x USB-C to Micro-B Firmware Cable
- 2x Control Cable ‣ FUSION HUB to Ronin 2 – 20-inch / 50cm
- 2x Control Cable ‣ FUSION HUB to RS4 Pro – 12-inch / 30cm
- 1x Control Cable ‣ 7-Pin Lemo to 7-Pin Lemo for Tilta Nucleus-M – 30-inch / 76cm
- 1x Tenba Tools Cable Pouch
MōVI PACK
- FUSION HUB module
- 1x USB-C to Micro-B Firmware Cable
- 2x Control Cable ‣ FUSION HUB to MōVI – 12-inch / 30cm
- 2x Control Cable ‣ FUSION HUB to MōVI – 35-inch / 90cm
- 1x Control Cable ‣ 7-Pin Lemo to 7-Pin Lemo for Tilta Nucleus-M – 30-inch / 76cm
- 1x Power Cable ‣ D-Tap to FUSION HUB – 14-inch / 35cm
- 1x Power Cable ‣ 2-Pin Lemo to FUSION HUB – 8-inch / 20cm
- 1x Tenba Tools Cable Pouch
Price & Availability
The first batch will start shipping in early March.
The prices are as follows:
- Complete Pack $1,548.00 USD
- Ronin Pack $1,298.00 USD
- MōVI Pack $1,238 USD
