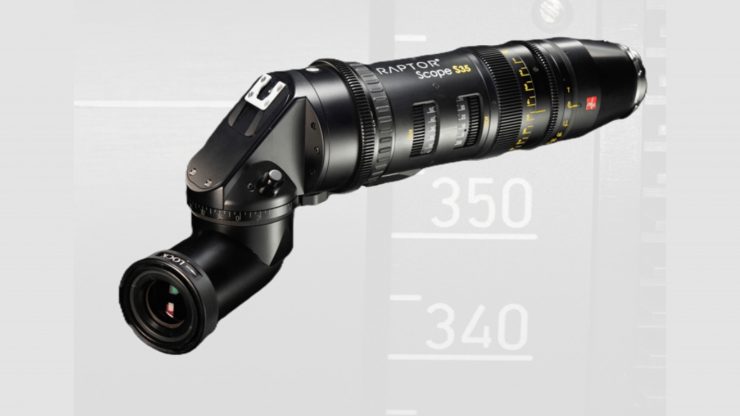

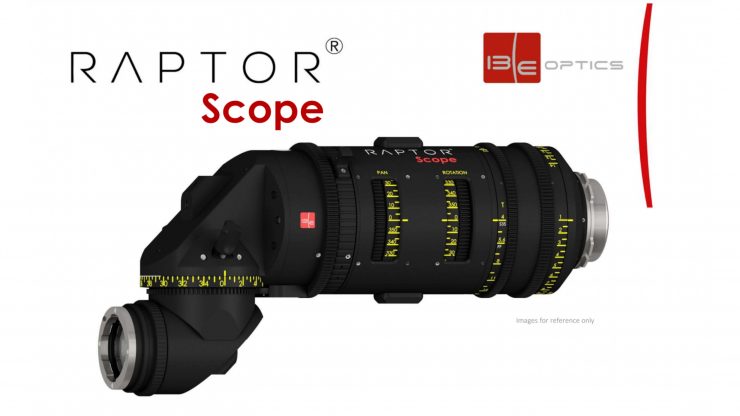

The IBE Optics Raptor Scope is now available in Full Frame, and it features a new optical & mechanical design.
Key features
- S35 & Full Frame Coverage – Easy format switching
- F/4.0 in S35 | F/5.6 in Full Frame – Optimized for precision

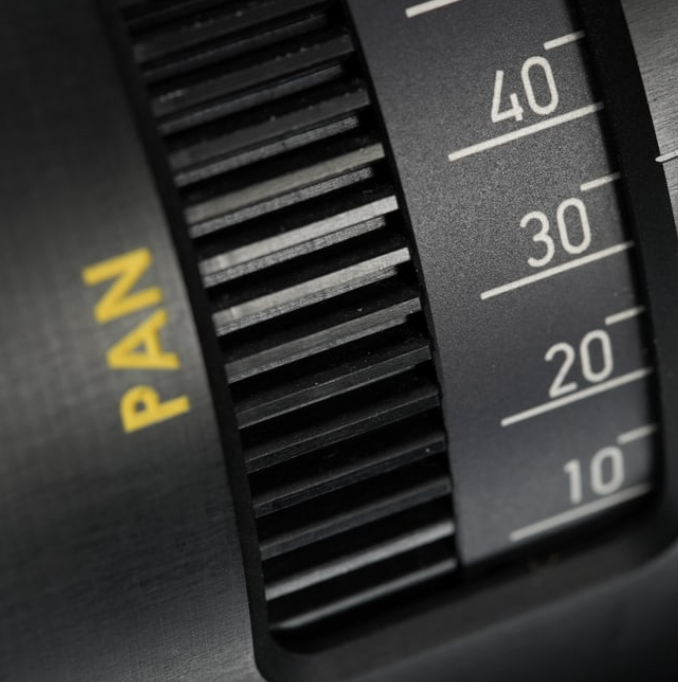

- Unlimited Pan, Tilt & Roll Moves – Ultimate creative freedom
- Image Rotation Compensator – Perfect composition control
- Internal Focusing – Constant lens length
- UMS PL-Mount with additional front mounts: PL, LPL, Canon EF, Nikon F (Sony E
- coming 2025)
- Extended Color Correction (APO) & Robust Mechanical Design
- More Accessories Coming Soon
The Raptor Scope features precision engineering and a cutting-edge design. Its high-definition optical system ensures that images are rendered with remarkable accuracy and vividness in a Full Frame image coverage (44mm).

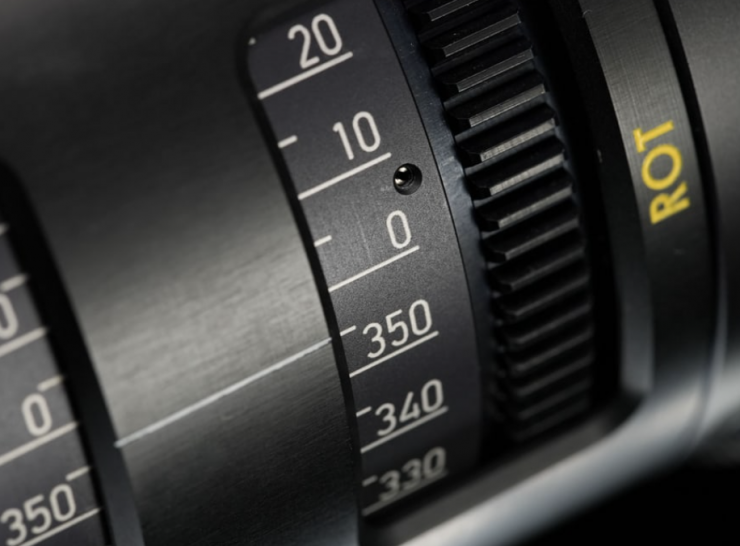

Built to endure the hardest environments, the Raptor Scope is crafted from premium materials for durability, and reliability. There is an image rotation compensator for panning the snorkel, and this feature can be used for rotating images 360° to avoid having to rotate the whole camera system.
Its design allows to use of PL, LPL, or other mounts to attach to the camera, as well as a Rear Booster to convert it to Super35 format increasing the F/ to 4.0. For the front lenses, it comes with an M-Mount system but they also offer other mount mounts such as PL, LPL, Canon EF, etc.
Technical Specifications
- Pan – Tilt – Roll: 360° (Unlimited)
- Aperture: F/5.6 at FF (44mm) – F/4.0 at S35 (35mm)

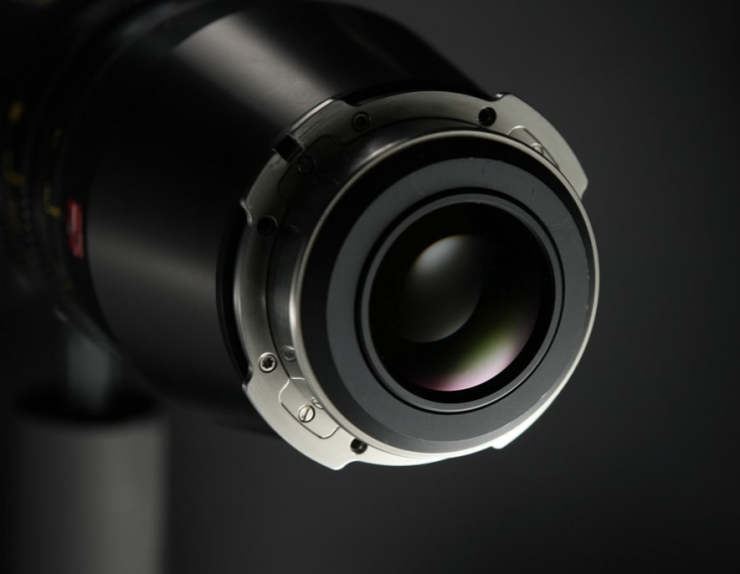

- Camera Mount: UMS PL mount
- Lens Mount: Leica M
- Focus: Near to Camera. 180° Rotation
- Iris: Near to Camera. 90° Rotation
- Max. Image Diameter: +44 mm / +1.73”
- Length: (Flange to Front) 29,6 cm / 11.6“ (PL to M version)
- Weight: TBA
- Support: ¼ Tread for standard lens support

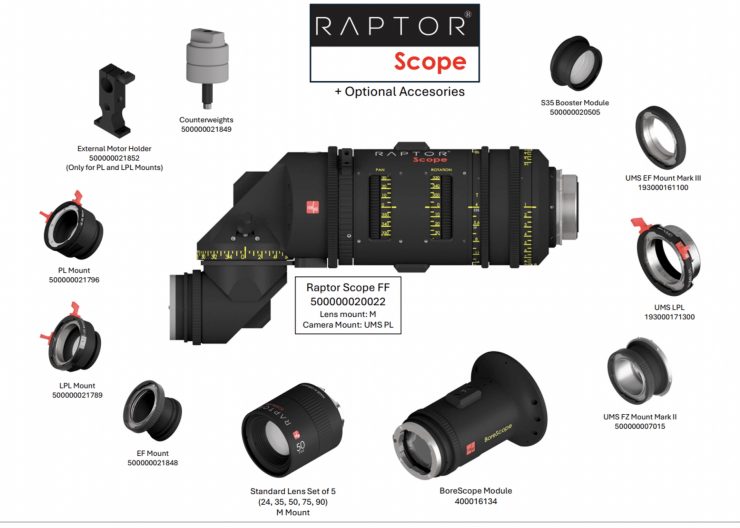

- Optional front mounts: PL, LPL, Canon EF, Nikon F, (Sony E in 2025)
- Optional Rear Attachment: 0.75x Booster for image coverage of 35mm.
- Optional lens set: M Mount, 24, 35, 50, 75, 90

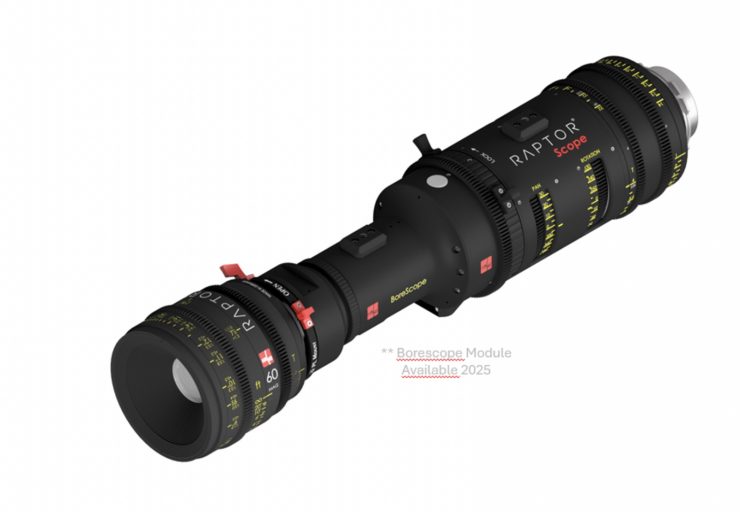

BoreScope Module
The Borescope Module is a specialized optical device designed to be used in combination with the Raptor Scope, providing high-quality and detailed images of hard-to-reach areas. This module converts the Raptor Scope into a straight version while keeping most of its amazing features like unlimited image rotation or improvement of close focus for nearly every lens. It allows filmmakers to shoot in tight spaces, such as inside machinery or complex structures.
Features:
- Frontal compact design: ideal for narrow or restricted spaces while keeping focus, iris and image rotation near the camera.
- High image quality: with precise focus, iris and image rotation control and minimal distortion and color aberrations.
- Creative control: enables detailed macro shots or unique perspectives.
Applications: Tabletop, visual effects, and filming in confined or difficult-to-access locations.
It will be available in mid-2025.

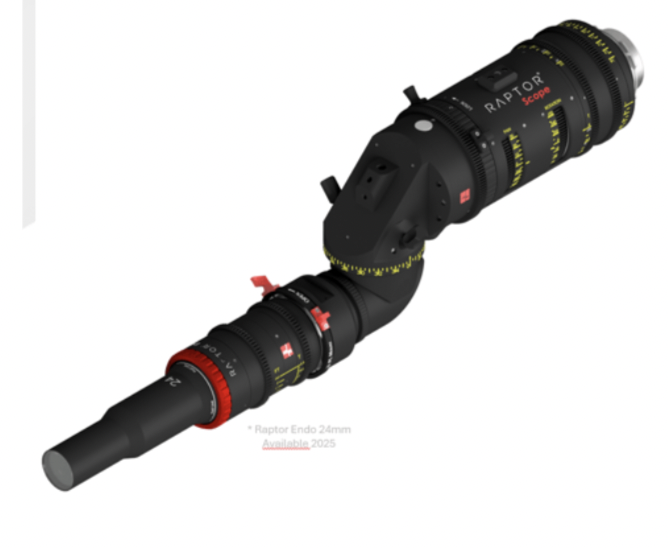

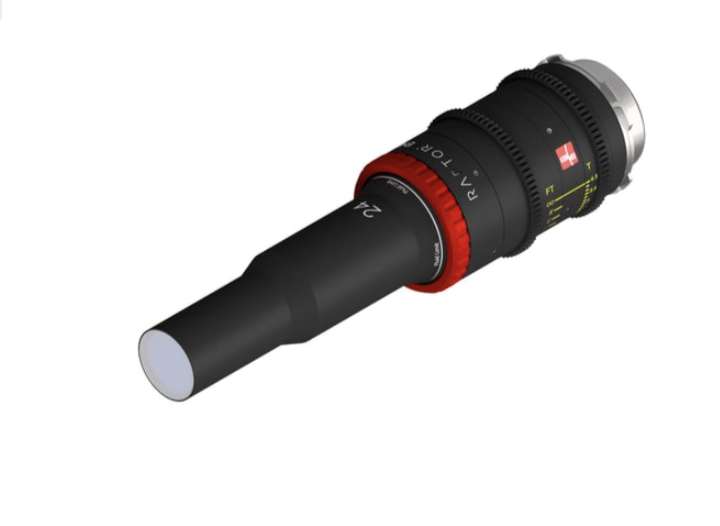

IBE Raptor Endo 24mm
The Raptor Endo is a specialized lens system designed to capture footage in tight, hard-to-reach spaces. It features a waterproof, narrow tube with a sapphire glass at the end, allowing filmmakers to film in environments where traditional lenses can’t fit. This new product increases creative possibilities in filmmaking.
Features:
- Speed: Even with its narrow front tube, this lens has an incredible speed of T/4.5.
- Special design: Can dive into tight spaces that involve liquids, dust or different textures. The front sapphire glass gives extra protection for your investment.
- High image quality: Provides sharp, detailed footage with extremely low color aberration, even in low light.
- Precise control: Allows focus and iris adjustments and fine control over shots, like a regular lens.
- PL-Mount
Use:
- -Exploring confined and/or wet spaces: Perfect for shots inside food, ducts, or hidden areas.
- Creative shots: Great for unique perspectives or microscopic views.
It will be available in mid-2025.
Price & Availability
The IBE Optics Raptor Scope is a highly specialized and niche lens and it starts at € 65,000 (includes Raptor Scope FF with M-mount, S35 booster and case) and the Raptor Scope Set is € 79,990 (includes everything as before and the scope lens set of 5 M-Mount lenses).
