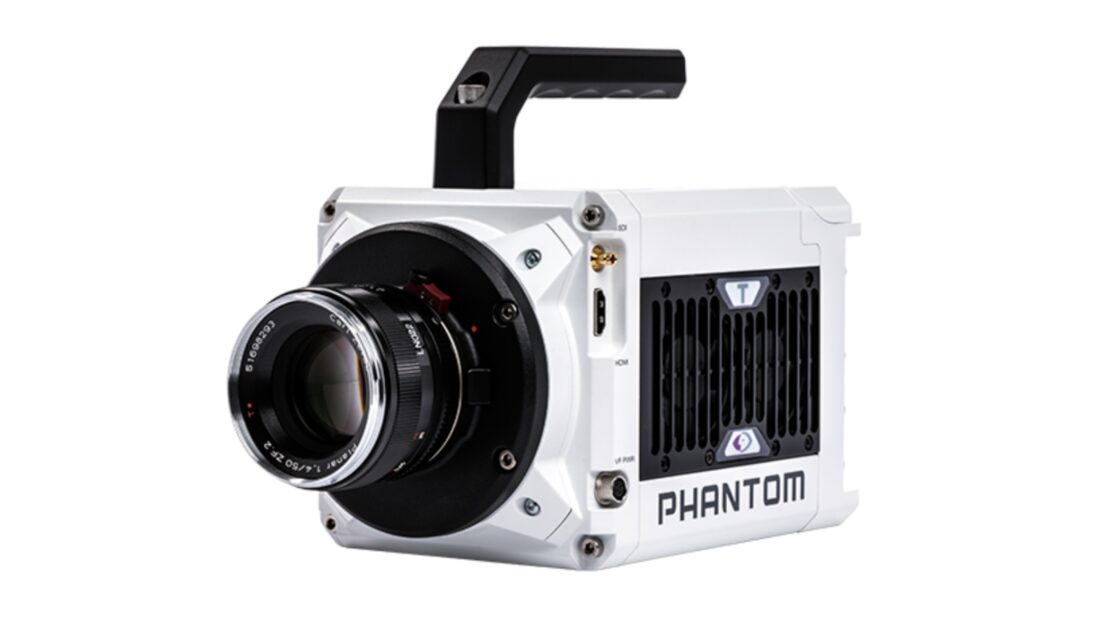

Phantom has announced its new Phantom T2110 camera with a custom 1-Mpx, BSI sensor. The camera is being touted as an ideal solution for motion analysis research applications as it can capture over 21,000 fps at full resolution.
We’re excited to announce our new Phantom T2110 camera with a custom 1-Mpx, BSI sensor. Ideal for motion analysis research applications, the camera captures over 21,000 fps at full resolution. Learn more: https://t.co/2jeo0oCXC5 #highspeed #imaging #Phantomhighspeed pic.twitter.com/PSFJbLB3kl
— Phantom High-Speed (@phantomhispeed) January 29, 2025
The Phantom T2110 is a compact, versatile camera that can capture over 21,000 fps at 1 Mpx, all the way up to a whopping 483,330 fps at 640 x 64.

It is equipped with a proprietary 12-bit 1280 x 800 backside illuminated (BSI) sensor, supporting an impressive image throughput of 21 gigapixels per second (Gpx/s) for challenging low-light conditions. The custom BSI sensor provides several benefits, including 84.3 QExFF (mono) and 40 dB signal to noise ratio (SNR), which translates to excellent image performance even in difficult conditions for scientific research.

Key features
- Binning Mode – frame rate boost at 640 x 384 and below
- CineMag 5 Compatibility
- SDI and micro HDMI video outputs
- Programmable I/O – Assign and define camera signals
- 21,000 fps at 1280 x 800
- Sensitivity: Quantum Efficiency84.3% (mono)
- 83% (binned)
- 77% (color)
- Up to 256GB RAM
- FAST option for 190ns exposure

The T2110 includes premium features to enable a variety of applications such as:
- Programmable I/O to assign and modify the hardware signal interface for advanced synchronization. Users can interface with data acquisition (DAQ) systems and other measurement sensors, which can be recorded and viewed as metadata in Cine files.
- Extreme Dynamic Range (EDR) provides flash mitigation for ballistic studies by dynamically adjusting exposure in saturated image areas.
- The option for a fully automated workflow when using image-based auto-trigger (IBAT), combined with multi-Cine partitions and continuous recording in PCC.
