SWIT has announced the launch of the VOLTA Modular Add-On Floor Battery. This new battery system was designed to meet the rigorous demands of professional cinematography with its compact design and high power output.

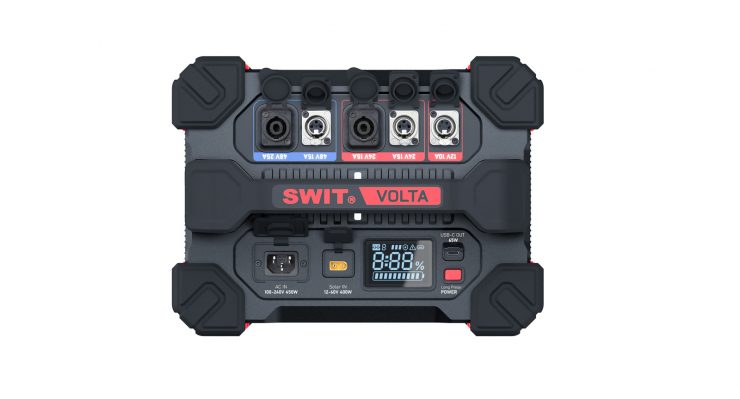

The VOLTA floor battery is a modular add-on system that allows for stacking and installation of additional battery packs to expand power capacity. Each battery pack delivers a substantial 1600Wh of energy, ensuring equipment has the power to keep productions rolling without interruption. With versatile DC power outputs of 12V, 24V, 48V, and USB-C, the system can handle a total constant power load of 1700W.
Key features
- Automotive Grade NCM Li-ion battery cells
- Add on battery units to expand capacity
- Max 8 units 12.8kWh large capacity
- 2×DC 48V (Reg.) 1200W output
- 2×DC 24V (Reg.) 360W output
- 1×DC 12V (Reg.) 120W output
- 1×USB-C 65W power output
- All power sockets output simultaneously
- 1700W Constant high load in total
- Built-in AC 100-240V 450W fast charging
- Solar panel XT60 port 12-60V 400W charging
- Discharging while charging, uninterrupted power
- LCD display remaining time and battery life
- -20° Power Up, Low Temp Resistance
- Ultra Low Standby Power Consumption
- Heavy-duty housing with rubber covers

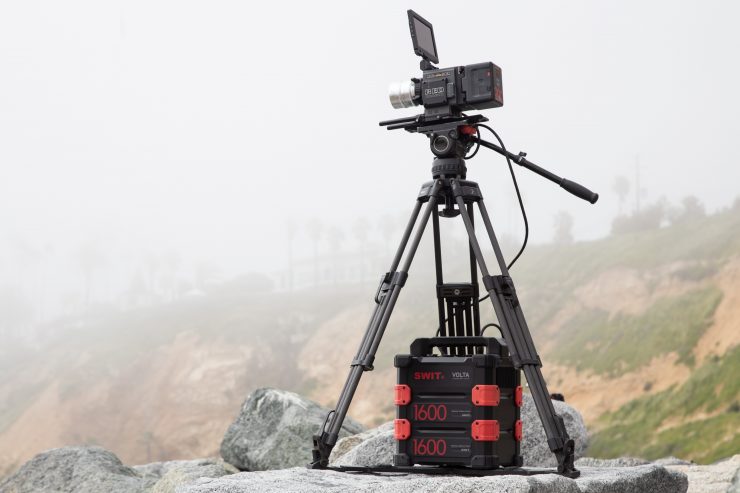

The system supports up to 8 stacked battery packs, reaching a capacity of 12.8kWh to meet the long-term power supply needs of high-power cine equipment. Its industry-standard 12V and 24V connectors are compatible with a wide range of cine-level cameras and ENG camcorders, providing continuous power for extended shoots and video productions.

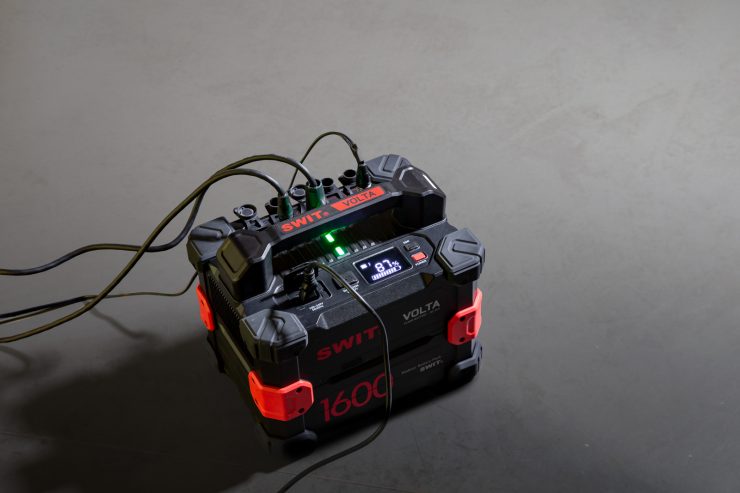

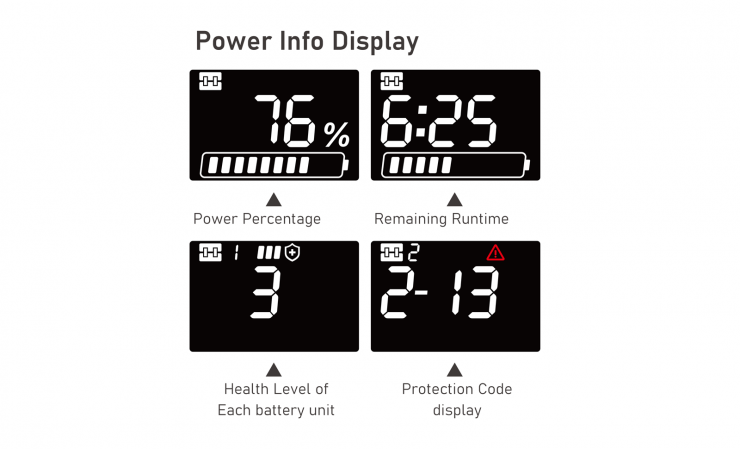

The VOLTA battery includes an LED screen that displays the power percentage, remaining runtime, and the health level of each battery unit. This feature ensures users stay informed about their power supply, which is critical for live productions where uninterrupted power is essential.

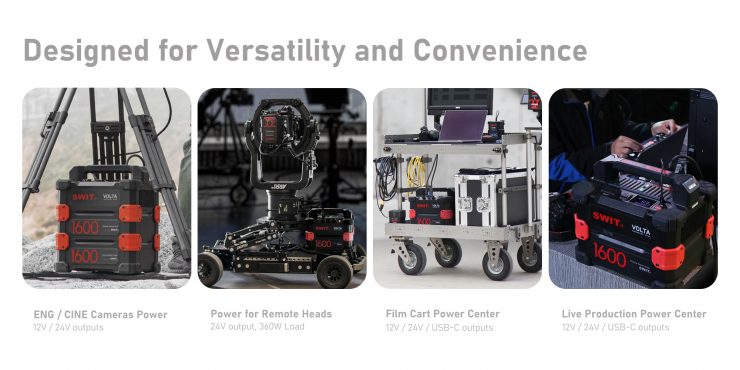

The VOLTA floor battery functions as a centralized power hub for film carts, powering monitors, cameras, wireless receivers, and laptops. For director’s desks, it offers reliable energy solutions for video switchers, live-streaming equipment, and more.
The VOLTA floor battery’s regulated 24V and 48V outputs make it compatible with high-power lighting fixtures such as ARRI Skypanel-X, Creamsource Vortex 4/8(s), and Aputure LS-600 series & 1200d Pro. Additionally, the 24V output supports remote heads and cine cameras, ensuring compatibility with a variety of leading brands in professional cinematography.

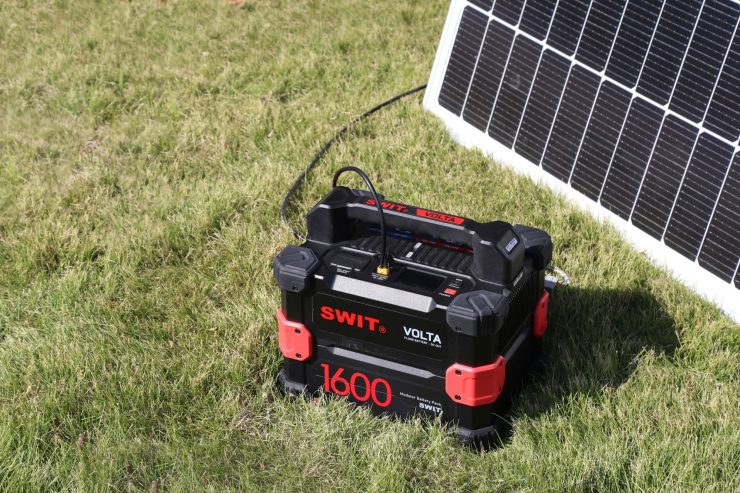

The VOLTA system supports solar panel charging through an XT60 interface at up to 400W. Fully chargeable in just 4.5 hours, it’s an eco-friendly and practical solution for outdoor and emergency use.

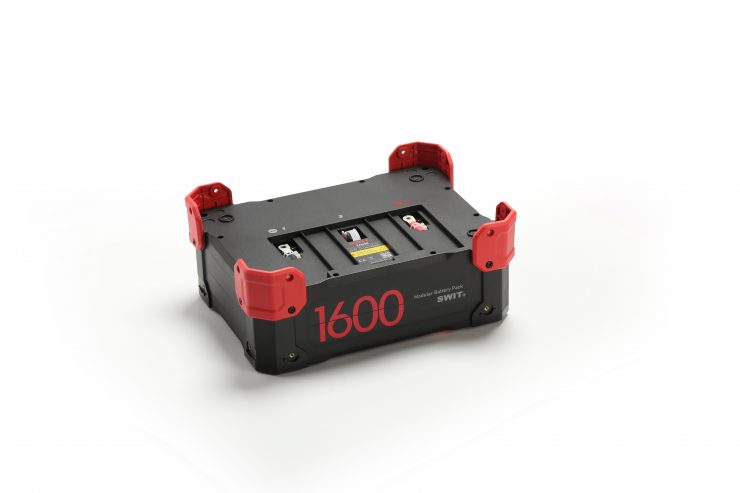

Each 1600Wh VOLTA unit comes with a built-in charger capable of full recharge in 6.5 hours. The system allows simultaneous charging and discharging, ensuring a continuous power supply to critical equipment.
Unlike traditional batteries, the VOLTA floor battery automatically enters sleep mode after 12 hours of inactivity, enabling it to retain power for over 10 years without regular charging.

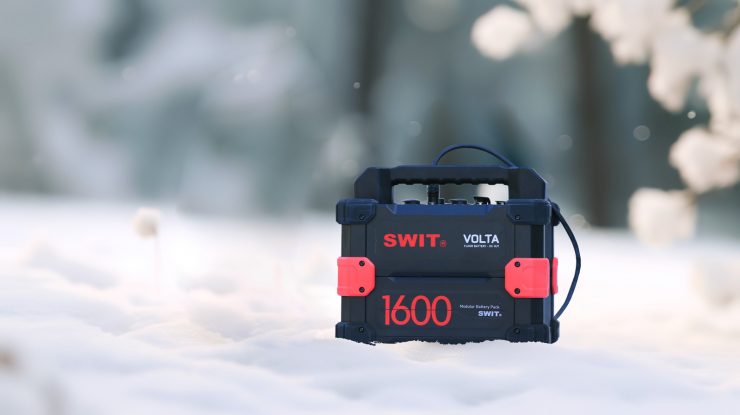

SWIT’s proprietary low-temperature startup technology, combined with the use of NCM (Nickel-Cobalt-Manganese) cells, ensures the VOLTA battery functions reliably even at -20°C. This is claimed to offer a significant advantage over LFP (Lithium Iron Phosphate) cells, as NCM cells not only offer higher energy density but also superior low-temperature performance. This makes the VOLTA battery the ideal choice for filming in freezing conditions, where reliability and performance are paramount.
SWIT also offers optional add-on battery units and specialized DC cables compatible with a variety of lighting fixtures, enabling seamless integration into any production setup.
SWIT places paramount importance on safety and reparability in the design of the VOLTA Modular Add-On Floor Battery, a critical feature for the professional production industry where reliability is non-negotiable. The battery system is equipped with TI battery management system (BMS) that monitors and safeguards the batteries against overcharging, over-discharging, and short-circuiting, ensuring the safety of both equipment and personnel on set.
The VOLTA floor battery’s modular design not only allows for easy expansion of power capacity but also facilitates straightforward maintenance and repair. This design philosophy minimizes downtime and reduces costs associated with battery failures, providing peace of mind to professionals who rely on continuous power for their productions.
Specifications
| Battery Cells | Automotive Grade NCM Li-ion battery cells |
| Capacity Expansion | Add on battery units to expand capacity 1600Wh / 44.1Ah Each battery unit |
| Maximum Capacity | Max 8 units, 12.8kWh large capacity |
| DC 48V Output | 2×DC 48V (Reg.) 1200W output |
| DC 24V Output | 2×DC 24V (Reg.) 360W output |
| DC 12V Output | 1×DC 12V (Reg.) 120W output |
| USB-C Output | 1×USB-C 65W power output |
| Simultaneous Output | All power sockets output simultaneously |
| Total Continuous Load | 1700W Constant high load in total |
| AC Charging | Built-in AC 100-240V 450W |
| Solar Charging | Solar panel XT60 port 12-60V 400W |
| Uninterrupted Power | Discharging while charging, uninterrupted power |
| Display | LCD display remaining time and battery life |
| Working Temperature | -20°C – 50°C |
| Dimension | 328x247x281mm (with single battery unit) |
| Housing | Heavy-duty housing with rubber covers |
Pricing
A SWIT VOLTA 1 battery pack + 1 control module is $2199 USD. The VA1600 1600Wh Battery pack is $1499 USD.
