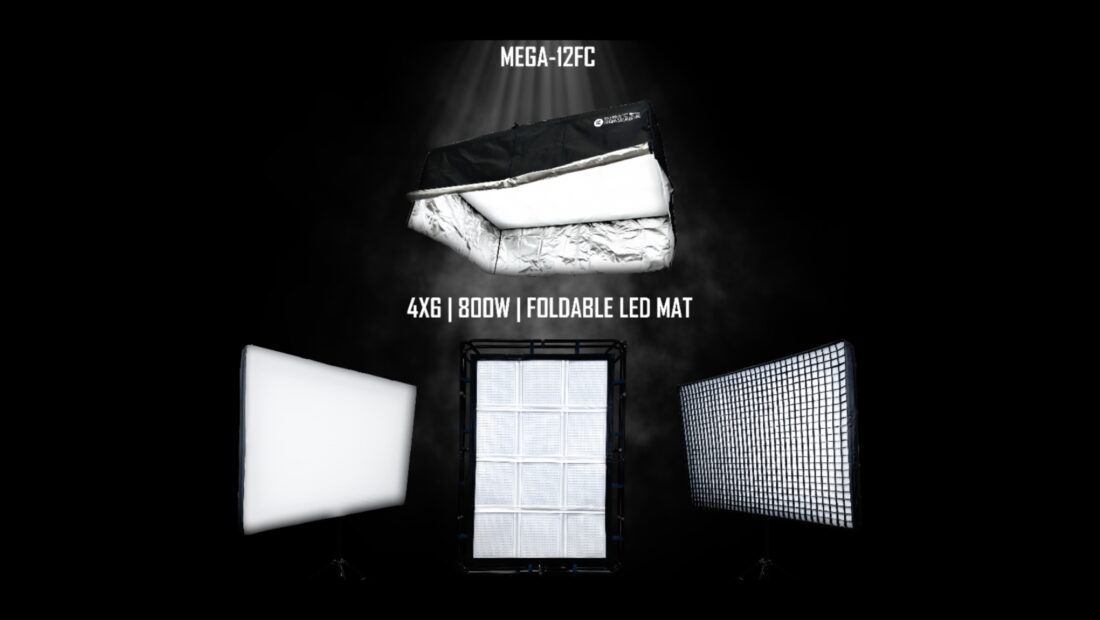

Intellytech Mega-12FC– a 4×6, 800W, RGBWW Foldable LED Mat

MEGA

Intellytech has announced its new Mega-12FC– a 4×6, 800W, RGBWW Foldable LED Mat, which is essentially a larger version of the Mega-8FC with some new upgrades.

According to Intellytech, this was the largest size that 1 person could setup by themselves without requiring a 2nd set of hands. Additionally, a 4×6 fits in very well with both 6×6 and 8×8 frames.

The rectangular design also allows users to set up the Mega-12FC in both a vertical or horizontal position.

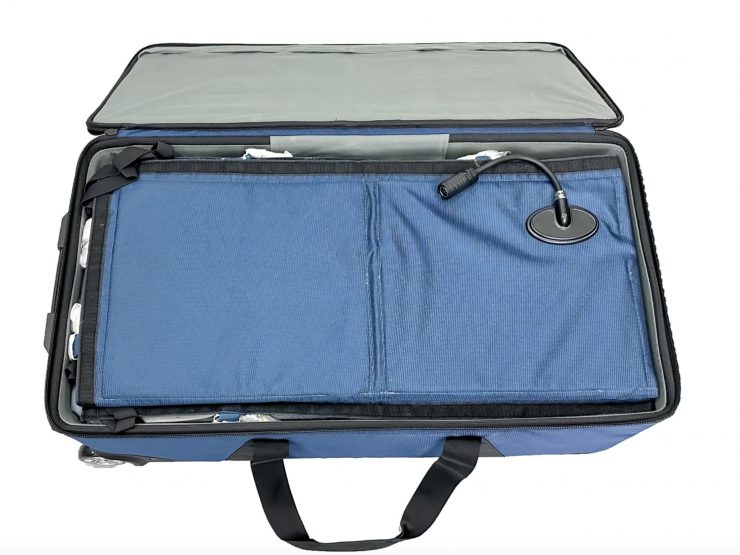

The Mega-12FC is a full-color RGBWW 4’x6′, 800W LED Mat & Softbox Kit. The LED Mat folds down to just 31″ x 16″ x 1″. This design allows the user to create, broad, bright, natural-looking light that can travel small and set up fast.

The Mega-12FC comes with 2 small cases. The LED Mat / Accessory case is actually 35% smaller than the Mega-8FC case. By removing the frame and packing it into its own separate case, the Mega-12FC can be transported into even smaller compact cars with no issue.

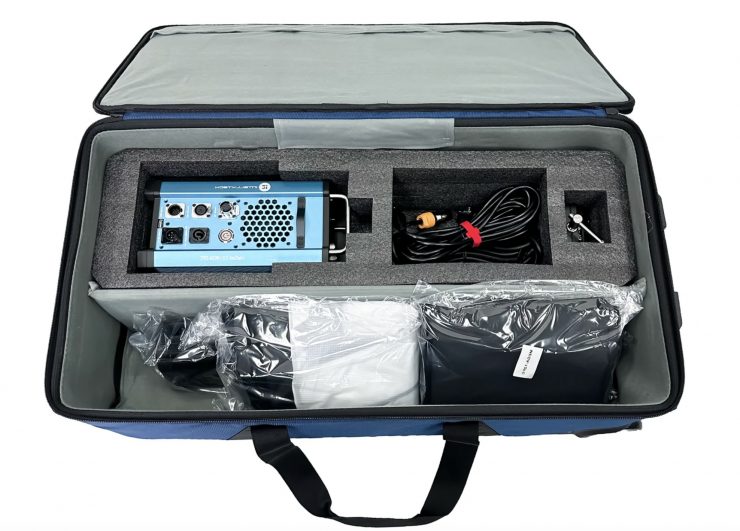

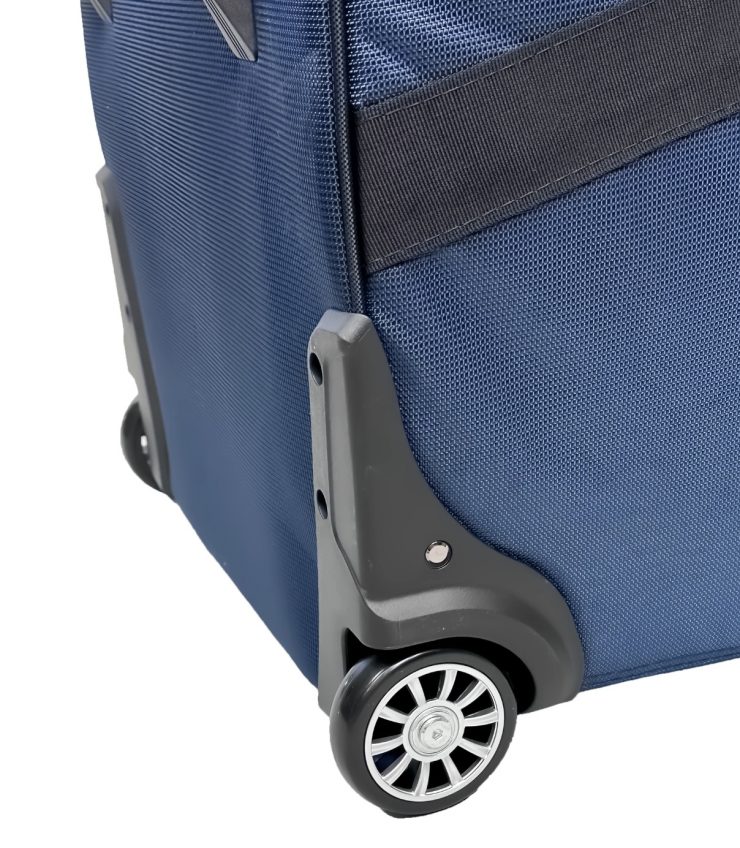

The Hard Carrying Case with wheels for LED Mat & Accessories measures 34 x 18 x 11”, and it weighs 45 lbs / 20.41 kg fully packed.

The Carrying Case for Frame measures 51 x 11 x 6”, and weighs 13.8 lbs / 6.25kg packed.

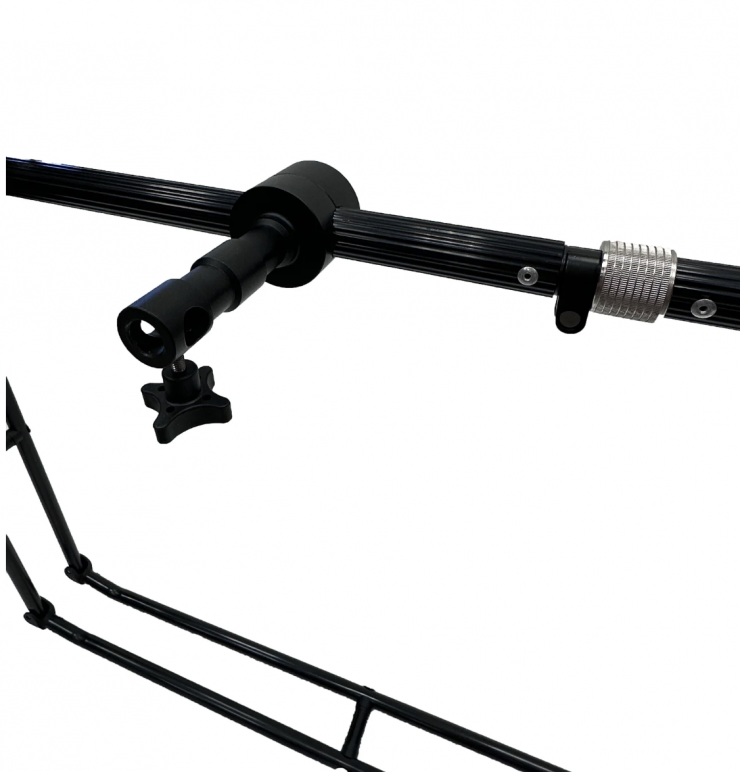

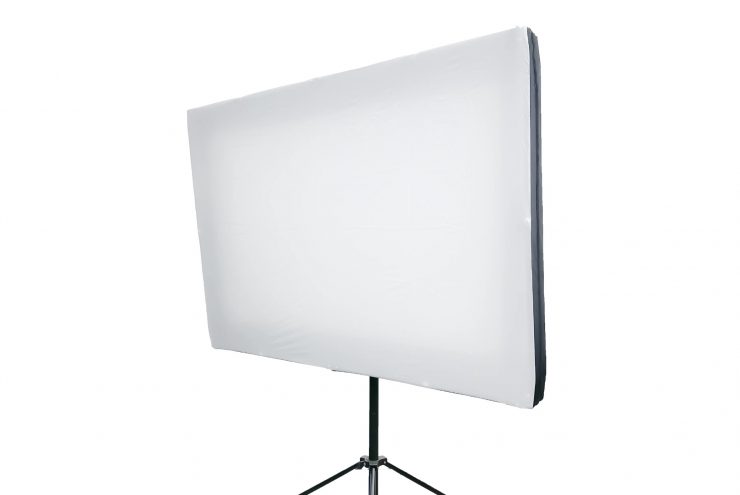

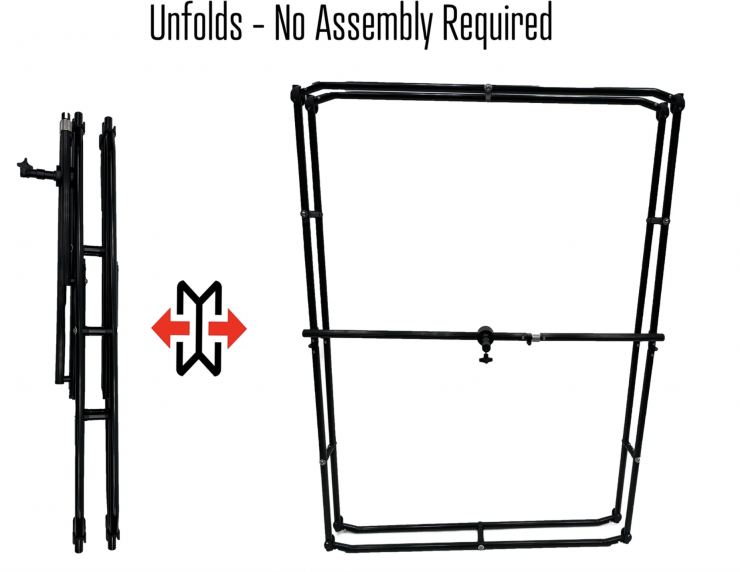

The Mega-12FC comes with a sturdy frame that simply unfolds and locks into place. The new double-bone frame also acts as a 5-inch spacer between the LED mat and diffusion. Because of this new design, there is no need for a large, bulky, heavy softbox. Instead, the Mega-12FC comes with a diffuser sheet that weighs less than 1 pound. The included Diffusion sheet weighs just 1 pound and is a ½ stop. Additionally, 1-stop diffusers are available as an optional add-on.

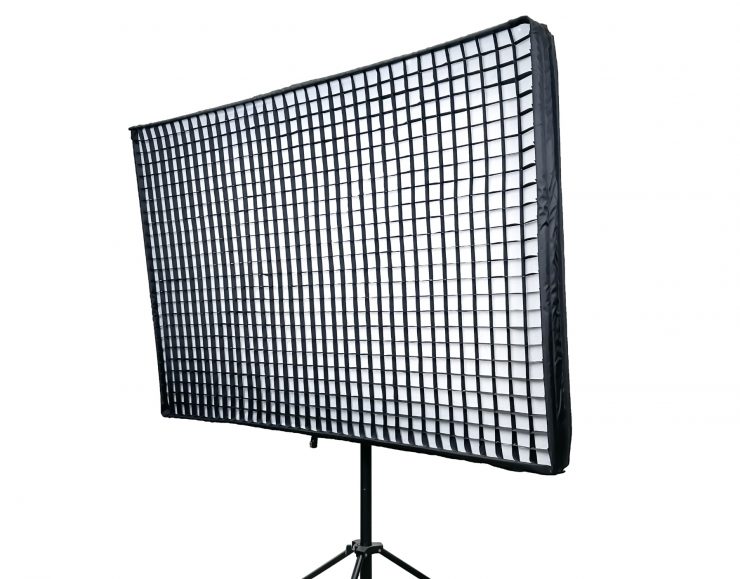

The included grid has a firm shell that pops into place for a quick setup and sturdy, no sag design.

Screenshot 2024 11 07 at 14 08 22

Additionally, a skirt is included making this an ideal overhead light without having to invest in additional modifiers. The skirt comes in 2 pieces, and all 4 sides can be rolled up for precise control over light-spill.

The Mega-12FC has an expanded color range of 2600k-9999k giving users more warmth and increased mixing capabilities than prior models. Additionally, the LEDs have been calibrated to perfectly match with all other 3.0 LiteCloth Models.

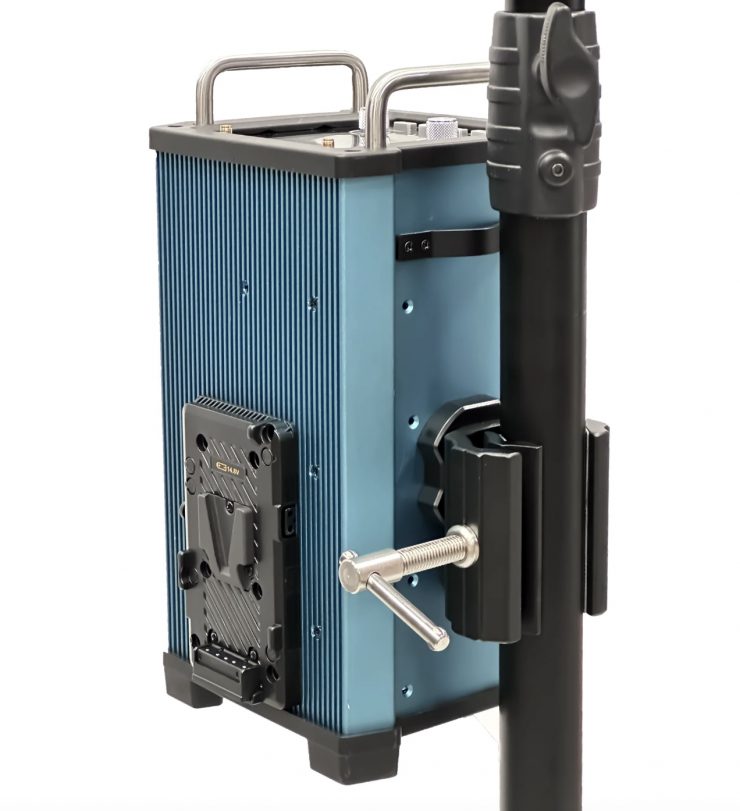

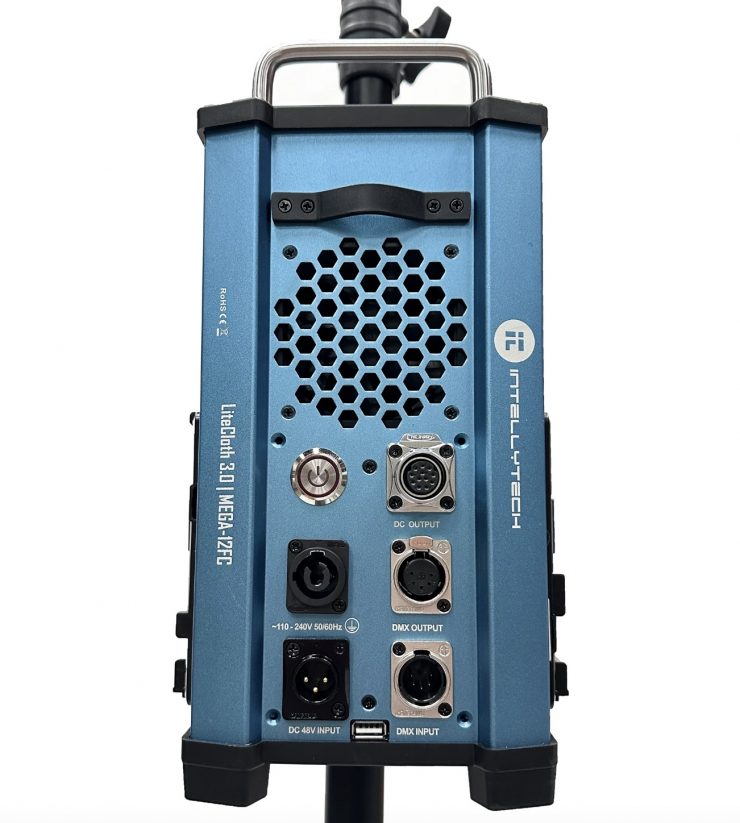

When not powering the Mega-12FC via AC, users have the ability to power via 2x 14.8V V-Mount or Gold Mount batteries up to 50% output. Additionally, there is a DC 48V input allowing users to connect external batteries or generators at 100% output.

Screenshot 2024 11 07 at 14 22 55

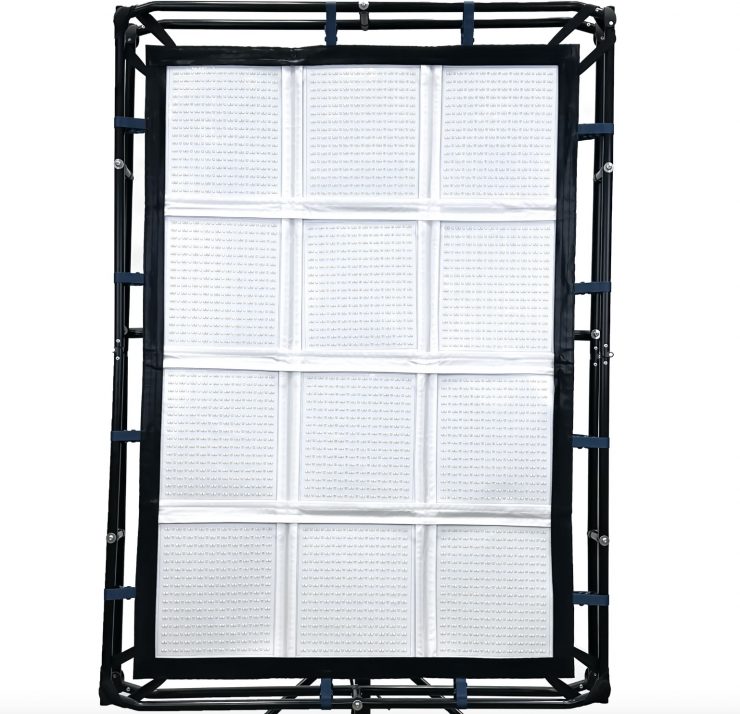

Unlike other LED Mat lights from competitors, Mega-12FC and all LiteCloth 3.0 models have built-in diffusion. Each LED has a dome-shaped diffusion coating allowing the LEDs to be used bare for a soft and even spread.

Screenshot 2024 11 07 at 14 23 54

Above you can see the claimed output figures for the Intellytech Mega-12FC.

Expanded DMX Profiles + Built-In CRMX

Users can now select from 4 different DMX Groups:

  • GP1: DIM / CCT / GM/ INT / HUE / SAT
  • GP2: Mode / Effects / GEL / HSI / RGB / CCT
  • GP3: DIM / CCT / GM
  • GP4: RED / GREEN / BLUE

Specifications

  • Full Color RGBWW
  • G/M Color Correction + HSI / RGB Controls
  • 2,600k-9,999k W/ Synced G/M Correction
  • Peak WW Power Draw – 720W
  • Peak WW + G/M Power Draw – 850W
  • Built-In CRMX LumenRadio for Wireless DMX Control
  • 5 Pin In/Out Wired DMX Ports
  • USB-C Port W/ 2W output (able to power wireless DMX receivers or other devices up to 2W)
  • Bluetooth Control via LiteSync+ wireless app for iOS & Android
  • 4 Dimming Curves (Linear, S-Curve, Log, Exp)
  • 20 Effects
  • CCT Mode / FX Mode / RGB Mode/ HSI Mode / GEL Mode
  • Operating Voltage: 100V ~ 240V / 50-60Hz

Price & Availability

The Intellytech Mega-12FC is available at an early bird price of $2,999 USD at B&H.
