KIPON OCUS high-end tilt-shift adapter

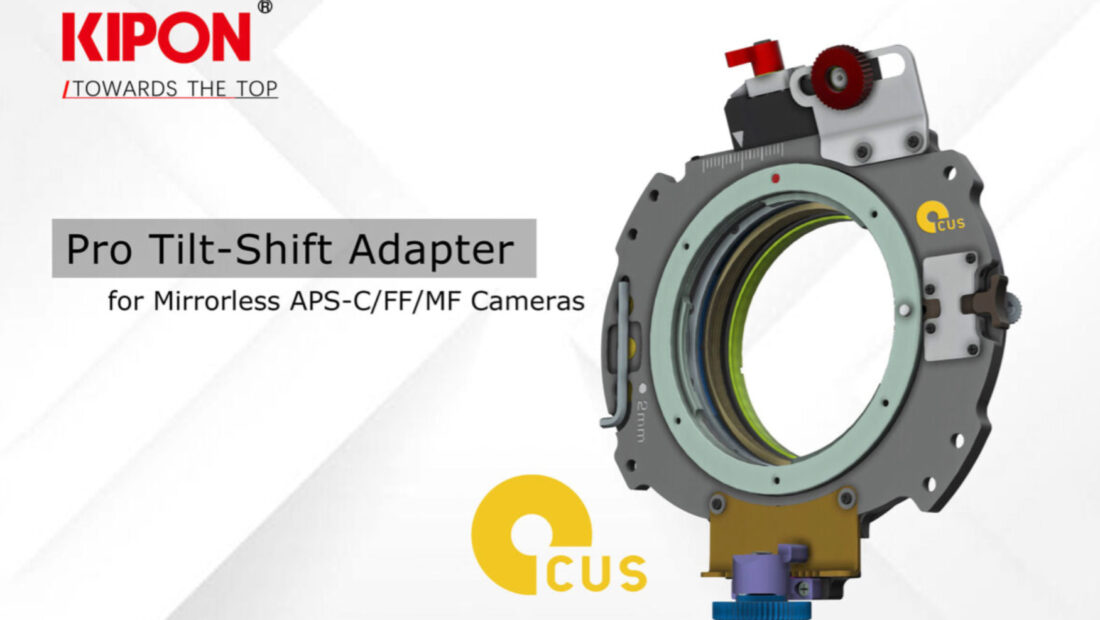

Screenshot 2024 11 05 at 19 48 10

KIPON has announced its new high-end Tilt-Shift adapter brand OCUST which was designed to meet the needs of professional photographers.

Initially, there will be two series of Tilt-Shift adapters, corresponding to full-frame mirrorless cameras and medium-format cameras from Fujifilm and Hasselblad.

Screenshot 2024 11 05 at 19 53 55

The tilt axis lies on the image plane: so there is no forced shifting when tilting that then needs to be re-corrected backwards. This reduces the amount of mechanical tilt and shift capability actually needed.

Key features

  • Tilt range: symmetric ±7 degrees
  • Shift range: symmetric ±10mm with geared drive
  • Two separate endless 360-degree rotation stages, so the orientation of the shift direction can be freely selected independent of the orientation of the tilt axis
  • Positive clamp locks for all axes (tilt, shift, rotation 1, and rotation 2)
  • Light trap with wide throughput: achieves greater movement range before vignetting
Screenshot 2024 11 05 at 19 54 07

There are two operational modes:

Traditional adapter (camera is stationary, lens shifts and tilts)

​​​​​​​Parallax-free “rear standard” using optional accessory ring bracket (lens is stationary, camera shifts and tilts).  The ring bracket can be rotated to orient the shift axis as desired. Please note this rear standard accessory needs to be purchased separately.

It is compatible with cinema-lock type mounts having surrounding locking ring.

Available for the following camera mounts on the rear:

– Canon RF / (FF/APS-C)

– Sony E / (FF/APS-C)

– Leica L / (FF/APS-C)

– Nikon Z / (FF/APS-C)

– Fujifilm GFX / (MF)

– Hasselblad XCD / (MF)

The basic lens mount on the front is Canon-EF, which can be adapted to most lenses through a wide range of KIPON adapters.

The product was designed and developed in Germany and will be produced and assembled in Japan. It is expected to start shipping in April 2025. Customers who pre-order now will receive a 25% discount off the standard retail price.
