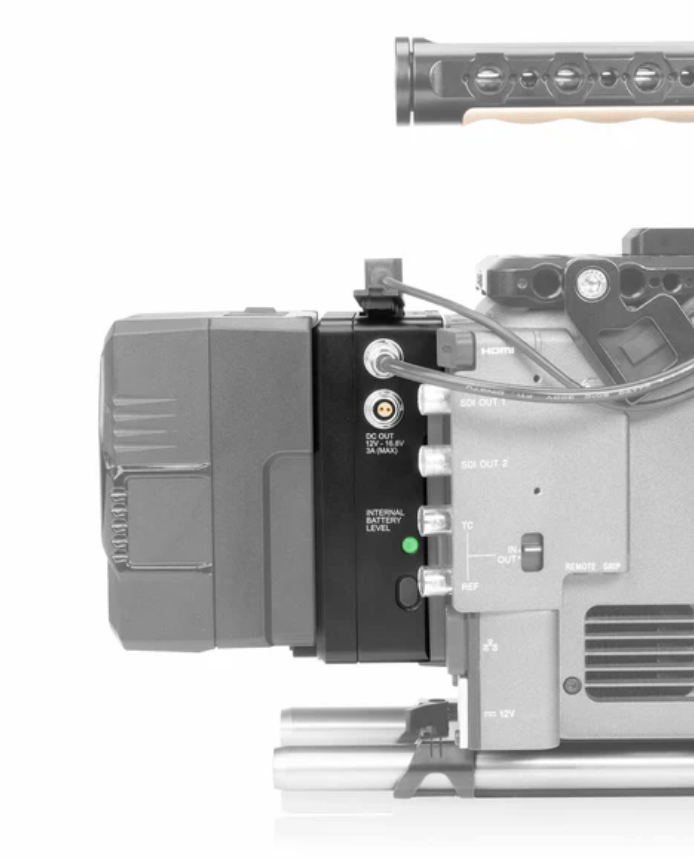

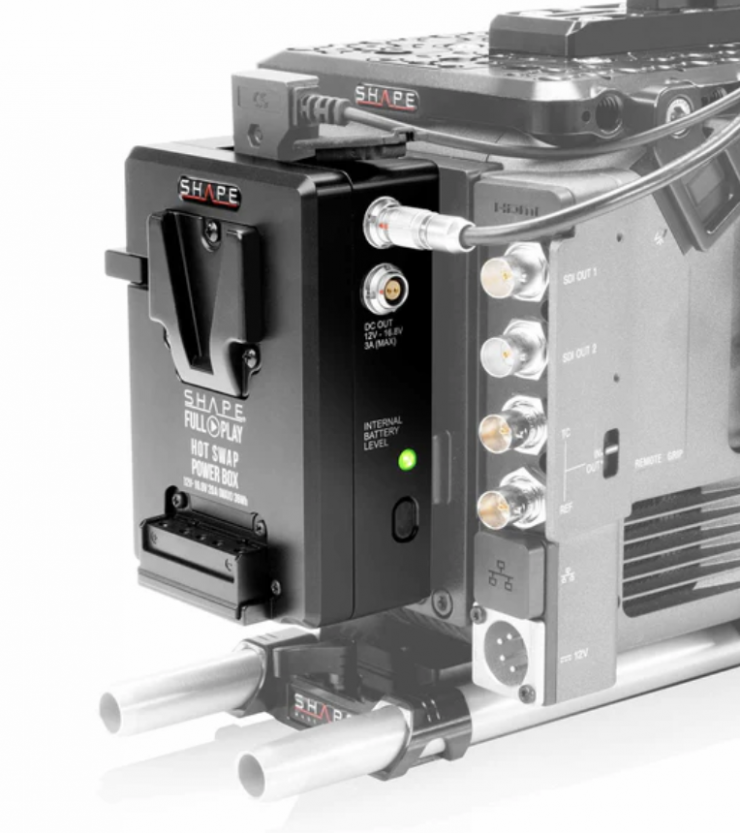

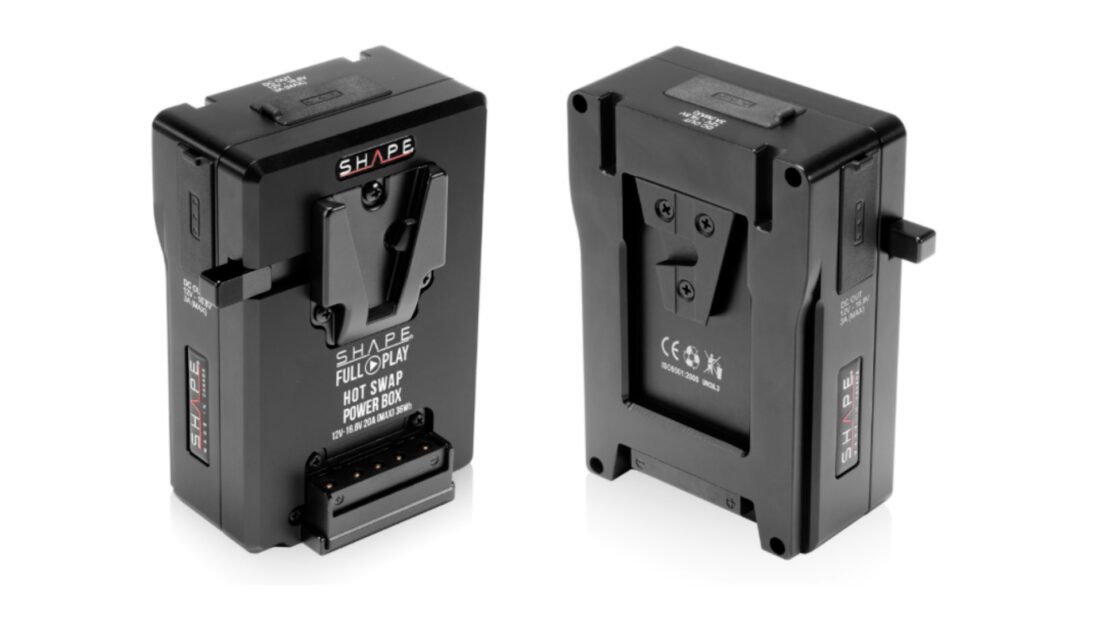

The SHAPE Hot Swap V-Mount Power Box Battery 14.4V 36Wh looks to be a decent solution if you are looking for a hot swap V-mount battery plate for your camera.
Key features
- Hot Swap V-Mount to V-Mount Power Box Battery 14.4V 36Wh.
- Hot Swap Function: Designed for uninterrupted power supply.
- Rechargeable Li-Ion battery type.
- Compatible with V-Mount Chargers to charge Hot Swap.
- Hot Swap can be charged via D-Tap port.
- Seamless Battery Switching.
- High-Precision Monitoring.
- Integrated Balancing Switch.
- Includes two Twist D-Tap & two LEMO 2-pin ports.
- 3-Color LED lights: Red, Yellow & Green, indicating internal battery level.
- 2-year limited warranty against all manufacturer defects.

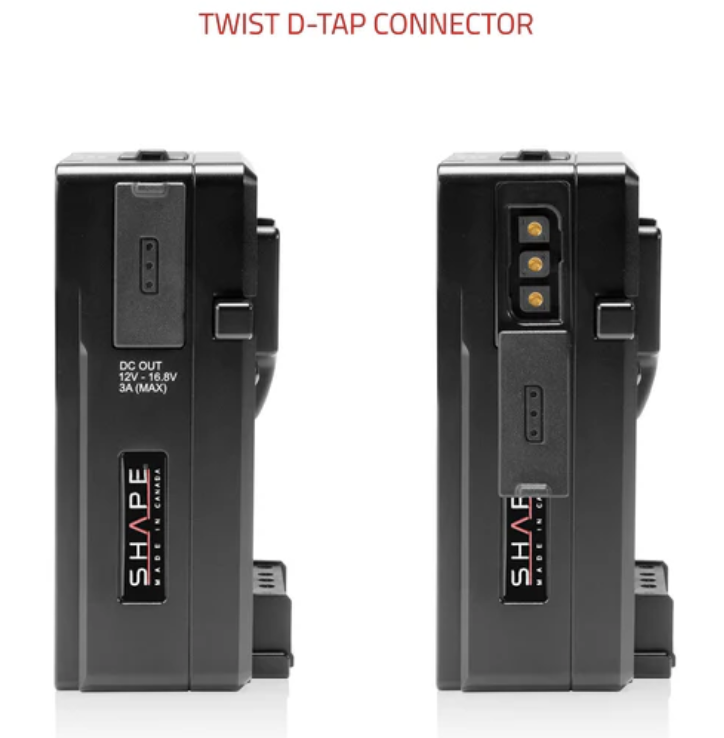

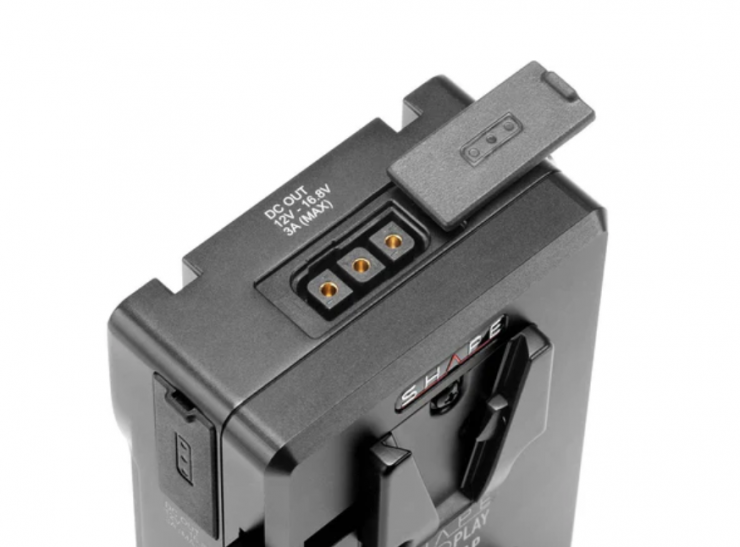

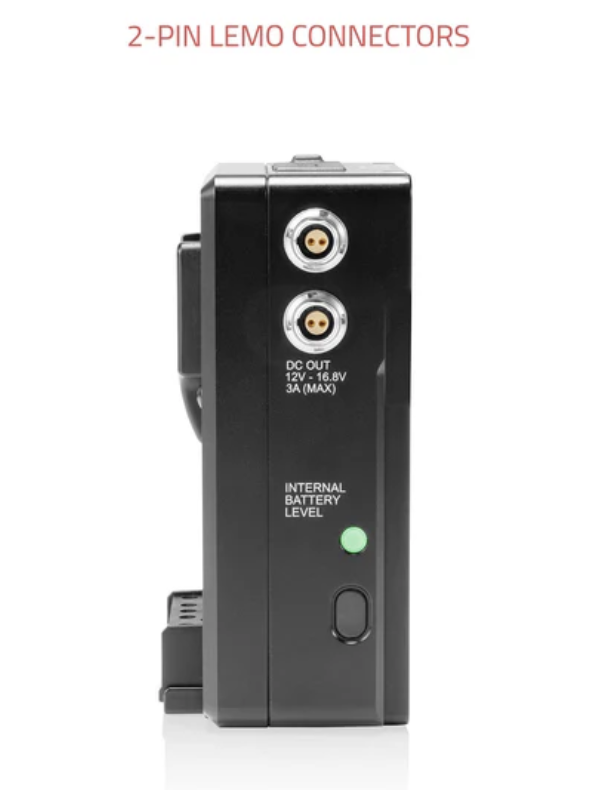

This Hot Swap Power Box includes two Twist D-tap and two LEMO 2-pin ports to provide power to additional accessories. It is nice to see LEMO ports included as too often companies just include D-tap ports.

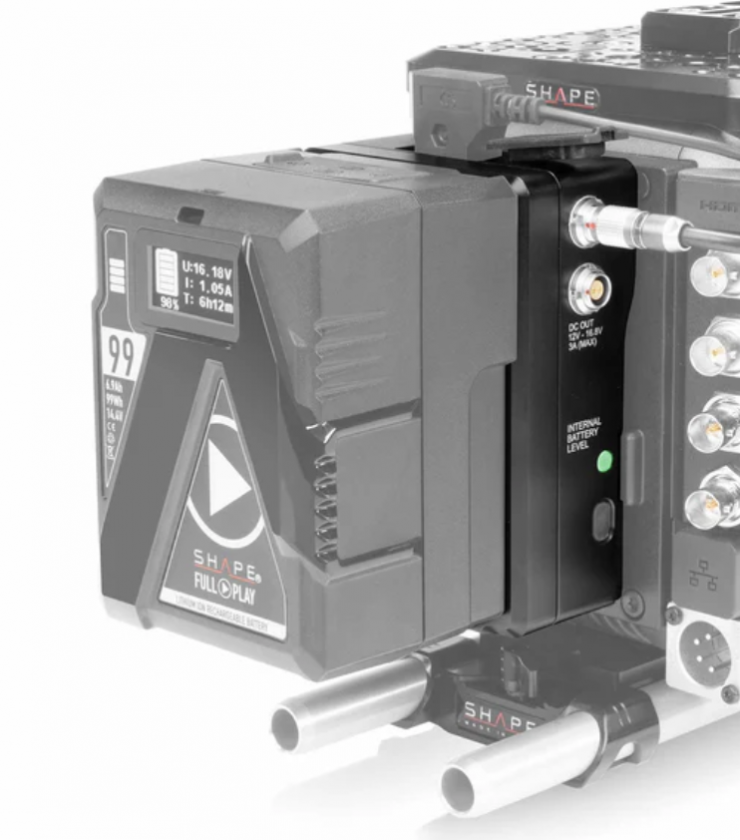

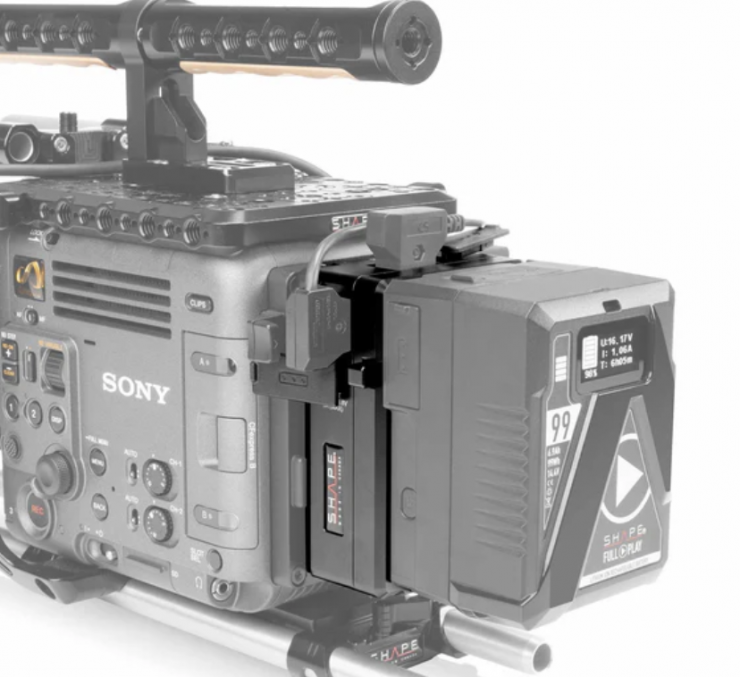

The new Hot Swap V-Mount Power Box battery will prioritize external batteries for power supply while simultaneously charging the internal battery. It includes built-in high-precision voltage detection circuits and delay circuits to monitor voltage, current and temperature, ensuring the safety of the battery pack and extending its lifespan.
To ensure the consistency of its cell voltages, SHAPE designed an integrated balancing switch, and to enhance its system safety, a low-temperature charging protection and under-voltage load lock functions are also included

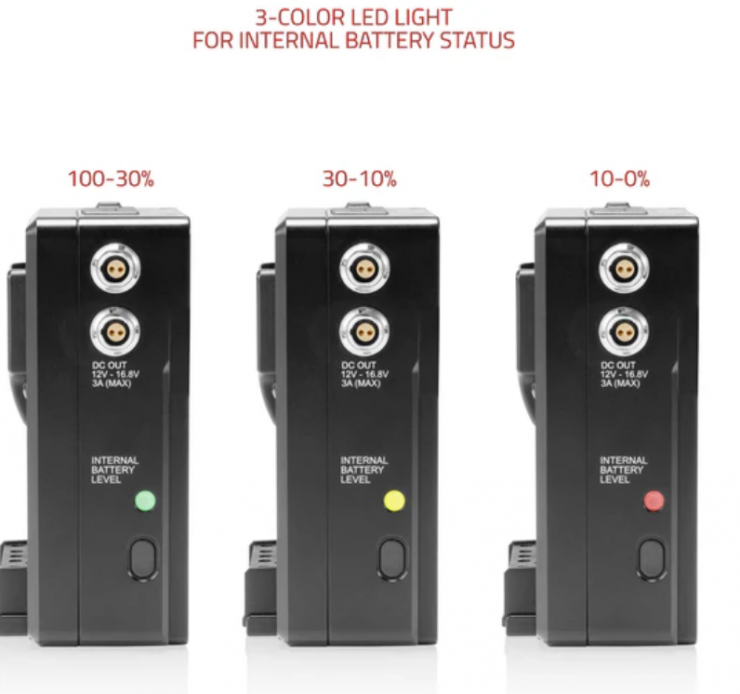

To see its internal battery level, a 3-color LED light system will show you a red, yellow or green light. SHAPE’s Hot Swap Power Box has a 2-year limited warranty against all manufacturer defects.
SPECIFICATIONS
- Rated Capacity: 2500 mAh
- 36Wh Nominal Voltage: 14.4V
- Voltage Range: 12-16.8V
- Charging Voltage: 16.8V
- Charging Current: 3.5A (Max)
- Discharge Current: 20A (Max)
- Main BP Output: 12-16.8V, 20A (Max)
- Twist D-tap Output: 12-16.8V, 3A (Max)
- LEMO 2-pin Output: 12-16.8V, 3A (Max)
- Operating Temperature: -40°~50°C
- Storage Temperature: -20°C~45°C
- Operating Humidity: 90-95% (Max)
- Storage Humidity: <70%
- Dimensions: 4.4 x 3.4 x 2 in / 112 x 87 x 51 mm
- Weight: 1.2 lbs. / 550g
Price & Availability
The SHAPE Hot Swap V-Mount Power Box Battery 14.4V 36Wh is now available to purchase for $395.12 USD.
