Z CAM P2-R1 PTZ Camera First Look IBC 2024

At IBC 2024, Z Cam showed its new P2-R1 PTZ camera. The concept for the P2-R1 is to incorporate the color science and image quality of Z Cam cinema cameras into a PTZ camera.

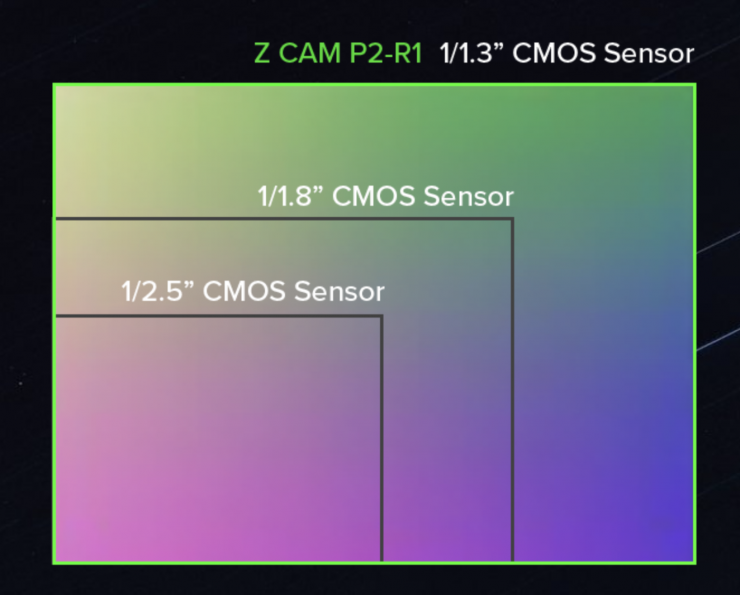

Screenshot 2024 09 15 at 10 36 47 AM

A key new feature to the P2-R1 PTZ camera is the larger sensor. I has a 1.1.3″ CMOS sensor that allows for a bit more shallow depth of field and light gathering. It’s capable of outputting up to 4K 60p.

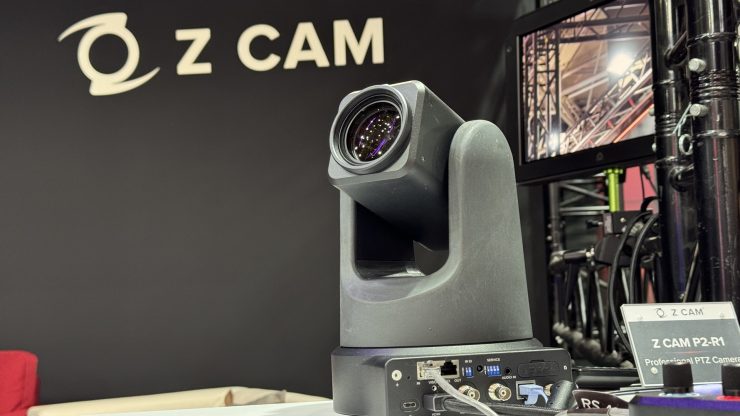

ZCAM PTZIMG 1164

Key features

  • Media/Memory Card Slot
  • SD (4K 60fps max, H.265, 8-bit color)
  •
  • Video I/O
  • 1x BNC (3G-SDI) Output
  • 1x RJ45 (IP) Output
  • 1x HDMI Output
  • 1x USB-C 3.0 Gen 1 Output
  •
  • Audio I/O
  • 1x 1/8″ / 3.5 mm TRS Stereo Mic/Line Input
  •
  • Other I/O
  • 1x BNC (Genlock) Input 1x RJ45 (VISCA / RS-422) Input
  • 1x RJ45 (VISCA / RS-422) Output

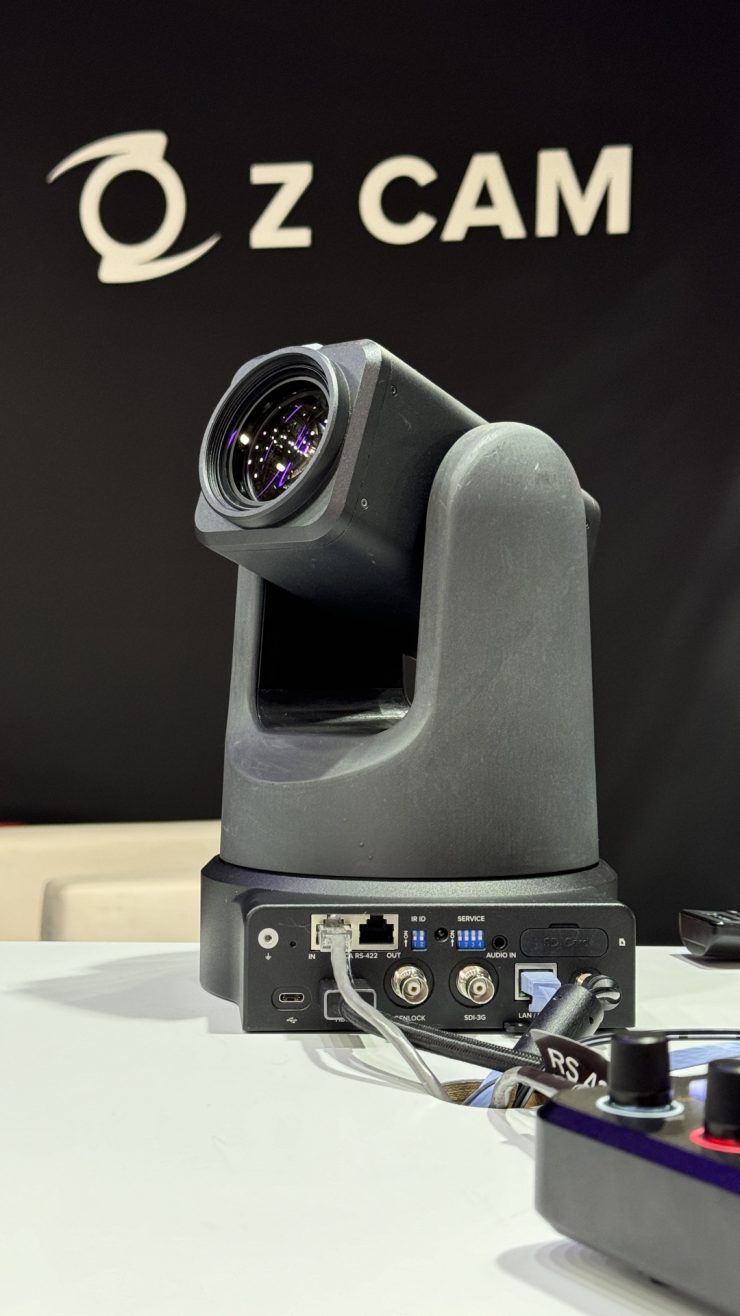

ZCAM PTZIMG 1165

Another stand-out feature is the inclusion of PDAF (Phase Detection Auto Focus). This is much better than contract aucto focus and the camera also has focus tracking and face detection. These features are very handy for interview situations. From the demo we did it looks to work very well.

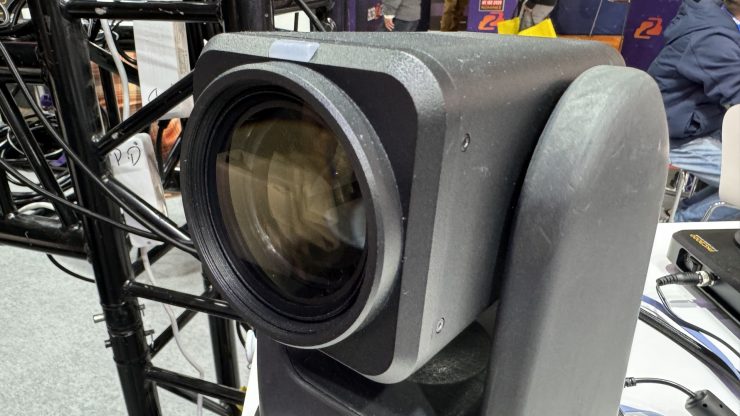

ZCAM PTZIMG 1163

The camera has an 18x optical zoom lens, giving the PTZ camera a good focal range.

Both camera support VISCA protocols and there is a 3G-SDI output, a 3.5mm audio input, LAN/PoE+, a 12V power input, and a Micro SD card slot. Z CAM also told us that it will also have an HDMI output, but tat wasn’t being shown on this prototype.

Media / Memory Card Slot
SD (4K 60fps max, H.265, 8-bit color)
Audio I/O
1x 1/8″ / 3.5 mm TRS Stereo Mic/Line Input
Video I/O
1x BNC (3G-SDI) Output
1x RJ45 (IP) Output
1x HDMI Output
1x USB-C 3.0 Gen 1 Output
Other I/O
1x BNC (Genlock) Input
1x RJ45 (VISCA / RS-422) Input
1x RJ45 (VISCA / RS-422) Output

Video Capture

External Recording Modes

  • HDMI
  • UHD 4K (3840 x 2160) at 23.98/24/25/29.97/50/59.94 fps
  • HD (1920 x 1080p) at 23.98/24/25/29.97/50/59.94 fps
  • HD (1920 x 1080i) at 50/59.94 fps
  • SDI / BNC
  • HD (1920 x 1080p) at 23.98/24/25/29.97/50/59.94 fps
  • HD (1920 x 1080i) at 50/59.94 fps
  • RJ45 / USB
  • UHD 4K (3840 x 2160) at 24/25/29.97/50/59.94 fps
  • HD (1920 x 1080p) at 24/25/29.97/50/59.94/120 fps

Internal Recording Modes

  • UHD 4K (3840 x 2160) at 23.98/24/25/29.97/50/59.94 fps
  • HD (1920 x 1080p) at 23.98/24/25/29.97/50/59.94/120 fps

IP Streaming

  • H.264, H.265, RTMP, RTMPS, RTSP, SRT, SSP, UVC, NDI_HX3*
  • UHD 4K (3840 x 2160) at 24/25/29.97/50/59.94 fps
  • HD (1920 x 1080p) at 24/25/29.97/50/59.94/120 fps

Price & Availability

ZCAM PTZIMG 1166

The Z CAM E2Z+ will retail for around $2,500 USD and it should be available in around 2-3 months.
