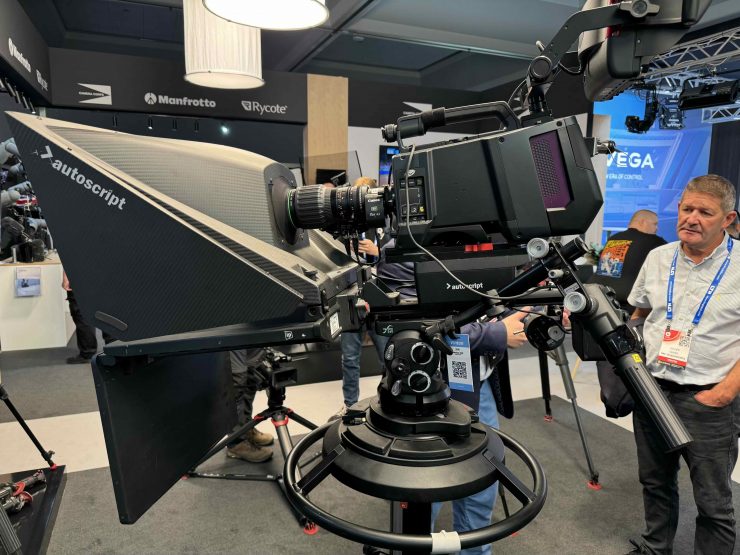

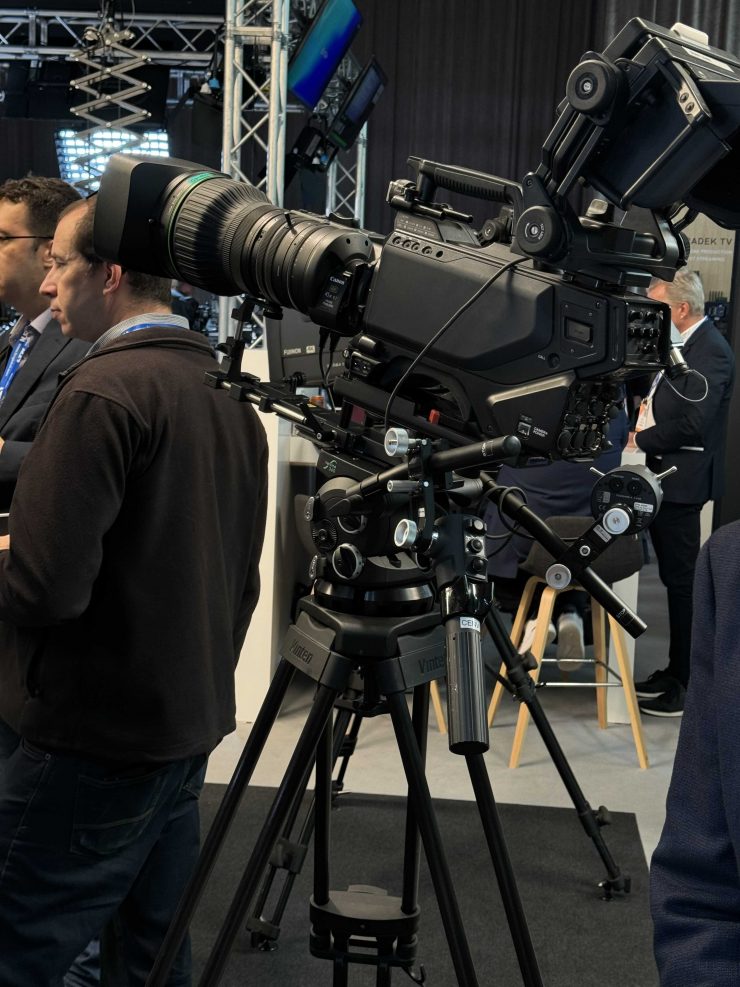

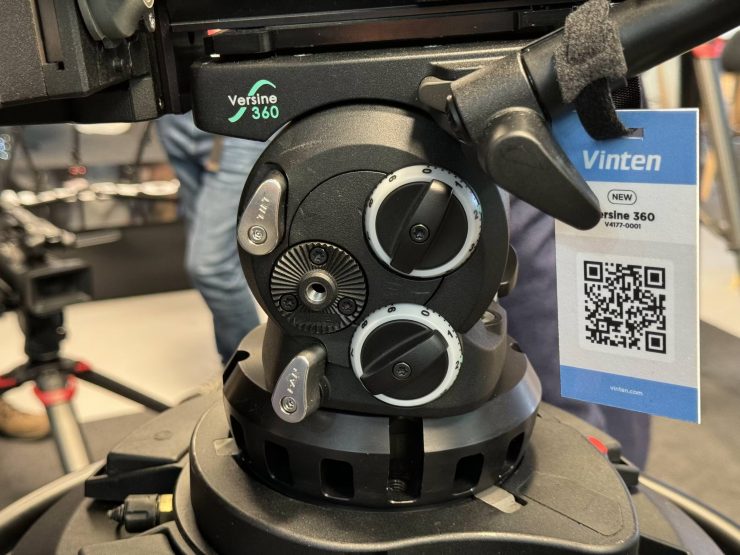

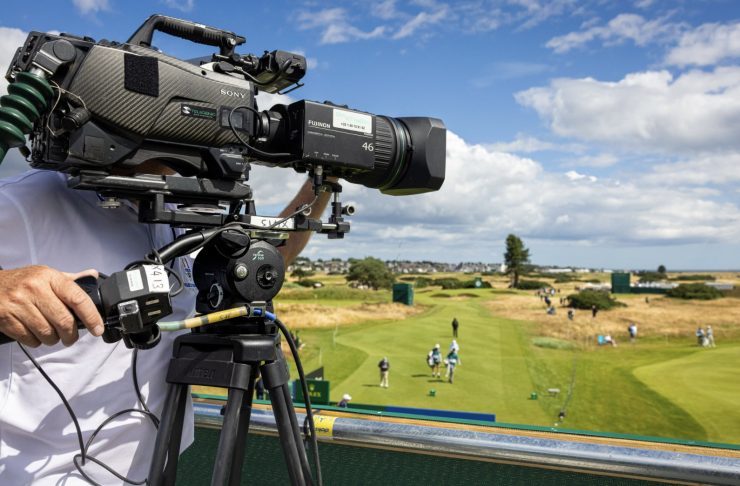

At IBC 2024 in Amsterdam, we caught up with Vinten to talk about their new Versine 360, which is a new pan and tilt head designed for fixed camera positions without box lenses. Versine 360 was developed in collaboration with major outside broadcast companies to address the specific requirements of live television production. It is a replacement for the Vision 250.
There are a multitude of improvements over the Vision 250 and a lot of thought has gone into the design. It is a really impressive piece of kit.

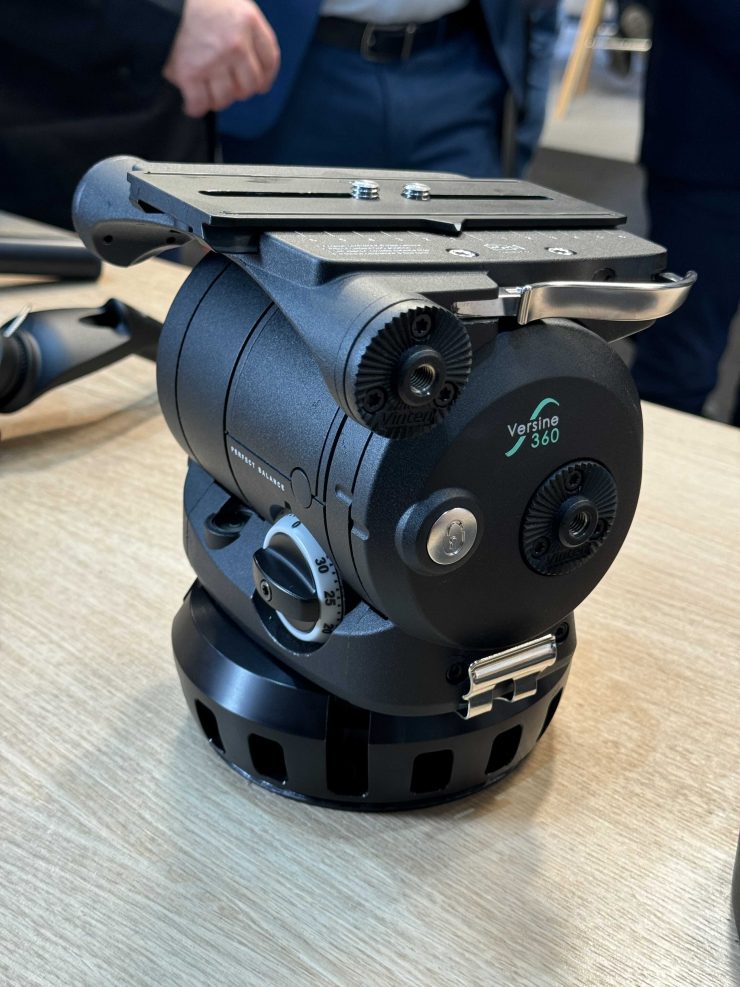

The smallest head in its class, Versine features Vinten’s patented compact balance mechanism, accommodating a wide range of camera and non-box lens configurations with a payload of 0 – 40 kg / 0 – 88 lb. Its multi-standard base is compatible with four industry-standard fixings, including flat base and 150mm bowl, eliminating the need for additional adapters.

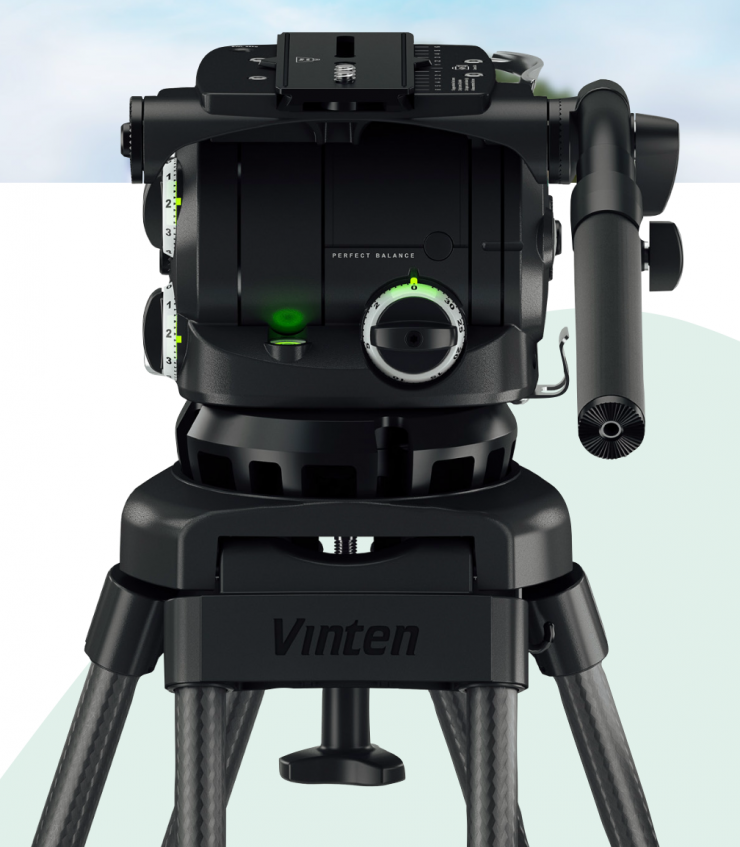

Versine also incorporates Vinten’s ‘Perfect Balance’ technology, which is claimed to ensure smooth and precise positioning throughout the tilt range, which is crucial for long-duration broadcasts. ‘TF Drag’ technology provides consistent control at low speeds for accurate framing and allows for immediate response during high-speed tracking.

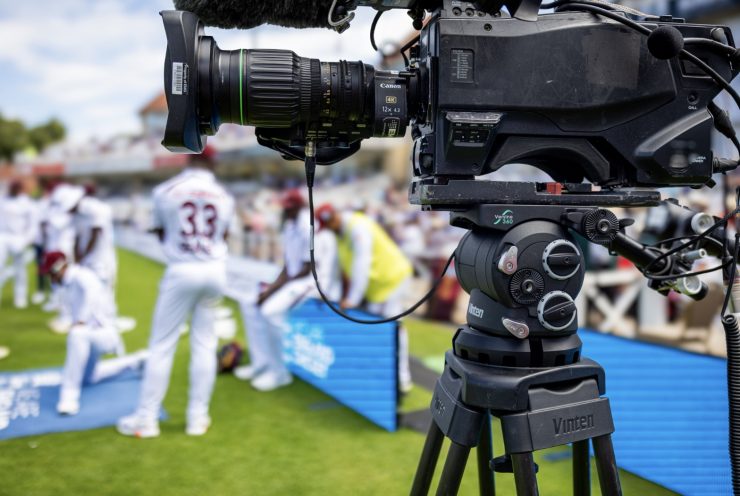

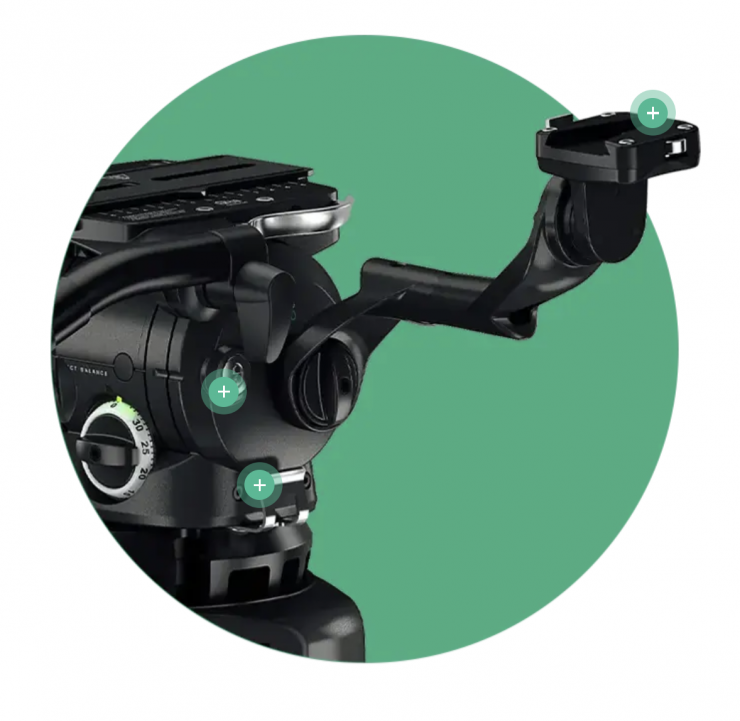

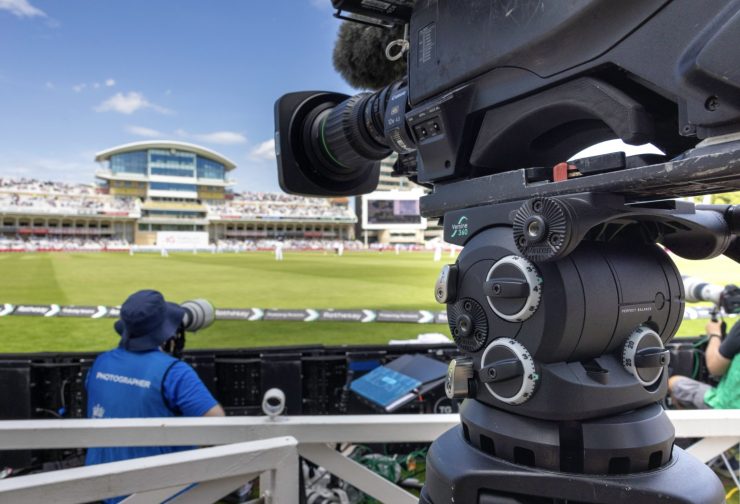

To meet the demands of dynamic live broadcasting, the head incorporates features that streamline rigging and operation, including a carry handle and the Versine Arm, a stable side-mount for viewfinders, script holders, and other accessories.

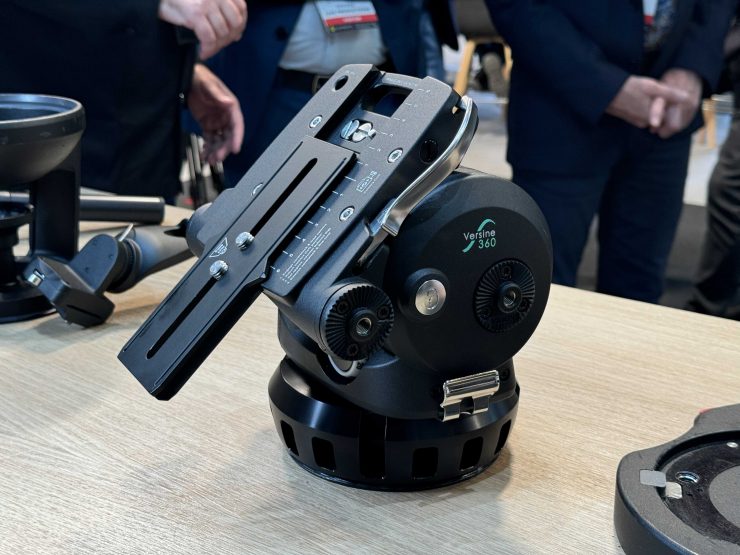

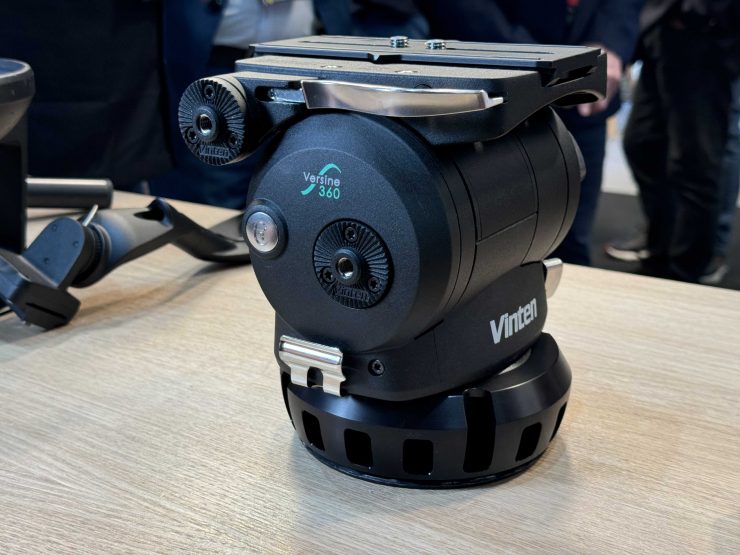

The Versine 360 is constructed with all-metal materials and low-profile controls made from steel and aluminum. This build quality ensures reliable performance in demanding environments, providing long-term value for users.
Price & Availability
The Vinten Versine 360 is now shipping for $11,115.00 USD.
Specifications
Payload: 0 – 40 kg / 0 – 88 lb

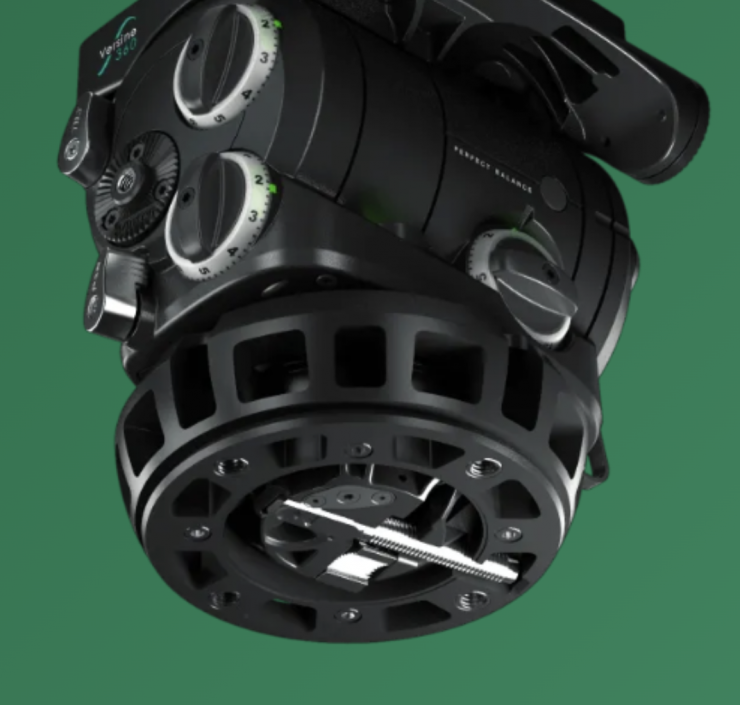

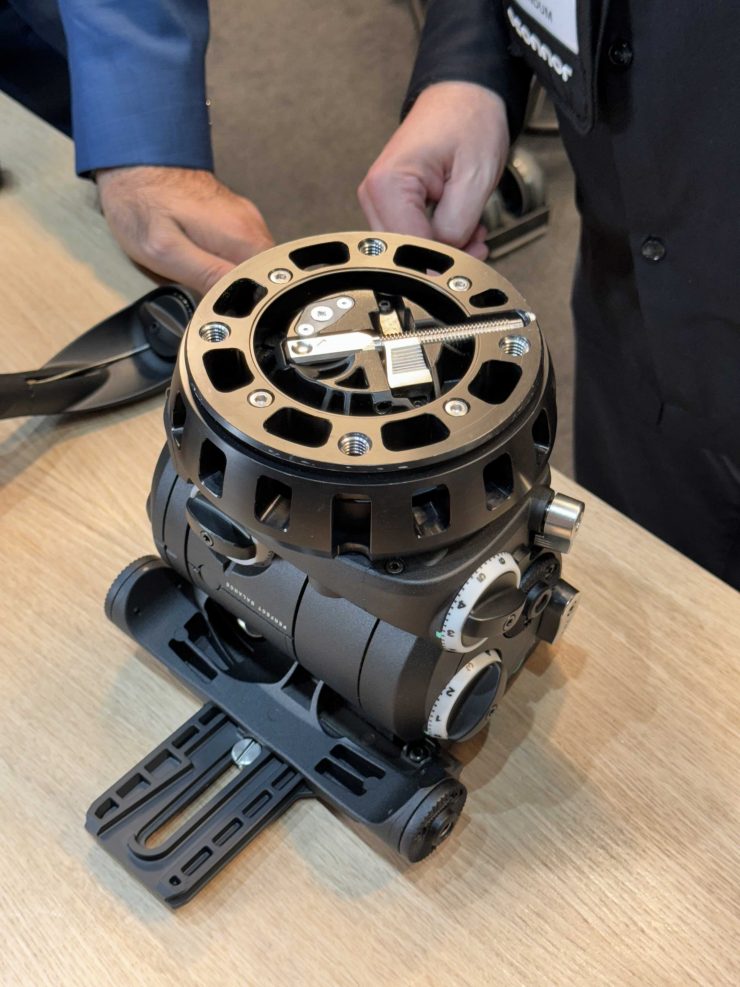

Base: Versine multi-standard base with 4-bolt flat, Quickfix, 150mm and 100mm Bowl
Counterbalance: Continuous & Perfect
Drag: TF30
Height: 19.5 cm / 7.7″
Length: 15.1 cm / 5.9″
Width: 19.4 cm / 7.6″
Weight (head only): 6.3 kg /14 lb
Weight (head + plate and pan bar): 6.8 kg / 15 lb

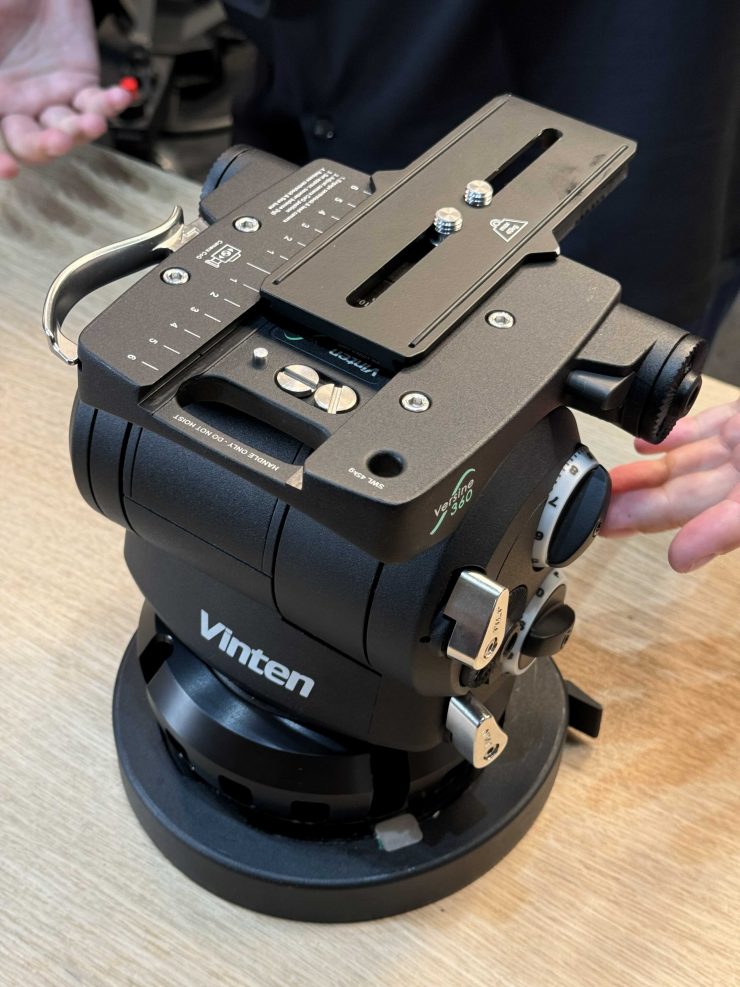

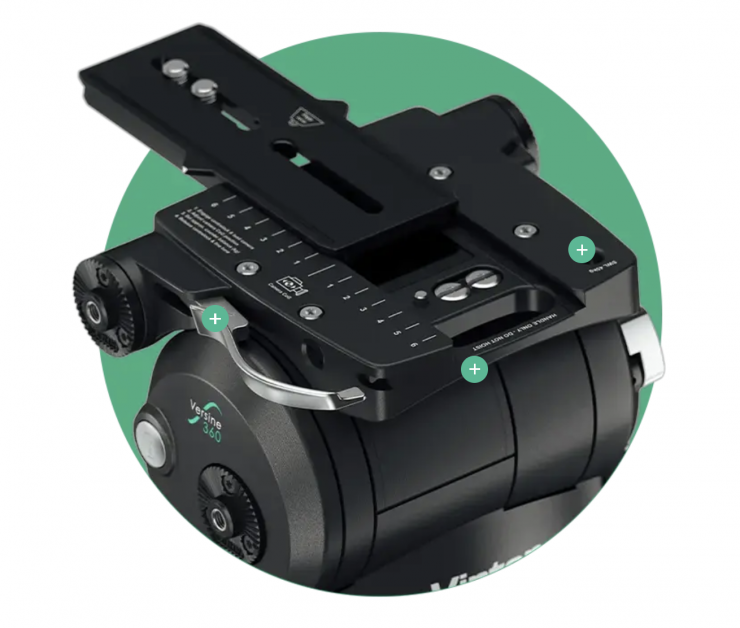

Camera fixing: Vision sliding plate, latched lever
Tilt range: +90°/-90°
Platform sliding range: 125 mm / 4.9″
Levelling bubble: illuminated, high contrast

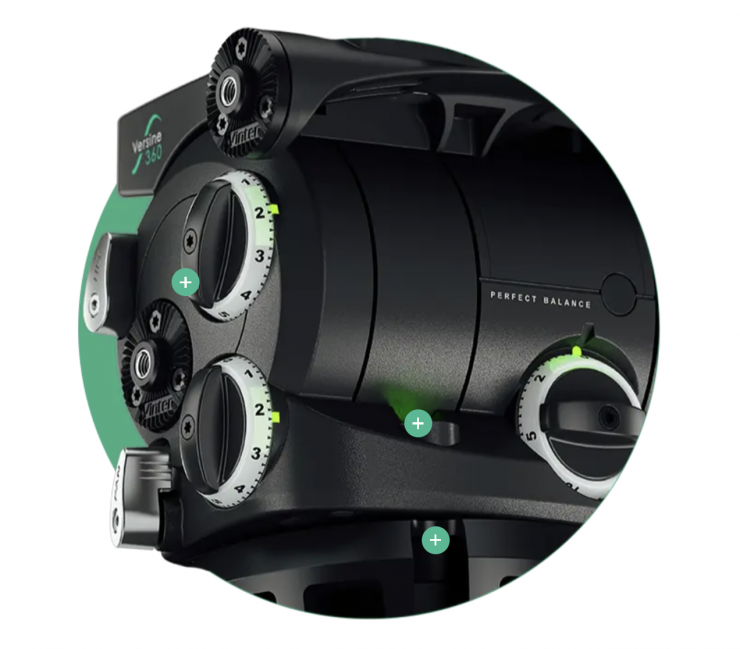

Drag and balance controls: backlit and calibrated, low-effort multi-turn, aluminium
Temperature range: -40° to +60°C / -40° to 140°F

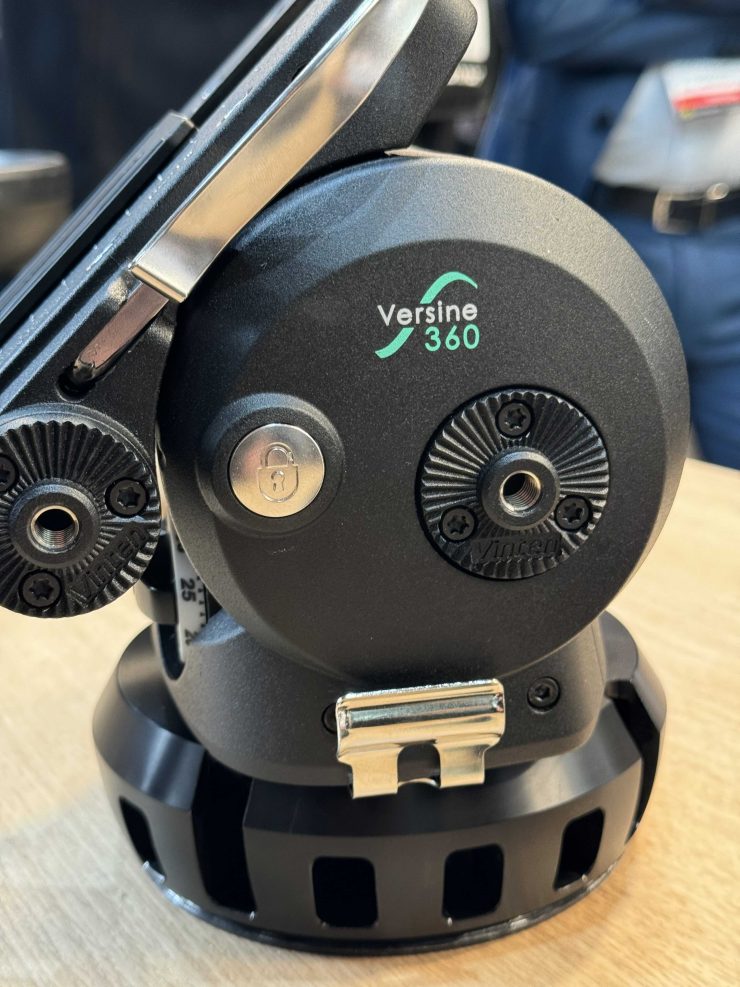

Centre lock: stainless steel push button
Pan bar: single telescopic broadcast pan bar
