SWIT PL-S300D Soft LED & PL-S300H 300W Hard LED Panel Lights

PL S300D FM

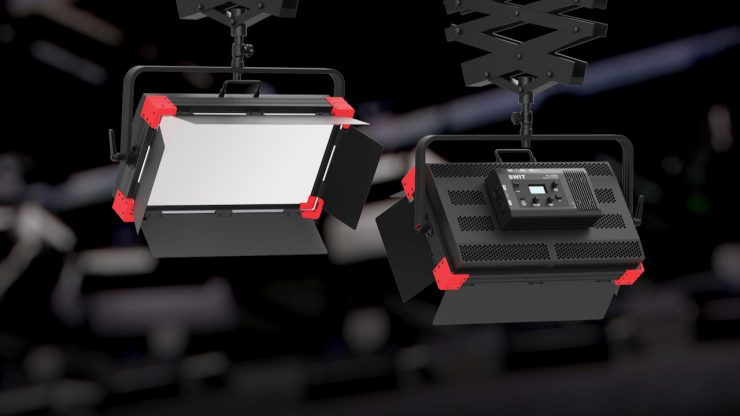

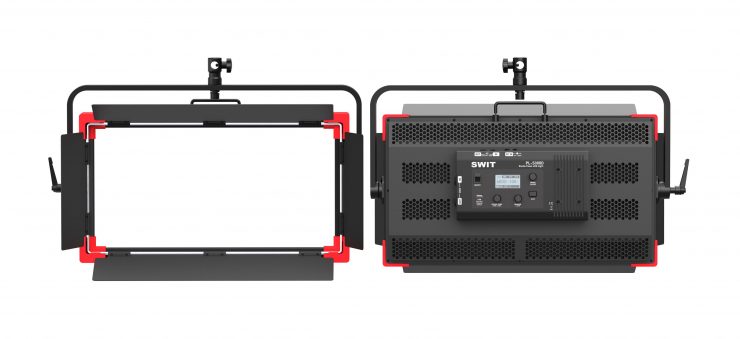

SWIT has announced its new PL-S300D and PL S300H 300W LED Panel Lights. The PLS300D/H are both 300W Bi-Color LED panel lights catering to the soft and hard light needs of professional studios.

Box 600x500 2

PL-S300D

Screenshot 2024 07 30 at 12 22 03

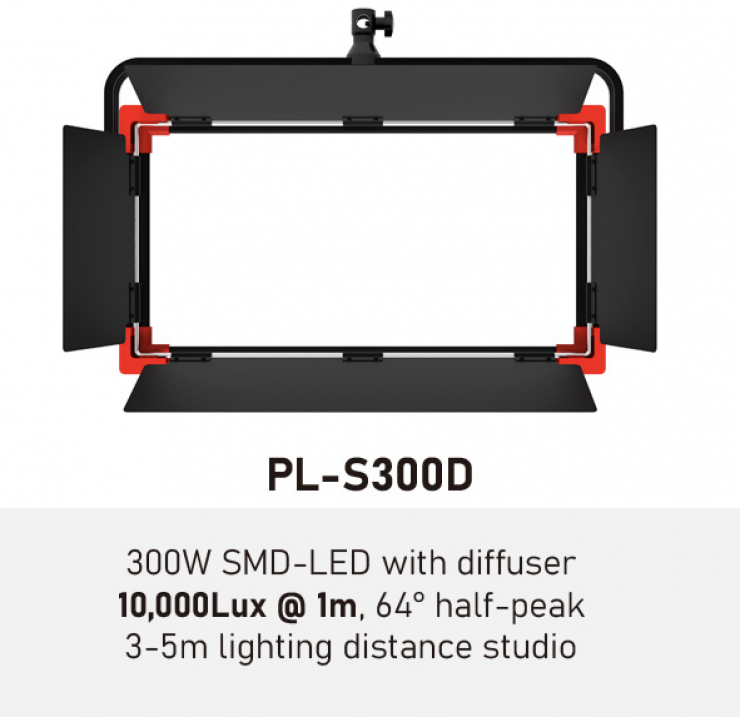

The PL-S300D features 1,200 SMD LEDs complemented by an S-Polytech organic light diffuser, to produce a claimed output of 10,000 lx at 1m /3.3′. This light features a 120° beam angle (64° half-peak), making it a good choice for a variety of lighting scenarios requiring a broad and even light distribution.

PL-300H

Screenshot 2024 07 30 at 12 22 09

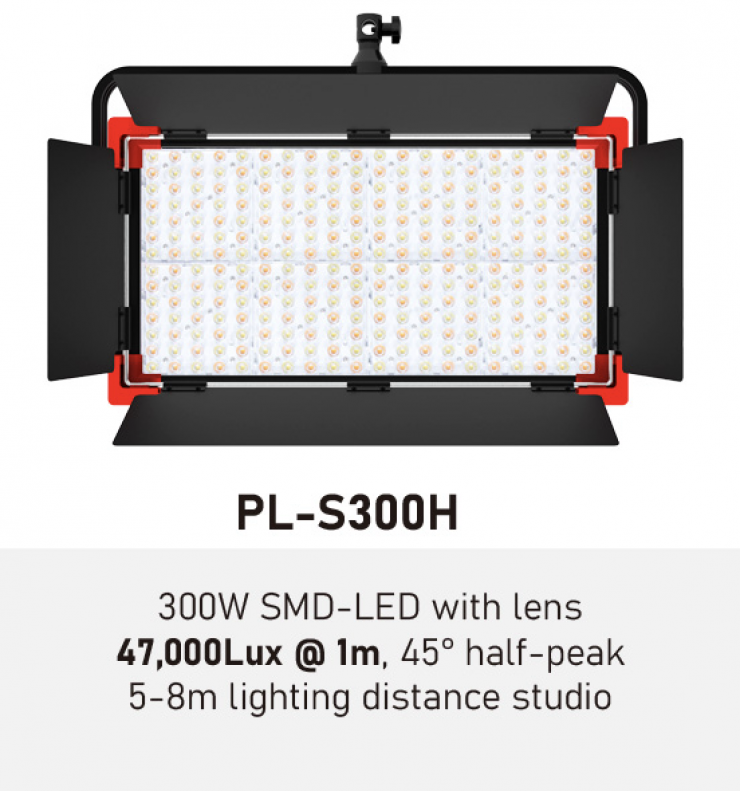

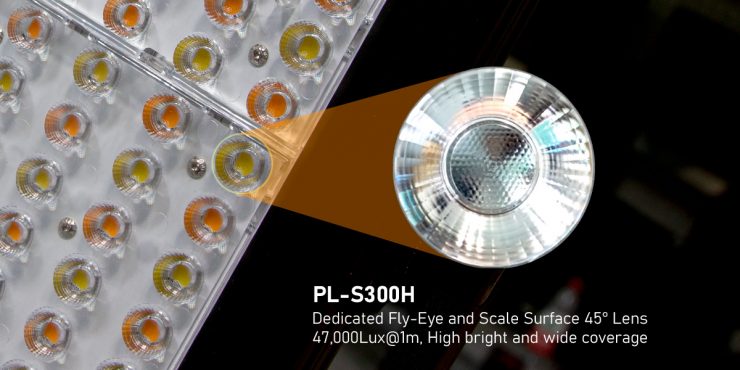

The PL-S300H is a hard-light panel light designed for focused illumination with high intensity. With SWIT’s unique compound optical structure on each LED, featuring a dedicated Fly-Eye and 45° reflector, this light is claimed to be able to enhance the diffusion effect and reduce color aberrations, resulting in a clean and vibrant light output.

300D reflector

The 45° half-peak beam angle is specifically tailored for studio installations, offering a balance between high illuminance and uniformity of the light spot. The PL-S300H delivers a claimed output of 47,000 lx @1m/ 3.3′.

For studios that require the lights to be 5m / 16.4′ away, the PL-S300H is a good choice if you require high brightness and a wide beam angle light with good coverage.

Weight

Both the PL-S300D Soft Light and the PL-S300H Hard Light weigh 9.74kg / 21.47 lb.

Silent Operation

0 noise

Both the PL-S300D and PL-S300H utilize SWIT’s passive cooling design, which eliminates the need for fans and ensures silent operation. This feature is particularly beneficial in sound-sensitive settings where background noise can be detrimental to the recording quality.

Color Precision & DMX

Screenshot 2024 07 30 at 12 23 00

The PL-S300D/H series provides a wide color temperature range adjustable from 2700K to 6500K. With independent DMX addresses for dimming and color temperature, these panel lights offer the flexibility to integrate with a variety of lighting consoles and setups.

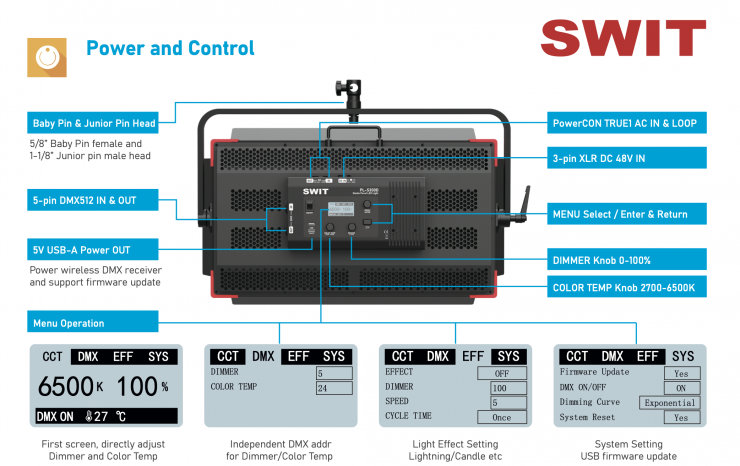

Control

Screenshot 2024 07 30 at 12 23 11

Energy Efficiency

The PL-S300 series is claimed to feature industry-leading energy efficiency, boasting a 17% increase in lumens per watt (LPW) ratio compared to competitors. This advancement not only ensures brighter illumination with the same power consumption but also contributes significantly to energy savings and environmental sustainability. SWIOT states that a broadcast studio utilizing the PL-S300 series of panel lights can expect to reduce carbon emissions by a substantial 2 tons per year.

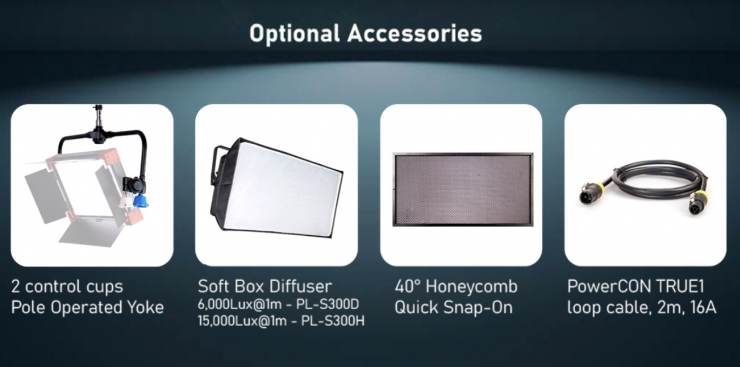

Accessories for Studio Applications

Screenshot 2024 07 30 at 12 16 55

Specifications

PL-S300D Soft Light PL-S300H Hard Light
LED Type SMD LEDs High-Power SMD LEDs
Beam Angle 120° (64° half-peak) 45° (half-peak)
Illuminance at 1m 10,000Lux 47,000Lux
Color Temperature Range 2700K – 6500K 2700K – 6500K
CRI ≥96 ≥96
TLCI ≥99 ≥99
SSI(D55) ≥75 ≥75
DMX 3-pin XLR in&loop out 3-pin XLR in&loop out
Power Supply PowerCON True1 AC100-240V in&loop out, 3-pin XLR DC 48V in PowerCON True1 AC100-240V in&loop out, 3-pin XLR DC 48V in
Power 300W 300W
Dimensions 543×301×100mm 543×301×100mm
Weight 9.74kg 9.74kg

Price & Availability

The PL-S300D will retail for 1599 Euros, and the PL-S300H will be 1999 Euros.
