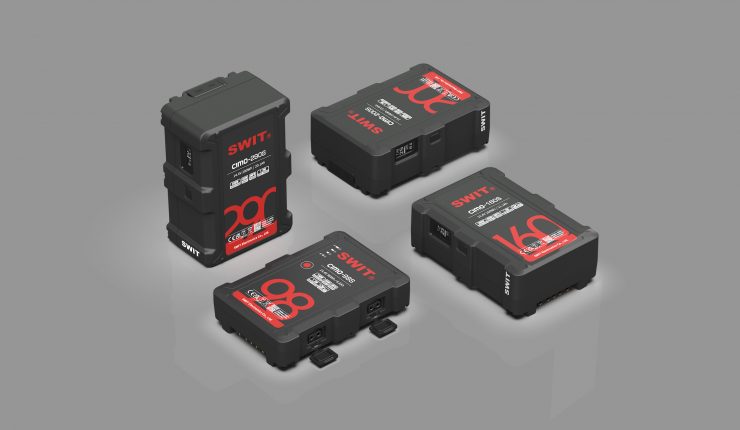

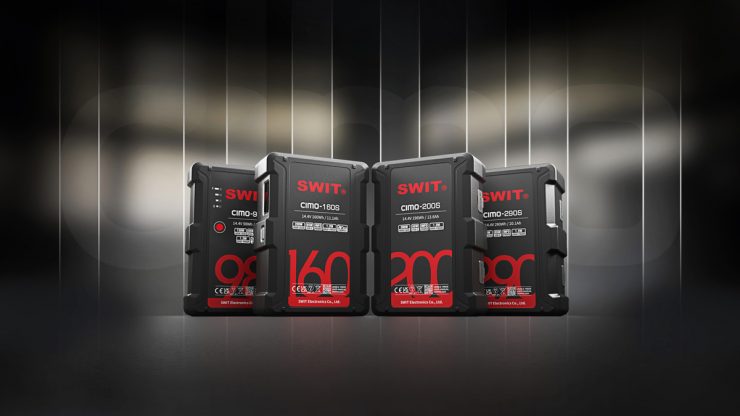

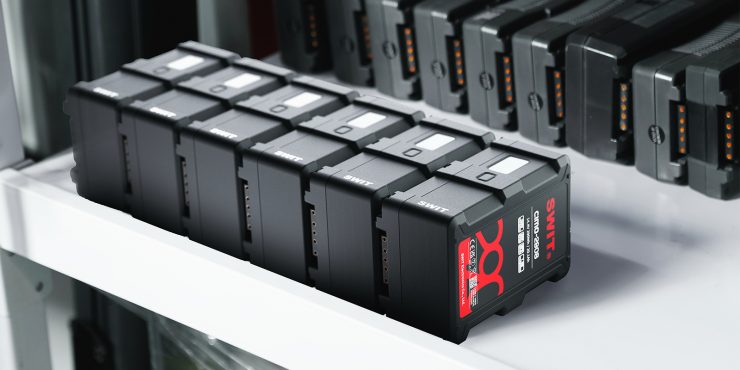

SWIT has unveiled its new CIMO series V-mount batteries which are claimed to combine high capacity, versatility, and robust performance.

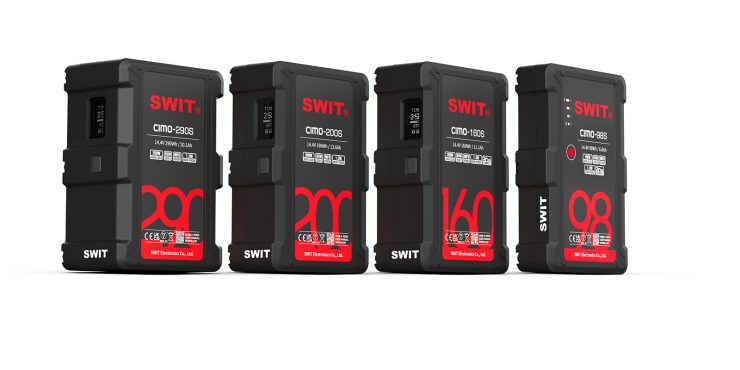

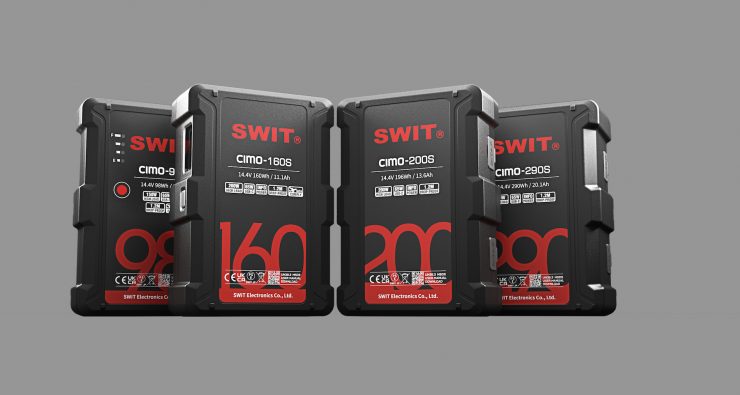

The CIMO battery series includes four models:
- CIMO-98S: 98Wh, 6.8Ah
- CIMO-160S: 160Wh, 11.1Ah
- CIMO-200S: 196Wh, 13.6Ah
- CIMO-290S: 290Wh, 20.1Ah
Each model is engineered with specific use cases in mind, providing varying capacities to cater to different power requirements.
The batteries operate at a rated voltage of 14.4V (11V-16.8V), which is said to ensure a stable and reliable power output for a wide range of devices, including cameras and LED lights.
Key features

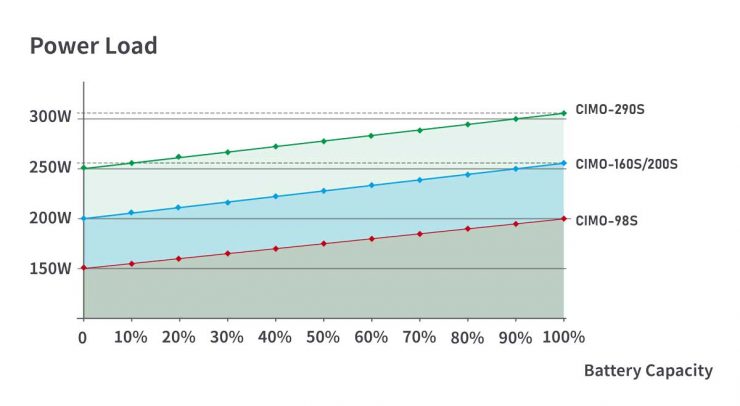

- Battery terminal: Capable of 150W (12A) to 250W (20A) discharge power.

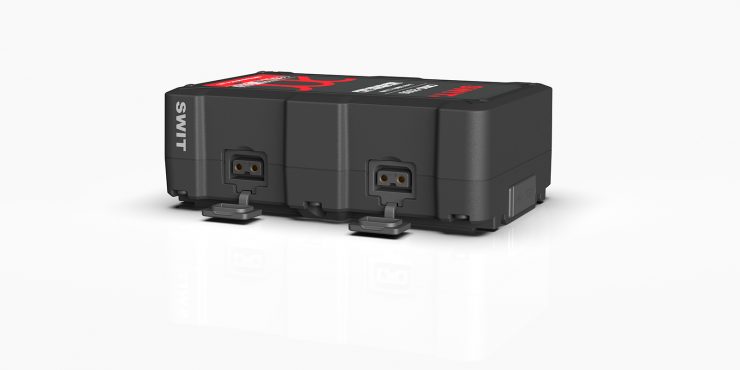

- D-TAP: Supports 150W (12A) to 250W (20A) discharge, and 16.8V charging up to 6A.
- TYPE-C Interface: Offers 65W maximum output and supports multiple protocols including BC1.2, QC2.0/3.0, FCP, SCP, PD2.0/3.0. Charging capabilities range from 5V to 20V up to 3.0A.
- USB-A Interface: Provides 18W maximum output, supporting BC1.2, QC2.0/3.0, FCP protocols.
The CIMO series ensures continuous power supply even in extreme conditions, with a comprehensive safety protection system covering temperature, voltage, and current.
They also feature a modular structural design that enhances durability.

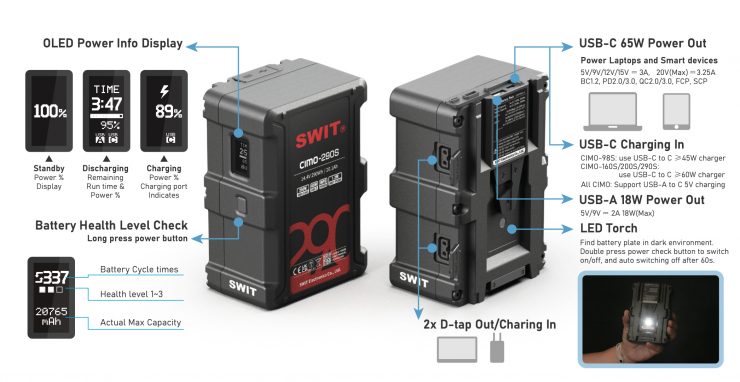

An integrated LED display shows real-time information on battery status, including charge and discharge levels, and overall battery health level.
The CIMO batteries automatically enter an ultra-low power consumption mode after being idle for a long time. Pressing the button returns them to normal mode, effectively preventing battery drain and extending battery life.

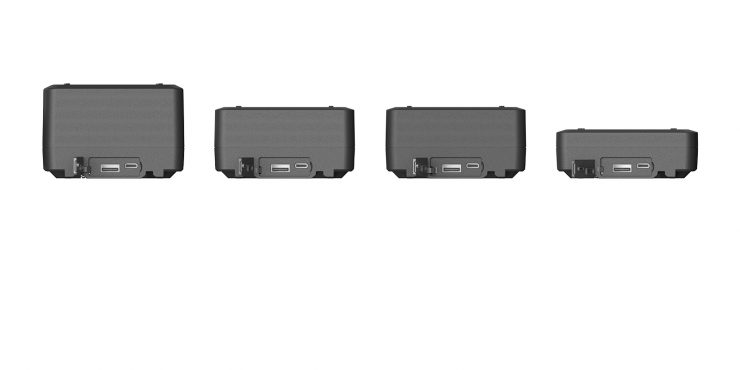

Multiple output interfaces, including D-tap and USB-C, allow for flexible usage so users can power various devices from cameras to mobile phones and high-power lights.
Specifications:
| Model | Capacity | Rated Voltage | Battery Terminal | D-TAP | D-TAP Interface (Charge) |
| CIMO-98S | 98Wh, 6.8Ah | 14.4V | 150W (12A) | 150W (12A) | 16.8V – 3A |
| CIMO-160S | 160Wh, 11.1Ah | 14.4V | 200W (16A) | 200W (16A) | 16.8V – 6A |
| CIMO-200S | 196Wh, 13.6Ah | 14.4V | 200W (16A) | 200W (16A) | 16.8V – 6A |
| CIMO-290S | 290Wh, 20.1Ah | 14.4V | 250W (20A) | 250W (20A) | 16.8V – 6A |
| Model | TYPE-C Interface (Discharge) | TYPE-C Interface (Charge) | USB-A Interface (Discharge) | Total Discharge Power |
| CIMO-98S | 65W (Max) 5V/9V/12V/15V-3A/20V (Max)-3.25A | 5V/9V/12V/ 15V/20V-2.25A | 18W (Max) 5V/9V (Max)-2A | 150W |
| CIMO-160S | 65W (Max) 5V/9V/12V/15V-3A/20V (Max)-3.25A | 5V/9V/12V/ 15V/20V-3.0A | 18W (Max) 5V/9V (Max)-2A | 200W |
| CIMO-200S | 65W (Max) 5V/9V/12V/15V-3A/20V (Max)-3.25A | 5V/9V/12V/ 15V/20V-3.0A | 18W (Max) 5V/9V (Max)-2A | 200W |
| CIMO-290S | 65W (Max) 5V/9V/12V/15V-3A/20V (Max)-3.25A | 5V/9V/12V/ 15V/20V-3.0A | 18W (Max) 5V/9V (Max)-2A | 250W |
Pricing & Availability
The new SWIT CIMO series V-mount batteries are now available for the following prices:
- CIMO-98S $249 USD
- CIMO-160S $449 USD
- CIMO-200S $559 USD
- CIMO-290S $749 USD
