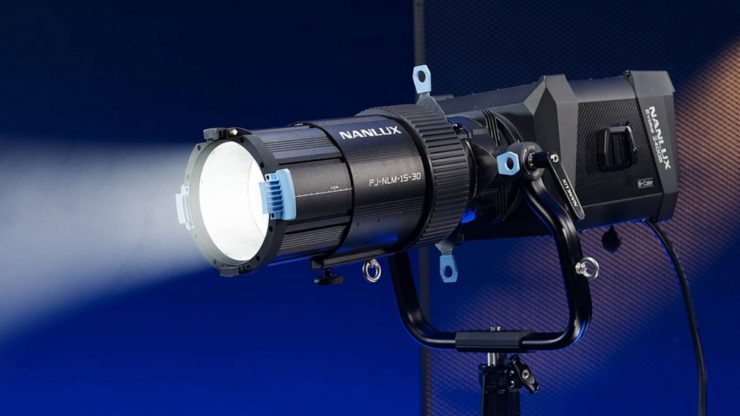

Nanlux has unveiled its new NL Mount Projection Attachment 15-30° for the Evoke series LED spotlights, including the Evoke 900C/1200/1200B/2400B.
This was a much-requested accessory by gaffers and DPs, and it offers control of zoom, focusing, cutting, and gobo projection, to provide a powerful and well-controlled beam of light.

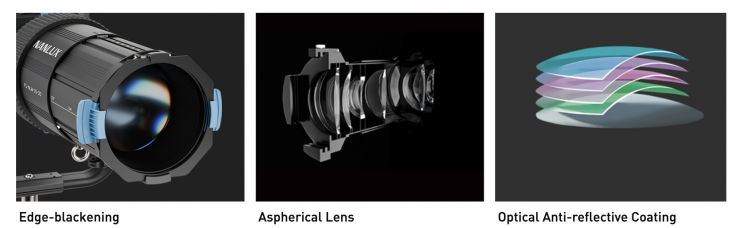

The NL Mount projection attachment 15-30° features an advanced precision optical lens designed exclusively for the Evoke series light fixtures. It is claimed to offer exceptional performance in controlling light loss, chromatic aberration, and distortion, while achieving excellent beam uniformity (78% uniformity, 0.88% distortion / measured at 3m with 15°).
The projection attachment mounts securely to the fixture via the NL mount and is claimed to deliver up to 7.5 times (32,720 lux @3m 15°, 5600K) the illuminance compared to the light only, thanks to the lens’ high-efficiency optical design and excellent light transmission.

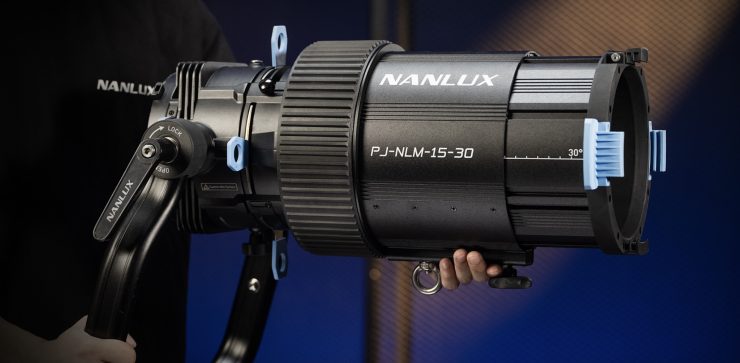

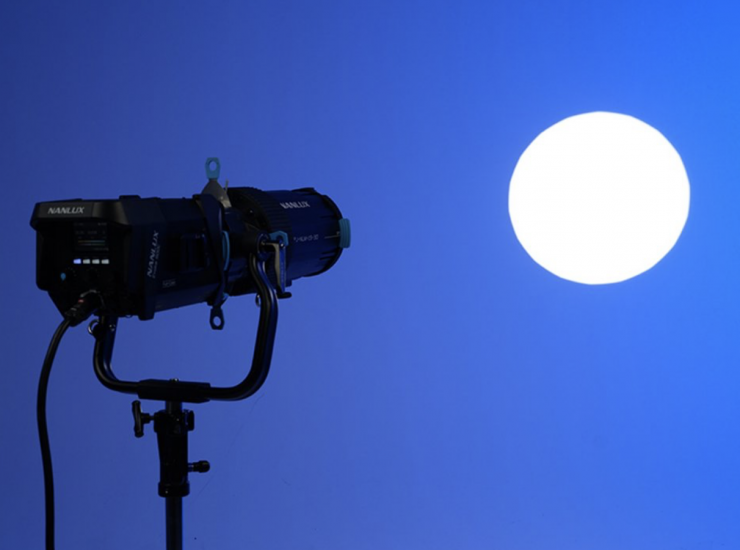

The 90-degree rotatable lens barrel can be rotated to adjust the angle of the beam, greatly enhancing flexibility without the need to move the shutter or gobo. Each shutter can be freely adjusted independently for precise control. The 18-blade iris diaphragm creates a beautifully rounded beam shape. Users can slide the built-in rod to adjust the beam size and tighten it to lock.

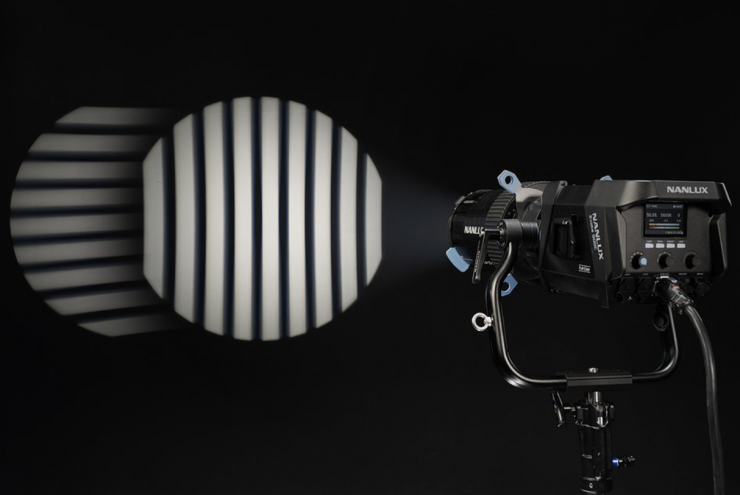

Four gobos are included, which can be installed in the gobo holder to project various patterns. Designed in a standard A size, this projection attachment is compatible with a wide variety of pre-made gobos available on the market.

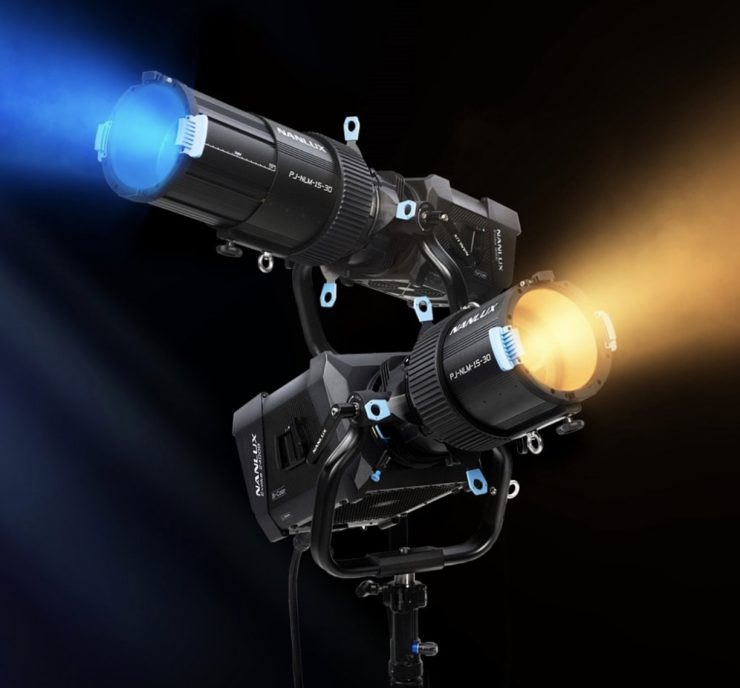

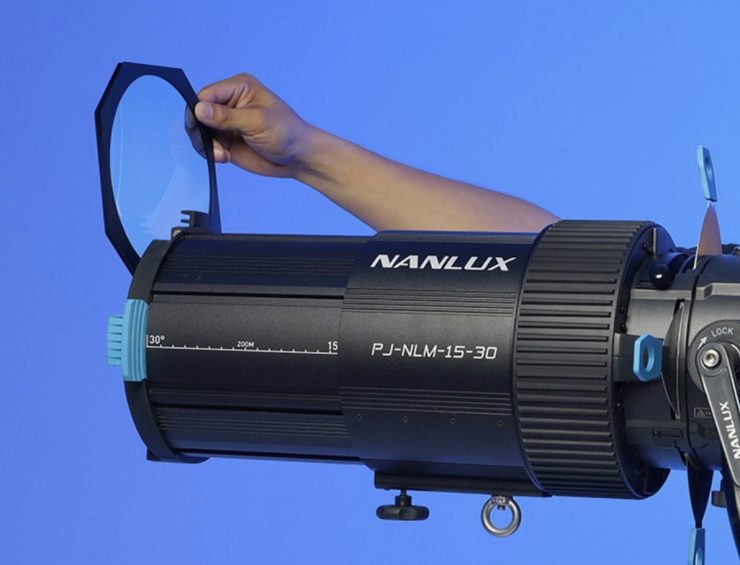

The projection attachment is designed with a gel frame for inserting gels, allowing daylight or bicolor lights to output colors.

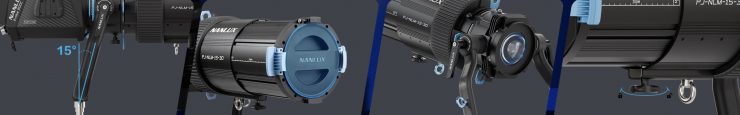

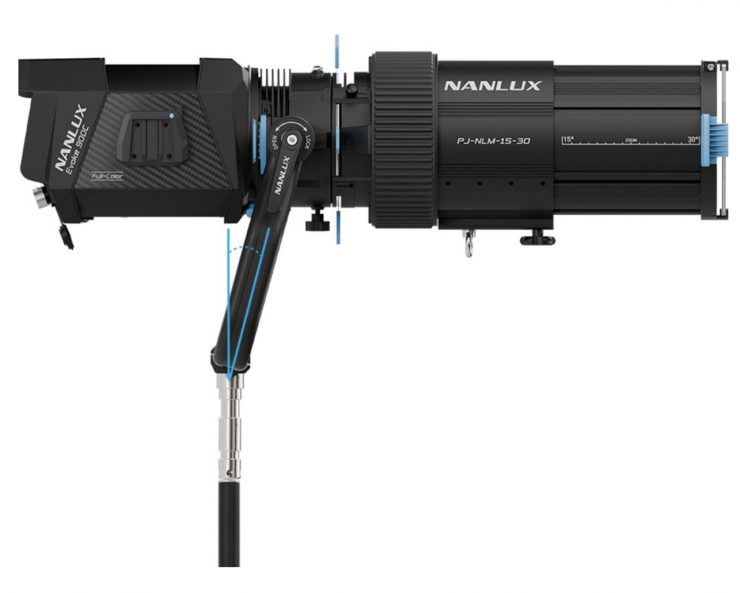

The integrated yoke, together with the adjustable handles on both sides for secure locking, allows users to set up the projection attachment quickly. Its design is claimed to ensure proper weight distribution and balance when mounted with the fixture. The 15° offset design of the yoke allows for a larger downward angle on a light stand while maintaining stability.
The body of the NL Mount Projection Attachment 15-30° is constructed of aluminum alloy and highly durable nylon. The weight is just under 12kg / 26.4 lb. It also comes with protective covers for both ends to prevent dust and scratches from affecting performance, as well as an eyebolt on the barrel and yoke for attaching a safety cable. A fastening knob limits movement and prevents swaying during downward projection.
The use of aluminum alloy is said to further enhance the heat resistance of the entire unit. Nanlux has designed the projection attachment to stay cool passively. The aluminum alloy body ensures optimal heat conduction, while the external heat sink fins at the holder improve cooling efficiency.
What do you get?

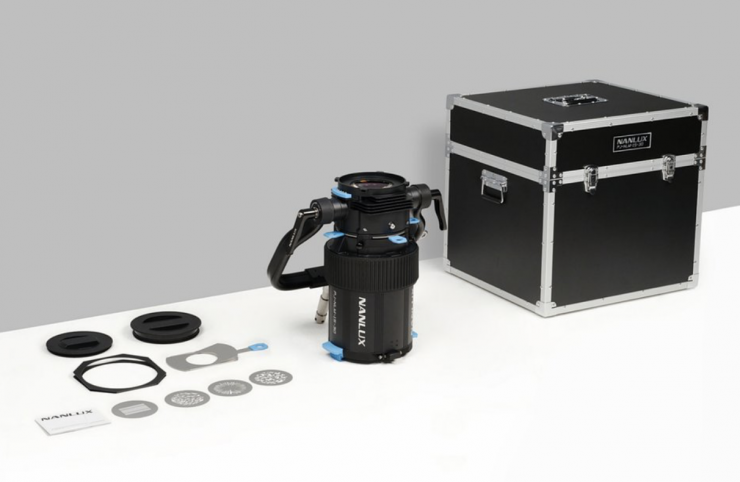

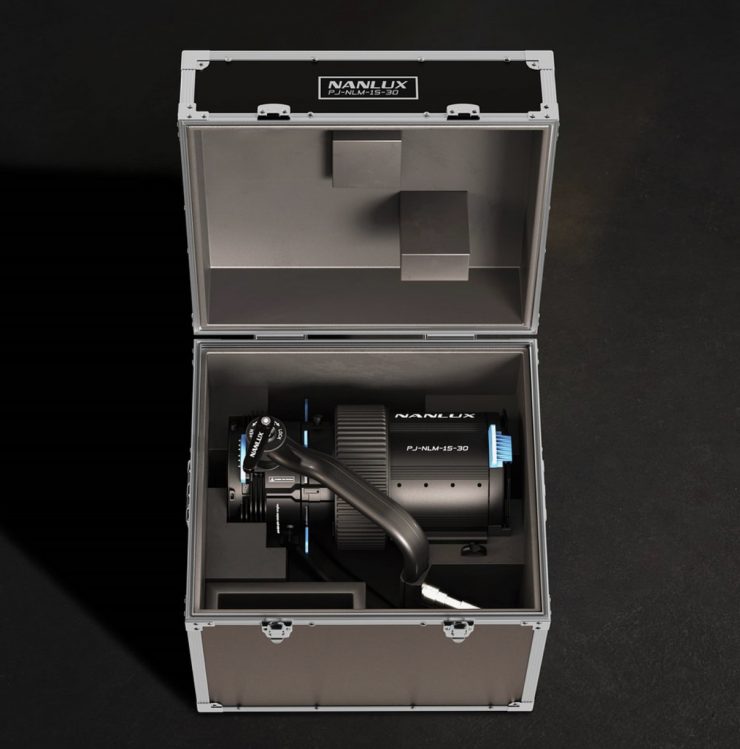

The NL Mount projection attachment 15-30° comes in a flight case that was designed for frequent transportation. It features an aluminum alloy structure with impact-resistant corner bumpers for durability and internal linings to ensure the safe transport of the whole kit.
| Kit includes: |
| NL Mount Projection Attachment 15-30° × 1 |
| Plastic Protective Cover (front cover) × 1 |
| Plastic Protective Cover (back cover) × 1 |
| A Size GOBO ×4 |
| GOBO Holder × 1 |
| Gel Frame × 1 |
| User Manual × 1 |
| Flight Case × 1 |
Price & Availability
The NL Mount Projection Attachment 15-30° costs $1590 USD and it is now shipping.
