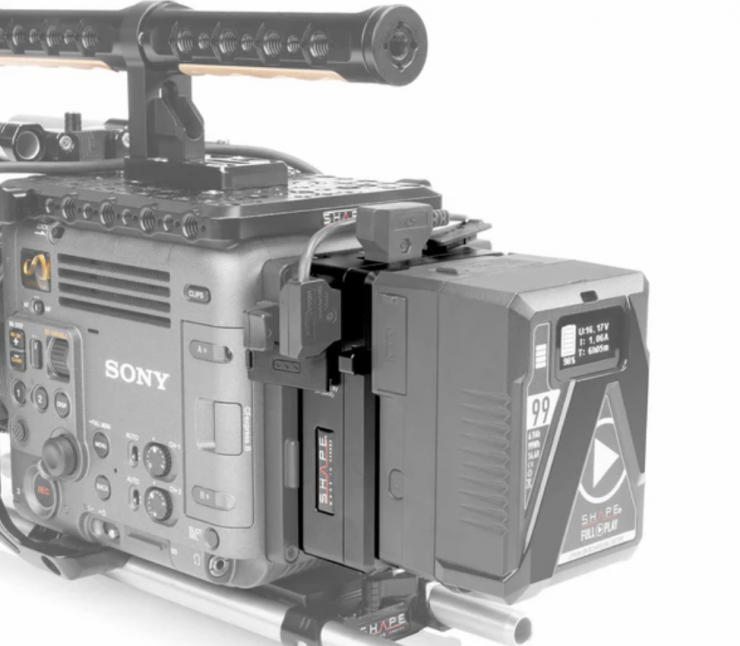

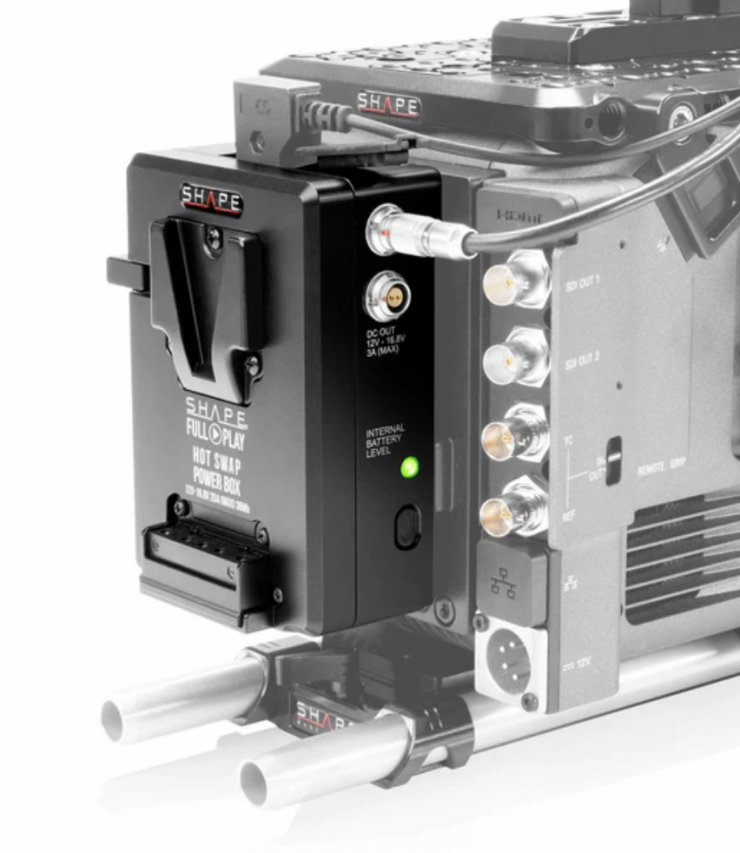

The SHAPE Hot Swap V-Mount Power Box Battery was designed to allow for uninterrupted power when running v-mount batteries on a camera or other device.
The internal 2500 mAh, 36Wh allows you to hot swap batteries while the camera or other device is still powered on.
Key features
- Hot Swap V-Mount to V-Mount Power Box Battery 14.4V 36Wh.
- Hot Swap Function: Designed for uninterrupted power supply.
- Rechargeable Li-Ion battery type.
- Seamless Battery Switching.
- High-Precision Monitoring.
- Integrated Balancing Switch.
- Includes two Twist D-Tap & two LEMO 2-pin ports.
- 3-Color LED lights: Red, Yellow & Green, indicating internal battery level.
- 2-year limited warranty against all manufacturer defects.
The Hot Swap V-Mount Power Box Battery includes a built-in high-precision voltage detection circuits and delay circuits to monitor voltage, current and temperature, ensuring the safety of the battery pack and extending its lifespan. To ensure the consistency of its cell voltages, SHAPE designed an integrated balancing switch. A low temperature charging protection and under-voltage load lock functions are included for safety.
Inputs & Outputs

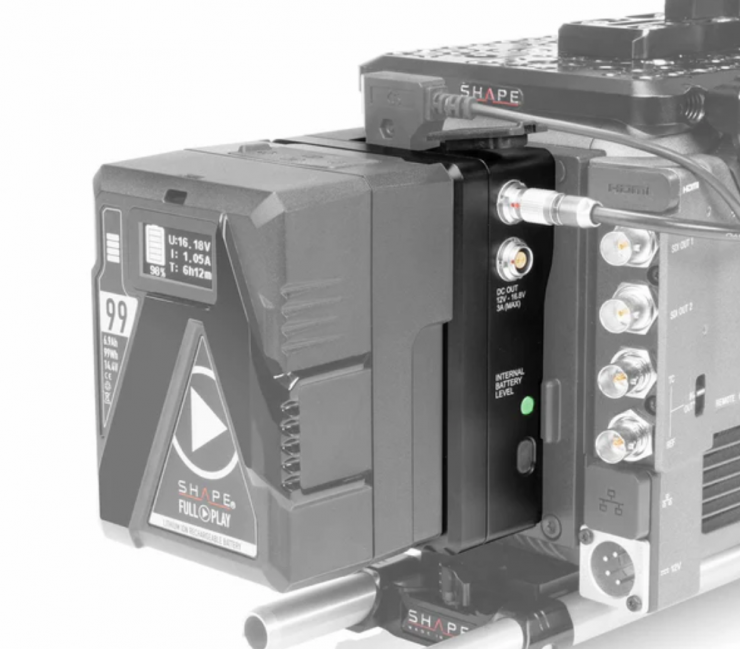

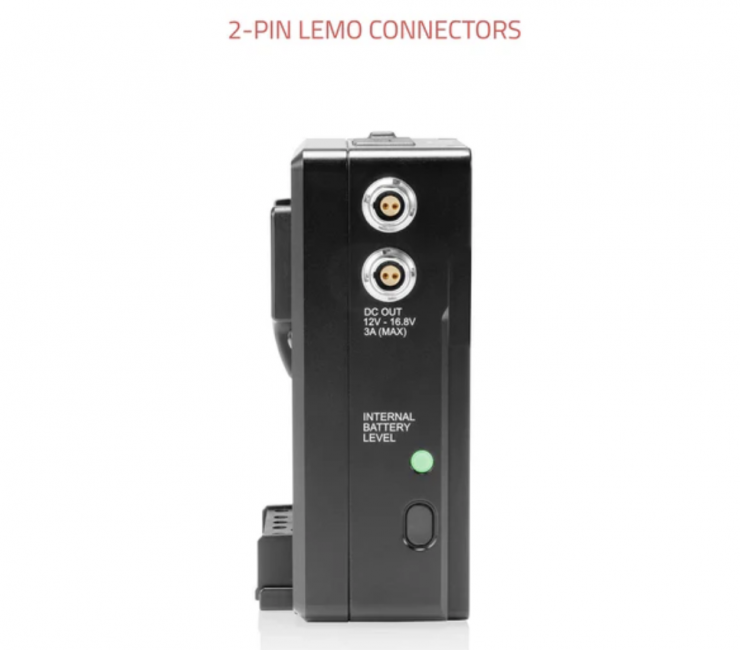

This Hot Swap Power Box includes two LEMO 2-pin ports to provide power to additional accessories.
- LEMO 2-pin Output: 12-16.8V, 3A (Max)

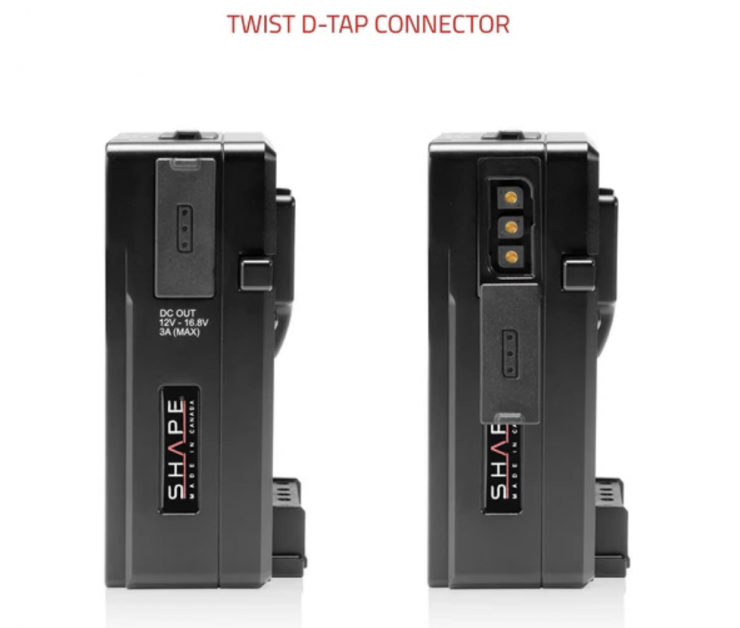

- 2x Twist D-tap with an output of: 12-16.8V, 3A (Max)

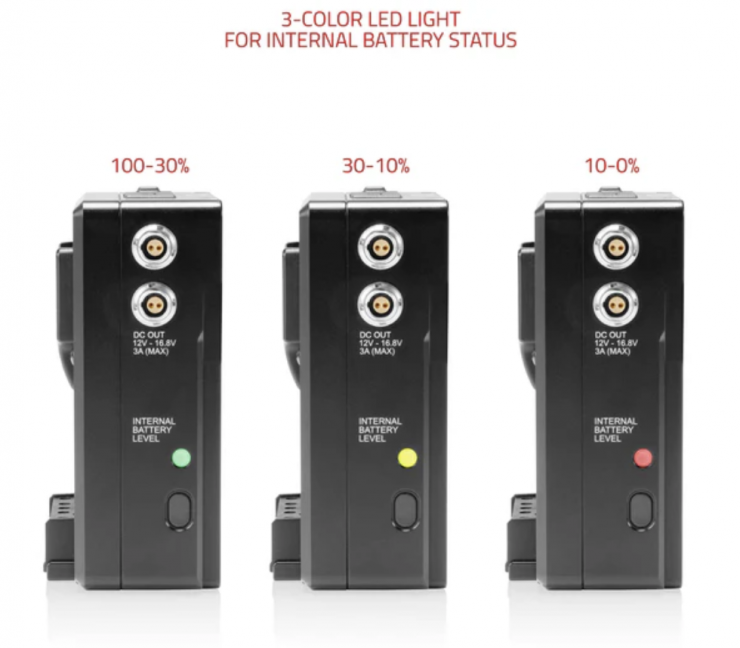

Battery Level Indicator
![Screenshot 2024 07 26 at 13 55 36](/wp-content/uploads/2024/07/Screenshot-2024-07-26-at-13.55.36-740x648.png)
To see its internal battery level, a 3-color LED light system will show you a red, yellow or green light.
Specifications
- Rated Capacity: 2500 mAh, 36Wh
- Nominal Voltage: 14.4V
- Voltage Range: 12-16.8V
- Charging Voltage: 16.8V
- Charging Current: 3.5A (Max)
- Discharge Current: 20A (Max)(Total)
- Main BP Output: 12-16.8V, 20A (Max)
Price & Availability
The SHAPE Hot Swap V-Mount Power Box Battery is now available to pre-order for $449 USD.
