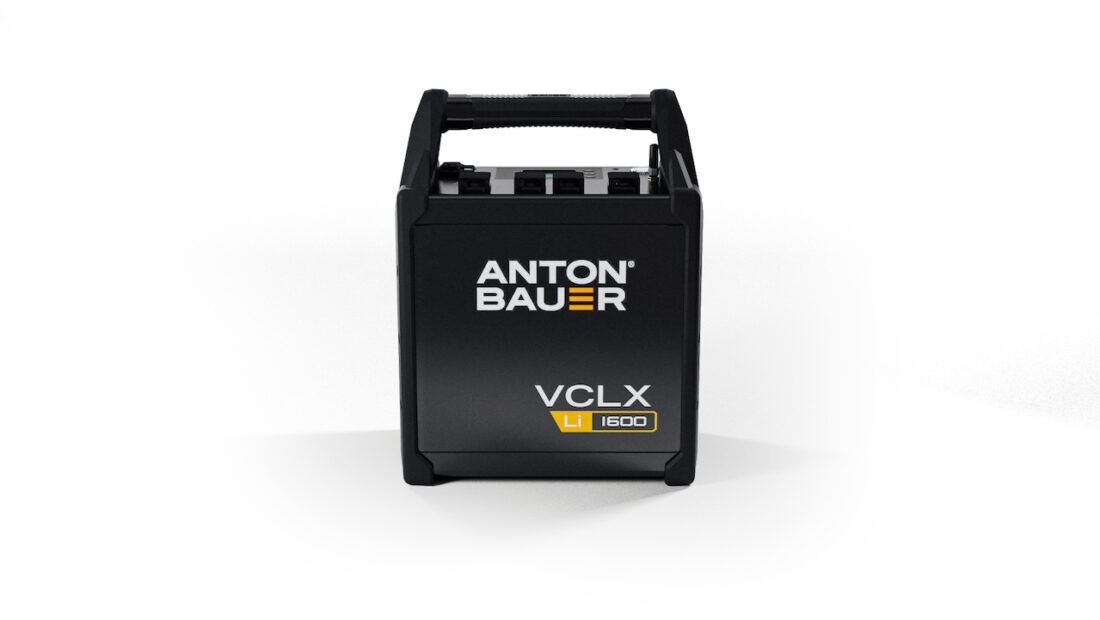

Anton/Bauer has announced its new VCLX LI 1600Wh Multi-Voltage Battery. This latest addition to the VCLX range of block batteries delivers more power from a lightweight and IP65-rated weatherproof unit.
The VCLX LI has a 1600Wh capacity which is more than double the power of the VCLX NM2 that was launched last year, while being lighter at just 25.5 lbs / 11.56 kg.
Key features
- 24A continuous draw at 14.4V
- 16A continuous draw at 28V or 16A continuous at 48V
- Lithium Ion Chemistry
- 2 x XLR4 at 14.4V, 12A each
- 1 x XLR3 Selectable 28V, 16A or 48V, 16A
- 1 x 5V, 2A (USB)
- 8 hour charge time
- 2.4″ colour LCD with smart screen
- IP65 rated
- Smart electronic fuses
- Firmware update by USB
- Built in Fleet Management
- Internal WIFI
- Built In Self Test (BIST)
![VCLX LI 02](/wp-content/uploads/2024/07/VCLX-LI-02-740x1108.jpeg)
It provides multi-voltage output (14.4V, 28V, and 48V) through two XLR4 outputs and one XLR3, offering power to cameras, monitors, and lighting equipment. This ensures optimal performance for high-current demand devices. For example, an ARRI ALEXA 35 rig could require about 300 watts at 28V DC—135 watts for the camera and another 165 watts for the monitor, wireless transmitter, wireless focus lens motors and receiver, focus assist, and lens light—the VCLX LI will power that package for 5.3 hours.

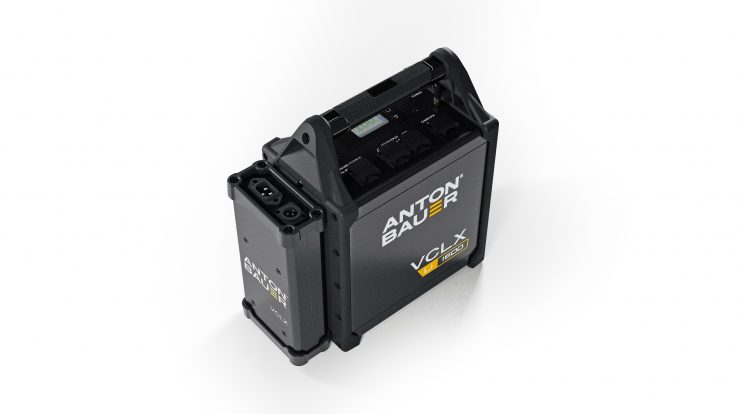

The VCLX LI 1600 features a rugged anodized aluminum chassis with over-molded end caps and handle grips. It has a IP65-rated weatherproof case and passive cooling technology to eliminate fan noise. A 2.4″ color LCD screen offers real-time monitoring of remaining runtime, charge time, and active power draw. Built-in smart technology allows for real-time onboard diagnostics, ensuring maximum power efficiency and performance. The unit’s intelligent system calculates and displays power requirements from devices connected to the XLR3, XLR4, or USB ports.
![VCLX LI 1 0012](/wp-content/uploads/2024/07/VCLX-LI_1_0012-740x414.jpeg)
Designed without an internal charger to minimize heat buildup, the VCLX LI extends the battery cells’ lifespan and eliminates noisy cooling fans for silent operation. The external charger reduces the risk of unit failure due to component malfunction, maximizing investment longevity and equipment uptime.
VCLX units come with built-in fleet management capabilities, allowing users to download vital information via WiFi or USB. The comprehensive fleet management software provides insights into the battery’s learned capacity, cycle count, charge percentage, and error history, enabling efficient triage and rectification. This ensures more time on set and less time in the workshop.
![Screenshot 2024 07 25 at 22 47 53](/wp-content/uploads/2024/07/Screenshot-2024-07-25-at-22.47.53-740x776.png)
I don’t currently have any information about pricing or availability.
