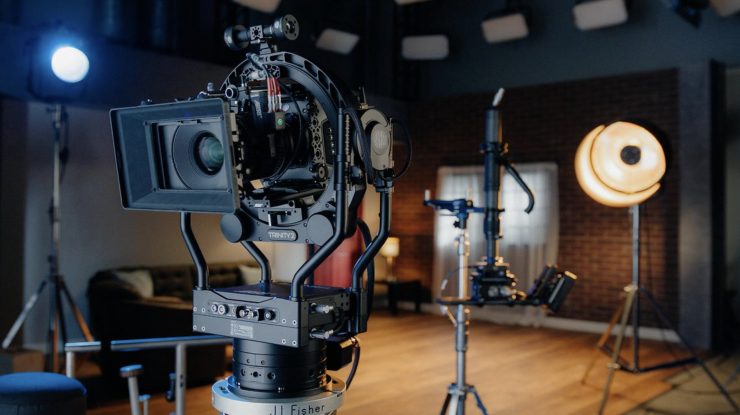

The ARRI TRINITY 2 Pan Axis Module allows the TRINITY 2 to easily go from a camera stabilizer to three-axis remote head.
![Screenshot 2024 07 12 at 10 09 28](/wp-content/uploads/2024/07/Screenshot-2024-07-12-at-10.09.28-740x415.jpg)

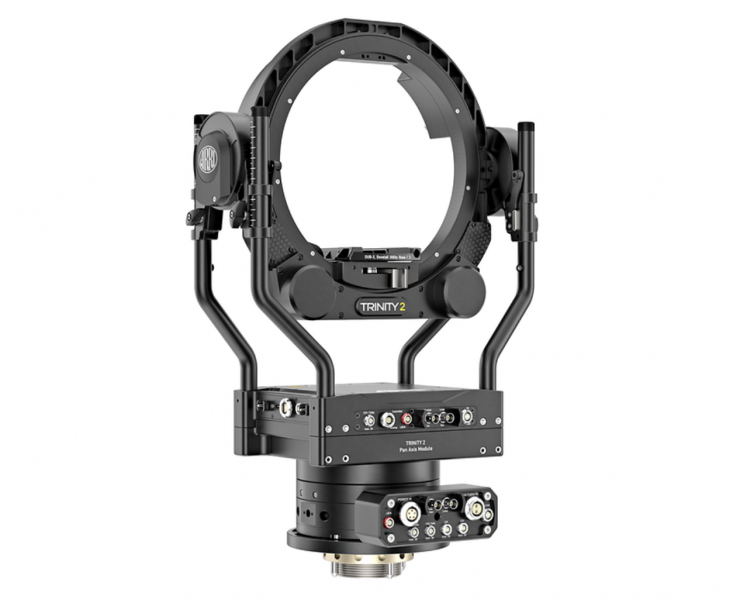

With a Pan Axis Module attached, the head of ARRI’s TRINITY 2 camera stabilizer converts into a compact and powerful three-axis stabilized remote head, allowing TRINITY 2 operators to expand the skills and chargeable services they can offer on set. By augmenting the powerful tilt and roll motors of the TRINTY 2 head with a similarly powerful pan axis, the new module permits TRINITY 2 to be used in situations that would normally be reserved for standalone remote heads or three-axis gimbals.
![Screenshot 2024 07 12 at 10 06 35](/wp-content/uploads/2024/07/Screenshot-2024-07-12-at-10.06.35-740x606.png)
The TRINITY 2 Pan Axis allows for unlimited rotations up to 720° when powered by an external supply or block battery, in addition to multiple roll rotations and 170° of tilt range. Weighing only 3.5 kg/7.7 lb., the compact Pan Axis Module turns TRINITY 2 into a three-axis stabilized head that is smaller than most others, making it a great solution for space-constrained setups such as inside a car or mounted to a motorcycle.

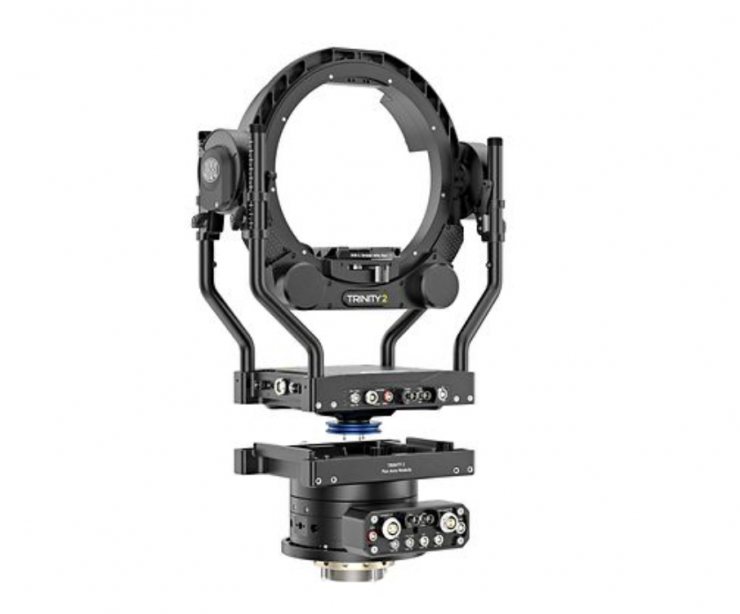

Pan Axis for TRINITY 2, Set

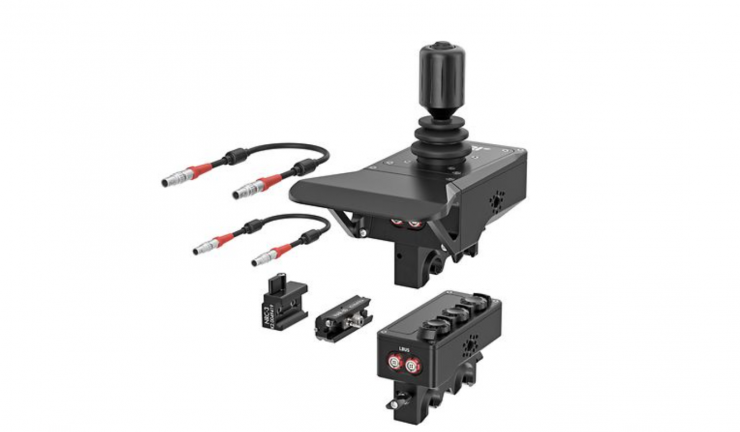

EJS-1, EJW-1, Controller Set
![Screenshot 2024 07 12 at 10 12 02](/wp-content/uploads/2024/07/Screenshot-2024-07-12-at-10.12.02-740x432.png)

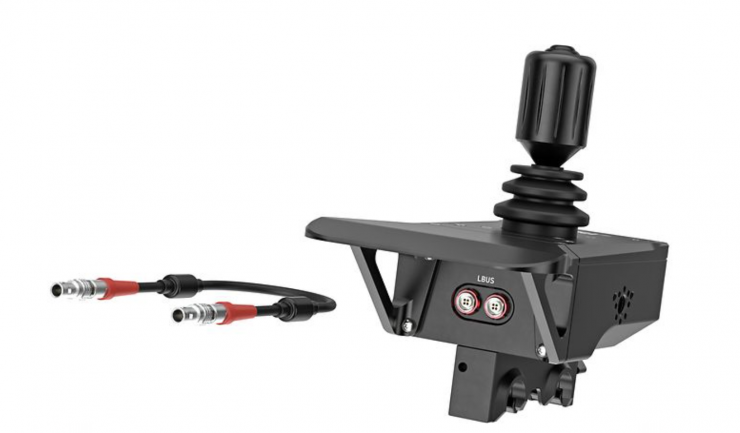

EJS-1 Controller Set
![Screenshot 2024 07 12 at 10 12 31](/wp-content/uploads/2024/07/Screenshot-2024-07-12-at-10.12.31-740x433.png)
- EJS-1 Controller SetKK.0051103The EJS-1 external joystick uses the so-called broadcast joystick, known from the SRH-360 & 360 EVO. In addition to pan and tilt, the broadcast joystick offers the option o…
- Show Components

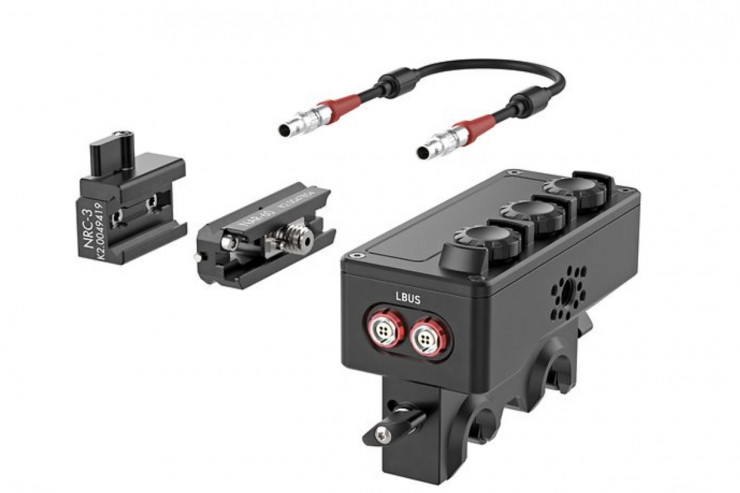

EJW-1, Controller Set
![Screenshot 2024 07 12 at 10 13 00](/wp-content/uploads/2024/07/Screenshot-2024-07-12-at-10.13.00-740x493.png)
- EJW-1, Controller SetKK.0051102In order to provide the operator with additional options to dial in values more quickly and to provide greater flexibility in recalling preprogrammed functions, the externa…
- Show Components

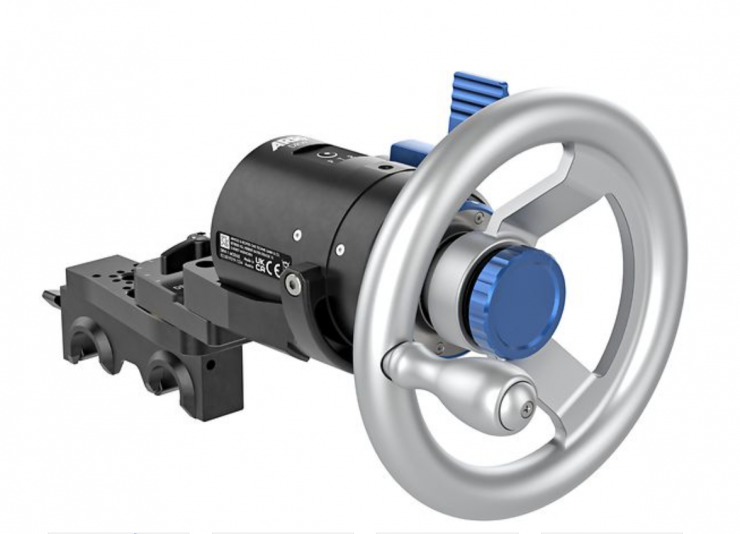

DRW-1 Digital Remote Wheel, Single Wheel Set
![Screenshot 2024 07 12 at 10 13 26](/wp-content/uploads/2024/07/Screenshot-2024-07-12-at-10.13.26-740x534.png)
- DRW-1 Digital Remote Wheel, Single Wheel SetKK.0051504The known ARRI wheels have also been optimized for the new type of mounting. The new mounting base with No-Tool Clamp allows the user to place the ARRI Wheel in any desired…
- Show Components
DRW-1, Single Wheel, Mounting Set
![Screenshot 2024 07 12 at 10 14 05](/wp-content/uploads/2024/07/Screenshot-2024-07-12-at-10.14.05-740x426.png)

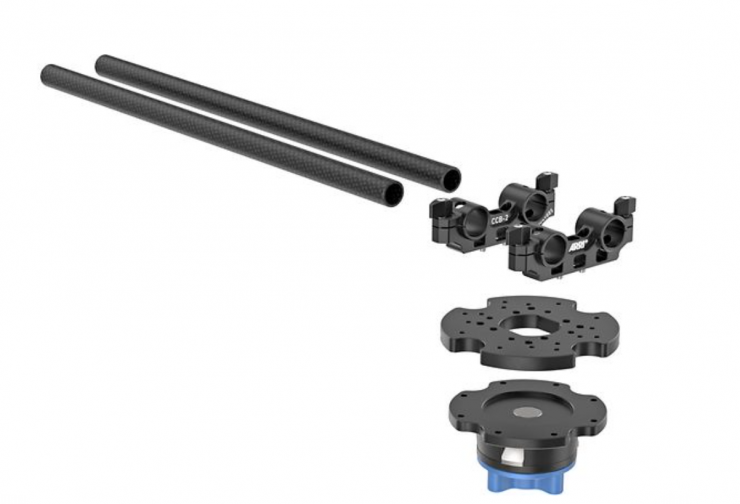

RCP-3, Controller, 19mm Mounting Set
![Screenshot 2024 07 12 at 10 14 28](/wp-content/uploads/2024/07/Screenshot-2024-07-12-at-10.14.28-740x504.png)
- RCP-3, Controller, 19mm Mounting SetKK.0051503To be able to arrange and mount the TRINITY 2 remote control panel (RCP-3), as well as the joystick, the jog-wheels and the ARRI wheels quickly and flexibly to each other, …
- Show Components
