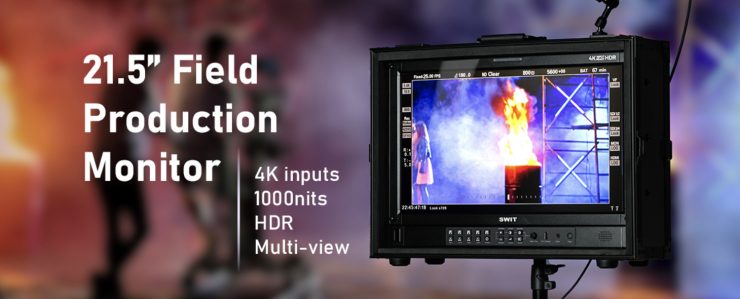

SWIT has released FM-215HDR Firmware Update V21.6.38R for its 21.5″ 1000nit HDR Multi-View monitor which optimizes LUT uploads, adds a de-squeeze function for anamorphic lenses, as well as many other optimizations.
FM-215HDR V21.6.38R firmware update
- Now support max 13 User Luts (*.cube) upload, support both 17x17x17 and 33x33x33 cubes
- Add Anamorphic De-squeeze function (1.33x/1.5x/1.66x/2x/1.33x mag/1.5x mag/1.66x mag/2x mag)
- Add Input Source selection in Fn keys
- Add Input range 64-1023
- Optimized the adjust precision of RGB GAIN/BIAS and CBS
- Optimized the PBP H/V setting menu
- Optimized the default display position of the overlay charts
- Optimized the default transparent of Waveforms
Update Steps
- 1. Copy the firmware file “FM-215HDR_v21.6.38R_20240624_1520.zip” to USB disk (FAT32 file format), root directory. DO NOT UNZIP and make sure there’s no other histroy firmware zip in the root directory.
- 2. Plug the USB disk into front USB port of the monitor.
- 3. Enter Menu – System – Update – YES, the monitor will update and follow the on-screen instruction to restart. DO NOT power off the monitor during updating.
- 4. After monitor restarted, plug off the USB disk
- 5. Enter Menu – Exit & Status, check firmware version should be v21.6.38R. (Finish)
If you are not familiar with the SWIT 21.5″ Quad-Link 4K Production Monitor I recently reviewed it on the site.
