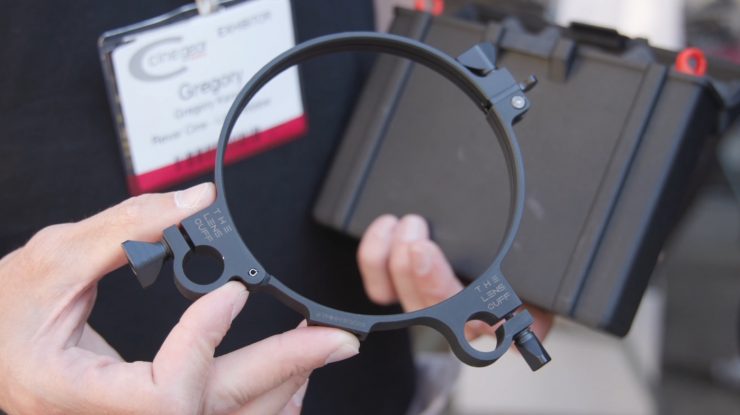

The Lens Cuff is a unique system that doesn’t use a traditional baseplate with rods to mount lens motors. Instead, it clips on the lens.
The advantage to this is you dont have to have a heavy baseplate with rods and lens support unless you need the support for a heavy lens. In that case you can use the tap on the bottom of The Lens Cuff to use lens support. The Lens Cuff uses a clamp that fits on most cinema lenses and includes three inserts/donuts to adapt to smaller sizes.
![Screenshot 2024 06 08 at 6 09 21 PM](/wp-content/uploads/2024/06/Screenshot-2024-06-08-at-6.09.21 PM-740x415.jpg)
It’s quite clever and effective as the lens does not bounce at all, even with extreme pushes and pulls.
![Screenshot 2024 06 08 at 6 09 34 PM](/wp-content/uploads/2024/06/Screenshot-2024-06-08-at-6.09.34 PM-740x412.jpg)
What’s Included in the Basic Kit
![Screenshot 2024 06 08 at 6 09 07 PM](/wp-content/uploads/2024/06/Screenshot-2024-06-08-at-6.09.07 PM-740x417.jpg)
- 1x The Lens Cuff with 3x inserts/donuts to adapt to smaller sizes (see technical data)
- 1x Stubby 15mm rail with 1x Sprig for optimal cable management.
- 1x Alcantara pouch to protect your Lens Cuff and your equipment.
![Screenshot 2024 06 08 at 5 36 38 PM](/wp-content/uploads/2024/06/Screenshot-2024-06-08-at-5.36.38 PM-740x419.jpg)

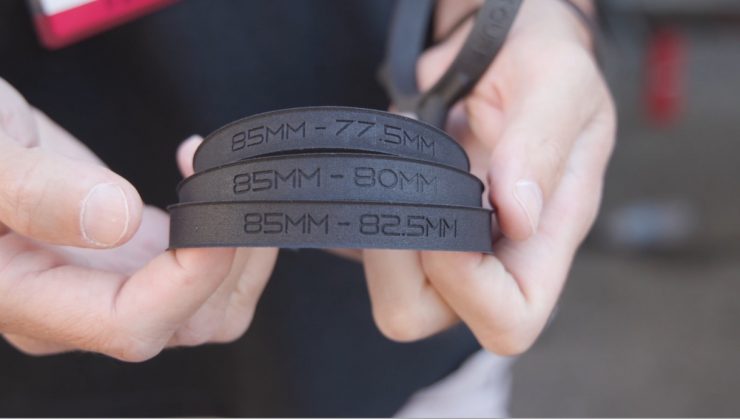

The Lens Cuff sizes and compatible diameters with included inserts/donuts:
- 65mm: Adaptable to ⌀ 62.5mm, ⌀ 60mm & ⌀ 57.5mm
- 75mm: Adaptable to ⌀ 72.5mm, ⌀ 70mm & ⌀ 67.5mm
- 85mm: Adaptable to ⌀ 82.5mm, ⌀ 80mm & ⌀ 77.5mm
- 95mm: Adaptable to ⌀ 92.5mm, ⌀ 90mm & ⌀ 87.5mm
- 114mm: Adaptable to ⌀ 110mm, ⌀ 105mm & ⌀ 100mm
Specifications
- Machined from a single block of Aluminium Superalloy
- Stealth Carbon Black Hard Anodised
- Custom spring loaded wingnut fasteners with standard M4 threads
- Low-profile lens support foot with 1/4 20 thread and Arri Standard orienting pins
- Symmetrical 2x 15mm rail clamps
The kit retails for $499 US and is also available in multi-lens cuff kits with a hard case.
![Screenshot 2024 06 08 at 6 08 48 PM](/wp-content/uploads/2024/06/Screenshot-2024-06-08-at-6.08.48 PM-740x416.jpg)

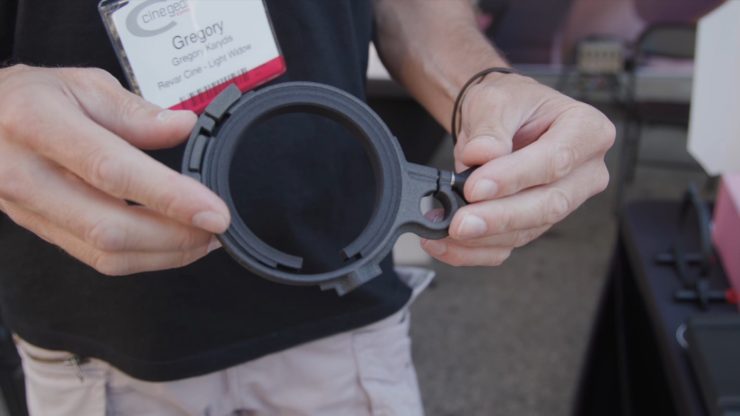

The Lens Cuff has introduced a new, lighter version for lighter, smaller cinema lenses this year. The Lens Cuff Light is made of a carbon composite and has a single rod mount. While being light it’s functionality is the same just compatible for smaller diameter lenses. The Lens Cuff Light retails for $119
To learn more and to purchase visit The Lens Cuff.
