ARRI has announced new Accessory Rails and Rail Clamps that can be used for wireless video transmitters, lens motors, and other accessories.
![Screenshot 2024 06 06 at 1 29 33](/wp-content/uploads/2024/06/Screenshot-2024-06-06-at-1.29.33-740x370.png)
The NAR and NRC components feature new and unique features that are a first for this industry standard quick-release system. You can buy everything individually or in sets.
In the ARRI Tech Talk here are the topics covered:
- 00:00 Intro
- 00:57 NATO Rail & Clamp Overview
- 01:53 NATO Rails
- 03:18 NAR-30 Features
- 03:58 NAR-60 & NAR-90 Features
- 04:38 Interchangeable Slides
- 06:52 Counterweights with sliding NATO Rails
- 07:26 Nato Rail Clamp NRC-1
- 08:30 Nato Rail Clamp NRC-2
- 09:49 Nato Rail Clamp NRC-4
- 10:27 Nato Rail Clamp NRC-5
- 11:04 Nato Rails for CSS
NATO Accessory Rails
- NAR-30: K2.0047643
- NAR-60: K2.0047854
- NAR-90: K2.0047631

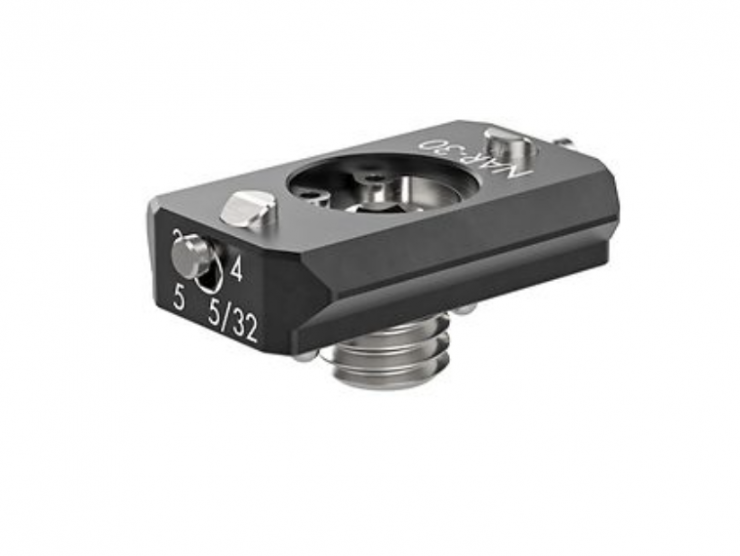

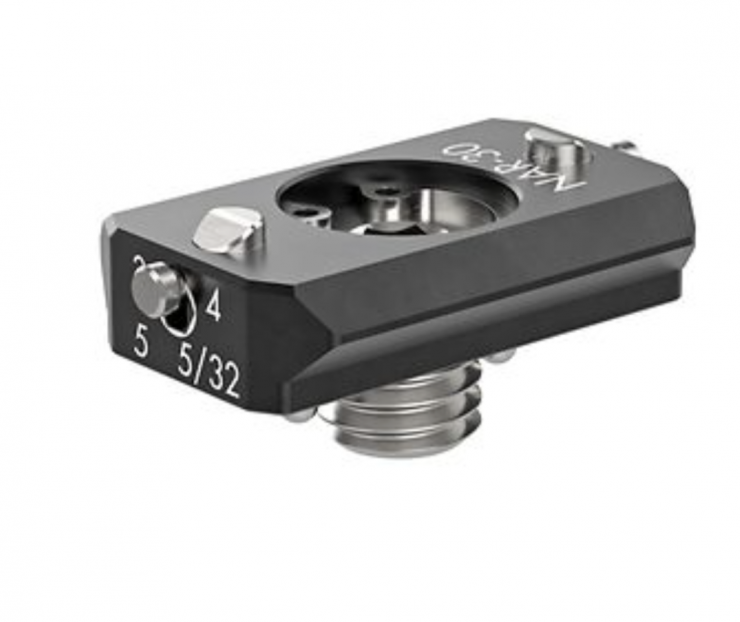

NATO Accessory Rail NAR-30
![Screenshot 2024 06 06 at 1 26 45](/wp-content/uploads/2024/06/Screenshot-2024-06-06-at-1.26.45-740x556.png)
NATO Rail with 30mm length including a 3/8in ARRI pin-lock/multi-hex screw which can be used with 4 different tools.

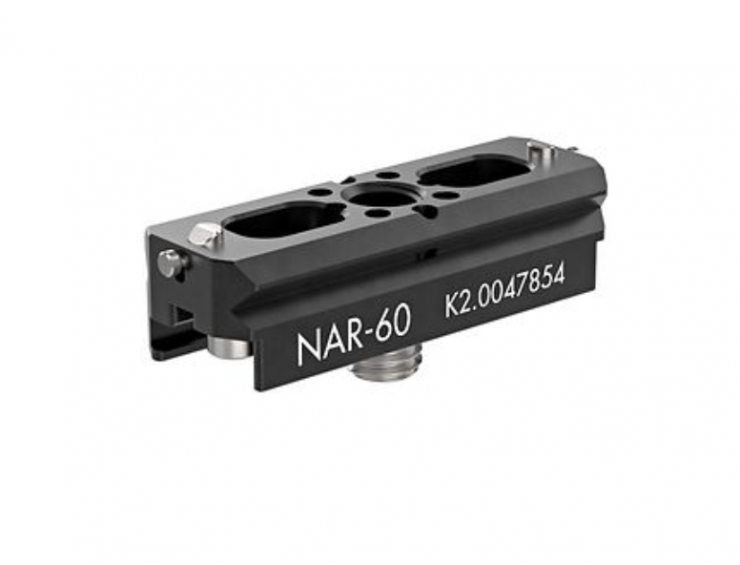

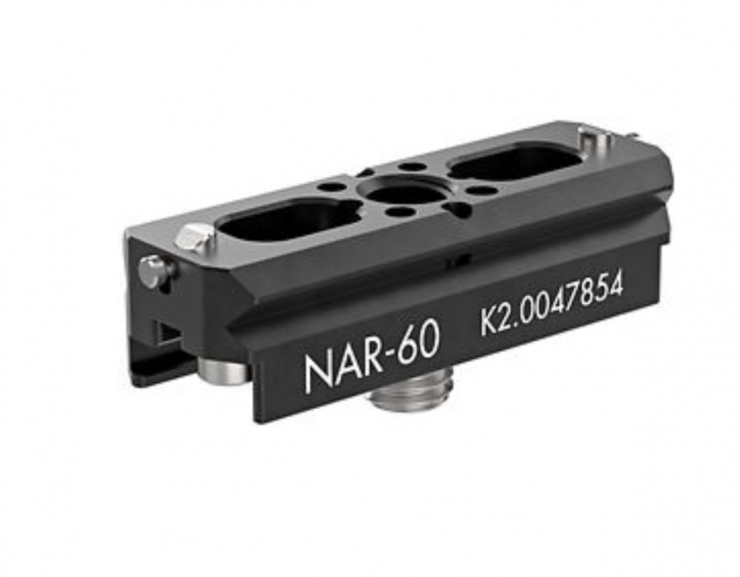

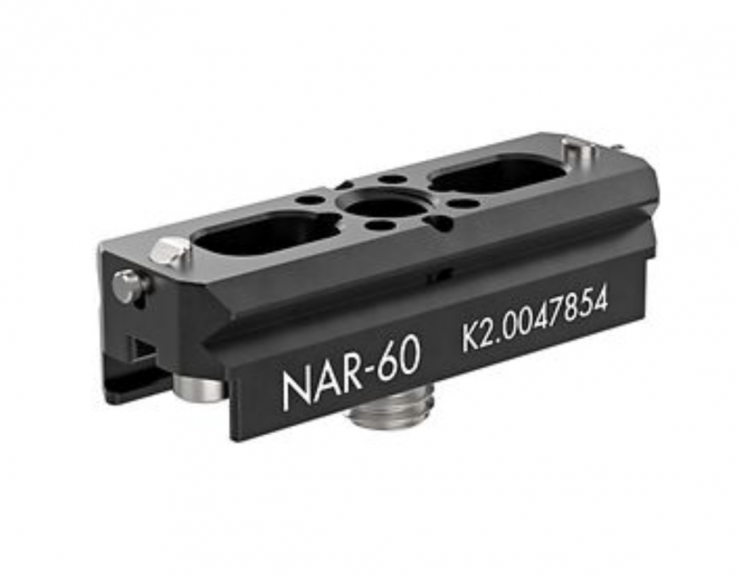

NATO Accessory Rail NAR-60
![Screenshot 2024 06 06 at 1 27 21](/wp-content/uploads/2024/06/Screenshot-2024-06-06-at-1.27.21-740x565.png)
NATO Rail with 60mm length including a sliding 3/8in ARRI pin-lock/multi-hex screw which can be used with 4 different tools. Other sliders (1/4in + M4) are available and interchangeable.

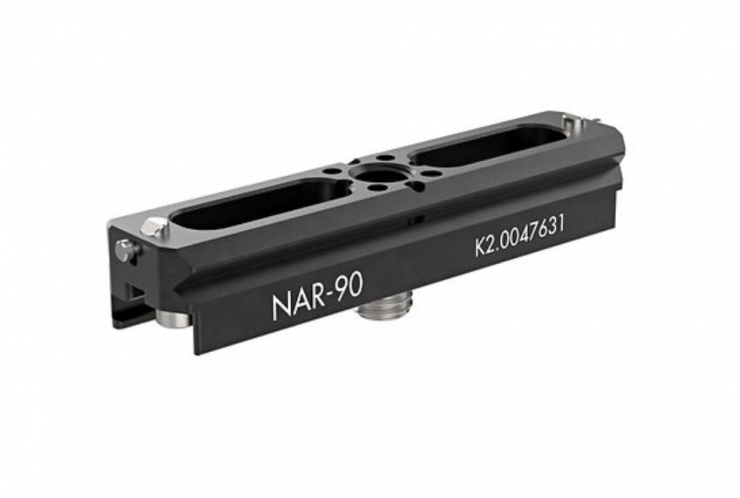

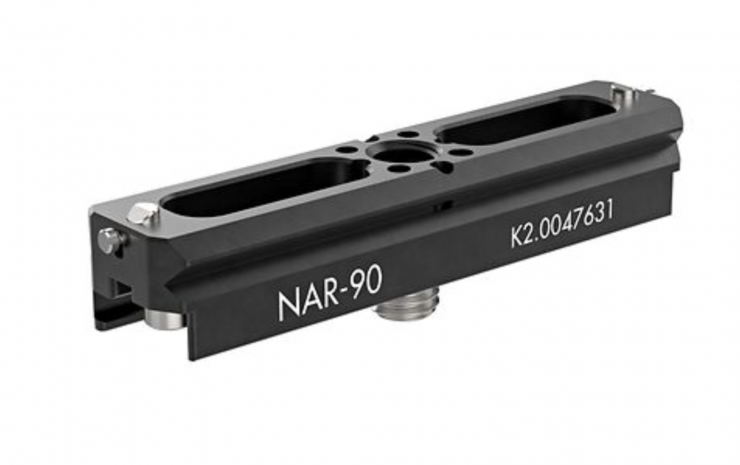

NATO Accessory Rail NAR-90
![Screenshot 2024 06 06 at 1 28 05](/wp-content/uploads/2024/06/Screenshot-2024-06-06-at-1.28.05-740x498.png)
NATO Rail with 90mm length including a sliding 3/8in ARRI pin-lock/multi-hex screw which can be used with 4 different tools. Other sliders (1/4in + M4) are available and interchangeable
NATO Rail Clamps
- NRC-1: K2.0047776
- NRC-2: K2.0048324
- NRC-4: K2.0047801
- NRC-5: K2.0047771

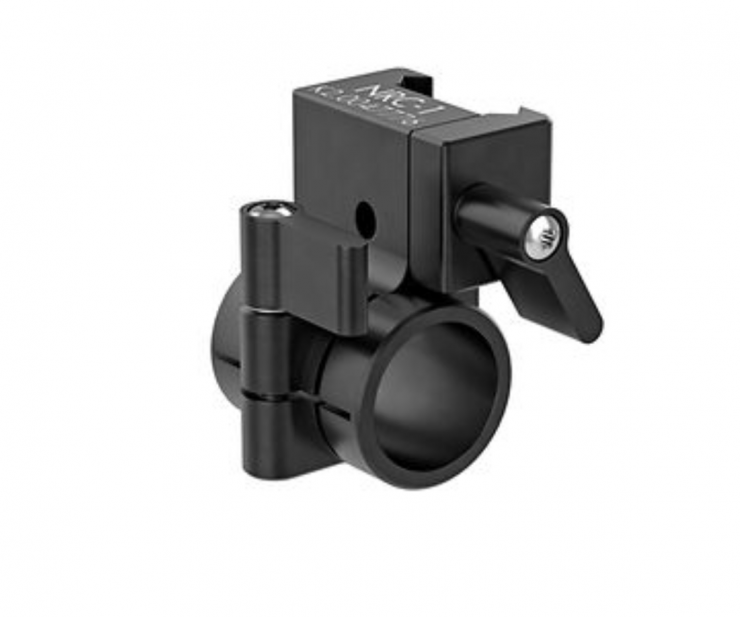

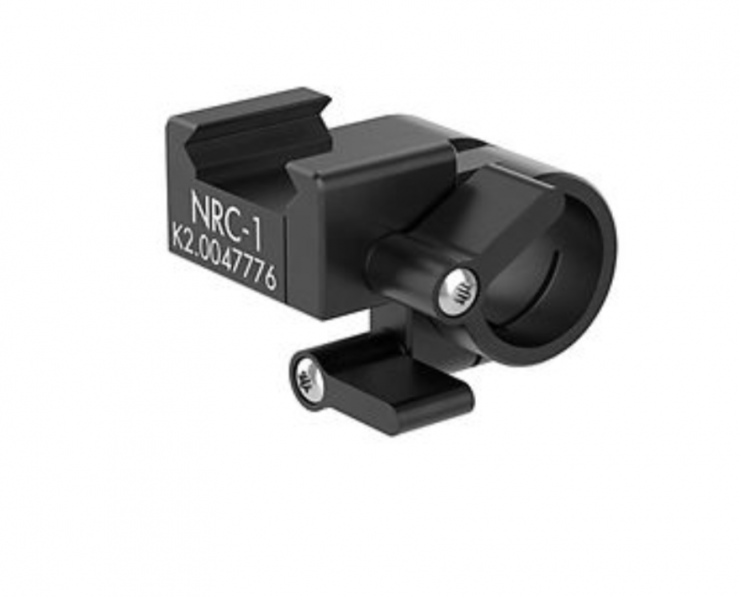

NATO Rail Clamp NRC-1
![Screenshot 2024 06 06 at 1 22 45](/wp-content/uploads/2024/06/Screenshot-2024-06-06-at-1.22.45-740x617.png)
- 19mm rod attachment on NATO rails
- Compatible with all three side brackets for the Sony BURANO

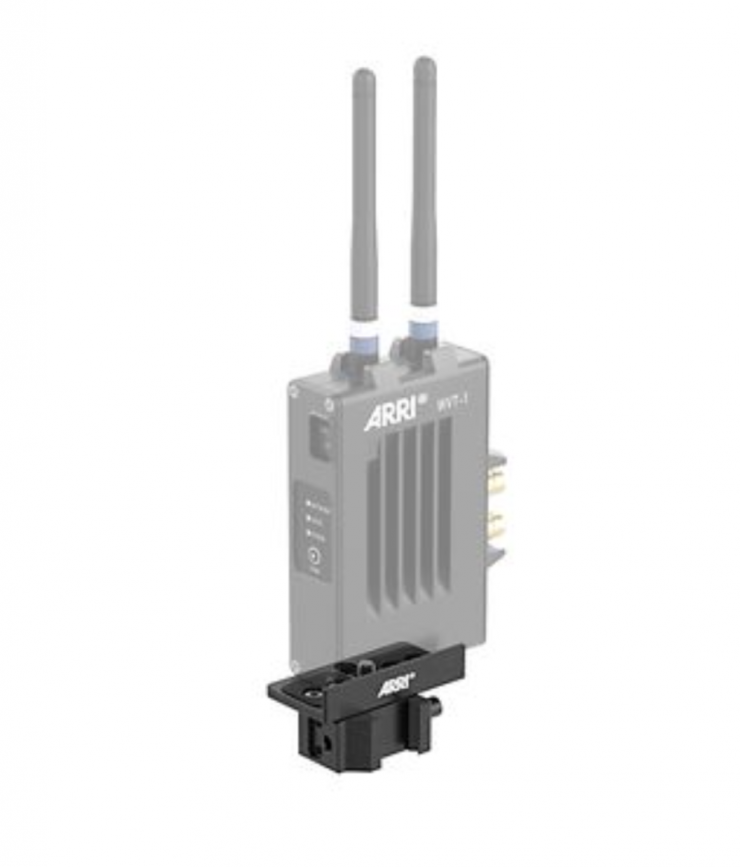

NATO Rail Adapter NRC-2
![Screenshot 2024 06 06 at 1 21 05 1](/wp-content/uploads/2024/06/Screenshot-2024-06-06-at-1.21.05-1-740x867.png)
- Attachment for video transmitters on NATO rails
- Multiple possibilities to mount transmitters due to a two-part modular design
- Compatible with all three side brackets for the Sony BURANO

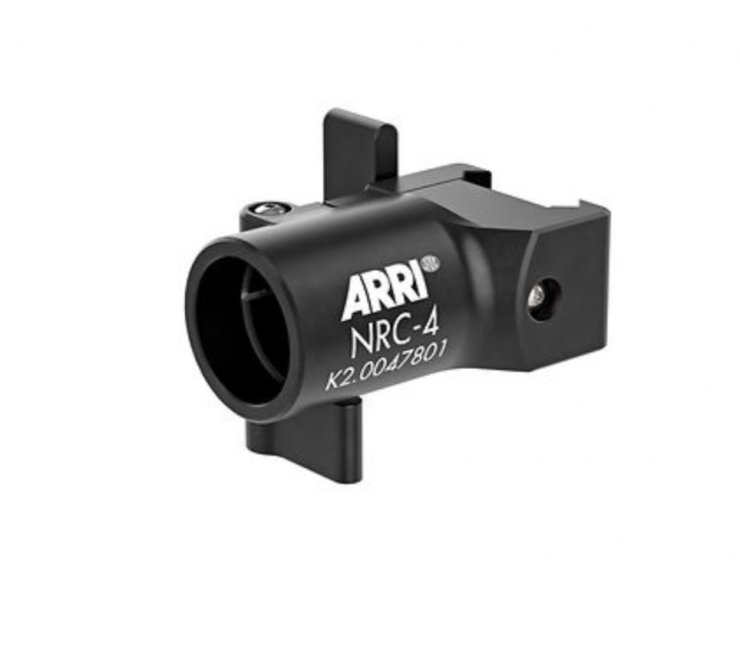

NATO Rail Clamp NRC-4
![Screenshot 2024 06 06 at 1 23 54](/wp-content/uploads/2024/06/Screenshot-2024-06-06-at-1.23.54-740x646.png)
A 19mm rod holder in vertical direction to the NATO rail attachment. For 15mm rods a reduction insert (K2.66255.0) is available.

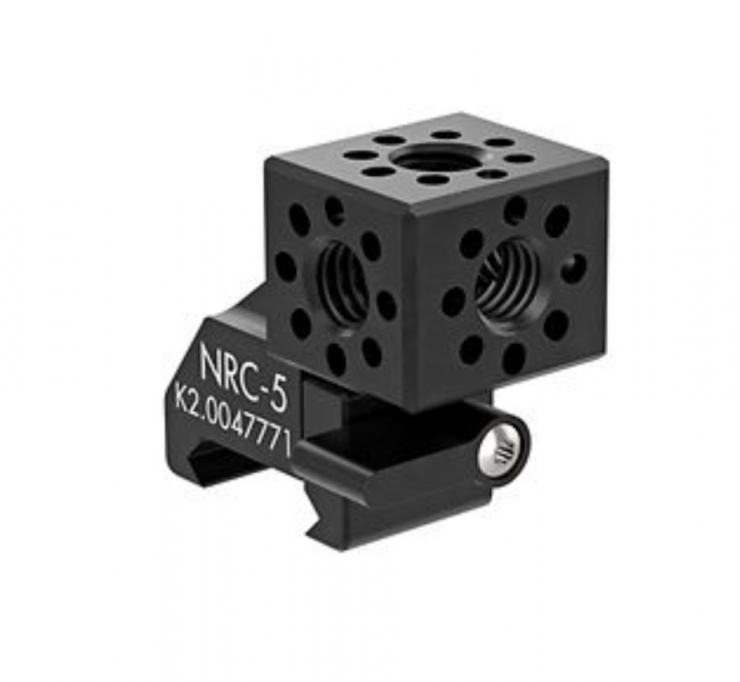

NATO Rail Clamp NRC-5
![Screenshot 2024 06 06 at 1 24 47](/wp-content/uploads/2024/06/Screenshot-2024-06-06-at-1.24.47-740x682.png)
A cube with 5 sides of 3/8in ARRI pin-lock attachment interfaces to be mounted on NATO rails.
