SWIT recently introduced its new FM-215HDR 21.5-inch QLED panel. The FM-215HDR is a 1920×1080, 1000nits HDR, 12G-SDI, multiview display, zero latency processing, and built-in camera LUTs. We caught up with them at NAB 2024 to take a closer look at the monitor.
According to SWIT, the monitor is equipped with an advanced Quantum Dot LED (QLED) panel with 1000nits and a high bright backlight so that it sunlight viewable outdoors.
Key features
- 21.5-inch 1920×1080 QLED Panel
- 1000nits high bright PQ/HLG HDR
- 100% DCI-P3 wide color gamut coverage
- VICO 1.97 A-class Eye Protecting LCD
- 12G-SDI, 4 x 3G-SDI, HDMI 2.0 4K input
- 4-ch SDI/HDMI mixed formats multiview
- Any 2 inputs mixed PBP or PIP view
- Horizontal and Vertical (cropped) PBP view
- Zero latency video processing (0.01frame)
- 3DLUT Auto Self-calibration without PC
- Built-in Multi camera Delog LUTs
- User 3DLUTs upload via USB
- Waveform / Focus assist / False color / Zebra
- With flight case and screen protector
- Optional VESA to C-stand adaptor
The monitor covers 100% of DCI-P3 and it has 12G-SDI, 4 x 3G-SDI, and an HDMI 2.0 4K input.There is also a built-in V-mount battery plate and the ability to power it via DC or AC.

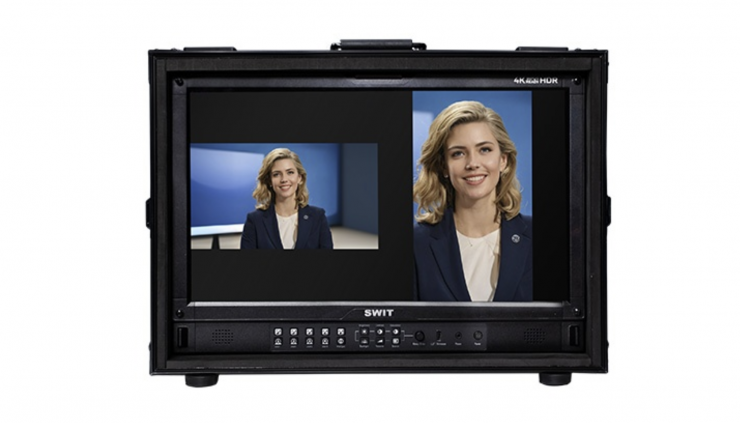

The FM-215HDR can support up to four video inputs of mixed formats and display them as quadview , or as any two inputs Pic-by-Pic or Pic-in-Pic view, or two inputs in a vertical (Cropped) display mode. You can select HDR/SDR gamma, color gamut independently for each input.
If you are live-streaming, you can use the H/V Multi-platform Livestreaming View where one input source is displayed in a regular horizontal view and cropped vertical view side by side simultaneously. This is very handy if you need to output both horizontal and vertical video to different streaming platforms.
As you would expect, the monitor features the usual array of video assist tools such as false color, waveform, peaking, vector scope, etc.
It comes with a flight case and screen protector. The monitor in its case weighs 14kg / 30.86 lb.
On the top of the flight case, there are two cheese plates where you can install accessories such as wireless video receiver using multiple 1/4” and 3/8” screw threads.

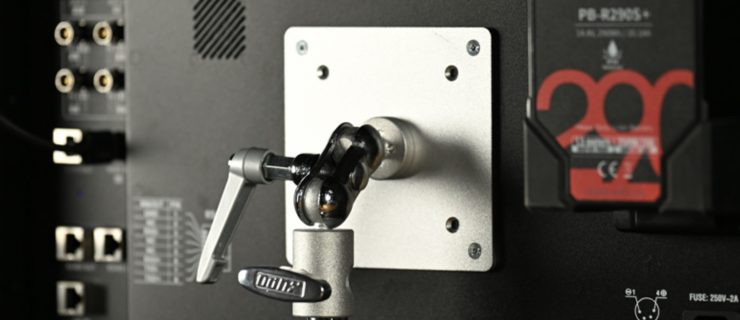

You can purchase an optional VESA to 5/8” baby-pin C-stand / Light stand adaptor bracket as the monitor is equipped with a standard 10×10 VESA mount.
Price & Availability
The SWIT FM-215HDR 21.5-inch QLED panel is available to purchase for $1,999.99 USD.

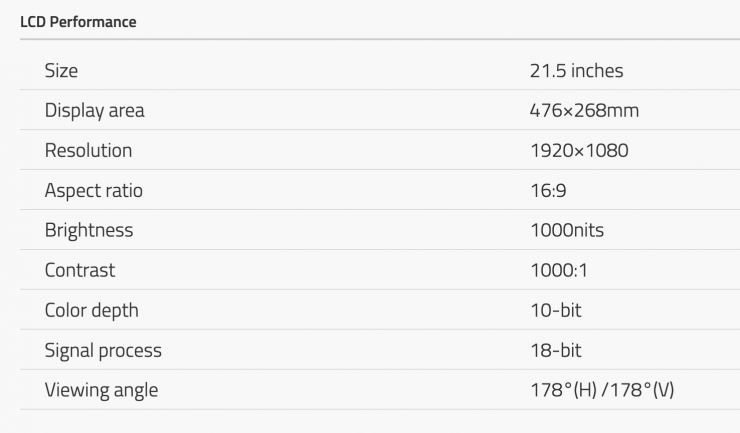

Specifications
