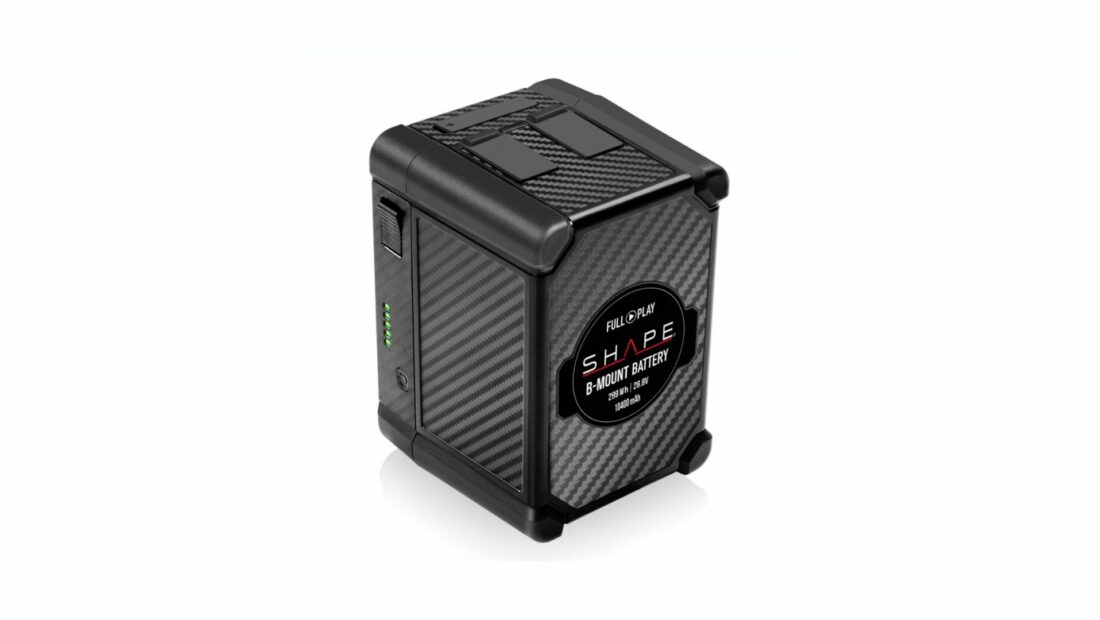

The SHAPE Full Play 14.4/28.8V 299Wh Lithium-Ion Battery (B-Mount) was designed to be a multi-voltage battery that could be used to power 24V or 12V cameras or lights that feature a B-mount.
The correct voltage is determined by the device’s B-mount plate. The dual-voltage output is safe to use with your device, as the B-mount will not allow the higher voltage to flow to a device designed to handle 12/14.4 volts, and it will not allow you to underpower your 24V device. Its internal system will automatically detect the load, if there is no load, the battery will switch to any power mode. If there is a load, the battery starts to work.
Key features
- CAPACITY: 10400 MAH / 299 WH
- RATED DUAL VOLTAGE: 14.4/28.8V
- IMPACT PROOF RUBBER PADDED CORNERS
- SUPPORTS PD FAST CHARGING PROTOCOL
- 4 D-TAP PORTS
- THE BATTERY REQUIRES TO BE TURNED ON FOR D-TAP PORTS TO WORK WITHOUT THE CAMERA (LED BUTTON ON SIDE OF BATTERY)
- 1 USB-C INPUT/OUTPUT
- 1 USB-A 5V PORT
- BATTERY RELEASE LEVER ON BATTERY.
- 5-STEP LED FUEL GAUGE.KEY FEATURES
The internal modular design is stated to be simple, stable and reliable. It effectively reduces the static power consumption of the battery and prolongs its life cycle.

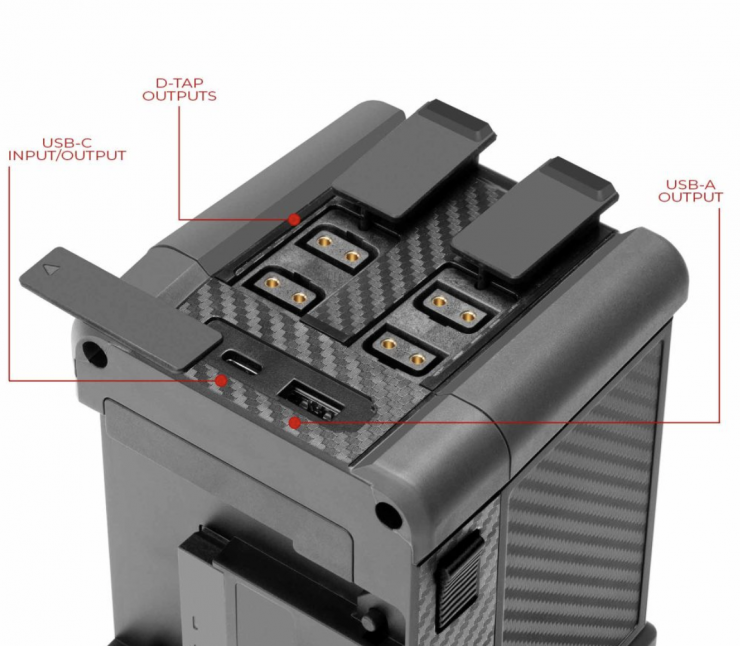

The battery is equipped with 4 D-tap ports (max of 3 amps / 16V for all 4 D-Tap connectors combined), one USB-C (input/output), and one 5V USB-A output. The battery’s capacity can quickly be checked via the 5-segment LED meter. The battery can be charged with a B-mount charger or via the USB-C port with a USB-C charger. Its four corners are rubber-padded to protect the unit from impacts.
Price & Availability
The SHAPE Full Play 14.4/28.8V 299Wh Lithium-Ion Battery (B-Mount) is now available to order for $694.32 USD.
Specifications
Rated Dual Voltage: 28.8V
Output power: B-mount 28.8V, 10A (max), D-tap: 16V, 3A (max), USB-A: 5V, 2.1A (max), USB-C: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.5A
Input power: B-mount: 33.6V, 3A (max), USB-C: 65W (max)
