Sound Devices Announces has announced its new A20-Nexus Go True-Diversity Wireless Receiver and A20-TX Digital Wireless Transmitter.
The A20-Nexus Go true-diversity digital wireless receiver and the A20-TX digital wireless transmitter are the latest additions to the Astral series of wireless audio products. They were designed to streamline wireless audio processes and bring innovative features like Sound Devices’ proprietary SpectraBand, GainForward, and NexLink technology into a versatile ecosystem of portable, rugged, and easy-to-operate wireless audio devices that function across a variety of live and recorded sound applications anywhere in the world.

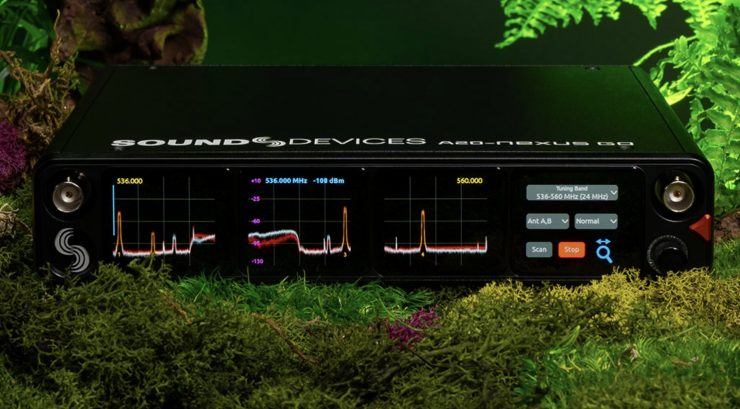

A20-Nexus Go
Designed for the on-the-move production sound professional, A20-Nexus Go is a portable 4-, 6-, or 8-channel wireless receiver ideal for mobile rigs and fast-moving production. Users can scan an industry-leading global tuning range of 169 – 1525 MHz with Sound Devices’ SpectraBand technology to quickly find clean and open frequencies anywhere in the world. They can also easily assign transmitters to those frequencies using A20-Nexus Go’s AutoAssign function, adjust transmitter gain as needed directly from the receiver using GainForward, and keep tabs on any potential RF difficulties with A20-Nexus Go’s integrated Real Time Frequency Analysis (RTSA) functionality. Combined, this makes A20-Nexus Go a versatile wireless hub packed with forward-thinking features that can replace multiple devices in any crowded production sound bag.
The A20-Nexus Go was created based on the feedback of Sound Devices users in the field. Professionals were looking for a portable wireless solution that could deliver these features in a compact, easy-to-use format.
A20-Nexus GO Key features
- 4-channel ultra-high-performance, true-diversity receivers in a half-rack size (8.0” x 6.6” x 1.6” / 20.3cm x 16.8cm x 4.1cm).
- Expandable to 6 or 8 channels via A20-Nexus Go 2-Channel Expansion Licenses.
- 169 MHz – 1525 MHz tuning range via SpectraBand Technology.
- NexLink: integrated, long-distance remote control of all wireless transmitters, including group power on/off.
- AutoAssign: automatic deployment of clean frequencies in seconds.
- Integrated Real Time Spectrum Analyzer (RTSA) and scanning for intuitive frequency coordination.
- Flexible powering: via DC input, 8-Series, or AC mains (with optional adapter).
- DB-25 connector for 8 channels of mic, line, or AES outputs.
- Wide, 6.2” color OLED array with touch for control and monitoring.

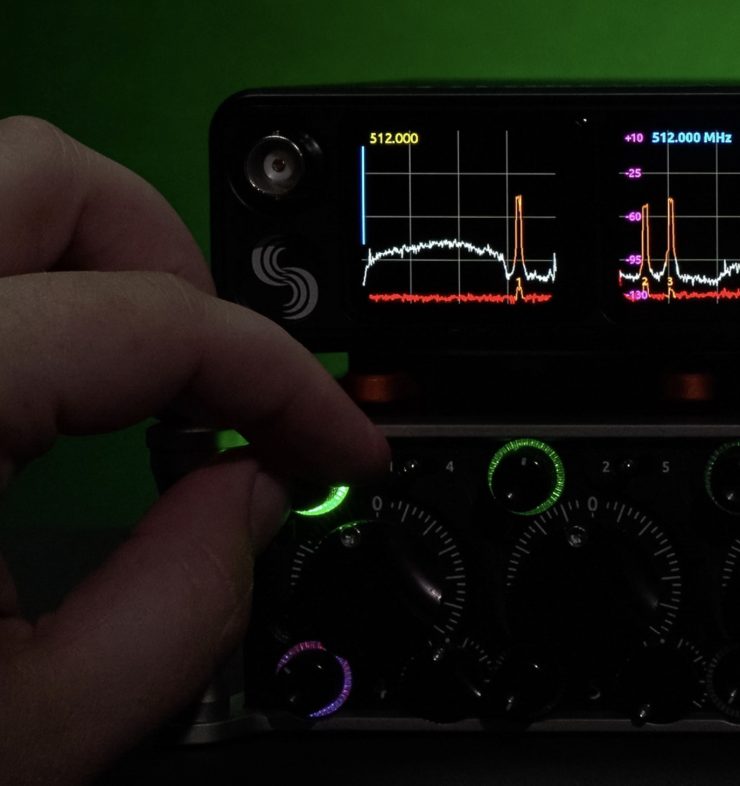

- A20-QuickDock allows docking and undocking in seconds from 8-Series mixer-recorders with no tools or additional hardware.
- Supports GainForward Architecture: No gain setting on the A20 transmitter. Adjust gain at the receiver or mixer.
- 100% digital long-range modulation delivers the longest transmission distance of any digital system on the market.
- RF SAW filters for excellent rejection of interference from nearby IFB or camera hop transmitters.
- Excellent audio quality, full 10 Hz – 20 kHz audio bandwidth.
- BNC timecode input for auto timecode sync of transmitters over NexLink.
- Front panel and rear panel BNC antenna inputs. Compatible with passive and bias-powered antennas
- Supports control of the Wisycom LFA smart antenna.
- Cascade out option on rear BNCs for cascading multiple A20-Nexus Go units.
- USB-A port for thumb drives, keyboards, transmitter pairing, and timecode syncing. Supports USB hubs.

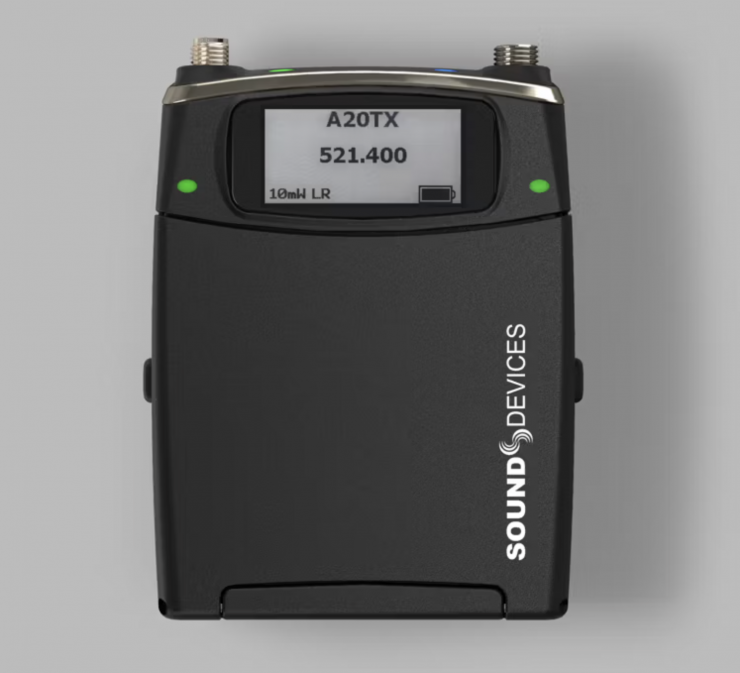

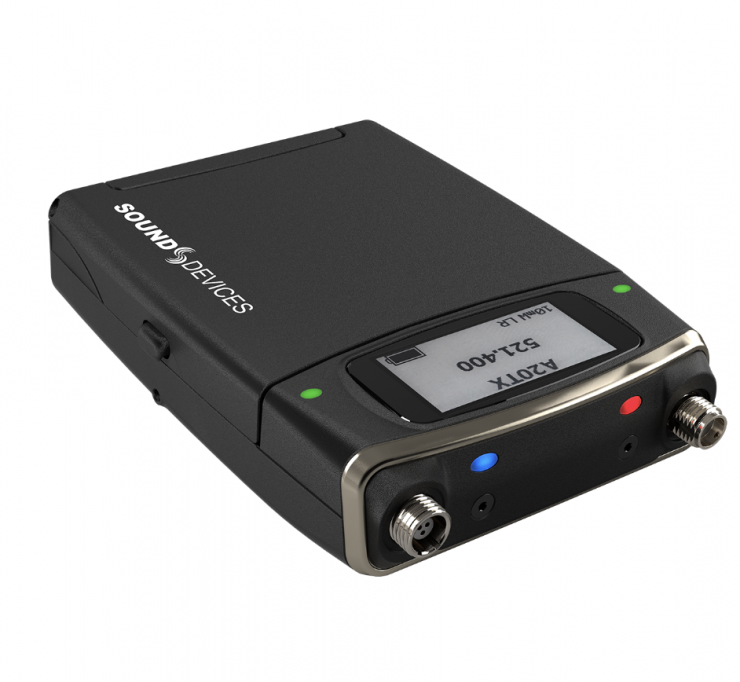

A20-TX
The A20-TX digital wireless transmitter utilizes a combination of innovative technologies and intuitive compatibility to make it a versatile, easily adaptable digital wireless transmitter. It was built to offer a wider range of input compatibility than any other transmitter on the market.
The A20-TX serves equally well with 2- or 3-wire lavs, dynamic and phantom-powered microphones, balanced line-level sources, AES digital mics, and musical instruments. A20-TX utilizes the same high headroom mic preamp from Sound Devices’ 8-Series mixer-recorders, guaranteeing high-quality sonic purity with a minimum of noise. Multiple A20-TX transmitters can be controlled remotely by Astral-series wireless receivers utilizing Sound Devices’ long-range NexLink remote wireless control technology, and gain can be adjusted directly from the receiver using GainForward. Ensuring long-term ease of use, A20-TX has a 12-hour battery life and is compatible with both standard and rechargeable AA batteries.
A20-TX Key features
- Worldwide VHF and UHF tuning range from 169 MHz-1525 MHz.
- Up to 12 hours battery runtime.

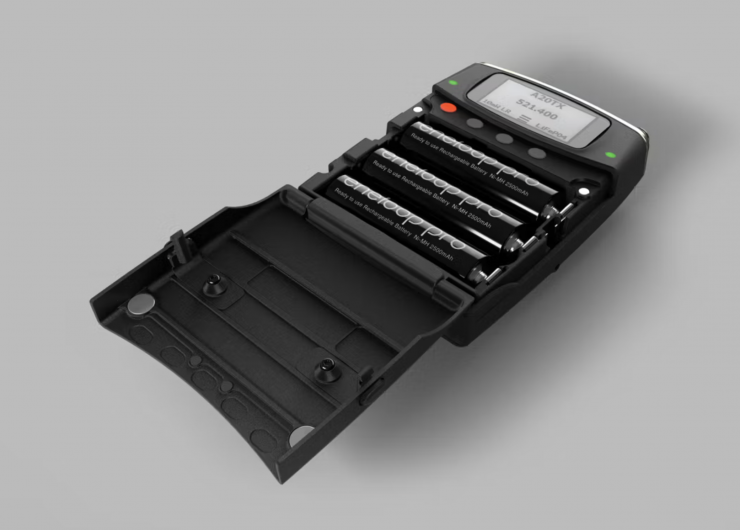

- Eco-friendly operation from rechargeable Lithium batteries or from standard AA batteries.
- Built-in battery charger via USB-C.
- Full remote control of the A20-TX via A20-Remote companion app and from A20-Nexus and A20-Nexus Go via long-range NexLink.
- State-of-the-art 100% digital long-range modulation delivers the longest transmission distance of any system on the market.
- RF Power output from 2 mW to 40 mW.

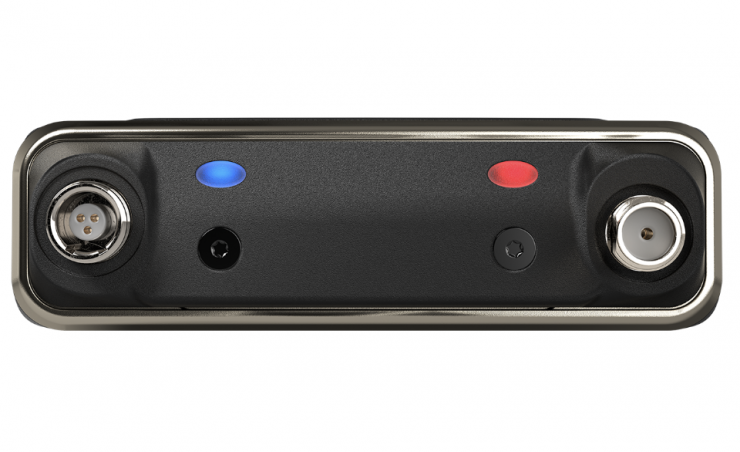

- Lemo input supports 2-wire or 3-wire mono lav, balanced mic, switchable 12, 48V phantom, balanced line-level, AES3, AES42 (compatible with Schoeps SuperCMIT), and guitar (w/ optional Smart Guitar Cable).
- GainForward Architecture – no gain control to worry about on the A20-TX.
- Full 10 Hz – 20 kHz audio bandwidth.
- 8-Series, fully balanced mic preamp built in (140 dB dynamic range).
- Ultra-quiet lavalier mic preamp (134 dB dynamic range).
- Built-in 32-bit float, 48 kHz recorder with removable micro-SD card.
- Ultra-stable timecode built in, auto jammed via wireless NexLink.
- Sunlight-readable ePaper screen for control and display. Display persists when powered off.
- USB-C for pairing with the A20-Nexus, file offload, charging, and timecode jamming.
- A20-TX Switch: Optional user-programmable bayonet switch, magnetically sensed and physically removable.
Price & Availability
The Sound Devices A20-Nexus Go is available now from $8495 USD, and the A20-TX starts from $2450 USD.
