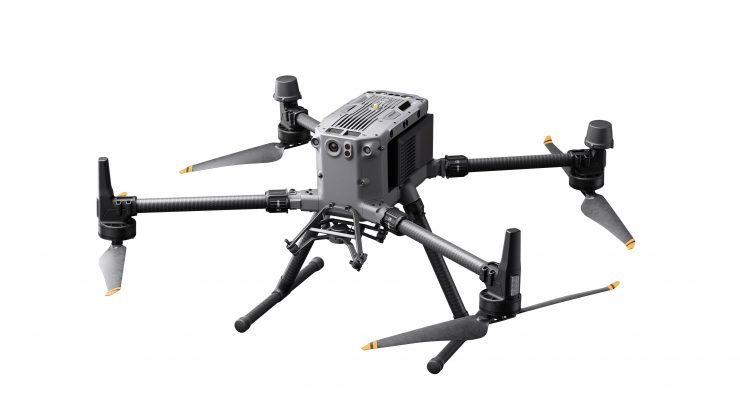

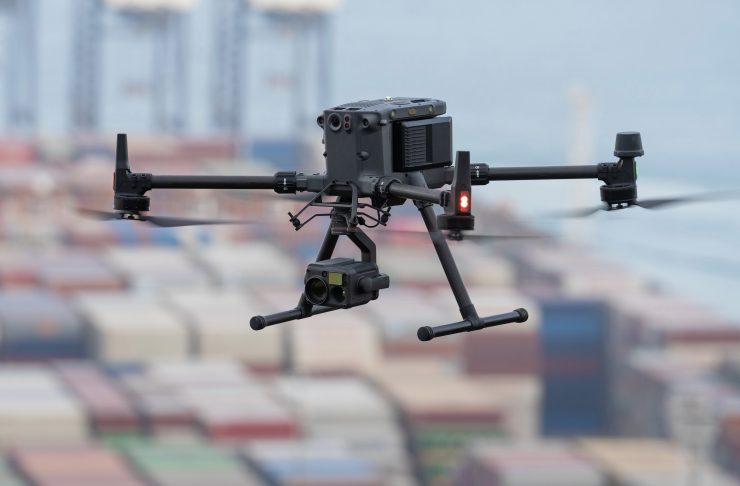

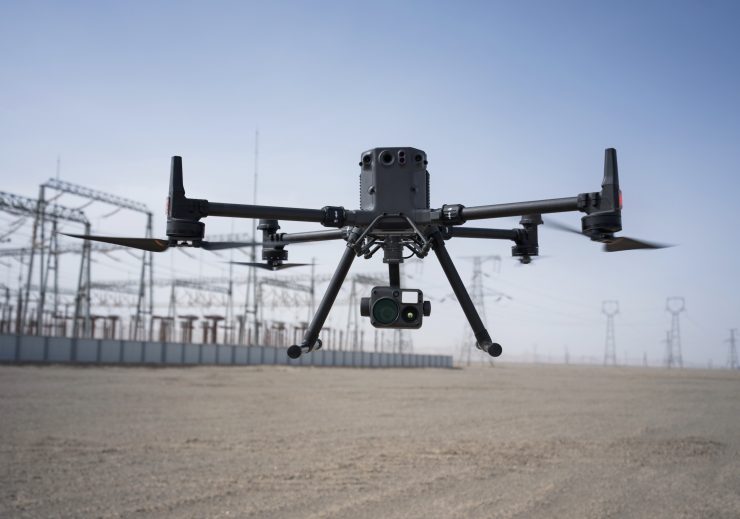

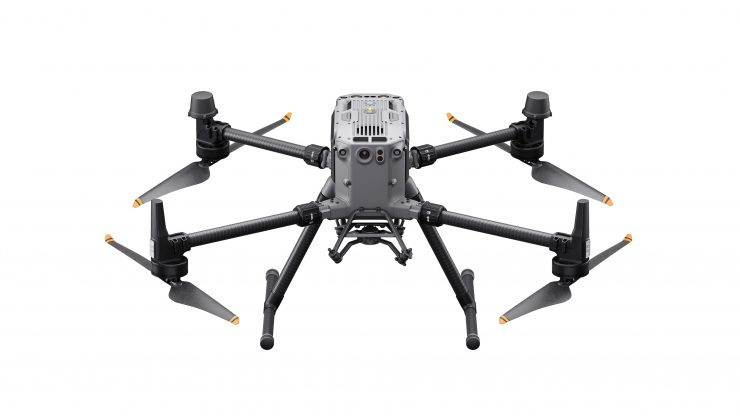

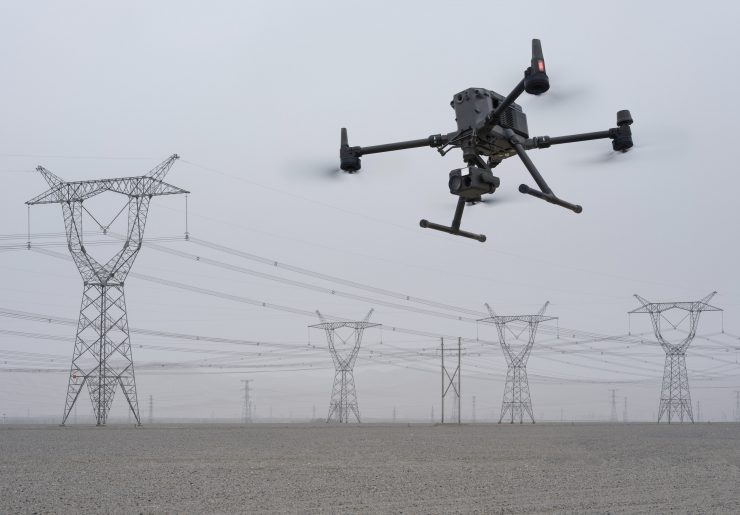

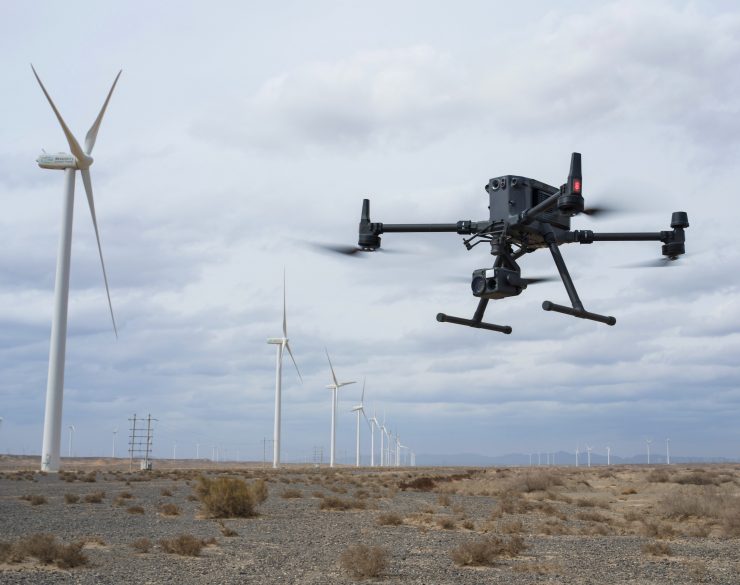

DJI has announced the Matrice 350 RTK (M350 RTK). The Matrice 350 RTK is DJI’s upgraded flagship drone platform that has been made to be more adaptable, safer, and efficient for any aerial operation in public safety, energy, mapping, infrastructure or forestry, etc.
The Matrice 350 RTK features a 55-minute max flight time and it has a payload capacity of 2.7kg. The new DJI O3 Enterprise Transmission gives users peace of mind with triple-channel 1080p HD live feeds and a max transmission distance of 20 km. This is achieved with a four-antenna transceiver system, which can intelligently select the two optimal antennas to transmit signals, while the four antennas receive signals simultaneously.
Anti-interference capabilities have been significantly improved and transmission stability optimized. DJI has improved the M350 RTK’s IP rating from IP45 to IP55 and the FPV camera has been enhanced to provide better navigation for safer night flights. The M350 RTK also adds a new arm lock detection function to avoid the risk of unlocked arm sleeves, alleviating pilot concerns during flight. Concerns are also lessened with the drones six-directional binocular vision system and an infrared sensing system for six-directional awareness, positioning, and obstacle-sensing capabilities, providing comprehensive protection during flight.
For those who require additional flight safety, a CSM radar can be purchased separately and mounted on the top of the drone offering a range of up to 30m for subtle obstacles within the 360° detection range. Furthermore, the M350 RTK incorporates a multi-layered redundancy design in both the aircraft and sensor system allowing for more confident operation in harsh environments.
The M350 RTK comes with the DJI RC Plus as standard giving the operator a 7-inch high-bright screen, the option of Dual Operator Mode and an operating time of up to six hours with a standard WB37 external battery.
The drone is dustproof and waterproof to IP54 and with an operating temperature of -20° to 50° C (-4° to 122° F).
The RC Plus’ app, Pilot 2, increases efficiency by providing a complete range of options to manage the drone and project, from start to finish. Intelligent functions can greatly increase the efficiency and safety of any drone deployment. AI Spot Check can be used to automate routine inspections and capture consistent results every time; or PinPoint can be used to mark an object with a quick tap and have its coordinates calculated and projected to all camera views as an AR icon which is particularly useful in search and rescue operations.

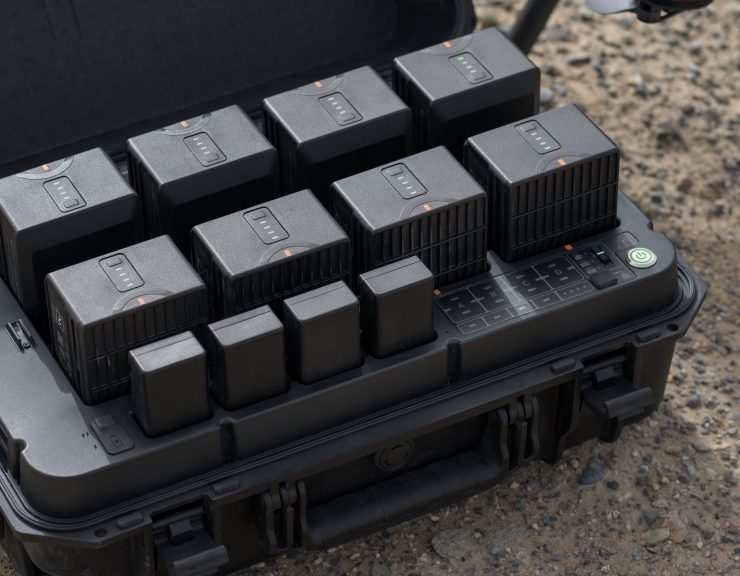

The M350 RTK’s new TB65 battery has a 100% increased battery cycle count and can be charged up to 400 cycles, reducing the cost of a single flight. Its dual-battery system supports battery hot swapping and allows for multiple flights without powering off. The new BS65 Intelligent Battery Station provides a one-stop solution for battery charging, storage, and transport. Multiple charging modes enable the operator to select the best option for them such as charging the battery up to 50% in Storage Mode, if the battery isn’t going to be used again for a prolonged period of time, or Ready-to-Fly Mode, which quickly charges multiple battery sets to 90% to start operation at any time and extend the battery life.
When the battery station is connected to DJI RC Plus, the DJI Pilot 2 app will display the battery status and health information. In addition, the user can set the number of self-discharge days, update the firmware, export logs, and access other quick operations with one tap.
The battery station is designed with 360°-movement wheels for convenient transportation.
The M350 RTK supports a single downward gimbal, dual downward gimbals, and single upward gimbal, and has an E-Port open interface.
With a max payload capacity of 2.7 kg, the aircraft can carry up to three separately purchased payloads simultaneously, meeting the needs of different operation scenarios such as public safety, inspection, and mapping.

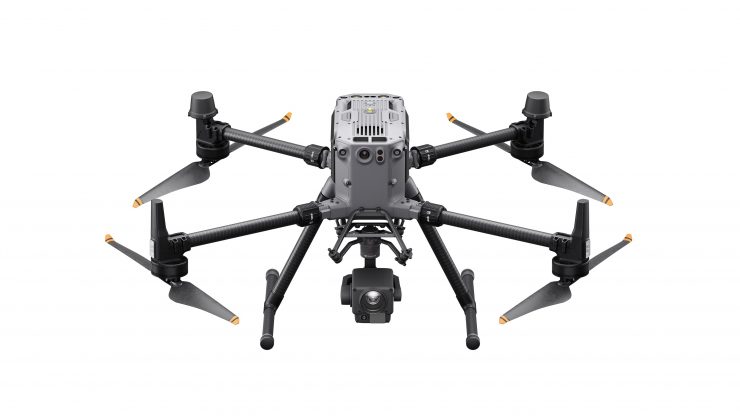

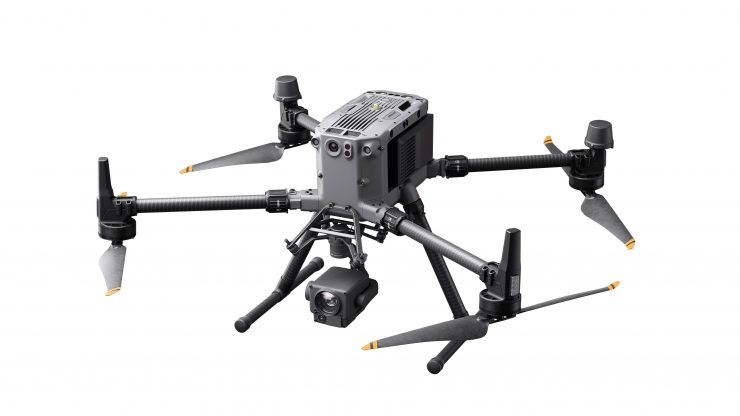

Zenmuse H20 Series: The four-sensor system of zoom camera, wide camera, thermal camera, and laser rangefinder works together, supplemented by advanced intelligent algorithms, to deliver outstanding sensing and imaging performance.

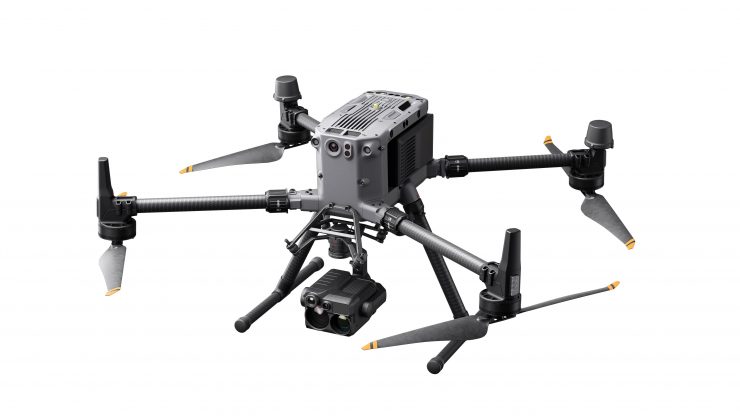

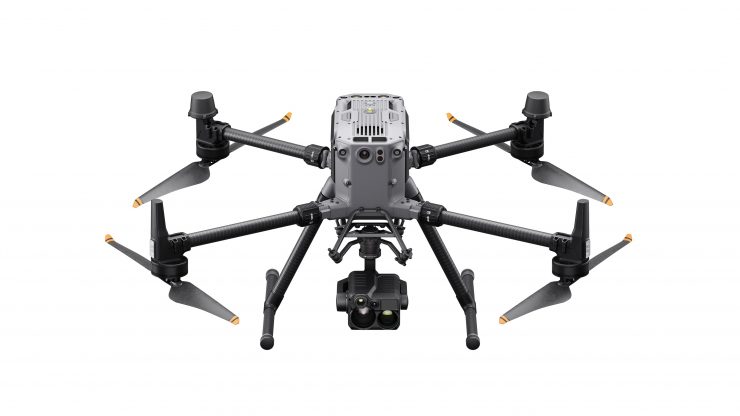

The Zenmuse H20N integrates starlight sensors into its zoom and wide-angle cameras. Pair this with dual zoom thermal cameras and a laser rangefinder, and the user has a versatile hybrid payload that rises to the occasion.
The Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level.

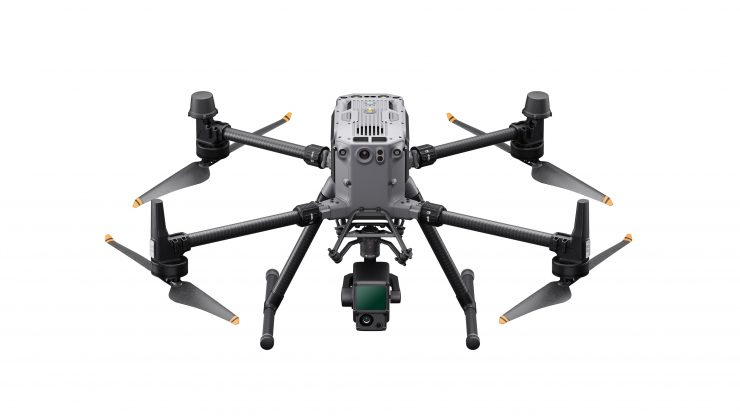

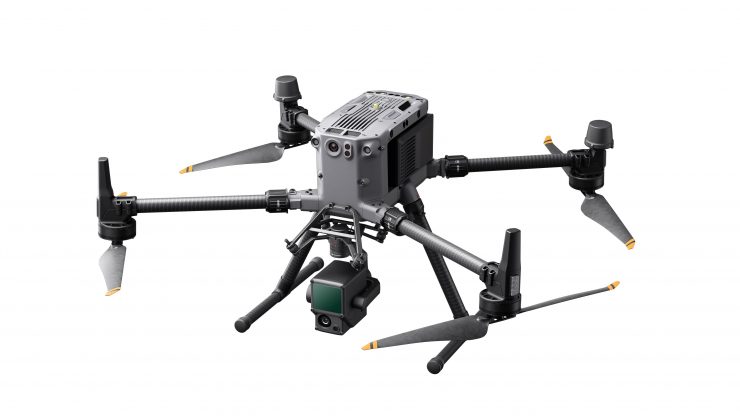

The Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a mapping camera. When used with the flight platform, it forms a complete solution that gives you real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models.
Customized payloads like gas detectors, loudspeakers, and multispectral sensors can be combined with M350 RTK through DJI Payload SDK to expand application fields.
The M350 RTK supports Waypoint, Mapping, Oblique, and Linear Flight missions. Terrain Follow or Smart Oblique can be used for efficient data collection and, when combined with DJI Terra, HD 2D and 3D digital results can be quickly achieved for high-precision and high-efficiency mapping operations.
With functions like the high-precision PinPoint and cloud-based real-time mapping, the M350 RTK can link the air, ground, and cloud together. After the aircraft completes image collection, DJI FlightHub 2 can quickly model the operation site and transmit command information to the aircraft and ground operators. Both the remote controller and FlightHub 2 support point, line, surface drawing, and real-time uploading, and can cooperate with the aircraft to livestream the real-time operation view, breaking through communication barriers for air-to-ground collaborative operation.
Through Live Mission Recording, the M350 RTK can generate and store flight route files that can be used at any time to create automated operations and reduce the time and effort needed for make repetitive inspections. When using AI Spot-Check,the M350 RTK supports automatic framing and manual adjustment of subjects to improve the accuracy of repeated shooting and the quality of inspection operation.
Operators can get even more from their M350 RTK by leveraging the DJI SDK and API ecosystem.
Payload SDK: A variety of third-party payloads such as gas detectors, loudspeakers, multispectral sensors, computing modules, can be integrated to utilize the platform in even more ways. Payload SDK supports E-Port, SkyPort V2, and DJI X-Port,which greatly reduce the payload development lifecycle and maximize the potential of the payloads in more diverse scenarios. E-Port supports Payload SDK V3 and later versions, and is compatible with third-party Payload SDK payloads of the Matrice 30 Series.
Mobile SDK: With a large network of third-party mobile applications, the capabilities of the drone platform to meet specialized mission needs can be unlocked. Utilizing Mobile SDK, the M350 RTK supports highly customizable mobile app development.
Cloud API: With Cloud API, the M350 RTK can be directly integrated to third-party cloud platforms via the DJI Pilot 2 app, accessing functions like data transfer, live stream, and flight route distribution.
Price & Availability
The DJI M350 RTK is available for purchase today from store.dji.com and DJI Enterprise Dealers.
