BB&S Reflect 4-Bank Remote Phosphor System

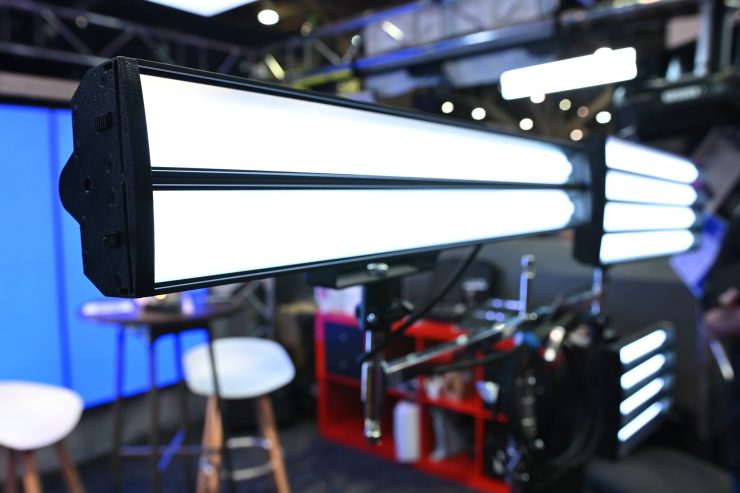

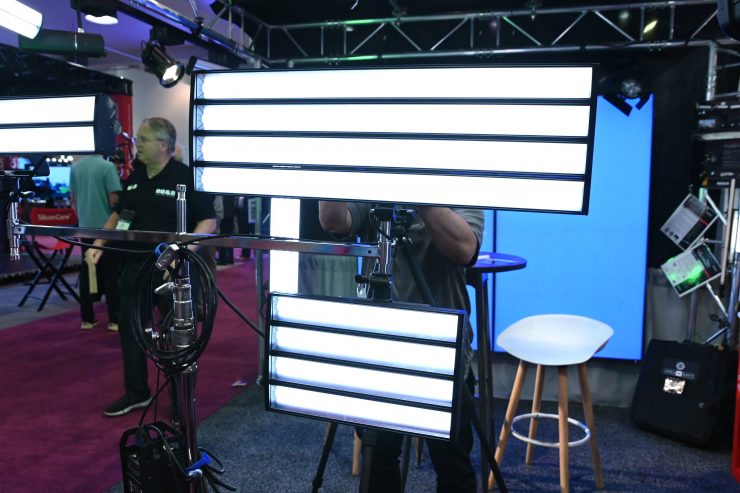

At NAB 2023, BB&S were showcasing their new Reflect 4-Bank Remote Phosphor System which is part of its family of studio lighting. This line was created in response to LDs lighting sets and newsrooms who requested the color rendering and longevity benefits of remote phosphor technology in ultra-efficient, lightweight fixtures that fit grids and walls.

The BB&S solution is a family of Reflect fixtures: the 1’ 4-Bank comes in 3200°K and 5600°K remote phosphor fixtures. The 2’ 4-Bank is offered in 3200°K and 5600°K remote phosphor and Bi-Color 2700°K-6000°K. With convenient rectangular form factors and flat profile, these modular plug and play lights fit right into multi-lamp reflector banks or grids. Featuring extreme efficiency and high output (60 lux at 10/feet) coupled with consistent color rendering of 95 TLCI, they produce stable, color shift-free output over time for which remote phosphor is known.

Reflect 2 and 4 Banks’ new housing is designed using the latest engineering techniques emphasizing efficiency in power and output. Additionally, BB&S has carefully sourced the highest grade new Blue LEDs which produce at least 10% extra output over other types. The new fixtures emit 1100 lumens a foot versus 1000 lumens a foot. As combined semihard and soft lights, their superior reflectors utilize a semihard reflective surface to project 90-degree directional light pattern. Optional diffusion slides into a side slot, resulting in a soft surface with 140-degree dispersion. BB&S Reflect 4-Banks are designed to meet all the critical specs for newsrooms requiring extreme accuracy combined with control that’s fully dimmable without flicker or color shift. Their remote phosphor LEDs produce soft beauty light that’s requested by LDs for modeling faces and excellent for illuminating backgrounds.

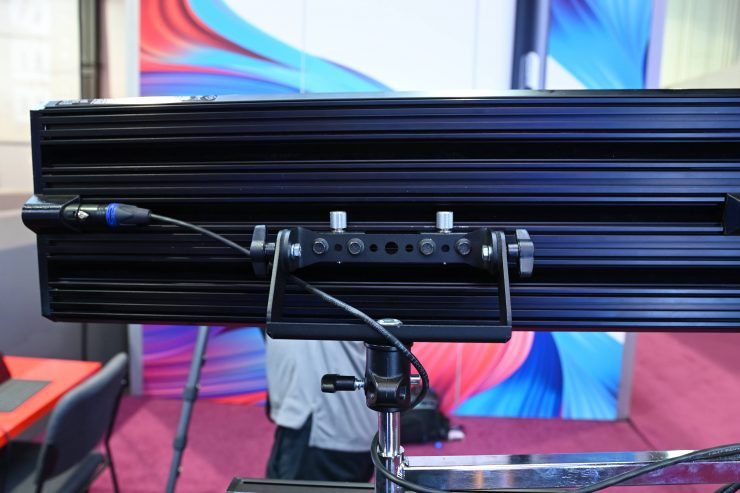

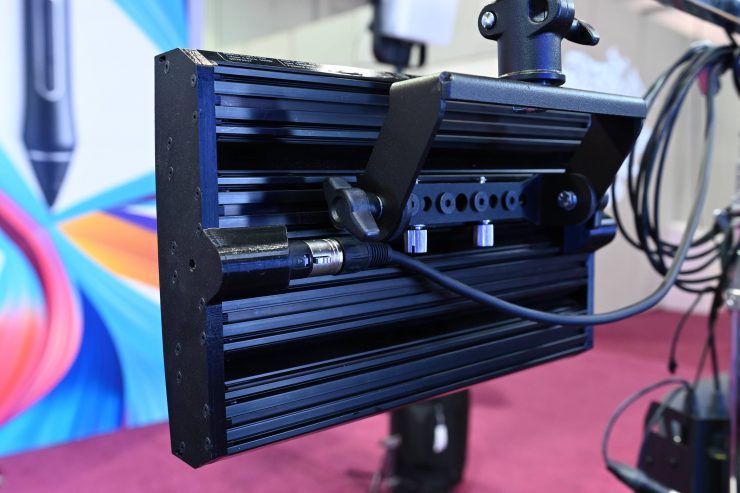

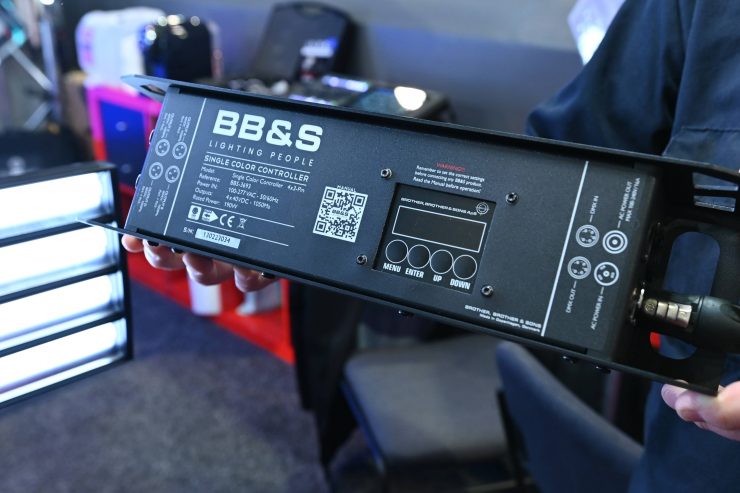

Reflects offer low power draw, high light output, 90-degree light dispersion, with heatless and fan-less operation. A new optional 4-Channel Controller provides 8/16-bit DMX 512/RDM with internal 48V power supply offers control. They come with full length adjustable yokes plus TVMPs. In addition, optional new louvers help produce directional light, for added drama or impact.  For more information about BB&S 4-Bank Reflect Lighting in North and South America visit https://bbslighting-com.myshopify.com/collections/reflect-4-banks/products/reflect-4-bank or www.bbslighting.com. In Europe, Africa and Asia visit: www.brothers-sons.dk

Price & Availability

Pricing hasn’t been set yet, but BB&S told us that they should retail from around $750 USD up to around $1,200 USD. They should be available in around two months.
