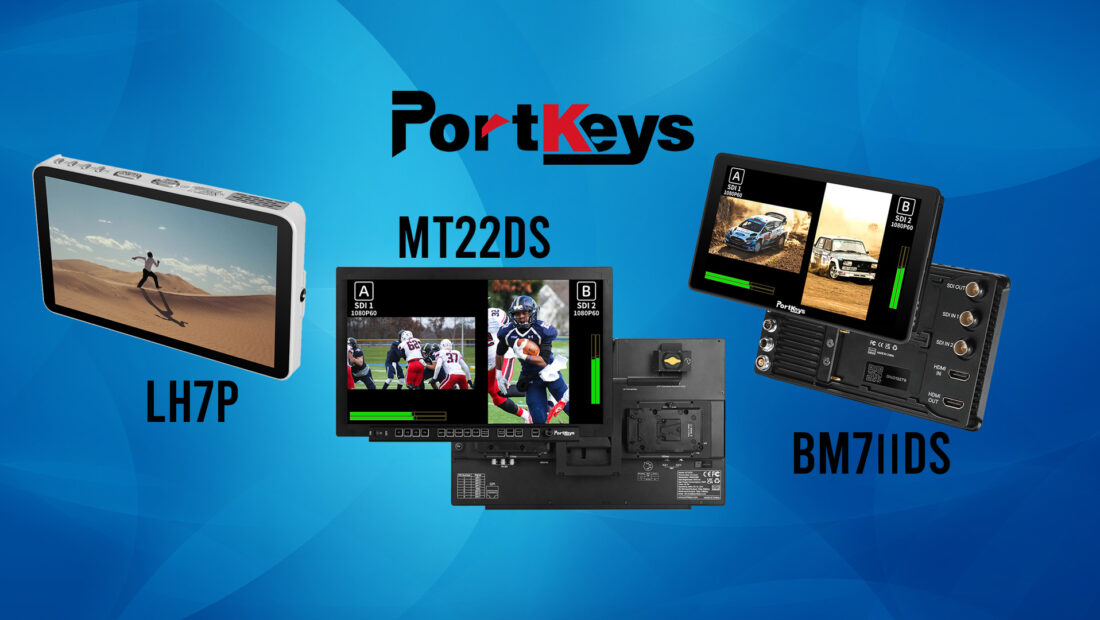

PortKeys is proud to announce for NAB 2023 three new monitors in two different sizes. The BM7ⅡDS is a 7″, and the LH7P and the MT22DS is a 21.5″. The features are vast, from camera control and wireless connection as well as the ability to control a follow focus, all from the touch screen and some very bright options.
PortKeys LH7P 7″ 1920 x 1080 on-camera monitor
The PortKeys LH7P is a 7″ 1920 x 1080 on-camera monitor with a built-in Wi-Fi device that allows it to control select Sony and Blackmagic cameras wirelessly. Supports 4K oversampling to 1080p, resulting in high resolution, high detail 1080p video.
WIFI Wireless Touch Control Cameras
The way this wireless camera control works with Sony cameras is that you connect up to the generated PortKeys WiFi network on the camera, and then you will be able to control certain parameters.
The parameters you can control depending on the camera being used. If you are using the a1, a9 II, a7C, FX3, RX10, a7S III, and a7 IV you can control quite a few options on the monitor, including the ability to do touch focusing.
Bluetooth Wireless Control of the Camera
On the BMPCC 4K, 6K, and 6K Pro, you need to connect up the Bluetooth to the PortKeys monitor to enable camera control. The functionality you can adjust wirelessly on the monitor when using the Blackmagic cameras is pretty comprehensive.
The monitor has a brightness of 1000nits and a contrast ratio of 1000:1. It covers 100% of Rec.709.
The PortKeys LH7P weighs in at 235g, and it only has HDMI in and out and no SDI.
The monitor draws 9W, and it can accept any 7-24V DC input. You can also power the monitor using any Sony-style NP-F battery.
The LH7P features the usual array of monitoring tools, and you can also load up 3D LUTs. Another nice feature is that you can enable a 3D LUT on the HDMI output.
Custom JPG Picture Custom Freeze Frame
Want to save the exact shot setup you have? The LH7P has a JPG Picture Freeze Frame feature that allows the user to take a snapshot of the image on the monitor. Great for reframing the shot if needed.
Vertical Shooting Stretches Legs and HDMI Output
The image can be stretched in verticle shooting mode, making the subject thinner and taller.
Anamorphic Lens Correction 1080P60 HDMI Output
Supported Ratio: 1.00X/1.33X/1.42X/1.50X/1.60X/1.66X/1.85X/2.00X/2.35X
User-defined adjustment range: 0.25X-4.00X
Brightness and RGB Signal Detection Before/After Loading 3D LUTLoading 3D LUTs for better picture quality and more intuitive monitoring.
Make All 4K Cameras Have Supersample
Supports 4K oversampling to 1080p, resulting in high resolution, high detail 1080p video
Brightness and RGB Signal Detection Before/After Loading 3D LUT
Loading 3D LUTs for better picture quality and more intuitive monitoring
Customized Peaking Range(Peaking Frame)
New Peaking New Algorithm More intuitive More accurate.
Video Screen Showing Camera Parameters
The perfect solution to the problem that some camera video screens have no camera parameters
Retail Price
The LH7P black version is $349, and the white is $399.
BM7ⅡDS 2200nit Wireless Camera Control 7″ Monitor
The Portkeys BM7IIDS is a 7″ 2200nit wide color gamut monitor with wireless camera control and more.
Wired Control Tilta Nucleus-N/M Motors
You can use the Tilta Nucleus-N and M system wired directly to the BM7IIDS with the proper cable and have wireless motor control. With the touch screen, you slide your finger across the screen or use the + – to control the motor, plus the ability to have A-B set points.
Wired control of RED cinema camera
Also available is wired camera control for RED cinema cameras. You can access the menu and make changes.
DSMC3 EXT control line (optional) to control DSMC3
DSMC2 CTRL control line (optional) to control DSMC2
Custom JPG Picture Freeze Frame
After capturing an image, it can be compared with real-time video by semi-transparent image superposition.
Note: Must be a 16:9 1920×1080 jpg image.
Split Screen Monitoring
Two screens can load the same 3D LUT file and support dual horizontal/dual vertical/left horizontal and right vertical/left vertical and right horizontal/ left horizontal and right vertical cropping of the same source.
Note: Left and right screens can be flipped individually and mirrored.
3D LUT HDMI Output
HDMI and 3G-SDI can output video after loading 3D LUT.
Anamorphic Lens Calibration
Supported Ratio: 1.00X/1.33X/1.42X/1.50X/1.60X/1.66X/1.85X/2.00X/2.35X User-defined adjustment range: 0.25X-4.00X
More Features
HDMI to SDI Output
Built-in signal conversion, no external signal conversion box required.
False color and ARRI False color
Customizable overexposure and underexposure IRE scales.
Brightness and RGB Signal Detection Before/After Loading 3D LUT
Loading 3D LUTs for better picture quality and more intuitive monitoring.
Multiple Ways of Operating
Both button scroll wheel and touch screen, for more flexibility in operation.
Various Interfaces
Video input 3G-SDI×2/HDMI×1, video output 3G-SDI×1/HDMI×1, 3.5mm headphone jack×1.
Customized Peaking Range(Peaking Frame)
Peaking perfectly avoids rendering camera parameters.
Custom Rectangular Image Crop
Easily and clearly monitor the details of your images.
Factory Color Calibration-709 color gamut with X-Rite 1D hardware
More accurate color calibration and more intuitive image monitoring.
Retail Price
The BM7IIDS retails for $899.
MT22DS 21.5″ 1920 x 1080 Dual Screen Cinema Production Monitor.
The monitor is a follow-up to the original MT22. It features a 21.5″ 1920 x 1080 display with a brightness of 1000nits and a contrast ratio of 1000:1. It covers 100% of Rec.709, and features both SDI and HDMI In/Out ports. You can power the monitor with V Mount batteries for remote use.
Split Screen Monitoring
The dual-screen capabilities allow you to set up the monitor to display two images in various different frame sizes depending on your requirements.
The monitor has two SDI inputs, an SDI output, an HDMI input and output, two +48V XLR inputs, two 12-24V DC inputs, a USB-A, and a headphone output jack. There is also an optional Vesa mount available.
Wireless Video Transmission Power Supply Plate
The MT22DS allows you to directly attach certain wireless video receivers directly to either N-PF or V-mount battery plates.
Custom JPG Picture Freeze Frame
Another feature is that you can capture JPEG images and then overlay them in real-time to compare frames which is handy if you need to do repeat set-ups.
Pre-calibrated
Before they are shipped, the monitor is pre-calibrated using the X-rite 709 color gamut.
CNC Aluminum Alloy All-metal Shell
The casing of the monitor is made from CNC-machined aluminum alloy, and it weighs in at 5.8kg, and it draws 60W of power.
3D LUT HDMI Output
HDMI, 3G-SDI can output video after loading 3D LUT.
Retail Price
The MT22DS retails for $1749.
Keep up to date with the new release on Portkeys.com
