SWIT has announced new BIVO series Bi-Voltage B-Mount Batteries. With the release of the ALEXA 35, the demand for B-Mount batteries has certainly increased. Many manufacturers have now introduced their own B-Mount power solutions, along with SWIT.

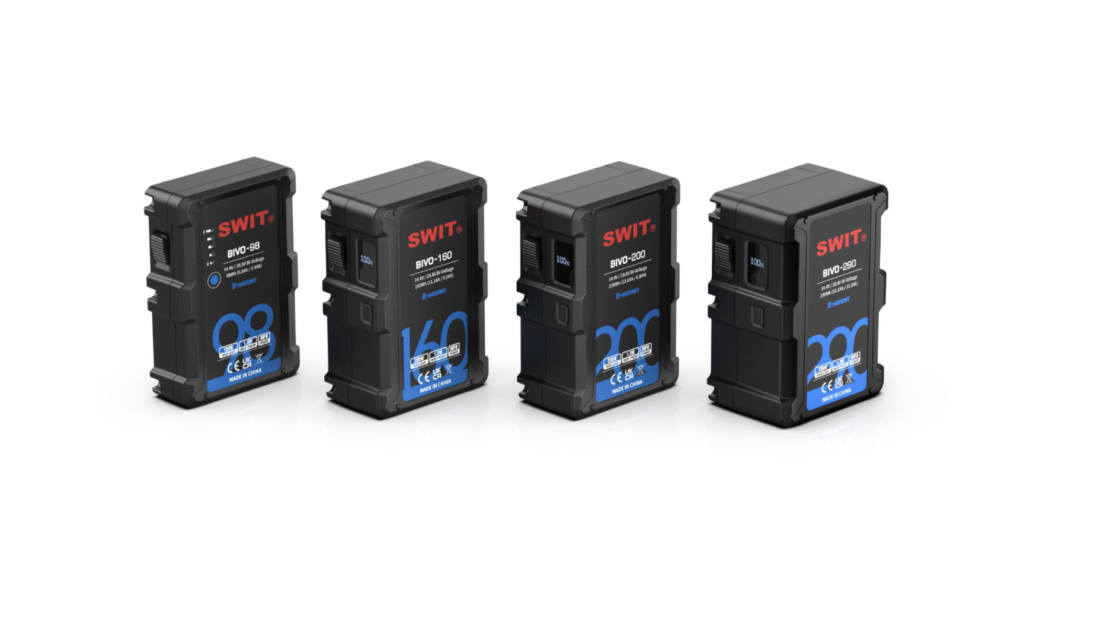

The new BIVO series adopts the 14.4V/28.8V standard, and in addition to 290Wh, three new capacity options have been added: 98Wh, 160Wh, and 200Wh. Having 98Wh and 160Wh versions is a big deal because it allows users to actually hand carry them on a plane.

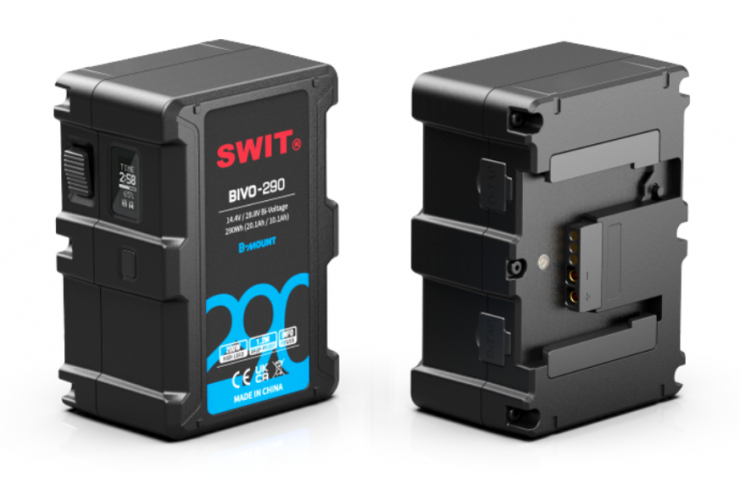

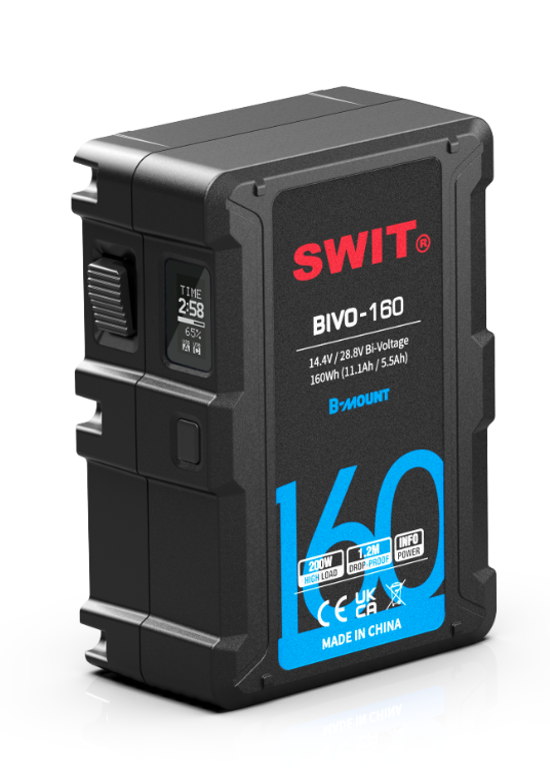

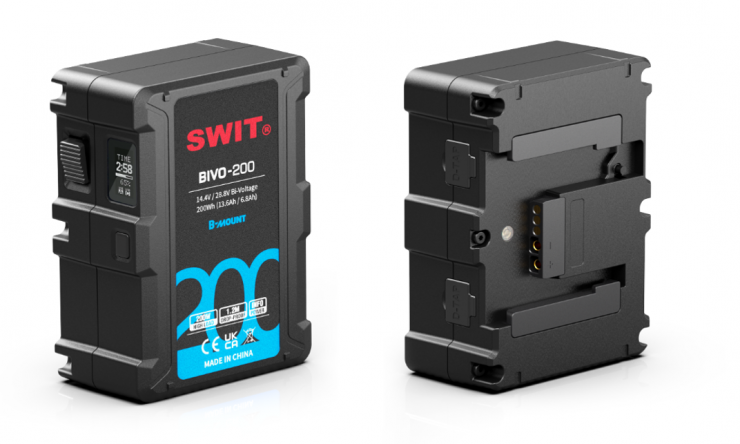

The BIVO series utilize the exact same design as the HB-A290B, with the exception of the smaller BIVO-98 which doesn’t feature an OLED screen display due to its thickness. The 200Wh and 160Wh two versions have the same thickness, and BIVO-290 has the same volume as the previous HB-A290B.
The digital ID interface of the B-Mount can intelligently identify the voltage (14.4V/28.8V), which means that the dual voltage functionality of the BIVO series is a good choice for any B-Mount application. With the exception of the BIVO-98 (150W), the other three batteries have an output power of at least 200W.
With SWIT’s unique Mispress prevention design, pressing the release button by mistake will not cause an accidental shut down of the camera, especially if a user is used to operating the camera by holding and moving the mounted battery.
B-B, V-B, & B-V Hot Swap & Conversion Plates
In addition to the new batteries, SWIT has also launched a variety of B-B, V-B, B-V Hot Swap and Conversion plates.
KA-B30B 28.8V
The KA-B30B hot-swap plate, high volt-age 28.8V matches the ALEXA 35. and it provides 120 seconds of battery change time.
KA-S30B 14.4V
The KA-S30B hot-swap plate, standard 14.4V provides a B-Mount battery-powered solution for standard voltage cameras on the market. It also pro- vides 120 seconds of battery change time.
KA-S20B 14.4V
The KA-S20B conversion plates provide direct B-mount (batteries) to V-mount (devices) conversion of 14.4V standard voltage. This means that BIVO series batteries can be used directly on different devices so that charging and maintenance problems of multi-interface batteries are avoided.
KA-S21B 28.8V
The KA-S21B conversion plates provide direct B-mount (batteries) to V-mount (devices) conversion of 28.8V standard voltage. This means that BIVO series batteries can be used directly on different devices so that charging and maintenance problems of multi-interface batteries are avoided.
KA-B21S

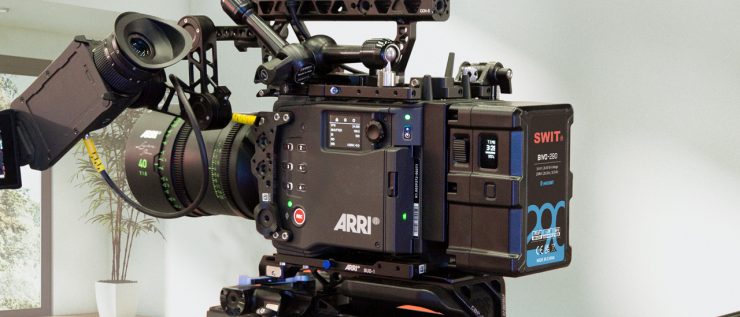

The KA-B21S conversion plate supports the use of high-voltage V-mount batteries on native B-Mount devices. This gives you a drop-proof high-voltage battery solution for the ARRI ALEXA 35.
Price & Availability
Below are the prices for the batteries and hot swap and conversion plates:
BIVO Batteries
- BIVO-98 $499 USD
- BIVO-160 $579 USD
- BIVO-200 $629 USD
- BIVO-290 $799 USD
B-Mount Plates
- KA-B30B $799 USD
- KA-S30B $799 USD
- KA-S20B/21B $259 USD
- KA-B21S $259 USD
Below are the prices for European regions:
BIVO Batteries
- BIVO-98 €499
- BIVO-160 €579
- BIVO-200 €629
- BIVO-290 €999
B-Mount Plates
- KA-B30B €799
- KA-S30B €799
- KA-S20B/21B €259
- KA-B21S €259
All of SWIT’s new products will be on display at IBC 2022 in Amsterdam.
