The Crystal Video Technology PRO VUE Wireless Transmitter & Monitor Receiver Set is a compact, zero delay system that is capable of sending uncompressed video images over a distance of 656′ (199.94 m).
Key features
- Wirelessly Transmit Video up to 656′
- Transmitter with HDMI/SDI Input, SDI Out
- 5.5″ Monitor with Embedded Receiver
- 1500 cd/m² Brightness, 1000:1 Contrast
- Uncompressed Video Transmission
- Zero Delay, 3D LUT/HDR Support
- 1920 x 1080 Monitor Resolution
- Overlay Info with Movcam Follow Focus
- Compatible with All Crystal PRO Series
- Various Monitoring Tools Included

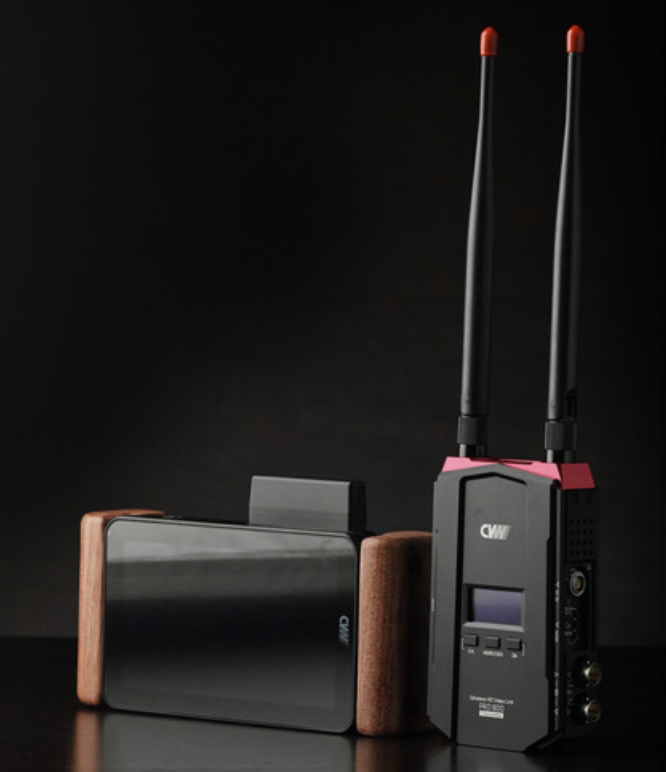

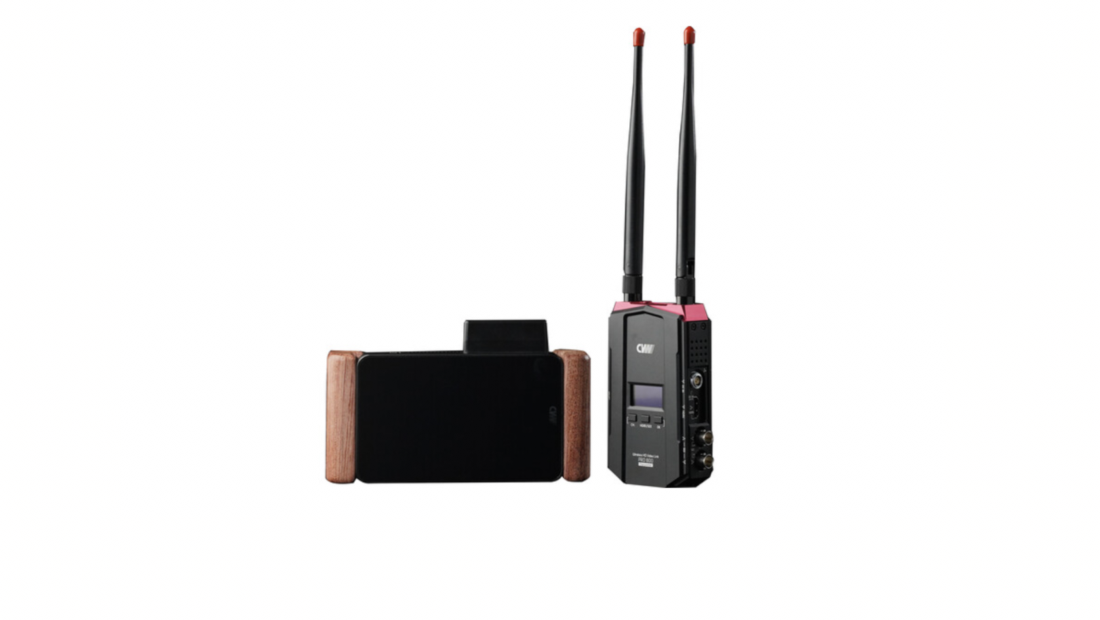

The kit includes a wireless transmitter and a wireless receiver with a built-in 5.5″ display. The transmitter can send up to 1080p60 uncompressed video to any Crystal Video PRO receiver for follow focus, director, or video village monitoring from up to a 656′ line-of-sight distance.

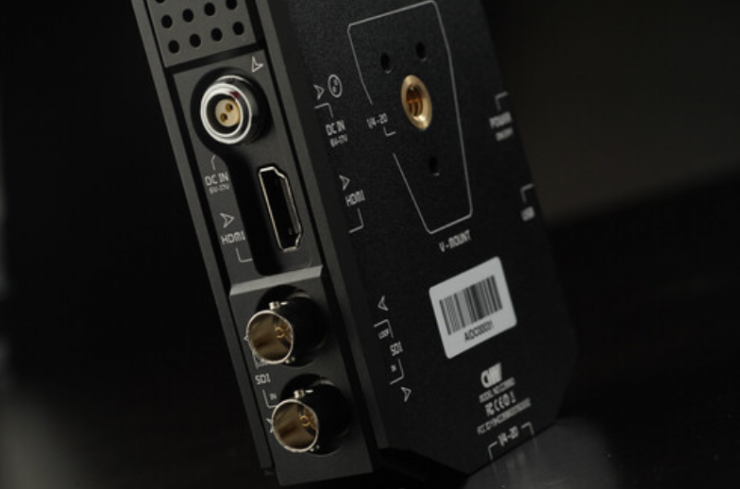

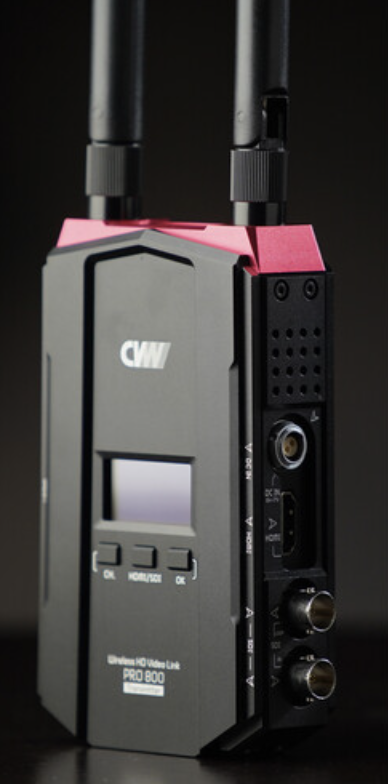

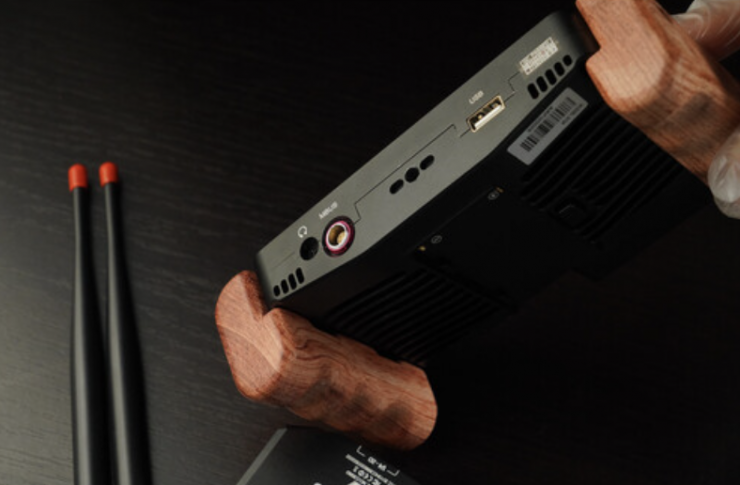

The transmitter features SDI and HDMI inputs and an SDI loop output, and it transmits clear video and embedded PCM audio with <1 ms latency. The monitor/receiver features a 5.5″ display with high 1500 cd/m² brightness, 1000:1 contrast ratio, a 178° viewing angle, and it can receive and monitor 1080p video with its built-in antennas. It also features a headphone output to monitor the audio as well as the video.
There are built-in monitoring tools such as false color, zebra, histogram, and image flip, and it also supports 3D LUT import via USB and HDR video input.
The monitor is also compatible with Movcam’s MSC-3 FIZ controller and it provides overlay information right on the wireless display. This gives you the ability to see real-time focus/iris/zoom data directly on the monitor’s screen.

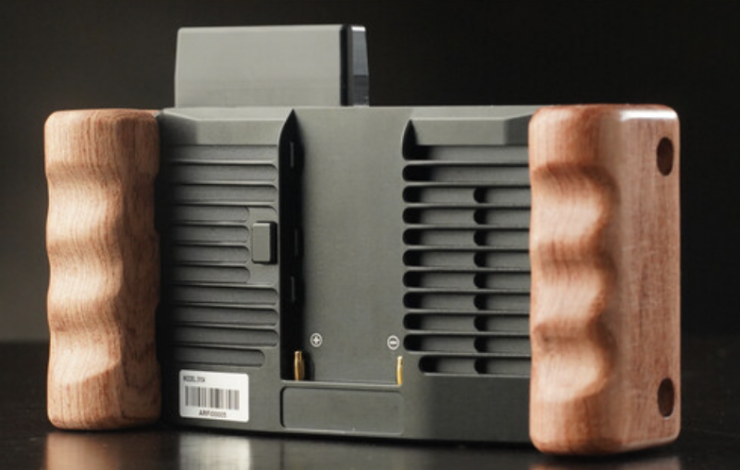

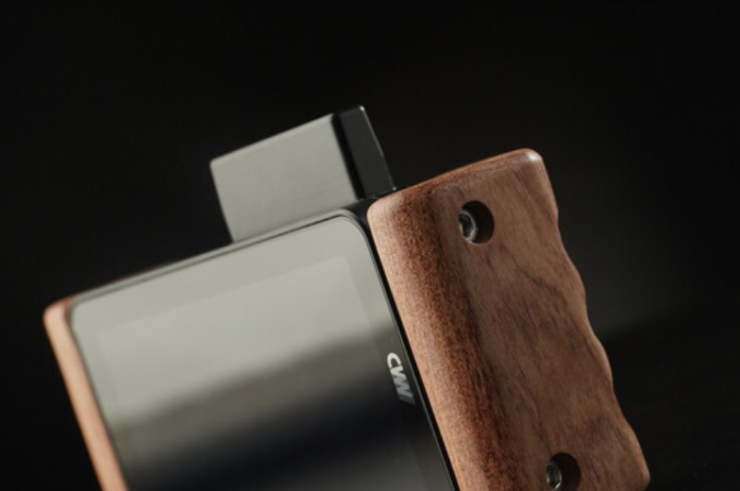

Both the transmitter and receiver/monitor are powered using the included D-Tap cables and a separately available power source such as a V-mount or Gold mount battery with D-Tap output. The transmitter features a 1/4″-20 mounting thread and a magic arm and a V-lock mount are included to provide mounting options. The monitor features detachable wooden side handles for handheld operation.
What do you get in the kit?
- Crystal Video Technology PRO VUE Wireless Transmitter and Monitor Receiver Set (656′)
- Transmitter
- Monitor Receiver
- 3 x Antenna
- V-Lock Mount
- SDI Cable
- D-Tap to 2-Pin LEMO-Type Power Cable
- D-Tap to 6-Pin LEMO-Type Power Cable
- Magic Arm with Shoe Mount
- Lanyard
- Allen Wrench
- Carry Case
Price & Availability
The Crystal Video Technology PRO VUE Wireless Transmitter & Monitor Receiver Set is now available to pre-order for $3,499 USD.
