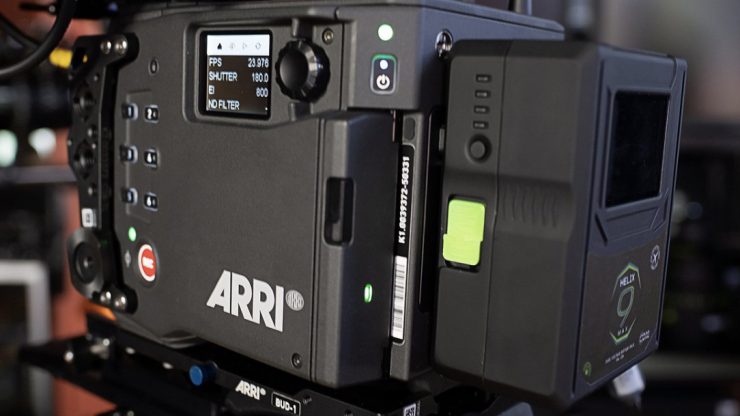

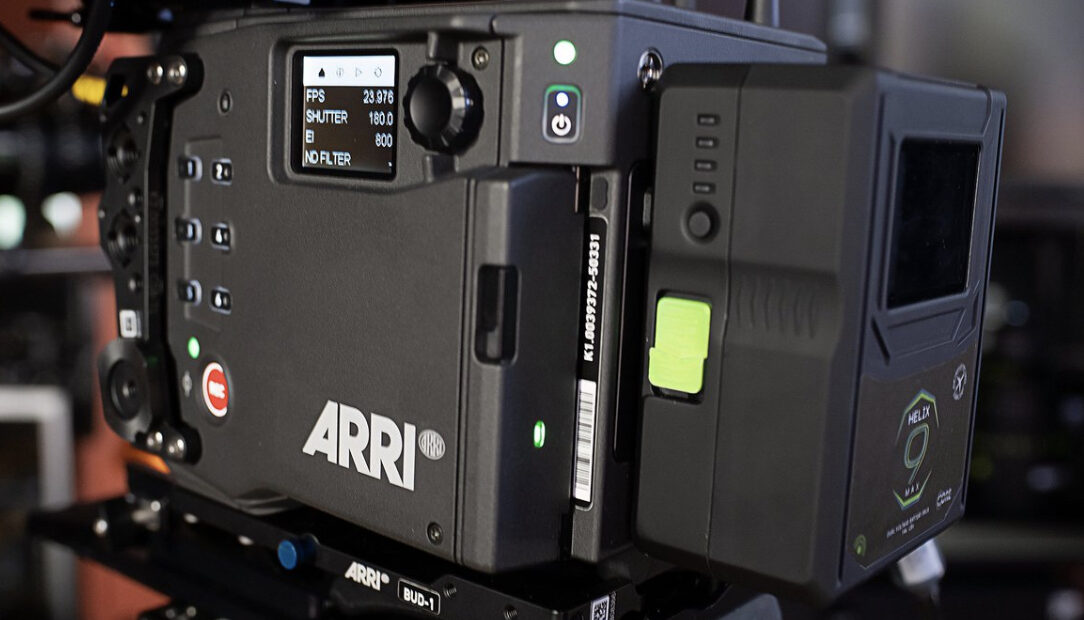

Core SWX has a range of B-mount Helix Max Batteries for the ARRI ALEXA 35. The Helix Max series is capable of handling the most demanding power builds in the cinema industry. They are available in 98Wh and 147Wh models. Both of these batteries are flight safe.
The Helix Max Batteries encompass all the features of Hypercore NEO, with the added function of dual 14v/28v simultaneous voltage output, which makes them a good solution for the ARRI ALEXA 35.
Leveraging proprietary, patented technology, Helix is claimed to be ultra-efficient, providing nearly lossless power transmission at a 99% efficiency rate to high voltage operating equipment. Helix’s unique design allows it to output up to 33.6v, within the top range of high voltage acceptance, thus drawing less current, creating less heat and extending both operational runtime and product longevity.
The batteries have a maximum output of 20A (10A at 28.8v HV). the Helix Max series is capable of handling the most demanding power builds in the cinema industry.
The batteries will provide ample runtime in most camera and lighting applications but can also be used in conjunction with a Helix Hotswap plate ($349 USD) to double the available battery capacity and extend runtimes.
Price & Availability
The Core SWX Helix Max 98Wh and 147Wh Lithium-Ion Dual-Voltage Battery (B-Mount) will be available in mid-June for the following prices:
- Core SWX Helix Max 98Wh Lithium-Ion Dual-Voltage Battery (B-Mount) $599 USD
- Core SWX Helix Max 147Wh Lithium-Ion Dual-Voltage Battery (B-Mount) $749 USD
Specifications
Core SWX Helix Max 98Wh Lithium-Ion Dual-Voltage Battery (B-Mount)
Capacity: 98Wh (14.8v, 6.6Ah)
Operational Voltage: Dual Voltage, DC 11v-16.8v/DC 22v-33.6v
Size: 3.54″ x 4.65″x 2.38″
Weight: 1.8lbs.
Load: 20A @ 16.8v, 10A @ 33.6v
Core SWX Helix Max 147Wh Lithium-Ion Dual-Voltage Battery (B-Mount)
Capacity: 9.9Ah, 147wh
Operational Voltage: Dual Voltage, DC 11v-16.8v/DC 22v-33.6v
Size: 3.54″ x 4.65″x 2.72″
Weight: 2.2lbs.
Load: 20A @ 16.8v, 10A @ 33.6v
