SmallHD has introduced several high-end monitors in the last couple of years, and many shooters have been longing for a more affordable monitor with the SmallHD excellent PageOS type menu system. The wait is over. Today The HDMI Action 5 monitor is released.
The SmallHD Action 5 features a streamlined 5″ touchscreen with a lightweight build at just over 0.5 lbs. Action 5 is designed for your on-the-go shoots that want a bright, lightweight, and compact monitor.
Inputs
The Action 5 is a 5″ monitor with HDMI input and output, headphone jack, USB port for installing LUTS and updates, 8VDC Power Out, and DC Power input. The monitor can be powered with a Sony L and the Canon LP-E6 batteries. You can also power externally with the SmallHD D-Tap to Sony L-Series Faux Battery
2000 nits of brightness
Action 5 features 2000 nits of brightness, which is perfect for outdoor use. It has a 1000:1 contrast ratio, Rec. 709 color gamut, and multiple mounting points.
ActionOS
This monitor is powered by ActionOS, a simplified version of SmallHD’s professional-level PageOS software toolset that gives you the necessary tools for out-of-the-box usability. The ActionOS toolset is designed to be mastered in under 60 seconds. Using the touchscreen, you can easily select, adjust, and toggle between the monitor’s most crucial tools, including Focus Assist, Expose Tool and Look Tool.
Available Tools
Focus Assist
Accentuate in-focus areas of the image for at-a-glance adjustments
Expose Tool
Use false color and an exposure scale to ensure your shot is lit perfectly
Look Tool
Contrast adjustment for Log-based footage, with 3 SmallHD-designed LUT presets and the ability to load a custom LUT if desired

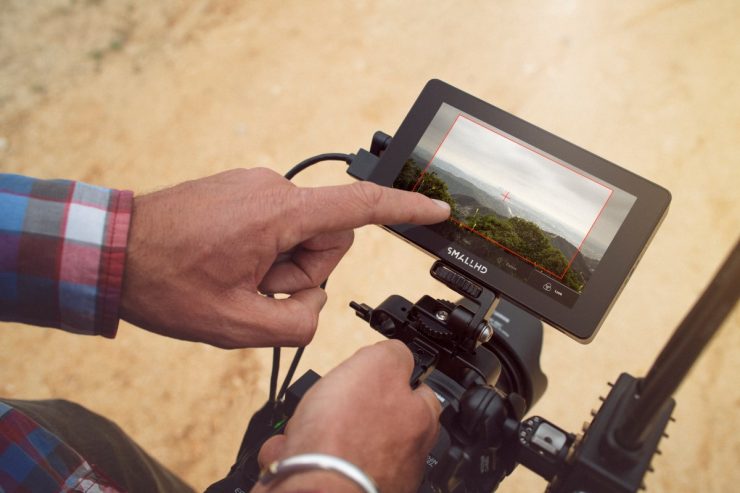

Frame Tool
Quickly check the framing of your image
Specifications
| Weight (oz) | 8.5 |
| Mount Points | Three ¼-20 Mount Points (Right, Bottom, and Back) |
| Display | |
| Diagonal Size | 5.5 |
| Resolution | 1920×1080 |
| Pixel Density | 400 |
| Aspect Ratio | 16:9 |
| Brightness | 2000 Nits |
| Contrast | 1000:1 |
| Backlight Type | LED |
| Display Size | 5″ |
| Input Signal | |
| HDMI Input Types | 720x480i&[email protected], 60Hz 720x576i&720x576p@50Hz 1280x720p@50, 59.94, 60Hz 1920x1080i@50, 59.94, 60Hz 1920x1080psf@24, 25, 29.97, 30Hz [email protected], 24, 25, 29.97,30,50,59.94,60Hz 3840x2160p@24,25,30Hz 4096x2160p@24Hz |
What’s Included
- SmallHD Action 5 Monitor
- Screen Protector
- Hinge Mount (cold-shoe to 1/4″-20)
- USB Flash Drive (for updating firmware/LUT)
- Mini-HDMI to HDMI Cable (18in/45cm)
- Micro-HDMI to HDMI Cable (18in/45cm)
- Microfiber Screen Wipe
- Replacement M3 screws (for pan/tilt adjustments)
- M3 Allen Key
Price and Availability
The SmallHD Action 5 retails for $329 are available today for purchase.
