ZILR 12G SDI Cable

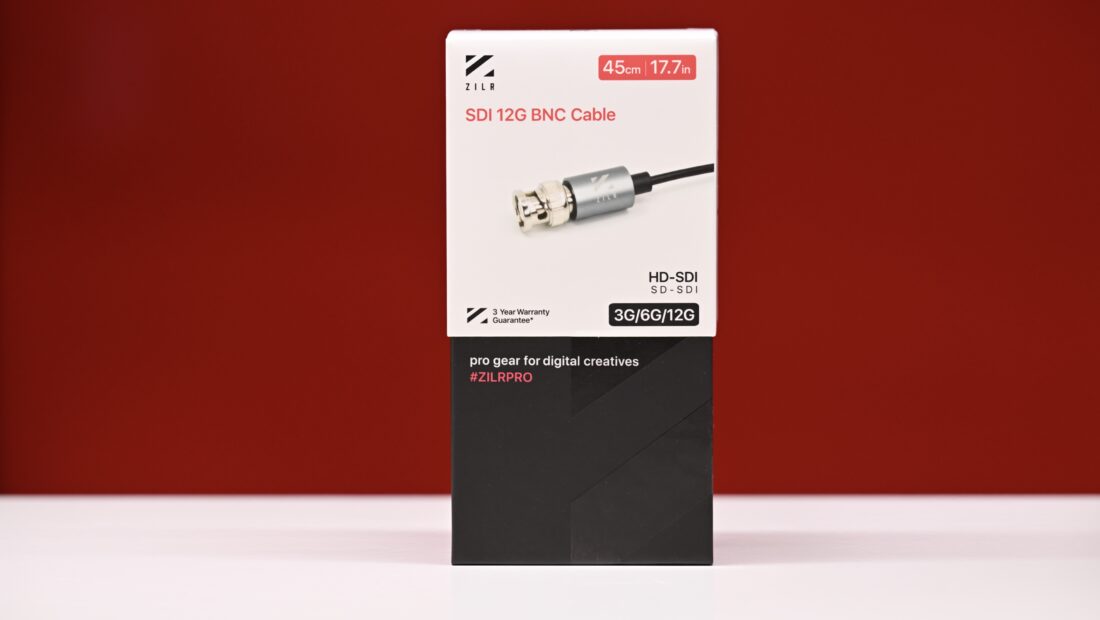

Screenshot 2022 02 28 at 2 46 13 PM

ZILR has announced a new SDI 12G BNC Cable (45cm /17.7″). This cable supports signals from 12G-SDI, 6G-SDI, HD-SDI, and 3G-SDI.

If you are not familiar with ZILR they are an Australian company that has been around for almost 3 years now. They make high-quality HDMI cables and power solutions.

Screenshot 2022 02 28 at 2 24 17 PM

There are a lot of bad SDI cables out there on the market and finding a decent one can be a tricky endeavor. If you are working with cameras or equipment that have 4K 6G or 12G inputs or outputs then having reliable, well-made SDI cables is a must.

I have been guilty of buying 6G or 12G capable SDI cables from Amazon in the past and a lot of them fail to last very long or don’t actually lock correctly on connectors.

Key features

  • 4K @ 60Hz for resolutions up to 4096×2160
  • Full HD 1080p
  • BNC to BNC
  • 45cm / 17.7” cable length
  • Up to 12Gbit/s bitrates
  • Supports 12G/6G/3G/HD/SD
  • Cable thinkness of 3.0+/-0.15mm
  • Shielding: Copper Braid >85%
  • Wire Gauge: 28AWG
  • Coaxial Type: RG-6
  • Insulation Type: Polyethylene 80p
  • Connectors: Gold Pin Connection 15u”
  • VSWR (Voltage Standing Wave Ratio): 1.5D-2V
  • Frequency: DC to 12 GHz
  • Maximum Impedance: >50 Ohms
DSC 0040 02

I like the design of the cables and the large protective casing offers protection so that your cable won’t get easily snapped.

DSC 0030

The ZILR 12G SDI Cable lock in securely as you would expect and they are equally as easy to remove.

DSC 0039 01

As I previously mentioned, if you are using a single cable to send a 4K single over SDI you need to make sure you get a decent one. I have bought a few so-called 12 SDI cables in the past that actually didn’t work as advertised.

DSC 0027 03

Currently, the cables are only 45cm / 17.7″ in length. I would expect that ZILR will release more lengths in the coming months.

Screenshot 2022 02 28 at 2 32 07 PM

45cm is a nice length to connect onboard monitors to cameras.

Price & Availability

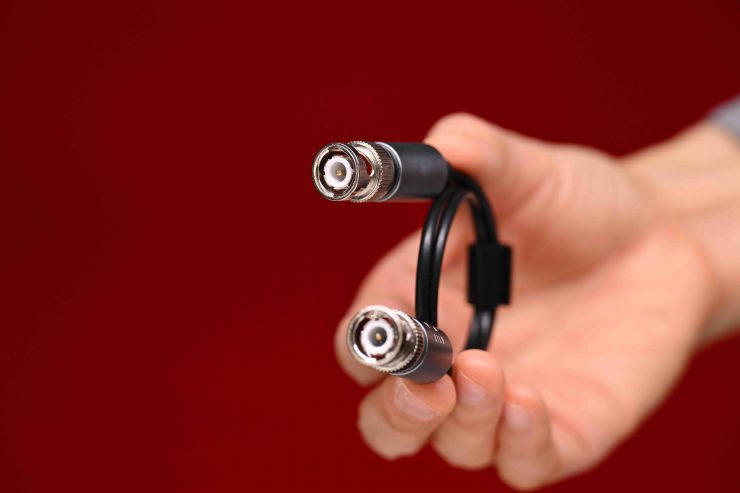

DSC 0018

The ZILR 12G SDI Cable retails for $19.99 USD and it is now available to purchase.
