DZOFILM goes Full- Frame with new Catta Zoom Lenses

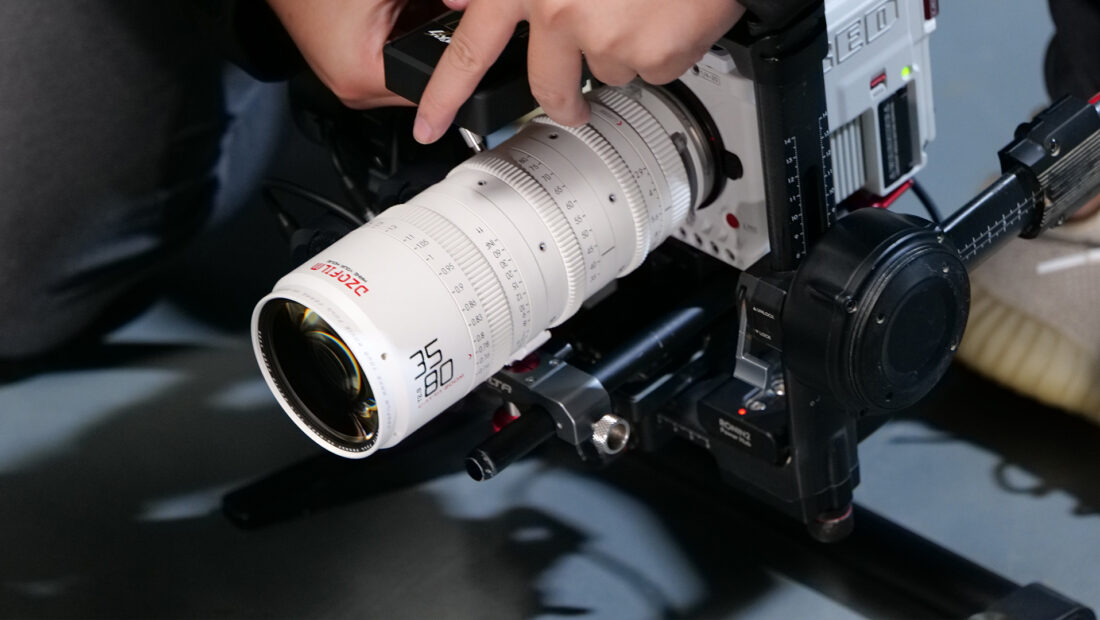

DZOFILM Catta

DZOFLIM announces the full-frame Catta Cinema Zooms. They are available in 35-80mm and 70-135mm. Both are T2.9. Since most full-frame zooms at T2.9 are big and, heavy DZOFILM decided to use different materials to keep the weight down.

The 35mm-80mm T/2.9 weighs 1.53kg, and the 70mm-135mm T/2.9 is less than 1.6kg. They choose to use polycarbonate and fiberglass on the shell with strict tolerance.

DSC00655

DZOFILM states the zooms are highly portable and an excellent choice for Live shows, indie filmmaking, vehicle scenes, documentaries. With lower weight, they should work well on gimbals such as the Ronin s2 and Crane 3s.

CATTA ZOOM
Focal Distance 35-80mm 70-135mm
Aperture T2.9-T22 T2.9-T22
Focus Rotation Angle 240° 240°
Zoom Rotation Angle 100° 100°
Iris Rotation Angle 75° 80°
Minimum Focus Distance 0.74m/2ft 5in 0.76m/2ft 6in
Filter Size(front) 77mm 77mm
Front Diameter *Length φ80*212.4 φ80*212.4
Maximum Diameter φ85.4 φ85.4
Iris Blades 16 16
Weight 1532g 1597g
Mounts Original E-mount and additional RF/L/Z/X mount available Original E-mount and additional RF/L/Z/X mount available

Both zooms have 16 blade diaphragm and an aperture range of T2.9 – T2. DZOFILMM states the Catta produces round and smooth bokeh with natural transitions of the image. They have a close focus distance of 0.74m/2’5″ on the 35-80mm and 0.76m/2’6″ on the 10-135mm and minimal to no breathing.

P1048291

The manual focus range is 270° and has a smooth operating experience. The mechanical and optical construction of these two lenses is identical. A combination of wide-angle and telephoto with zero difference allows the user to change lenses quickly without changing the position of the follow focus and matte box when used.

1

Rear ND Slot

ND copy

The lenses have a 77mm front filter design and a rear filter slot, allowing users to add and change filters quickly, such as ND/ UV/ Streak/ Mist filters.

Mounts Available

Catta QR RF mount
Swappable RF Mount

Both lenses are shipping with the E mount. Additional mounts will be available to purchase for RF / L / Z / X mount. A nice touch is the mounts are quick-release and don’t require a screwdriver to swap them out.

Price and Availability

3 1

The lenses are available for pre-order now and will start shipping in mid-December. Each Catta lens is $3099 USD, with a $299 USD discount if purchasing a bundle for $5899 USD. If you need mounts other than the E-mount, they will cost $59 USD each or $99 USD to get two if buying in a bundle.

DZOFILM will have a black metal body version with PL/EF mounts in 2022. They state the lens won’t be compatible with the white mirrorless versions.
