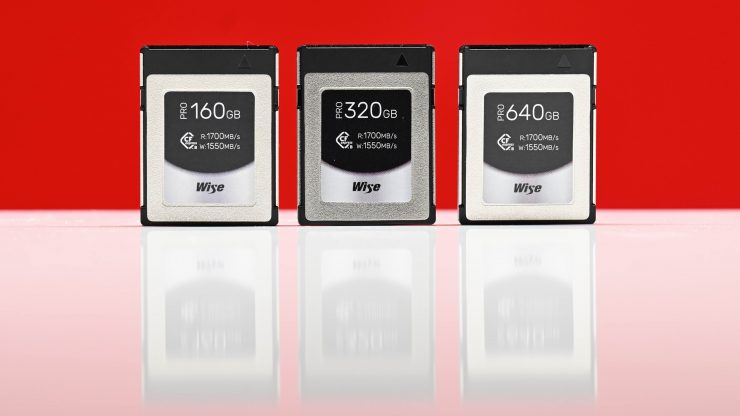

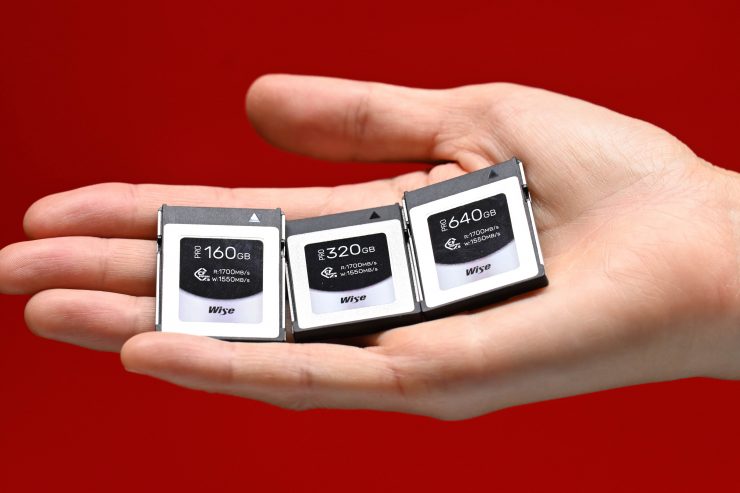

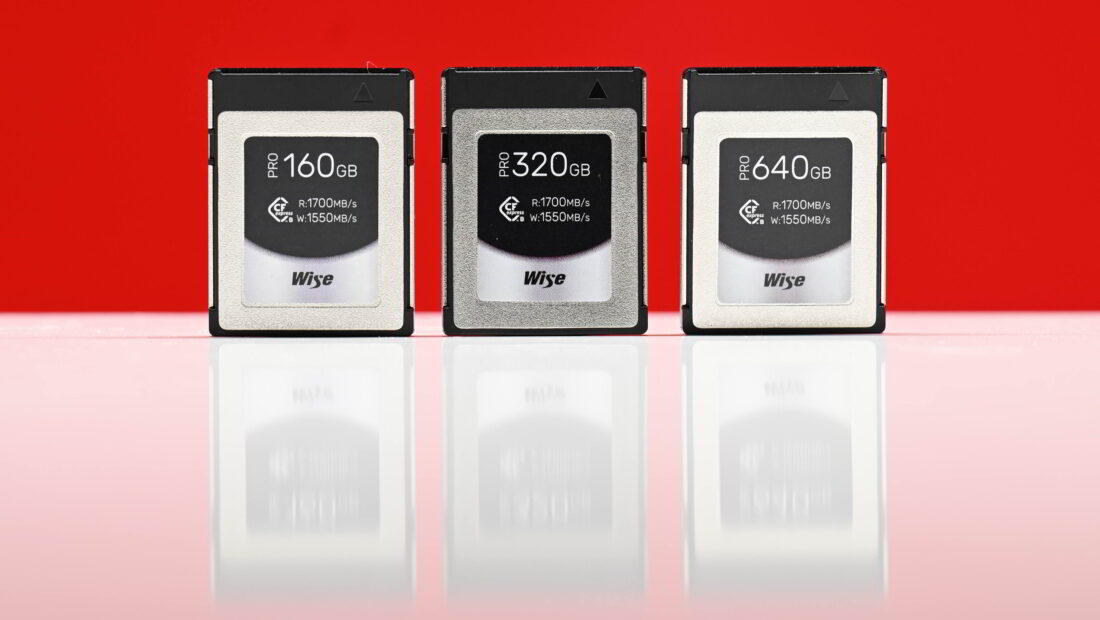

Wise has announced a new PRO line of CFexpress Type B memory cards in capacities of 160GB, 320GB, and 640GB.
The CFexpress Type B PRO memory cards come two years after Wise released the CFX-B series. I reviewed the CFX-B series on the site and you can see that review here.
So why are they PRO?
According to Wise, the CFexpress Type B PRO memory cards are designed with improved product lifespan and sustained speed in applications that require frequent higher levels of data reading and writing. Through customizing NAND commands and firmware algorithms, Wise has optimized both endurance and performance in line with native SLC
NAND.
With a new software algorithm for heat control and a lower risk of corrupt files, the CFexpress Type B PRO memory cards are claimed to provide superior stability and speed for projects where you can’t afford to compromise on the recording media being used.
Speed
The Wise CFexpress Type B PRO memory cards have sustained writes of up to 1400 MB/s and sustained read speeds of up to 1700 MB/s. The max. write speed is 1550 MB/s.
The minimum sustained write speed of 1300-1400 MB/s is overkill if you look at something like the Canon EOS R5, where the write speeds required for capturing 8K RAW 29.97p (12 bit) are around 325MB/s.
Essentially, it is almost impossible to drop any frames or lose any data because the write speed is way more than is required by the camera. However, we are bound to see cameras coming in the future that will exceed today’s current speeds, so it is always good to use cards and media that can greatly exceed your current requirements.
Faster sustained read speeds also allow your content to be offloaded very quickly, especially with a Thunderbolt 3 card reader.

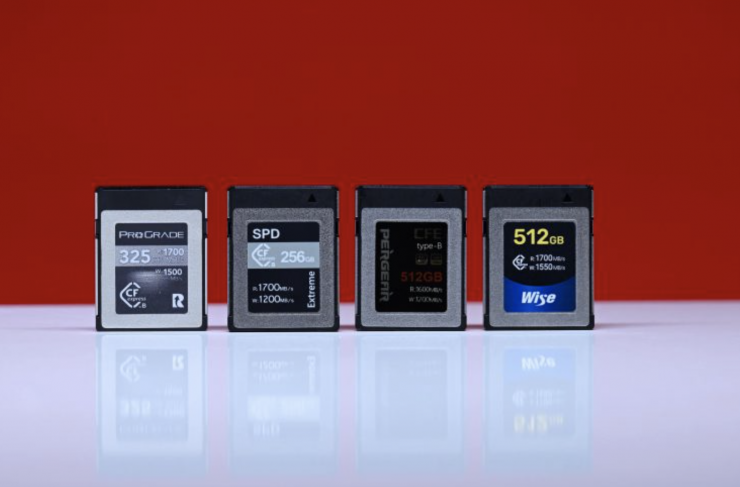

So how do these speeds compare to some other high-capacity cards on the market?
| READ SPEED | WRITE SPEED | |
| Wise CFexpress Type B PRO 640GB | 1700MB/s | 1550MB/s |

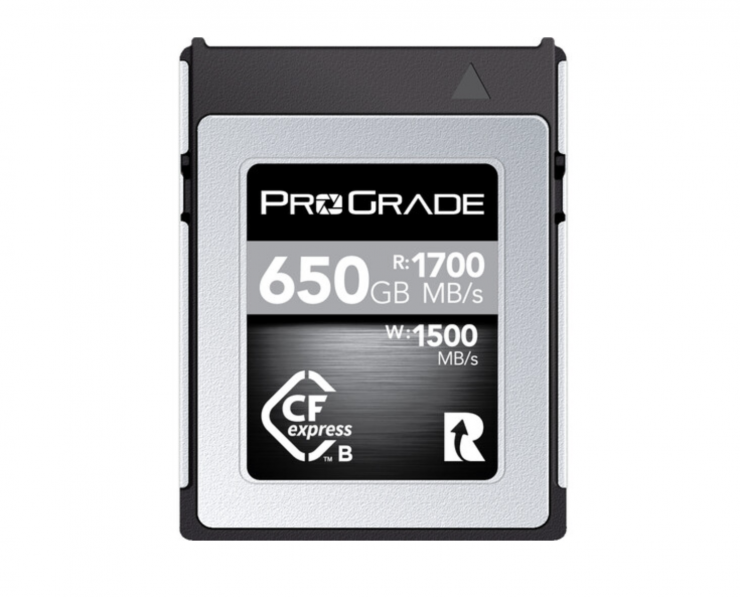

| ProGrade Digital 650GB CFexpress 2.0 | 1700MB/s | 1500MB/s |
| RED DIGITAL CINEMA PRO 660GB | 800MB/s | 800MB/s |
| PERGEAR 512GB | 1600MB/s | 1200MB/s |
| SanDisk 512GB Extreme PRO | 1700MB/s | 1400MB/s |
| Sony 512GB CFexpress Type B TOUGH | 1700MB/s | 1480MB/s |
| ProGrade Digital 512GB | 1700MB/s | 1500MB/s |
| Wise Advanced 512GB CFX-B Series | 1700MB/s | 1550MB/s |
| Angelbird 512GB AV Pro | 1700MB/s | 1500MB/s |
| Delkin Devices 512GB BLACK | 1645MB/s | 1405MB/s |
| Delkin Devices 512GB | 1730MB/s | 1540MB/s |
| Lexar 512GB Professional | 1730MB/s | 1000MB/s |
| Transcend 512GB CFexpress 820 | 1700MB/s | 1000MB/s |
| Hoodman 512GB Steel | 1700MB/s | 1400MB/s |
Capacity
Given the RED Mini Mag controversy from a few years ago, it is always a good idea to find out exactly what you are paying for, especially when it comes to actual and claimed capacity.

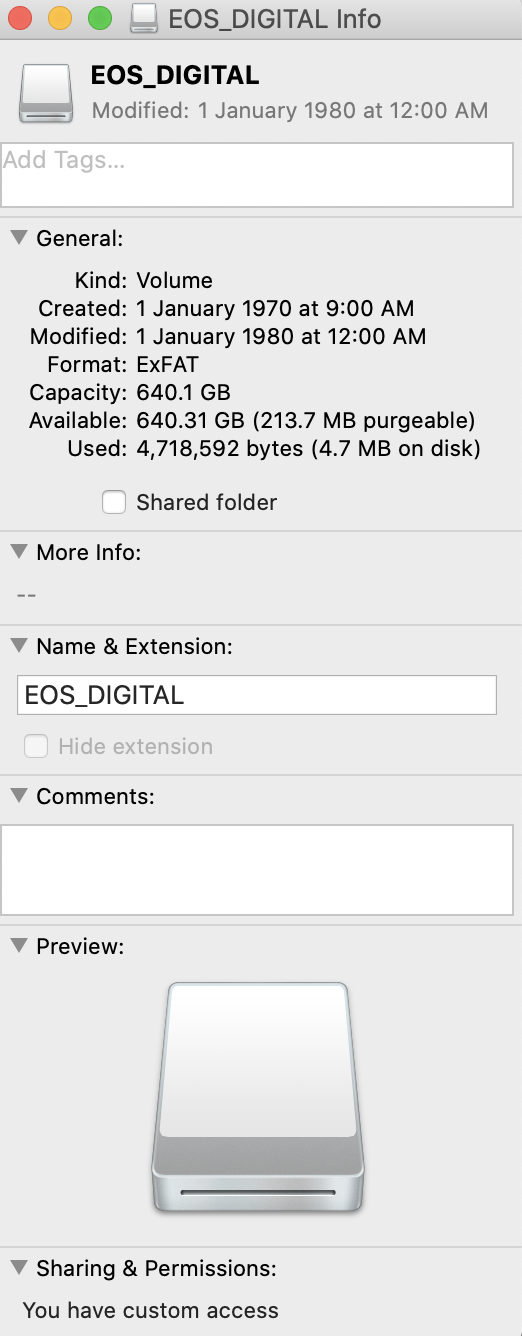

So when I mounted the 640GB CFexpress card it shows the actual capacity as being 640.1GB.
As a comparison, the older Wise CFX-B series 512GB CFexpress card shows the actual capacity as being 480GB. When I previously reviewed this card I reached out to Wise to ask them why a 480GB capacity card is labeled 512GB.
Wise told me “We reserve more space for buffer cleaning purpose which offer more stable writing performance in the beginning when developing the media. At that time, there are no host devices (cameras) coming out yet. Therefore, we think reserve this amount of space should be a safer choice. In the future or next firmware update, we may try to reduce this space and see if they still provide the same performance for current cameras.“
Clearly, they have now been able to maximize the space on their newest card.
I also got someone to check the capacity of the SanDisk 512GB CFexpress card. That card also only has 476GB of capacity (3GB is used for structure).
Record 8K RAW from the Canon R5
CFexpress uses a dual-lane PCIe 3.0 interface that enables it to meet the high read and write speeds that are quoted by card manufacturers.
Cameras with dual-lane PCIe 3.0 interfaces, can certainly take advantage of the high write speeds CFexpress offers. From what I understand, the Canon C500 Mark II and R5 both use a dual-lane PCIe 3.0 interface.
The speeds offered by the new Wise CFexpress Type B PRO memory cards allow them to record 8K RAW material from the Canon R5 without breaking a sweat.
Above you can see the card requirement speeds listed by Canon for recording 8K on the R5.

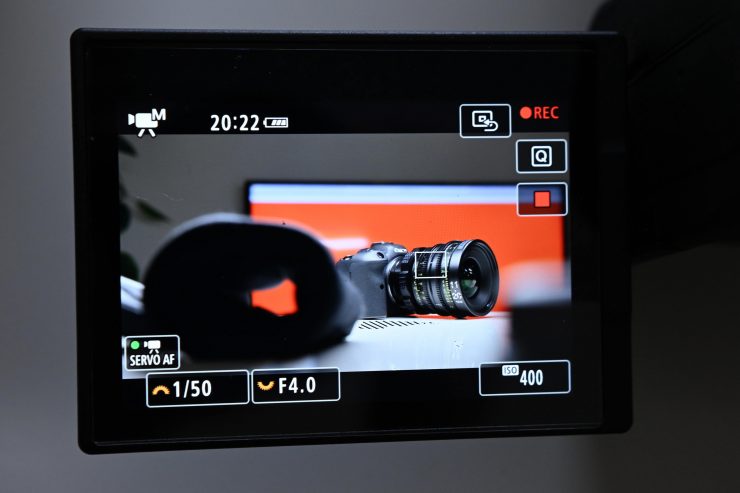

I tested the card out with the Canon R5 and set the camera to record 8K RAW.
The card worked without any issues and I was able to record 8K RAW without encountering any problems.

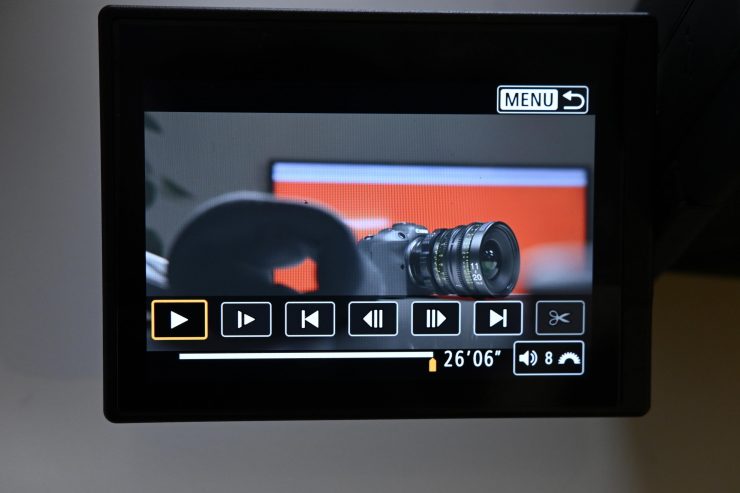

In fact, the card kept recording for 26 minutes and 6 seconds and it only stopped because the card became full.
A heat warning came on after 24 minutes, but the camera continued to record until it ran out of memory.

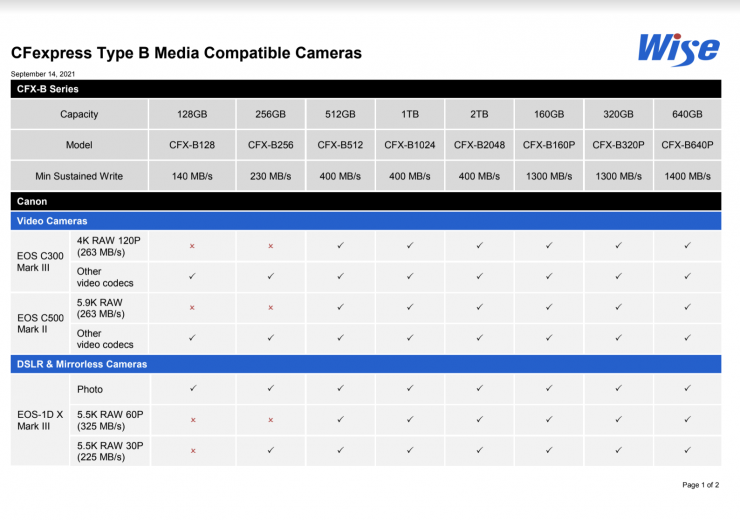

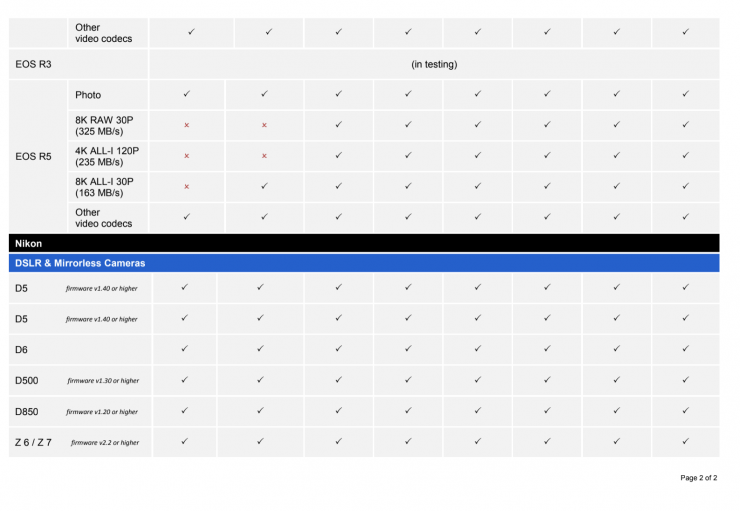

Above you can see a full list of compatible cameras that the cards will work with.

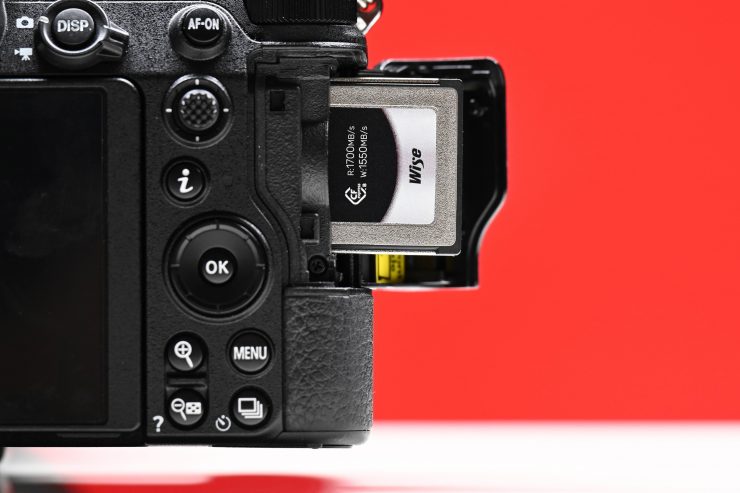

In cameras such as the Nikon Z6 and Z7 that only feature a single lane PCIe 2.0 interface, the camera can only read and write to CFexpress cards at throttled down speeds that are similar to what you would already get with an XQD card. As these cameras don’t even use the full write speed capabilities of XQD cards, CFexpress won’t offer any increased in-camera performance.
Fast Media Offload
What you clearly need to remember, and this goes for any type of media, is that transfer speeds will vary depending on both the read and write speeds of your card, your card reader, and what type of hard drive you are transferring to.
If you are using a CFexpress card and transferring to an HDD drive, you won’t be getting fast transfer speeds. If you are transferring to a very fast SSD then you will see lightning-fast offload speeds.
There are currently only a very small number of Thunderbolt 3 CFexpress card readers available. The majority of readers are only USB3.
Real World speed tests
I did a few tests to see what the sustained read/write speeds of the Wise CFexpress Type B PRO memory cards were and also how fast I could offload material through a USB-C card reader to an ultra-fast SSD.

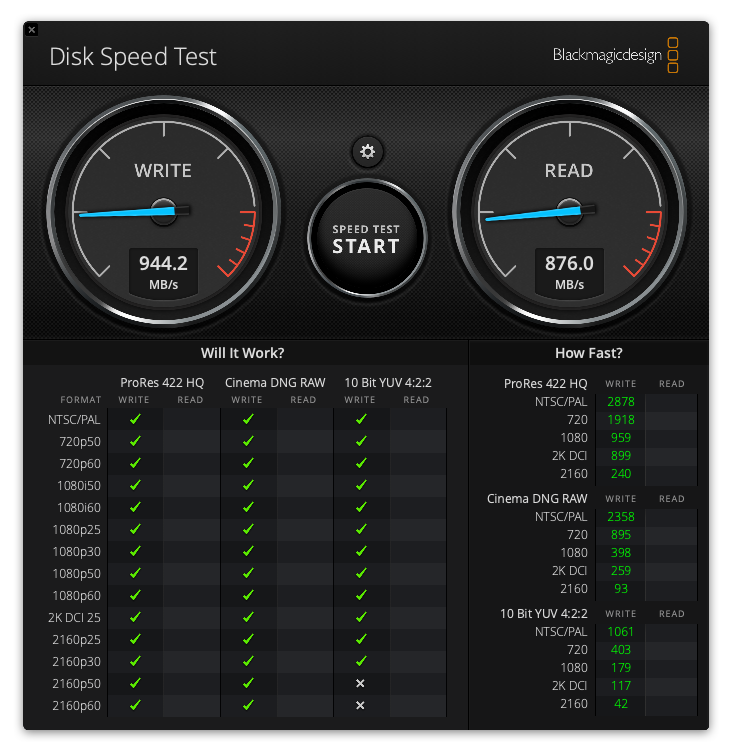

Above you can see the read/write speeds using Blackmagic Disk Speed Test for the Wise CFexpress card.

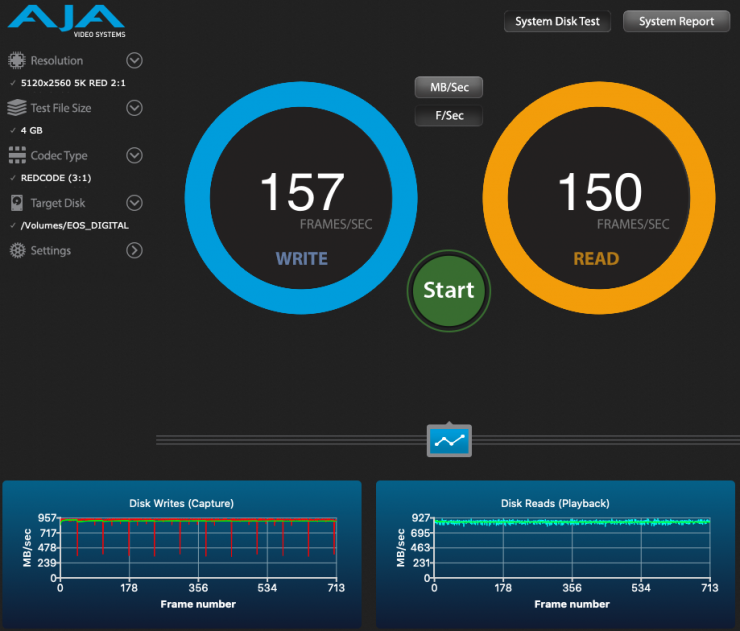

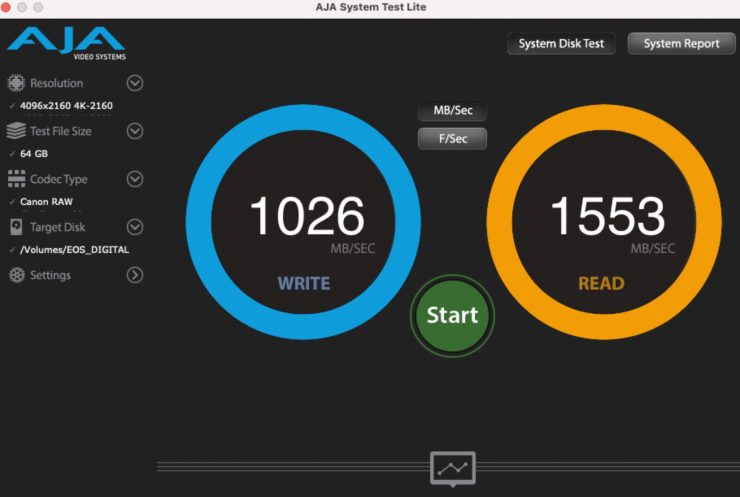

Above you can see the read/write speeds when using the AJA System Test.
Considering I was using a Wise CFexpress USB-C card reader that has a maximum read speed of 1000 MB/s these were the results I was expecting to see.
This is what you clearly need to remember with any card. The speed is going to depend on the card reader you using and the type of media you are offloading it to.

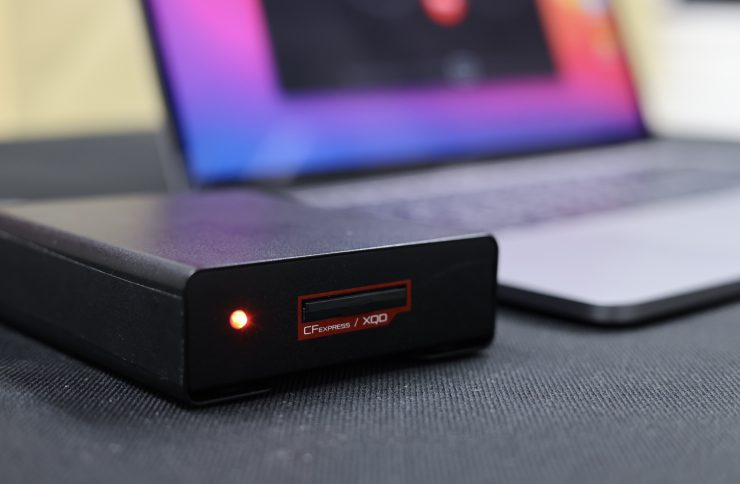

Above you can see a speed test done with a 2017 MacBook Pro (test file size: 64GB) using the Wise card and an Atech Flash Technology Blackjet TX-1CXQ CFexpress Type B / XQD Thunderbolt 3 Card Reader. As you can clearly see, the type of card reader you use makes a big difference.

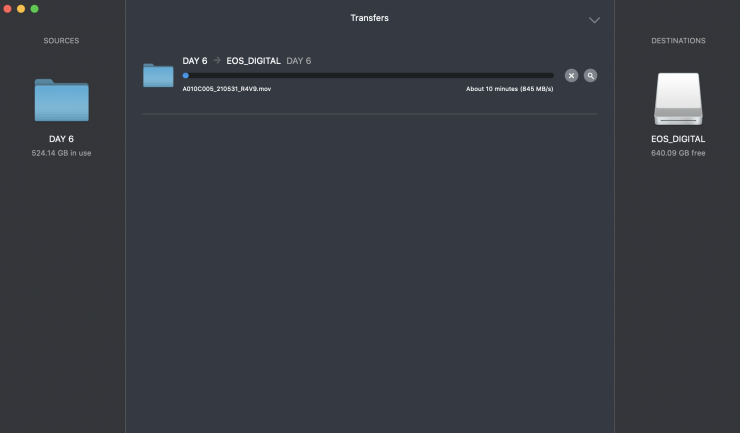

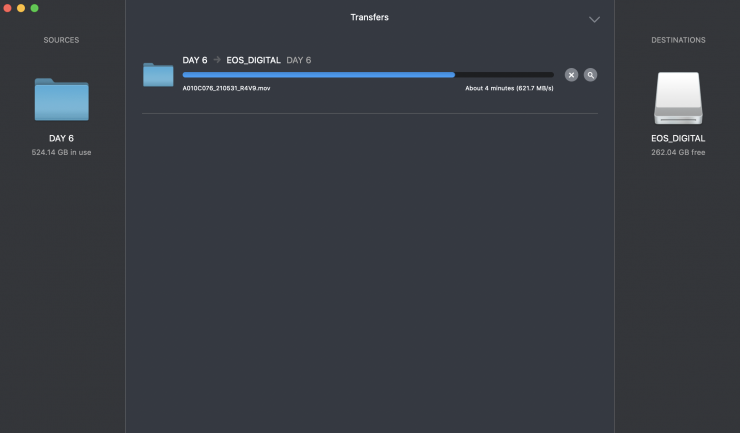

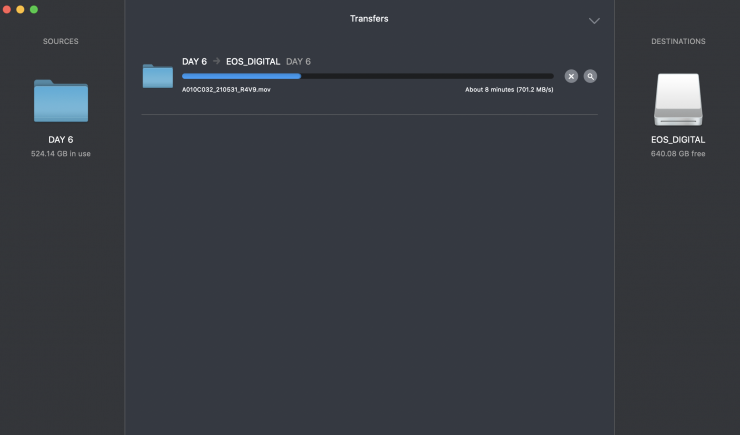

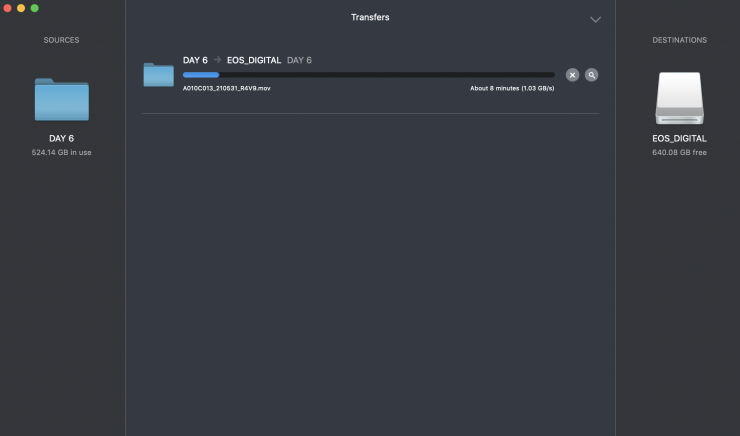

Now, I also wanted to do some other tests to see how long it would take to copy and verify a 524.14GB file from a fast NVMe drive to the Wise card.

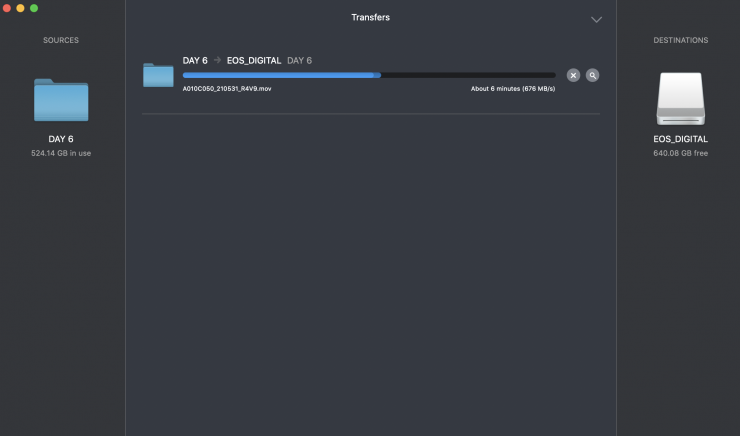

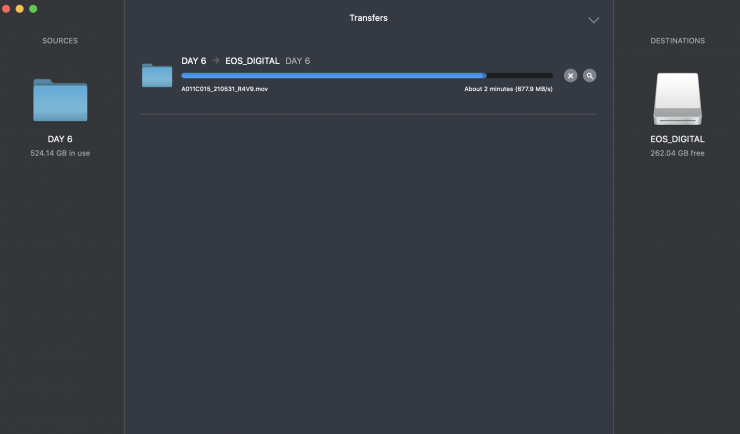

The copy speeds started off at around 1.03/1.04 GB/s, but once the card started to fill up those speeds started to drop down to around 620-680MB/s.

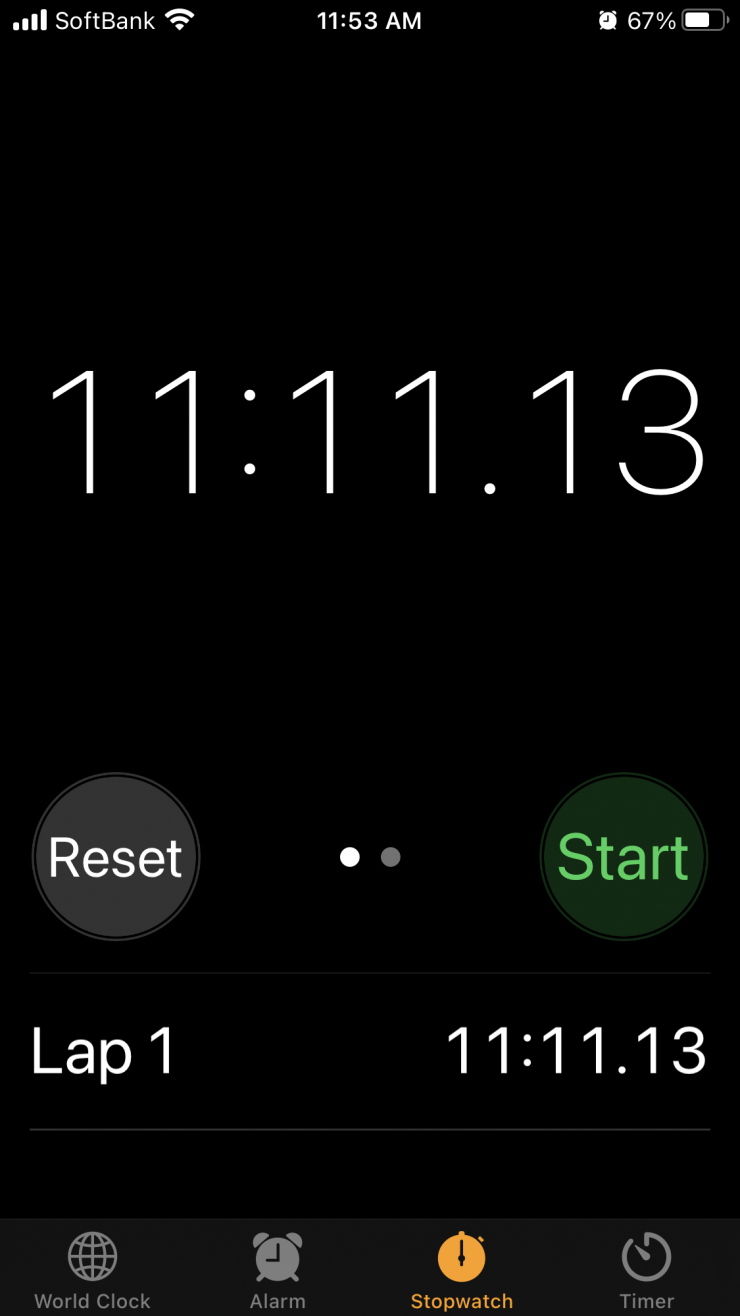

The total time to copy and verify the 524.14GB file was 11min and 11sec. So that means the average write speed was around 780MB/s.
Price & Availability
The Wise CFexpress Type B PRO memory cards are available for the following prices:
- 160GB: $263.24 USD
- 320GB: $448.15 USD
- 640GB: $749.99 USD
How does the price compare to the competition?
| PRICE | |
| Wise CFexpress Type B PRO | $749.99 USD |
| RED DIGITAL CINEMA PRO 660GB | $959.99 USD |
| PERGEAR 512GB | $329 USD |
| SanDisk 512GB Extreme PRO | $579.99 USD |
| Sony 512GB CFexpress Type B TOUGH | $649.99 USD |
| ProGrade Digital 512GB | $529.99 USD |
| ProGrade Digital 650GB CFexpress 2.0 Cobalt | $699 USD |
| Wise Advanced 512GB CFX-B Series | $509 USD |
| Angelbird 512GB AV Pro | $429.99 USD |
| Delkin Devices 512GB BLACK | $699 USD |
| Delkin Devices 512GB | $499.99 USD |
| Lexar 512GB Professional | $549.99 USD |
| Transcend 512GB CFexpress 820 | $409.99 USD |
| Hoodman 512GB Steel | $499.99 USD |
As you can see the Wise CFexpress Type B PRO isn’t the cheapest option available, but it is more affordable than the RED DIGITAL CINEMA PRO 660GB and just slightly more than the ProGrade Digital 650GB CFexpress 2.0 Cobalt.
The card has a listed working temperature of -14°F to 158°F (-10°C to 70°C) and a storage temperature of -4°F to 185°F (-20°C to 85°C).
Conclusion
If you own a Canon C500 Mark II, C300 Mark III, EOS R5, EOS R3, or RED V-RAPTOR, the Wise CFexpress Type B PRO memory cards are a good option. They are fast,
The card worked flawlessly on the Canon EOS R5 and it can record 8K RAW and 4K HQ without any issues at all.
If you are using CFexpress Type B cards with a Canon C500 Mark II, EOS R3, EOS R5, or RED V-Raptor VV to record high-resolution RAW files, you are going to need quite a few of these cards to get you through a day!
