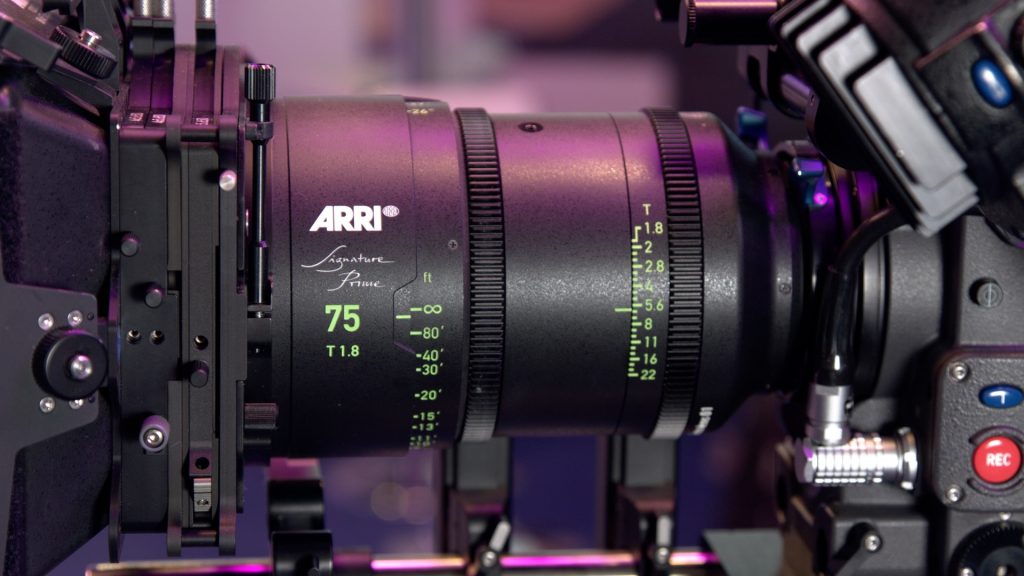

The new ARRI Signature Prime range of lenses was recently announced alongside the Arri Alexa LF. Alexa Mini product manager Michael Jonas gave us a run through of the new lenses.
The Signature Prime lenses use the new LPL mount designed for large format digital sensors.

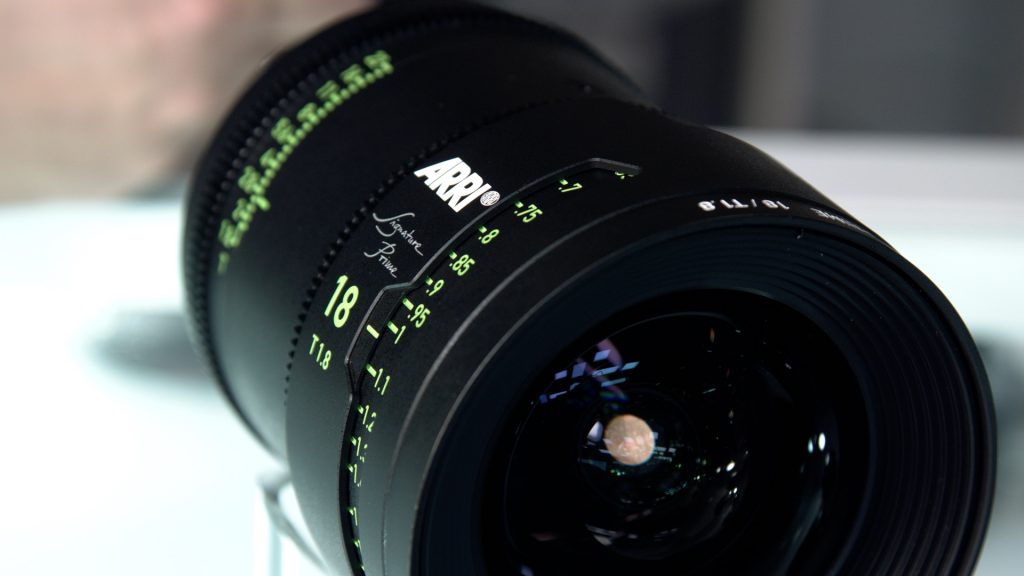

Using a magnesium construction, the lenses are around 2lb lighter than the Master Primes.

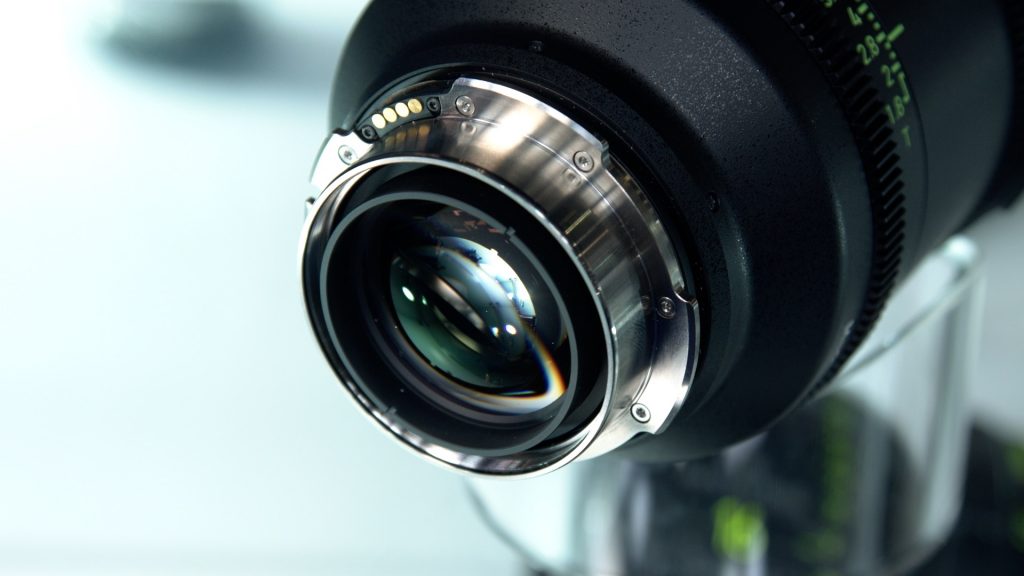

The LPL mount which transfers LDS protocol and is LDS-2 compatible. A flare set will be available for the Signature Prime lenses.
| Name | ARRI
SIGNATURE PRIME 18/T1.8 |
ARRI
SIGNATURE PRIME 21/T1.8 |
ARRI
SIGNATURE PRIME 25/T1.8 |
ARRI
SIGNATURE PRIME 29/T1.8 |
|||||
| Release | 2018 | 2018 | 2018 | 2018 | |||||
| Lens Mount | LPL | LPL | LPL | LPL | |||||
| MOD from sensor plane (minimum marked distance) | 0.35 m / 14″ | 0.35 m / 14″ | 0.35 m / 14″ | 0.35 m / 14″ | |||||
| MOD from lens front | 0.13 m / 5.1″ | 0.13 m / 5.1“ | 0.13 m / 5.1″ | 0.13 m / 5.1“ | |||||
| Length from flange | 178 mm / 7.01“ | 178 mm / 7.01“ | 178 mm / 7.01“ | 178 mm / 7.01“ | |||||
| Magnification Ratio at MOD (Paraxial) | 1:9.2 | 1:8.2 | 1:7.1 | 1:6.4 | |||||
| Entrance pupil position (related to image plane, in direction to object) | 189.9 mm / 7.48“ | 183.4 mm / 7.22“ | 178.1 mm / 7.01“ | 166.0 mm / 6.54“ | |||||
| Angle of view
H – V – D |
91.4° / 71.0° / 102.6° | 82.8° / 63.0° / 94.0° | 73.0° / 54.4° / 84.0° | 65.2° / 47.8° / 75.8° | |||||
| Front diameter | 114 mm / 4.49“ | 114 mm / 4.49“ | 114 mm / 4.49“ | 114 mm / 4.49“ | |||||
| Maximum housing diameter | 115 mm / 4.53″ | 115 mm / 4.53″ | 115 mm / 4.53″ | 115 mm / 4.53″ | |||||
| Weight (lens only) | 2.0 kg / 4.4lb | 2.1 kg / 4.6lb | 1.9 kg / 4.2lb | 1.8 kg / 4.0lb |
