Chimera Lighting have a range of very interesting lighting booms: they look like a small jib arm and work using the same sort of principle. There are always times when getting a light into the right spot at the right angle can be difficult. C-stands and arms are great but they are heavy and cumbersome to carry around and then you need to find suitable counterweights to help balance the weight of your light.
The Chimera booms allow for far quicker and more precise adjustments by allowing the user to adjust all the angle movements with a handle. There is also a sliding counterweight system so you can achieve perfect balance depending on the lighting fixture you are using.
The booms are very quick and easy to set up and require no tools.

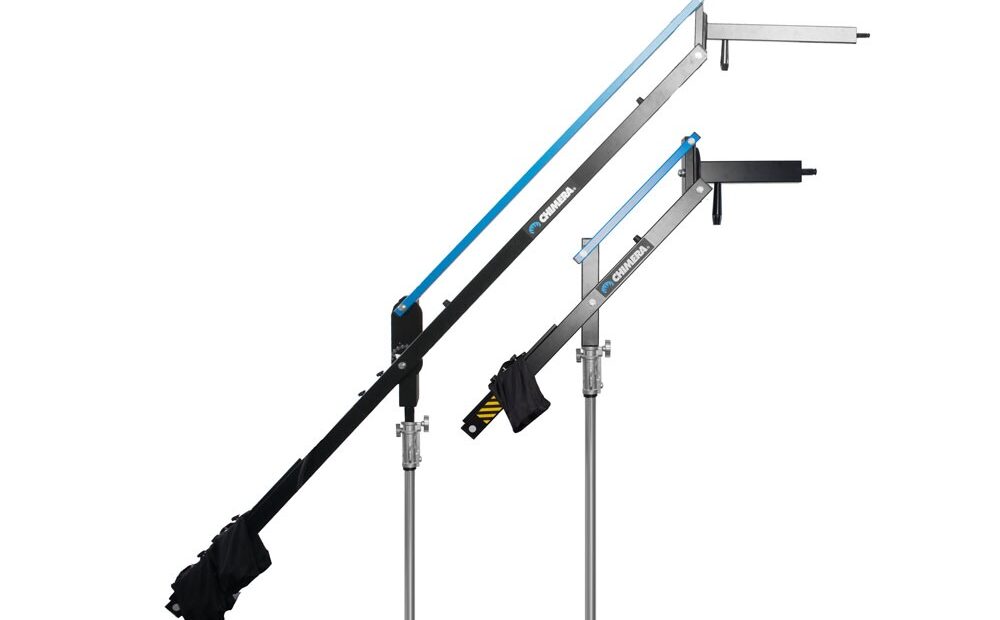

There is a Standard Light Boom (#3800) , Compact Light Boom (#3810) as well as a kit that includes a Boom, Triolet, and Chimera Pancake Lantern Kit (#1840).
Features:
● Head extension at the end of the boom offers rotation up to 360°.

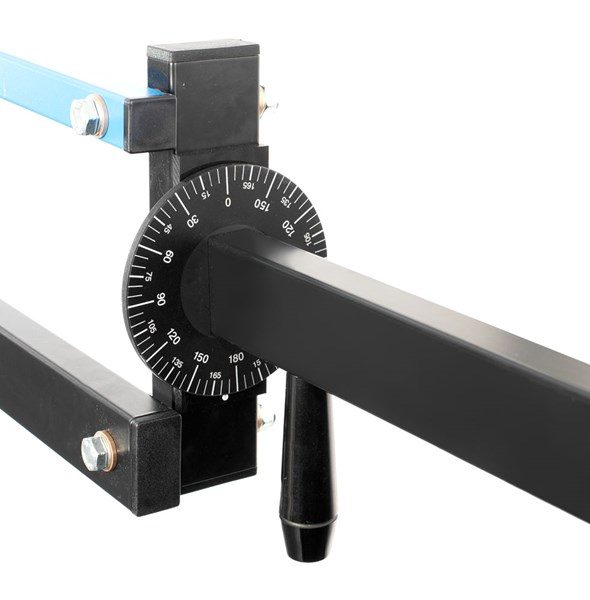

● All angle movements controlled by a handle at the pivot point.
● Sliding counterweight system adjusts for different sizes of lights and boxes.
● Self-arresting movement.
● The minimized length of the counterweight section makes it possible to use in smaller studios.
● Assembles in less than five minutes and requires no tools.
The Chimera boom systems start at $550 US for the Compact Light Boom and go up to $1550 US for the Boom, Triolet and Pancake Lantern Kit.
Standard Light Boom (3800) Specifications
Assembled Length: 9.5 ft / 2.9m
Boom Reach (with 18″ extension, included) : 6 ft / 1.8m
Maximum Payload: 15 lbs / 6.5 kg
Stand Mount: Combo Baby / Junior Pin
Light Mount: 5/8″ Baby Pin (Hex-Sided)
Lantern and standard light boom kit – 1840
The Chimera Lantern and Standard Boom Kit comes complete with a large pancake lantern, standard boom, and triolet. The kit comprises:
1 Standard Light Boom (3800) with 18″ Extension
2 Counterweight Bags (Empty, capable of 15 lbs. of lead shot)
1 Chimera Large Pancake Lantern with Skirt
1 Chimera Triolet with Stand Adapter and Quick-Release Ring
Standard Light Boom (3800) Specifications
Assembled Length: 9.5 ft / 2.9m
Boom Reach (with 18″ extension, included) : 6 ft / 1.8m
Maximum Payload: 15 lbs / 6.5 kg
Stand Mount: Combo Baby / Junior Pin
Light Mount: 5/8″ Baby Pin (Hex-Sided)
Chimera Large Pancake (1870) Specifications
Diameter: 48 in / 122 cm
Depth 19 in / 48 cm
Max wattage: 2000W Continuous
Weight: 5.75 lbs / 2.61 kg
Chimera Triolet Specifications
Bulb Base: E39 Mogul Screw Base or E26 Medium Standard Screw Base (with included adapter)
Max Wattage: 1000W/120V
Cable Length: 5 ft / 1.5 m
Weight: 3.75 lbs / 1.7 kg
Mounting: 5/8” Baby Pin
Compact Light Boom (3810) Specifications
Assembled Length: 52 in / 1m
Boom Reach (with 12″ extension, included) : 32 in / 81cm
Maximum Payload: 7.5 lbs / 3.5 kg.
Stand Mount: Combo Baby / Junior Pin
Light Mount: 5/8″ Baby Pin (Hex-Sided)
