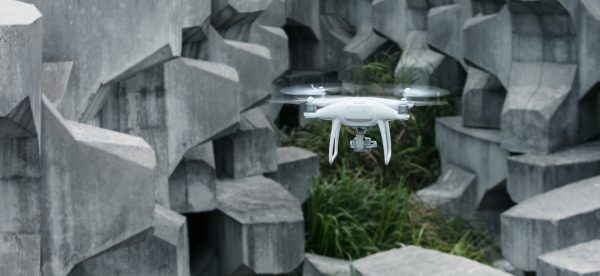

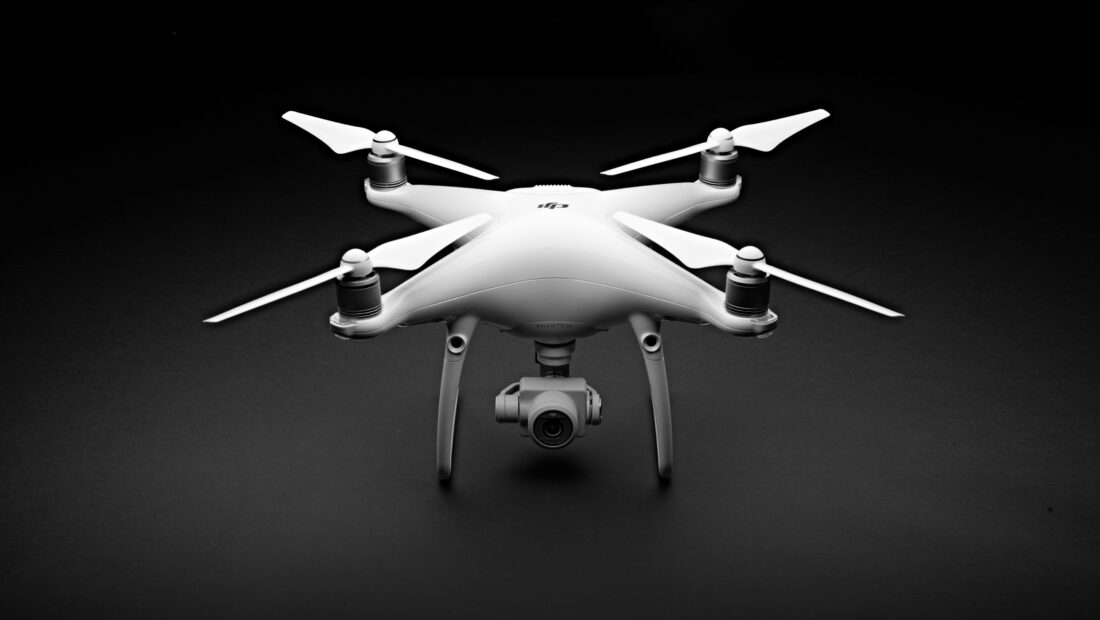

DJI have unveiled a new addition to the company’s Phantom range of UAVs – the Phantom 4 Advanced. The new Phantom 4 Advanced model has the ability to record 4K video at 60 frames per second – though apart from that there isn’t a lot of difference between it and the Phantom 4 Pro.
Same sensor as Phantom 4 Pro
The Phantom 4 Advanced looks like it is using the same one inch, 20-megapixel sensor with a 24mm f/2.8 lens as the Phantom 4 Pro. The Advanced version has more powerful video processing to enable H.264 4K at 60fps or H.265 4K at 30fps capture, unfortunately the bitrate is still only 100Mbps. The Phantom 4 Pro is able to record 60fps, but at a maximum resolution of 2.7K at 80Mbps. DJI claim the Phantom 4 Advanced’s new camera provides excellent optical performance, capturing footage in high dynamic range with increased image detail.
Phantom 4 Advanced: evolution not revolution
Similar to the Phantom 4 Pro, it comes with many key intelligent features that allow smooth automatic flight modes, including Draw, ActiveTrack, TapFly, Gesture and Tripod. The drone is also equipped with the FlightAutonomy system made up of five vision sensors, forward-facing obstacle avoidance system, dual-band satellite positioning (GPS and GLONASS), and ultrasonic rangefinders. According to DJI the Phantom 4 Advanced is able to hover precisely in places without GPS and fly in complex environments.
Advanced, not Pro
Unlike the Phantom 4 Pro, the Phantom 4 Advanced does not have rear vision sensors and two infrared sensors in its FlightAutonomy system. Also, its remote controller does not support the 5.8 GHz frequency band, and Tapfly Backward has been removed.
Phantom 4 Advanced Plus
The Phantom 4 Advanced+ version offers a 5.5-inch 1080p screen integrated into the controller. DJI claim that the screen is more than twice as bright as conventional smart devices, making it suitable for outdoor use. The Phantom 4 Advanced also has the same 128GB microSD card capacity as the Phantom 4 Pro. The flight time is a claimed 30 minutes.
Farewell Phantom 4
With the announcement of the Phantom 4 Advanced, the original Phantom 4 model will be discontinued on April 30, 2017. DJI will continue to provide after sales support to Phantom 4 customers and their aircraft will still be able to be flown using the DJI GO 4 app.
The US retail price of the Phantom 4 Advanced and Phantom 4 Advanced+ will be $1,349 US and $1,649 US respectively.
What do you think about the Phantom 4 Advanced? Let us know in the comments below.
Specifications from DJI
AIRCRAFT
Weight (Battery & Propellers Included) 1368 g
Diagonal Size (Propellers Excluded) 350 mm
Max Ascent Speed S-mode: 19.7ft/s(6 m/s)
P-mode:16.4ft/s(5 m/s)
Max Descent Speed S-mode:13.1ft/s(4 m/s)
P-mode:9.8ft/s(3 m/s)
Max Speed S-mode: 45 mph (72 kph)
A-mode: 36 mph (58 kph)
P-mode: 31 mph (50 kph)
Max Tilt Angle 42°(S-mode)
35°(A-mode)
25°(P-mode)
Max Angular Speed S-mode: 250°/s
A-mode: 150°/s
Max Service Ceiling Above Sea Level 19685 feet (6000 m)
Max Flight Time Approx. 30 minutes
Operating Temperature Range 32° to 104°F (0° to 40°C)
Satellite Positioning Systems GPS/GLONASS
Hover Accuracy Range Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GPS Positioning)
Horizontal:
±0.3 m (with Vision Positioning)
±1.5 m (with GPS Positioning)
VISION SYSTEM
Vision System Forward Vision System
Downward Vision System
Velocity Range ≤31 mph (50 kph) at 6.6 ft (2 m) above ground
Altitude Range 0 – 33 feet (0 – 10 m)
Operating Range 0 – 33 feet (0 – 10 m)
Obstacle Sensory Range 2 – 98 feet (0.7 – 30 m)
FOV Forward: 60°(Horizontal), ±27°(Vertical)
Downward: 70°(Front and Rear), 50°(Left and Right)
Measuring Frequency Forward: 10 Hz
Downward: 20 Hz
Operating Environment Surface with clear pattern and adequate lighting (lux>15)
REMOTE CONTROLLER
Operating Frequency 2.400 – 2.483 GHz
Max Transmission Distance 2.400 – 2.483 GHz (Unobstructed, free of interference)
FCC: 4.3 mi (7 km)
CE: 2.2 mi (3.5 km)
SRRC: 2.5 mi (4 km)
Operating Temperature Range 32° to 104°F (0° to 40°C)
Battery 6000 mAh LiPo 2S
Transmitter Power (EIRP) 2.400 – 2.483 GHz
FCC: 26 dBm
CE: 17 dBm
SRRC: 20 dBm
Operating Current/Voltage 1.2 [email protected] V
Video Output Port GL300E: HDMI
GL300C: USB
Mobile Device Holder GL300E: Built-in display device (5.5 inch screen, 1920×1080, 1000 cd/m2, Android system, 4 GB RAM＋16 GB ROM)
GL300C: Tablets and smart phones
INTELLIGENT FLIGHT BATTERY
Capacity 5870 mAh
Voltage 15.2 V
Battery Type LiPo 4S
Energy 89.2 Wh
Net Weight 468 g
Charging Temperature Range 41° to 104°F (5° to 40°C)
Max Charging Power 100 W
GIMBAL
Stabilization 3-axis (pitch, roll, yaw)
Controllable Range Pitch: -90° to +30°
Max Controllable Angular Speed Pitch: 90°/s
Angular Control Accuracy ±0.02°
CAMERA
Sensor 1’’ CMOS
Effective pixels: 20M
Lens FOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8 – f/11 auto focus at 1 m – ∞
ISO Range Video:
100 – 3200 (Auto)
100 – 6400 (Manual)
Photo:
100 – 3200 (Auto)
100- 12800 (Manual)
Mechanical Shutter Speed 8 – 1/2000 s
Electronic Shutter Speed 8 – 1/8000 s
Image Size 3:2 Aspect Ratio: 5472 × 3648
4:3 Aspect Ratio: 4864 × 3648
16:9 Aspect Ratio: 5472 × 3078
PIV Image Size 4096×2160
3840×2160
2720×1530
1920×1080
1280×720
Still Photography Modes Single Shot
Burst Shooting: 3/5/7/10/14 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval: 2/3/5/7/10/15/20/30/60 s
Video Recording Modes H.265
C4K:4096×2160 24/25/30p @100Mbps
4K:3840×2160 24/25/30p @100Mbps
2.7K:2720×1530 24/25/30p @65Mbps
2.7K:2720×1530 48/50/60p @80Mbps
FHD:1920×1080 24/25/30p @50Mbps
FHD:1920×1080 48/50/60p @65Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @25Mbps
HD:1280×720 48/50/60p @35Mbps
HD:1280×720 120p @60Mbps
H.264
C4K:4096×2160 24/25/30/48/50/60p @100Mbps
4K:3840×2160 24/25/30/48/50/60p @100Mbps
2.7K:2720×1530 24/25/30p @80Mbps
2.7K:2720×1530 48/50/60p @100Mbps
FHD:1920×1080 24/25/30p @60Mbps
FHD:1920×1080 48/50/60 @80Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @30Mbps
HD:1280×720 48/50/60p @45Mbps
HD:1280×720 120p @80Mbps
Max Video Bitrate 100 Mbps
Supported File Systems FAT32 (≤32 GB); exFAT (>32 GB)
Photo JPEG, DNG (RAW), JPEG + DNG
Video MP4/MOV (AVC/H.264; HEVC/H.265)
Supported SD Cards Micro SD
Max Capacity: 128GB
Write speed ≥15MB/s, Class 10 or UHS-1 rating required
Operating Temperature Range 32° to 104°F (0° to 40°C)
CHARGER
Voltage 17.5V
Rated Power 100 W
APP / LIVE VIEW
Mobile App DJI GO 4
Live View Working Frequency 2.4 GHz ISM
Live View Quality 720P @ 30fps
Latency Phantom 4 Adv: 220 ms (depending on conditions and mobile device)
Phantom 4 Adv +：160 – 180 ms
Required Operating Systems iOS 9.0 or later
Android 4.4.0 or later
Recommended Devices iOS:iPhone 5s, iPhone SE, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPhone 7, iPhone 7 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4 and iPad mini 4 Wi-Fi + Cellular.
This app is optimized for iPhone 7, iPhone 7 Plus.
Android:Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 6p, Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei P8 Max, Huawei Mate 8, LG V20, Nubia Z7 mini, Sony Xperia Z3, MI 3, MI PAD, Smartisan T1.
*Support for additional devices available as testing and development continues.
